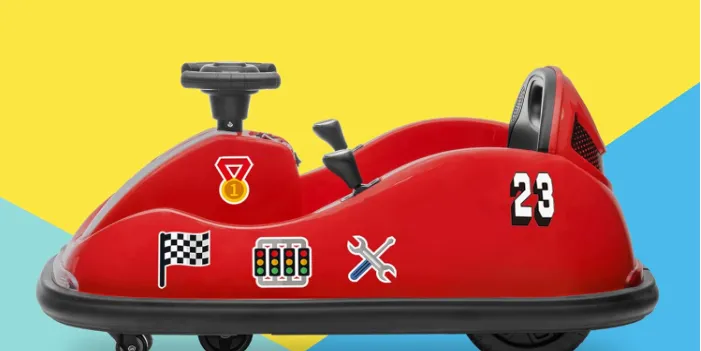

Introducing the Kidzone Ride-On Bumper Car 060-ROT-07

The Kidzone Ride-On Bumper Car 060-ROT-07 is the ideal toy for your child to enjoy limitless fun and excitement! This ride-on bumper car is intended for children aged 3 to 8 years old and can support a maximum weight of 66 pounds. With its bright and colorful appearance, this bumper car will capture your child's interest and provide hours of entertainment.

SPECIFICATIONS

Motor: 12V 25W*2
Battery: 6V 4.5AH*2
Charger: 12V 1000MA
Speed: 1.2~~1.9 mph (2~~3 km/h)
Suitable Age: 18 - 72 months
Maximum User Weight: 66 lb / 30 kg
Dimension: 31.50” x 21.26” x 15.75” (800 x 540 x 400 mm)
Battery Charge Time: 8 - 12 hours
First charging time: 10~12 hours
Max charging time: 20 hours
Battery (Temperature Tolerance): -15°C (-5°F) to 60°C (140°F)
Operation Time: 1~2 hours

Parts and Features

Assembly Instructions

Lift up the 1 Vehicle Body and insert the 3 Steerable Front Wheel through the opening.
Unscrew the 8 M5*39 Screw and 10 M5 Nut from the 2 Steering Wheel.
Align and insert the 2 Steering Wheel to the front wheel column. Using 8 M5*38 Screw and 10 M5 Nut to fix the steering wheel on the top of the steerable front wheel column.
Power supply is located under the seat location. Plug the connector to the terminal on the battery.
Unscrew the attached 4 pcs 9 M4 x 10 Tapping Screws.
Insert the 4 Backrest to the 1 Vehicle Body and secure it by using two 9 M4 x 10 Tapping Screws.
Put on the Seat and secure it by using two M4 x 10 Tapping Screws.

User Instruction

Start Switch
- Turn the product on and off.
Light Switch
- Turn on and off the light.
High-Low Speed Switch
- Press to switch between high and low speed.
Charging Slot
- Plug the charger in to charge the battery.
Indoor / Outdoor Switch
- Switch between indoor and outdoor mode.
Steering Wheel
- Steer the vehicle left and right. Only operate in outdoor mode.
Foot Pedal
- Step on the pedal to move the vehicle. Only operate in outdoor mode.
Forward / Reverse / Stop Switch
- Press the switch to enable. Do not change the speed or direction until the vehicle comes to a complete stop.
Control Stick
- Move and turn the vehicle by pushing or pulling the control stick. Only operate in indoor mode.

Detailed Description

Your youngster will enjoy and stay safe on the Kidzone Ride-On Bumper Car 060-ROT-07. Its strong design makes this bumper car safe and long-lasting for your child. Your child will ride safely in the car's soft start and stop system. As the automobile spins 360 degrees, your child can move in any direction.
The Kidzone Ride-On Bumper Car 060-ROT-07 has a built-in audio system that plays enjoyable songs to keep your child entertained. LED lights make the car more fun for kids. This bumper car is easy for kids to drive with its foot pedal and steering wheel.

Bluetooth Connection

To connect your mobile device to the vehicle, turn on Bluetooth and select "KIDZONE BUMPER CAR". There is a voice message after pairing successfully. Music can be played from the vehicle speaker according to user preferences.
To disconnect your mobile device from the vehicle speakers, turn off Bluetooth.

Indoor Mode

When using the vehicle indoors, switch the setting to indoor mode:

Lift up the vehicle body.
Press the plastic buckle and fold up the steerable front wheel into the body.
Press the switch to indoor mode.
Control the vehicle using the control stick on the side of the vehicle.

NOTE: Control sticks can only be operated in indoor mode.
Remote control can only be operated in indoor mode.

Operating this vehicle by using control stick

To move the vehicle forward, push both control sticks forward at the same time.
To move the vehicle backward, pull both control sticks backward at the same time.
To left turn the vehicle forward, push the right control stick forward.
To right turn the vehicle forward, push the left control stick forward.
To left turn the vehicle backward, pull the right control stick backward.
To right turn the vehicle backward, pull the left control stick backward.
To left spin the vehicle, pull the left control stick backward and push the right control stick forward at the same time.
To right spin the vehicle, push the left control stick forward and pull the right control stick backward at the same time.
To stop the vehicle, release both control sticks and returns them to the center position.

Outdoor Mode

When using the vehicle outdoors, switch the setting to outdoor mode:

Lift up the vehicle body.
Press the plastic buckle and fold down the steerable front wheel.
Press the switch to outdoor mode.
Control the vehicle using the steering wheel and foot pedal.

NOTE: Remote control can only be operated in indoor mode. Do not use the remote control in outdoor mode to prevent damaging the vehicle.

Remote Control

Forward Button
- Press to move the vehicle forward.
Reverse Button
- Press to move the vehicle backward.
Speed Selection Button
- Press to switch between low, medium, or high speed.
Stop Button
- Press to stop the vehicle.
Right Button
- Press to turn the vehicle to the right.
Left Button
- Press to turn the vehicle to the left.
Speed Indicator
- One light indicates low speed.
- Two lights indicate medium speed.
- Three lights indicate high speed.

Using the remote control

The remote control should only be used by an adult.

ATTENTION: The remote control will override all control input from the vehicle control sticks.
The remote control should only be used when the vehicle is in indoor mode.

Insert / Changing Battery

Open the battery cover on the back side of the remote control.
Insert 2 AAA 1.5v cell batteries in the correct polarity.
Put the cover back on the remote control.

NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.

WARNING! The battery should only be changed by an adult.

Pairing the Remote Control to the Vehicle

Press Forward and Reverse buttons simultaneously until the indicator light flashes.
Turn on the vehicle power.
The indicator light will stay on when the pairing is successful.

Charging

WARNING! The battery should only be charged by an adult. The battery is not replaceable.

Charging the battery

Insert the charging cable into the charging port located in front of the indoor/outdoor switch.
Insert the charger plug into a wall outlet, and the battery will start charging.
The charger indicator turns red when charging, turns green after charging is completed.

NOTES

The vehicle must be OFF when charging.
Recharge the battery if the vehicle operates slowly.
The vehicle is equipped with charging protection. All functions of the vehicle will not be operated when charging.
Damage to the battery may occur if it is completely drained.
Fully charge the battery for 8-12 hours. Do not charge the battery for more than 20 hours.
Charge the battery at least once a month even if not operating the vehicle to maximize battery life.

Setup Guide

Setting up the Kidzone Ride-On Bumper Car 060-ROT-07 is easy and straightforward. Here are the steps to follow:

Charge the bumper car's battery for 8-12 hours before use.
Assemble the bumper car by attaching the steering wheel, foot pedal, and other parts according to the instructions provided in the user manual.
Turn on the power switch located at the bottom of the bumper car.
Press the start button to start the car.
Use the steering wheel and foot pedal to control the car's movement.

Care and Maintenance

Check the product regularly and make sure there are no missing or loose parts. Re-tighten any loose parts if necessary.
Make sure there are no cracked or broken plastic parts.
Keep the product away from heat and humid areas, cover it with a tarp when not in use.
Turn off the product and disconnect the battery if the product is not used for a long period of time.
Clean the vehicle with a cloth. Use a non-wax furniture polish to restore the shininess of the plastic parts. Do not use abrasive cleaners.
Do not wash the product with a hose or immerse any parts in water or other liquids.
Occasionally use lightweight oil to lubricate moving parts.

ATTENTION

This vehicle is packed with the battery disconnected. Connect the battery before use.
This manual contains important safety, performance and maintenance information. Read the manual thoroughly before allowing your child to ride your new electric ride-on toy. Failure to read the user manual can result in property damage or bodily injuries.
Keep this user manual for future reference.

Safety Instructions

When using electrical products, basic safety precautions should always be followed, including the following:
Read all instructions before operating this product.

WARNING

To protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in any liquids.
Only use charging devices, transformer, and battery provided or recommended by the manufacturer.
For your children’s safety, the product should be assembled by adults only.
This toy is not intended for children under 18 months.
Close and constant adult supervision is required when your child is operating this product.
Disconnect the battery if not used for an extended period of time.
To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than 1 rider.
Do not use this product on slippery surfaces.
Always keep hands, hair, and clothing away from moving parts.
Maximum user’s weight for this product is 66 lb/30 kg.
Do not change, modify, or add any electrical wiring on this product.
Avoid using this product in tight environments to prevent damage to the product or injury to the user.
Do not use this product in the dark. Only operate this product during daytime or in well-lit areas.
For your child’s safety, please make sure the seat belt is securely fastened when operating this product.
Personal protective equipment such as a helmet is required when operating this product.

WARNING: Fire Hazard

Never modify the electrical system. Alteration could cause a fire resulting in serious injury and could permanently damage the electrical system.
The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
Never allow children to charge the battery. Battery charging must be done by adults only.
Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause injury.
Examine the battery, charger, and their connectors for excessive wear or damage each time before you charge the battery. DO NOT use the charger or battery until worn or damaged parts are replaced.

WARNING

Avoid continuously hitting obstacles to prevent overheating or damaging the motor. Drive away or remove obstacles as soon as possible.

WARNING

Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage, or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modification, or neglect of this product.

WARNING

Stop operating this product whenever it is stuck under any circumstances.
Friction Hazards! Do not operate this product on carpets or rugs, as it may cause burns or fire if overrun or overspin. This product has an automatic cut-off function if overcurrent, overloaded, or operated incorrectly. Wait for 10-15 seconds to reactivate this product automatically.
This toy is to be assembled by an adult. It contains potentially hazardous sharp edges and sharp points, or small parts before assembly.
Do not drive this vehicle into any puddle or contact with any liquids to avoid electrical shock to the product or user.

WARNING: FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner's manual contains assembly, use, and maintenance instructions.

Child Safety Warnings

Adults supervising children must read and understand this entire manual before allowing any child to use this product.
Adults must evaluate their own children as to maturity, strength, judgment, and ability to follow safety rules. Published age guidelines are not a substitute for careful evaluation of your own child.
Adults must teach children about thinking ahead while riding as this may be the first time a child has ever controlled a motorized ride-on toy. While you supervise, see through the child's eyes, and verbally teach them about steering and avoiding obstacles in the approved riding area.
Riding a motorized ride-on toy can be a dangerous activity, even under the best of circumstances. Good choices regarding where and when to ride, constant adult supervision of riding, and practice and careful riding by the child can all help to minimize risk. However, this ride-on toy is intended to move, and therefore it is possible for the rider to lose control, fall off and/or get into dangerous situations that no amount of care, instruction, or expertise can eliminate.
If this inherent risk is not acceptable, adults should not allow children to ride this ride-on toy.

Safe Riding Warnings

Not to be used by children under 18 months or children over 72 months.
Do not exceed the maximum weight capacity of 66 lbs (30 kg).
Do not allow more than one (1) rider.

ADULTS AND SUPERVISORS, PLEASE NOTE

Always instruct all children on common sense rules and safe practices.
Be aware that flat, hard surfaces provide the safest experience for child riders.
Do not allow the child rider to operate the ride-on toy near streets, roads, sidewalks, walkways, or any other place where they may encounter other moving vehicles.
Never leave children unattended with this ride-on toy. Continuous adult supervision is required.
If necessary, adults and supervisors are always responsible for setting up gates and barriers to ensure a safe riding environment for the child rider.
Be aware that this ride-on toy does not have braking capabilities. Allowing the use of this ride-on toy in areas that require braking may cause rolls, crashes, serious injury, or death to the child rider.
Teach children not to allow other children to use this ride-on toy. Communicate this message to other adults and supervisors of fellow children with whom your child interacts.
Sternly alert children that hands, legs, hair, and clothing can potentially get caught in moving parts. Ensure they never place a body part or piece of clothing near a moving part of the ride-on toy. Avoid loose clothing.
Instruct children to always wear shoes when using the ride-on toy.
Confirm that children do not have access to the charging equipment or come into contact with any part of the ride-on toy while it is charging.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
Firmly instruct children to use the ride-on toy in a safe manner. Unsafe behaviors include, but are not limited to:
- Traveling at unsafe speeds
- Not riding in the seated position
- Riding at night or in any conditions of low visibility
- Riding in any wet conditions including rain, snow, and ice
- Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other actions involving any notable risk
- Any kind of off-road riding: rough terrain, dirt, mud, gravel, or any others that involve notable risk
- Riding near any pool or open body of water
- Pushing, pulling, or shoving the driver in any way while operating the ride-on toy
- Using the ride-on toy without the battery cover or similar other safety cover fully closed
- Pulling or hitching the ride-on toy with other similar moving ride-on toys or products

Troubleshooting

Problem	Possible Reason	Solution
Vehicle does not move	Low Battery	Fully charge the battery
	Fuse Protection	Reset fuse
	Disconnected / Badly connected battery	Reconnect the battery
	Failed battery / engine	Contact Customer Service
Vehicle does not run very long	Low Battery	Fully charge the battery
	Old Battery	Replace battery if necessary
Vehicle runs very slow	Low Battery	Fully charge the battery
	Old Battery	Replace battery if necessary
	Vehicle is overloaded	Make sure user’s weight is under 66 lb / 30 kg
	Vehicle is being used in harsh environment	Avoid using the vehicle in harsh environments
Vehicle needs a push to go forward	Poor wire connection	Check if the battery connectors are firmly connected. Contact Customer Service if necessary
	“Dead spot” on motor	Contact Customer Service
Loud grinding sound or clicking sound from the motor or gear box	Damaged motor or gear box	Contact Customer Service
Battery does not charge	Disconnected / Badly connected battery	Reconnect the battery
	Disconnected / Badly connected charger	Ensure the charger is plugged into the power source and connected to the charging port
	Charger not working	Contact Customer Service
Vehicle does not stop	Damaged equipment	Contact Customer Service
Charger becomes warm during charging	Normal	N/A

Warranty

KIDZONE warrants that its merchandise is free from manufacturing defects (workmanship and/or material) and will either give credit or replace defective parts for a period of up to one (1) year from the date of purchase in accordance with the conditions set forth below. If a manufacturing defect is found, KIDZONE should be notified promptly of the defect and supplied with a copy of the invoice and delivery ticket. Inspection by a KIDZONE employee or representative may be necessary to verify that a manufacturing defect exists, or you may be required to submit samples to KIDZONE along with a digital image of the defects.

Pros & Cons

Pros

Safe and durable design
Fun and entertaining features, such as built-in music and LED lights
Easy to operate and maneuver
Reasonable price

Cons

Older kids may find 1.3 mph too sluggish.
The 66-lb limit may not fit larger youngsters.

Customer Reviews

Customers have praised the Kidzone Ride-On Bumper Car 060-ROT-07 for its fun and entertaining features, safe and durable design, and easy-to-operate controls. Some common complaints include the long charging time and short running time. However, many customers have said that the pros of this bumper car outweigh the cons and that their children have had a blast using it.

Search Manuals in: 060-rot-07

Read More
