Introduction

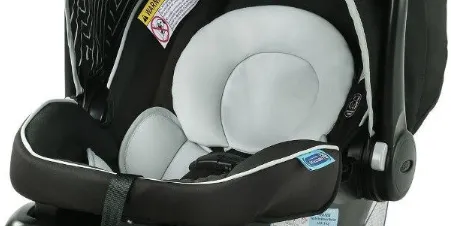

The Graco SunGridge 35 Liter Infant Car Seat 2121500 is a lightweight and budget-friendly option designed for infants weighing between 4 to 35 pounds and up to 32 inches tall. It features a 4-position adjustable base for easy installation, a rotating canopy for sun protection, and soft head and body supports for comfort. This car seat is compatible with Graco strollers, allowing for a convenient travel system. The price of the Graco SnugRide 35 Lite is $119.99.

Available in the market since 2019 This car seat is designed to be lightweight while maintaining robust safety features, making it an excellent option for parents who need a reliable and portable solution.

Product Details

Weight:** Approximately 7.5 pounds
Dimensions:** 27.5 x 16.5 x 24 inches
Material:** Durable plastic and fabrics

Usage Purpose

For transporting infants safely in vehicles

Replacement Parts

To purchase parts or accessories in the United States, please contact us at the following: https://www.gracobaby.com

Accessories (on select models)

To prevent ejection in sudden stop or crash: The infant head and body support can be used for infants 12 lb (5 kg) or less.

Infant Head and Body Support

To remove:

Loosen Harness Straps
Push down on the harness release lever while pulling out on the harness straps at the chest clip.
Remove Harness Straps from the Plate
Pull Harness Straps Out From the Front of Car Seat
Remove the body support from the seat.
Reverse the steps to reattach the harness straps. Make sure harness straps are not twisted.

Quick Guide to Your Car Seat

This car seat is for children 4-35 lb (1.8-16 kg) and 32” (81 cm) or less.

What Seating Location Should I Use?

The best seating location for this infant car seat is one that:

Is recommended by your vehicle owner’s manual, and
Results in a secure installation of this car seat.

Never place a child rear-facing in a seating position with an active front airbag.

Which Installation Method Should I Use?

This infant car seat base can be installed in your vehicle using either the vehicle seat belt OR the Lower anchor attachment system. Both are equally safe to use. DO NOT USE BOTH AT THE SAME TIME. This infant car seat carrier can be installed in your vehicle using only the vehicle seat belt. A lower anchor attachment is not available to install the carrier.

When Installing Base

Lower Anchor Attachment System
Lower anchor attachment consists of lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in in your car seat.


Review section 3-B of this manual AND your vehicle owner’s manual.

when_installing_carrier_graco_snugride_35_lite_infant_car_seat.png Vehicle Seat Belt
There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.


Review section 3-C of this manual AND your vehicle owner’s manual.

when_installing_carrier_graco_snugride_35_lite_infant_car_seat.png When Installing Carrier

Vehicle Seat Belt
There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Review section 3-D of this manual AND your vehicle owner’s manual.

Does Your Seat Fit Your Child Correctly?

To make sure your child is secured properly, review section 4 to understand all of the actions you need to take to properly adjust the car seat to fit your child.

You Need To Adjust

Harness Height
Harness straps at or just below the child’s shoulders. Review section 4-A.
Buckle Position
The correct slot is the one that is closest to your child without being underneath them. Review section 4-B.
Harness Tightness
If your fingers slide off the harness straps without pinching the straps, it is tight enough. Review section 4-C.

Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft. According to the AAP, these infants may suffer breathing issues if improperly reclined in a car seat. Use the corrected age for preemies. Graco advises that you have your physician or hospital staff evaluate your infant and recommend the proper car seat or car bed before you and your infant leave the hospital.

Did You Do Everything Correctly?

Base or Car Seat Does

Do not Move More Than 1” (2.5 cm) At The Belt Path
Car Seat Level to Ground
Car Seat Is Properly Attached To Base
Cannot Pinch Harness Harness straps at or just below the child’s shoulders.
Chest Clip Even With Armpits


Detailed Specifications

Lightweight Design:** Weighs only 7.5 pounds, making it easy to carry.
Click Connect Technology:** Easy one-step attachment to Graco strollers and bases.
Impact-Absorbing Foam:** Provides extra protection in the event of a crash.
Absorbing foam Liner: Reduces the force of impact.
Machine Washable Seat Pad:** Easy to clean and maintain.
Adjustable Canopy:** Offers sun protection for your infant.
Soft, Breathable Fabric:** Ensures comfort during rides.

Car Seat Features

Carry Handle
Canopy
Infant Head and Body Support
Handle Adjustment Buttons
Rear-Facing Belt Path (When Used Without Base)
Harness Release Lever (Under Pad)
Harness Adjustment Strap
Removable Base
Car Seat Shell
Base Release Lever
Instruction Manual Storage (Under Base)
Chest Clip
Harness Straps
Buckle Tongues
Buckle
Buckle Strap

Base Release Lever
Harness Strap Slots
Harness Straps
Buckle Metal Clip
Splitter Plate
Car Seat Base Lock
Base Rear-Facing Belt Path
Lower Anchor Attachment Strap
Instruction Manual Storage (Under Base)
Lower anchor Attachment Storage (Under Base)
Base Recline Lever
Base Recline Foot

Removing Car Seat from Base

To Remove Car Seat from Base
From the back of the car seat, squeeze the base release handle and lift the car seat out of the base.

Attaching Car Seat to Base

Attaching Car Seat To Base
Align the locking bar at the front of the car seat with the locks in the base. Set car seat in the base. Push down on the front of the car seat. You will hear a “click” when it is locked. Pull up on the front corners of the seat to make sure it is locked.

Adjusting Carry Handle

To Rotate Handle
Press the handle adjustment buttons on both sides of handle.
MAKE SURE handle locks into position before lifting the carrier.
Handle Has 4 Positions
Rotate handle to any of the 4 locked positions. Push and pull the handle to make sure handle is in a lock position. Carry handle MUST be upright in position A when carrying. Handle can be in any locked position when used in the vehicle.

Reclining the Base

Base Has 4 Recline Positions
Squeeze the base recline lever and lift the base to extend the foot.
Squeeze the base recline lever and lower the base to retract the foot.
Check the level line for appropriate install.
When the foot is completely extended and the level line is not level with the ground, you may raise the foot and place a rolled towel under the foot until the level line is level with the ground.

Description

The Graco SnugRide 35 Lite Infant Car Seat is crafted with both safety and convenience in mind. Its lightweight design makes it simple to move between vehicles and strollers, while its robust safety features ensure your infant's protection. The seat includes a comfortable, machine-washable pad and an adjustable canopy to shield your baby from the sun. The Click Connect technology allows for a seamless transition between the car seat and compatible strollers or bases.

Choosing Vehicle Seat Location

Some vehicles have specific requirements for where the car seat can be installed. Be sure to check your vehicle owner’s manual for all available seating positions.

According to accident statistics, the safest place for your child in any vehicle is the back seat. The center of the back seat can be the safest during a possible side impact.


WARNING: NEVER place this child restraint rear-facing in a vehicle seating location that has an active front air bag.

In the event there is no back seat, review your vehicle owner’s manual to see how to use your infant child restraint.

Choosing Lower Anchor Attachment or Seat Belts

This car seat can be installed in your vehicle using either the vehicle seat belt OR the Lower anchor attachment system. Both systems are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.

What is Lower Anchor Attachment?

Lower anchor attachment consists of lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in to your car seat. Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the child seat to the vehicle.

Typical seat in a passenger vehicle. Other vehicle types may have different lower anchor attachment locations.


Is Everything Correct?

Base Does Not Move More Than 1” (2.5 cm) At The Belt Path
Car Seat Is Properly Attached To Base
Check the Level Line
Cannot Pinch Harness
Chest Clip Even With Armpits

Setup Guide

To set up your Graco SnugRide 35 Lite Infant Car Seat, follow these steps:

Install Base:** Secure the base in your vehicle using either the LATCH system or the vehicle's seatbelt. Ensure it is level and stable.
Attach Seat:** Click the car seat into the base using the Click Connect technology.
Adjust Harness:** Adjust the harness to fit your infant snugly, ensuring proper positioning.
Check Installation:** Verify that the car seat is securely installed and your infant is properly harnessed.

Cleaning Seat Pad

Loosen Harness Straps
Push down on the harness release lever while pulling out on the harness straps at the chest clip.
Remove Harness Straps from Plate
Pull Harness Straps Out From the Front of Car Seat
Pull Out the Plastic Flaps from the Sides of the Seat
Pull Pad Off Shell
Remove Canopy from Canopy Hoop
Slide the canopy to one side of the canopy hoop. Push the center of the latch down and pull it apart to open the canopy hoop. Slide the canopy off the hoop to remove the canopy.
Machine wash pad and canopy in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
Reverse the steps to reattach the pad and canopy. Make sure harness straps are not twisted.

Before You Begin

Your child’s safety depends on you. No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death. Even if this car seat seems easy to figure out on your own, you must follow the detailed instructions in this instruction manual to ensure the steps below are performed correctly.

Register for This Child Restraint

Please fill out the prepaid registration postcard attached to the harness and mail it in today or register online at https://www. gracobaby.com/carseatregistration
Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, and the restraint’s model number and manufacturing date to:

Safety Warnings

No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death. READ THIS MANUAL CAREFULLY.

WARNING: Failure to follow these instructions and child restraint labels can result in the child striking the vehicle’s interior during a sudden stop or crash.

CAUTION: NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE FRONT AIR BAG.

If an airbag inflates, it can hit the child and car seat with great force and cause serious injury or death to your child.

Review your vehicle owner’s manual for more information about airbags and car seat use.
If your vehicle does not have a back seat, review your vehicle owner’s manual.
Always secure a car seat with a Lower Anchor Attachment or a vehicle seat belt, even when unoccupied. In a crash, an unsecured car seat can injure passengers.
If the vehicle seat belt does not hold the car seat securely, read “Vehicle Seat Belts” section 6-D and your vehicle owner’s manual.
The vehicle seat belt system MUST hold the car seat securely. Not all vehicle seat belts can be used with a car seat.
Secure the car seat with a vehicle seat belt or Lower Anchor Attachment that is properly routed as shown in this manual.
DO NOT remove the Lower Anchor Attachment system from the car seat. If using a vehicle seat belt to secure car seat, Lower anchor attachment connectors must be stored.
Never leave a child unattended, even when sleeping. The child may become tangled in harness straps and suffocate or strangle.
Rear-facing car seat must be properly leveled:
- Too reclined can result in injury or ejection.
- Being too upright can result in breathing difficulties.
Never attach two Lower anchor attachment connectors to one vehicle's lower anchor point unless specifically allowed by the vehicle manufacturer.

Troubleshooting

Common Problems and Solutions

Incorrect Installation: Ensure the base is level and securely fastened to the vehicle.
Loose Harness: Adjust the harness so it fits snugly but not too tightly.
Canopy Issues: Check if the canopy is properly attached and adjusted.

Instructions and Warnings
Always follow the manufacturer's instructions for installation, use, and maintenance. Never leave your infant unattended in the car seat, and ensure the car seat is installed correctly before each use. ####

Pros & Cons

Pros

Lightweight: Easy to carry and move between vehicles.
Easy Installation: Click Connect technology simplifies attachment.
Safety Features: Impact-absorbing foam and energy-absorbing foam liner for enhanced safety.
Comfortable: Soft, breathable fabric ensures comfort for your infant.
Portable: Compatible with Graco strollers for seamless transitions.

Cons

Limited Size Range: Suitable only for infants up to 35 pounds or 32 inches tall.
Base Sold Separately: Some consumers find it inconvenient that the base is not included with every purchase.
Storage Space: The car seat can take up significant space when not in use.

Customer Reviews

Parents praise the Graco SnugRide 35 Lite for its ease of use, lightweight design, and robust safety features. However, some users find it slightly bulky when not in use. Overall, it is highly rated for its comfort and convenience. **Most Common Complaints:** - Some users report issues with canopy adjustment. - A few customers find it challenging to clean certain parts of the seat.
