Introduction

Butterfly presents superior finish Glass Top LPG Stoves that come with a toughened glass surface in glossy finish and have an easy-clean anti-corrosive stainless steel body. The Butterfly Glass Top stove's stunning contemporary design and user-friendly features are the outcome of diligent research and extensive consumer feedback. The result is a product that makes your everyday cooking fast, convenient, free of intervention, and a lot of fun.

This is the latest addition to the family of Butterfly home appliances which include Stainless Steel LPG Stoves, Pressure Cookers, Non-stick Cookware, Table Top Wet Grinders, Mixer - grinders, Electric Chimneys, Juicer Mixer Grinders, Hand Blenders, Electric Irons, Power Hobs, Electric Rice Cookers, Electric Kettles, Sandwich Makers, Pop up Toasters & Stainless Steel Cookwares.

This user manual contains vital information & useful practical tips to make the best use of this appliance. Please go through this manual and be familiar with the guidelines before using your gas stove.

We wish you many happy moments with Butterfly Glass Top LPG Stove.

NAME OF THE PARTS

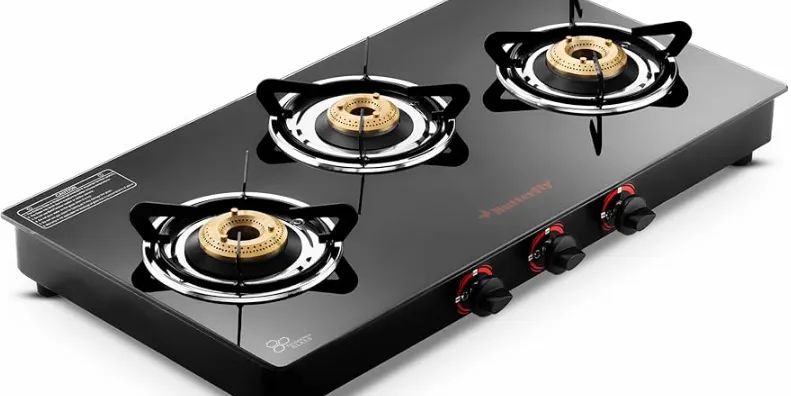

Now that you have unpacked your Butterfly Glass Top LPG Stove carton, get acquainted with the part names. Illustrations of a typical three burner stove are given below.

Note

The above illustration is only indicative and may not resemble the product supplied.
Design, shape of parts, and appearance of the stove will differ from model to model.
Two burner stove is fitted with two burner sets.
Three burner stove is fitted with three burner sets.

FEATURES

Easy to clean the stove
Aesthetic design
Heavy duty gas cock specially designed to perform with high efficiency.
High quality brass burners having uniform holes for more life and high efficiency.
Hi-tech designed pan support for placing the utensils firmly on the stove.
Extra thick gas pipe with inner & outer coating for easy gas flow and to avoid rust formation.
Unbreakable gas control knob.
1 year warranty

Detailed Specifications

The Butterfly Glass Top LPG Stove 3 Burners comes with the following key features:

3 high-performance burners with brass ignition system
Sturdy and durable pan supports
Easy to clean, high-quality toughened glass top
Safety valves and flame failure device for added protection
Superior performance with LPG cylinders
Compatible with most standard regulators
Dimensions: 55 x 45 x 8 cm
Weight: 5.5 kg

Description

The Butterfly Glass Top LPG Stove 3 Burners is a high-quality and stylish cooking option that is perfect for any modern kitchen. The stove features 3 high-performance burners with a brass ignition system that makes it easy to light. The sturdy and durable pan supports provide a stable cooking surface, while the easy to clean, high-quality toughened glass top adds a touch of elegance to your kitchen. The stove also comes with safety valves and a flame failure device for added protection. With superior performance with LPG cylinders and compatibility with most standard regulators, this stove is a convenient and reliable option for all your cooking needs.

HOW TO ASSEMBLE

STEP 1: While unpacking, make sure that all parts of the stove are included.
STEP 2: Place the gas control knob onto the gas cock stem and push it firmly inside. Repeat the process for other gas control knobs. This is required to be done only if the knobs are packed separately.
STEP 3: Attach the rubber legs to the stove by turning it upside down and fitting them into the openings provided.
STEP 4: Install the burners. STEP 5: Place the pan support on the top, locating it properly.
STEP 6: Push the rubber hose onto the gas nozzle properly. (See Fig.-3) Do not use vinyl plastic hose, as this can be dangerous. Before the stove is lit, ensure that there is no leakage at the joint by pouring a few drops of soapy water on it. If there is any leakage, you will notice some air bubbles.
STEP 7: While choosing the location to place the gas stove, be sure that there is at least one foot empty space on the sides and three feet above it.

HOW TO USE

Open the gas valve of the LPG cylinder.
Push the gas control knob inwards and turn it towards the 'ON' position and light the burner with a match stick or a lighter.
Keep the gas control knob in the 'ON' position while cooking.
As a result of air in the gas control hose, the burners may not light up for the first time. In such a case, turn the gas control knob back to the 'OFF' position and try again.
Turn the gas control knob in an anti-clockwise direction to reduce the flame.
To put 'OFF' the flame, first close the gas valve of the cylinder. Wait until the flame dies down completely and turn the gas control knob in a clockwise direction to the 'OFF' position which gives a "click" sound.
Keep the gas stove and gas cylinder valve turned 'OFF' till you use the stove again.

Setup Guide

Setting up the Butterfly Glass Top LPG Stove 3 Burners is easy and straightforward. First, make sure to place the stove on a flat and stable surface. Next, attach the LPG cylinder and regulator to the stove. Turn the knob to the 'light' position and press the ignition button to light the burner. Once the burner is lit, adjust the flame to your desired level. To clean the stove, simply wipe the glass top with a damp cloth and clean the burners and pan supports with soapy water.

IMPORTANT SAFEGUARDS

Read all instructions carefully and be thoroughly familiar with your Glass Top stove before use.
Clean the Glass Top panel with a soft cloth to maintain shininess.
Ensure that all the parts are fixed properly before turning on the gas stove.
Make sure that there are no inflammable substances near the gas stove.
The rubber gas hose should not come in contact with any part of the gas stove and should not be kept underneath it.
Check the gas hose regularly for wear and tear or leaks.
Remember to keep the gas hose free from twists or (sharp) loops and should not be subjected to external pressure.
If a gas leak is felt, close the main gas valve of the cylinder, open all windows and call your gas supply agent. Don't switch on an electric light or light a match or use a lighter when the gas leak is felt.
Ensure that the gas stove and the gas cylinder valves are turned OFF when the gas stove is not in use.
Close supervision is necessary when your gas stove is used with children around.

BURNER RATING

Burner Rating is provided on the stove. Generally, the rating will fall in the following range for use with commercial LPG at 2.942 kN/m2 (30gf/cm2).

DO's

Use liquefied petroleum gas (LPG) only.
Make sure that the room is well ventilated.
Use the stove for cooking only.
Use standard (ISI) rubber hose meant for LPG stoves.
Clean the burners regularly so that the holes in the burner are not clogged.
Check the gas tube regularly for wear and tear or leakage.
Use the burner cleaner pin for each hole of the burner. If you wash the burner, wipe and dry before fixing.
Always clean the stainless steel spill trays and glass top with a dry soft cloth or soapy water. Clean the pan support in water and dry before use.
If you suspect any gas leakage, open all doors and windows, do not operate any electrical devices or switches, and close the regulator of the cylinder.

DONT'S

Do not keep the tube in touch with any parts of the stove.
Do not keep any hot vessels in touch with any plastic parts of the gas stove.
Do not use the stove to dry wet towels & clothes etc.
Do not use vinyl/plastic hose, as it is highly flammable.
Do not touch the pan supports of the stove while cooking.
Do not keep inflammable substances near the gas stove.
Do not use a tube with twists, loops, links, or any external pressure.
Do not apply excessive pressure to the gas control knob.
Switch OFF the fan in the kitchen when the stove is in use.
Do not allow children to handle your gas stove.
Do not check gas leaks with a flame.
Do not use abrasive materials for cleaning.
Do not pour water or any other liquid over the control knobs and valves.
If any difficulty in starting or in the functioning of your gas stove, contact the nearest authorized dealer, service center, or manufacturer for assistance and resolving.

TROUBLESHOOTING

Note: Sometimes while lighting the burner with a manual lighter, a spark goes into the burner head through the burner ports and gas starts burning inside the mixing tube. This is not a defect. It is advised to change the angle of the lighter for lighting the gas. In case of any doubt/fault, contact your nearest Butterfly authorized dealer/service center.

PROBLEM	REASON	WHAT TO DO
Does not ignite.	Cylinder valve is closed.	Open the cylinder valve.
	Rubber tube is bent.	Set the rubber tube right or replace.
	No gas supply.	Replace the filled gas cylinder.
Smell of gas	Gas leakage from pipe.	Examine pipe using soap water & replace it if necessary.
	Rubber tube is damaged.	Replace the ISI marked rubber tube.
	Control valve are open.	Check and close the control valve.
	Defective cylinder.	Replace the cylinder.
Flame is yellow or extinguishes in low position.	Flame ports are clogged.	Clean the ports.
	Burner is not in correct position.	Place the burner in right position.
Problem not listed		Please call the customer care.

WARRANTY CARD

Butterfly Gandhimathi Appliances Limited (Hereinafter referred to as the company) offers 1 year limited warranty on the LPG Glass Top Stoves for repairing or replacing parts free of cost against manufacturing defects. This warranty is valid for a period of 1 year from the date of purchase.

Pros & Cons

Pros

Sleek and modern design
Durable and easy to clean glass top
High-performance burners with brass ignition system
Safety valves and flame failure device for added protection
Compatible with most standard regulators

Cons

May be more expensive than other stoves in its class
Glass top may be prone to cracking or chipping if not handled carefully
