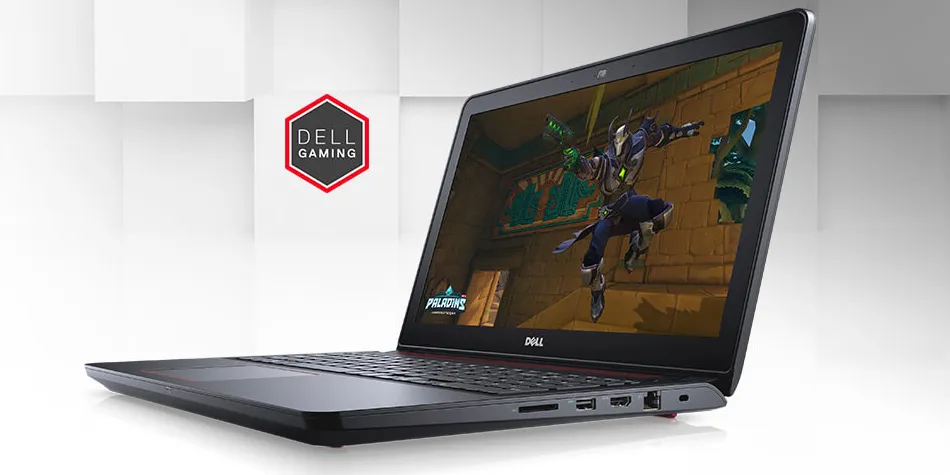

Introducing the Dell Gaming Laptop

The Dell Inspiron 15 5000 Gaming Laptop is designed to deliver solid performance for gamers on a budget. Equipped with an Intel Core i5 processor and NVIDIA GeForce GTX 1050 graphics, it provides the power needed for a smooth gaming experience. The laptop features a 15.6-inch Full HD display that enhances visual clarity and detail, making it suitable for both gaming and multimedia consumption. Priced at approximately $799, it offers an affordable entry point into gaming laptops.

Detailed Specifications

Processor: Up to 12th Gen Intel Core i7
Graphics: NVIDIA GeForce RTX 3050
RAM: Up to 64GB DDR4 RAM
Storage: Up to 2TB SSD + 1TB HDD
Display: 15.6-inch Full HD (1920x1080) Anti-glare LED Backlight Non-touch Narrow Border Display
Operating System: Windows 11 Home
Battery Life: Up to 12 hours battery life

Before working inside your computer

Note: The images in this document may differ from your computer depending on the configuration you ordered.

Before you begin

Save and close all open files and exit all open applications.2 Shut down your computer. Click Start → Power → Shut down.

NOTE: If you are using a different operating system, see the documentation of your operating system for shut-down instructions.

Disconnect your computer and all attached devices from their electrical outlets.
Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.
Remove any media card and optical disc from your computer, if applicable.
Close the display and turn the computer over.Safety instructions

Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.

WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the electrical outlet.

CAUTION: To avoid damaging the computer, ensure that the work surface is flat and clean.

CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching pins and contacts.

CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety instructions that shipped with the product or at www.dell.com/regulatory_compliance.

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.

CAUTION: When you disconnect a cable, pull on its connector or on its pull tab, not on the cable itself. Some cables have connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When disconnecting cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables, ensure that the ports and connectors are correctly oriented and aligned.

CAUTION: Press and eject any installed card from the media card reader.

Recommended tools

The procedures in this document may require the following tools:

Philips screwdriver
Torx #8 (T8) screwdriver
Plastic scribe

Screw list

The following table provides the list of screws that are used for securing different components.
Table 1. Screw list

Component	Secured to	Screw type	Quantity	Screw image
Battery	Computer base	M2x5 T8	5
Hard-drive assembly	Computer base	M2x5	4
Hard-drive bracket	Hard drive	M3x3	4
Solid-state drive	Computer base	M2x3	1
Palm-rest assembly	Computer base	M2x5	2
Palm-rest assembly	Computer base	M2x5	4
Wireless card	Computer base	M2x3	1
Display assembly	Computer base	M2x5	4
Display hinges	Display back- cover	M2x3	4
Bracket assembly	Display back- cover	M2x3	2
Display panel	Display back- cover	M2x3	4

After working inside your computer

CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.

Replace all screws and ensure that no stray screws remain inside your computer.
Connect any external devices, peripherals, or cables you removed before working on your computer.
Replace any media cards, discs, or any other parts that you removed before working on your computer.
Connect your computer and all attached devices to their electrical outlets.
Turn on your computer

Removing the base cover

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at https://www.dell.com/regulatory_compliance

Procedure

Close the display and turn the computer over.
Loosen the captive screw that secures the base cover to the computer base.
Using a plastic scribe, pry the base cover off the computer base.
Disconnect the battery cable from the system board.

Replacing the base cover

Procedure

Connect the battery cable to the system board.
Slide the tabs on the base cover into the slots on the computer base and snap the base cover into place.
Tighten the captive screw that secures the base cover to the computer base.

Description

The Dell Inspiron 15 5000 Gaming Laptop boasts a sleek and durable design with a narrow border display, providing an immersive viewing experience. It features a backlit keyboard with a dedicated numeric keypad, making it ideal for gamers and those who work late hours. The laptop's cooling system ensures optimal performance even during extended gaming sessions. Additionally, it includes multiple USB ports, an HDMI port, and an SD card reader for easy connectivity and data transfer.

Removing the battery

Prerequisites
Remove the base cover.

Procedure

Remove the battery cable from the routing guides on the computer base.
Remove the five screws (M2x5 T8) that secure the battery to the computer base.
Using the pull tab, lift the battery, along with its cable, off the computer base.
Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Removing the display assembly

Prerequisites

Remove the base cover.
Remove the battery.
Follow the procedure from step 1 to step 3 in “Removing the hard drive”.
Remove the keyboard
Remove the palm-rest assembly.
Remove the fans.

Procedure

Close the display and turn the computer over.
Using the pull tab, disconnect the display cable from the system board.
Note the display-cable routing and remove the cable from the routing guides on the computer base.
Disconnect the antenna cables from the wireless card.
Note the antenna-cable routing and remove the antenna cables from the routing guides on the computer base.
Slide the display cable and antenna cables through the slots on the computer base.
Remove the four screws (M2x5) that secure the display assembly to the computer base.
Lift the display assembly off the computer base.

Removing the display bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at https://www.dell.com/regulatory_compliance

Prerequisites

NOTE: These instructions are applicable only for laptops with a non-touch screen display.

Remove the base cover.
Remove the battery.
Follow the procedure from step 1 to step 3 in “Removing the hard drive”.
Remove the keyboard
Remove the palm-rest assembly.
Remove the fans.
Remove the display assembly.

Procedure

Using your fingertips, gently pry up the outside edges of the display bezel.
Lift the display bezel off the display assembly.

Setup Guide

To set up your Dell Inspiron 15 5000 Gaming Laptop,

Start by unpacking the device and ensuring all accessories are included. Connect the power cord and press the power button to turn it on.
Follow the on-screen instructions to set up your Windows 11 operating system.
Once set up, connect to a Wi-Fi network and install any necessary drivers and updates.
For gaming, configure your graphics settings through the NVIDIA Control Panel and adjust your keyboard backlight and fan settings as needed.

Troubleshooting

Common issues with the Dell Inspiron 15 5000 include overheating during intense gaming sessions,

Which can be resolved by ensuring proper ventilation and updating cooling software.
Another issue might be low battery life; try adjusting power settings and disabling unnecessary background apps. For screen flickering, update your graphics drivers.
Always refer to Dell's support website for specific troubleshooting guides and contact customer support if issues persist.

Dell Inspiron 15 5000 Gaming Laptop Pros & Cons

Pros

Powerful performance with latest Intel Core processors and NVIDIA GeForce graphics.
Ample storage options with up to 2TB SSD + 1TB HDD.
Long-lasting battery life up to 12 hours.
Affordable pricing compared to other gaming laptops.
Backlit keyboard and dedicated numeric keypad.

Cons

Display could be improved with higher refresh rate options.
Noisy fans during high-performance tasks.
Not as lightweight as some other laptops in its class.
Limited port options compared to other gaming laptops.

Customer Reviews

Customers praise for its strong performance, excellent battery life, and value for money. However, some users have noted that the fans can be quite loud during intense gaming sessions and that the display could benefit from a higher refresh rate. Overall, it is well-regarded for its balance of power and affordability.

Most Common Complaints

The most common complaints include loud fan noise and limited port options. Some users also find the display lacking in terms of refresh rate and brightness.
