Introduction

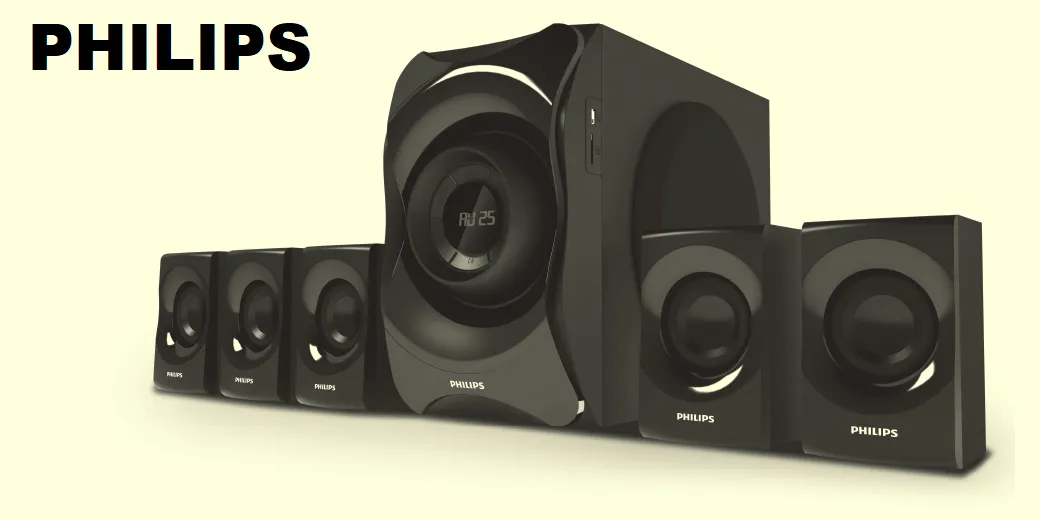

A high-performance home audio system with 5.1 speakers that delivers an immersive sound experience is the Philips SPA8000B. This system, which has five satellite speakers and a strong subwoofer, produces crisp treble and deep bass, making it perfect for improving games, movies, and music. The SPA8000B provides a range of audio input choices, including built-in FM tuner, Bluetooth, USB, and SD card support. It adds style and convenience to any home entertainment setup with its elegant appearance and remote control features.

Accessories

Item	2RCA to 2RCAcable	Remote control	User manual	FM Antenna cable
Quantity	1	1	1	1

Philips SPA8000B Specifications

Total system power	120W RMS
Satellite	15Wx5 RMS
Subwoofer power	45W RMS
Separation	>35db
SNR	>60db
Audio input socket	RCA
Audio output socket	RCA
Power consumption	120W

Subwoofer speaker	1 Way
Speaker size	8 inch
Impedance	8 Ohm
Frequency range	20Hz - 170Hz
Dimension (mm) W x H x D	233 x 367 x 405
Weight	7.03 Kg


Satellite speaker	1 Way, 5 Speakers
Speaker size	3 inch
Impedance	4 Ohm
Frequency range	120Hz - 20KHz
Dimension (mm) W x H x D	105 x 172 x 103
Weight	2.4 Kg

USB
Class support	UMS (USB mass storage class)
Capacity	Upto 16GB
Playability	MP3 track

Connections of 5.1 Speakers

Front panel operation

:
Press to turn on speaker,long press into stand-by.
PLAY/PAUSE on the USB/SD/BT mode.
INPUT:
Change the input mode-AU for AUX, bt for Bluetooth, dU for DVD, Ud for USB, Sd for SD, 87.5 for FM.
VOL+:
Volume up.
VOL-:
Volume down.
Press once to increase the FM frequency 0.1M, long press to the semi-automatic search for radio.
In USB/SD/BT mode, press “” play next song.
Press once to reduce the FM frequency0.1M, long press to the semi-automatic search for radio.
In USB/SD/BT mode, press “” play previous song.

AVAILABLE IF CONNECTED

Description

Rich and detailed sound is produced by the Philips 5.1 Speakers SPA8000B because of their potent 120W total output. With four satellite speakers, a center channel, and a potent subwoofer, the system offers accurate and well-balanced audio for your music and movies. These speakers' sleek and contemporary style goes well with any home theater setup and enhances your TV and other electronics.

Remote controls

Turn on/Stand-by the speaker.
MUTE
Press “MUTE ” to activate or deactivate mute, display blinks, when at MUTE mode.
0-9
Numeric keys, with the help of these keys you select song or track in USB, and in FM, you can key in station frequency, i.e. for 92.7 key in 92.7.
INPUT
Select input: “BT/USB/SD/FM”.
PRO-LOGIC
Enable or disable the function of the PRO-LOGIC. In case of USB/SD/FM/BT, you can switch the output from 2.1 to 5.1 and in case of DVD mode, it selects between prologic o (real 5.1) and prologic on(for surround sound).
SELECT
Press”SELECT” key can switch to dierent channels [F(front speakers) / S(surround speakers) / C(Centre speaker) / b(subwoofer)]. At the same time, press”VOL+/-” to increase or decrease every channel’s volume. The number of numeral tube will change accordingly.
MEMORY
It will enter into automatic search channel and automatic save channel when pressing “MEMORY” for 3 seconds. (noted: the channel which you saved before will be deleted when you press “MEMORY” for 3 seconds).
VOL+
Volume up.
Play or pause the music by pressing “” at USB/SD/BT mode.
Play the previous song by pressing “” at USB/SD/BT input mode. Choose previous channel by pressing “” at FM input mode.
Play the next song by pressing “” at USB/SD/BT input mode. Choose next channel by pressing “”at FM input mode.
VOL-
Volume down.
TUNING-
Press“TUNING-”each time to search channel step by step(each step(-) 0.1 MHz),Press“TUNING-”long time to search previous channel, and play the channel automatically.
TUNING+
Press“TUNING+”each time to search channel step by step(each step 0.1 MHz),Press“TUNING+”long time to search next channel, and play the channel automatically.

Playing the speakers and subwoofer

System positioning
The subwoofer is recommended to be put on the floor to get a better acoustic effect.

For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position.
Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees (horizontal) from the listening position.
Place the center speaker above the TV so that the center channel’s sound is localized.
Place the surround speakers at normal listening. ear level facing each other or mounted on the wall.

Helpful Hint: To avoid magnetic interference, do not position the speakers, too close to your TV.

Bluetooth Operating Instruction

Press SOURCE key from front panel or remote to go to Bluetooth;
When selected the Bluetooth mode, in display, “bt” will start blinking and hear an audio tone which indicate in Bluetooth pairing mode.
For pairing with mobile or other Bluetooth devices, search the device named “Philips SPA8000B” and pair it. Once paired, “bt” stops blinking/flashing;
Press “”for continuous 3 seconds from remote in order to force disconnect the Bluetooth.

Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.

Setup Guide

Setting up the Philips 5.1 Speakers SPA8000B is simple and straightforward:

Unbox all speakers and lay them out in their desired positions.
Connect the subwoofer to your audio source, such as an AV receiver or a TV, using the RCA or 3.5mm cables provided.
Connect the satellite and center speakers to the subwoofer using the provided speaker cables.
Power on the system, and configure your audio source to output 5.1 surround sound.
Adjust the speaker settings and levels to your preference.

General information

Safety instructions
Please read carefully the safety mark on the back side
This mark is intended to alert the user from the non isolated dangerous voltage within the product that may be of sufficient magnitude to constitute a risk of electric shock to persons. This mark is intented to alert the user for important operating and servicing instruction.

Warnings

Avoid sustained periods on high-volume use, and do not turn the volume to maximum level while using high output signal, such as Mobile Phone or DVD, etc., as this will cause distortion and may damage the loudspeaker cones.
Please switch off the system from the wall socket, when not in use.
Do not open the cover or back panel to avoid electrical shock or any other accidents. No user- serviceable parts are inside.
Only for indoor use.
Plug the system to the AC outlet with the right voltage marked on the back panel of the Subwoofer.
The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Attention should be drawn to the environmental aspects of battery disposal.

Care and safety information

Avoid high temperatures, moisture, water and dust

Apparatus should not be exposed to dripping or splashing of liquid.
Do not place any source of danger on the Subwoofer, and satellite (e.g. liquid filled objects lighted candles).
Do not install near heat sources. Do not block any ventilation opening
Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 100cm (4 inches) of free space all around the apparatus for adequate ventilation.
At high volume the back cover of Subwoofer becomes hot. Do not touch it.

Care of the cabinet

Use a soft cloth slightly moistened to clean the cabinet. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Troubleshooting

Warning: Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. below before taking the system for repair. If you are unable to remedy the problem by following hints mentioned in below table, Consult your dealer or PHILIPS APSC for help.

Problem	Solution
1. No power.	Check if the AC power cord is properly inserted into the AC mains socket.
2. No sound or distorted sound.	Adjust the volume / select the correct source to choose the equipment that you want to hear through the system.
3. The remote control does not function properly.	Reduce the distance between the remote control and the system. Replace the batteries with new ones / Point the remote control directly towards the IR sensor (located on the front panel of the subwoofer) / Check that the batteries are loaded correctly / Switch off the system for 30 seconds and then restart.
4. Low hum or buzz sound.	Place the product as far away as possible from electrical devices that may be causing interference / Check power supply voltage and consult electrician.
5. The content of the USB / SD flash drive can not be read.	The USB / SD flash drive format is not compatible with the system. Drive is formatted with a different file system which is not supported by this unit (e.g. NTFS).
6. Slow operation of the USB / SD flash drive / can not detect USB / SD flash drive.	Large file size of high memory USB / SD flash drive takes longer time to read and play. / Take out USB / SD drive and insert it again properly.
7. FM not properly tuned.	Match with local frequency.
8. FM reception not good.	While listening to the radio, turn off TV / DVD or other radiation source.
9. BT not working.	Reduce the distance or device is not paired.

Warranty

This Philips 5.1 multimedia speakers system is warranted against any defect due to defective materials or workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,

Philips 5.1 Speakers SPA8000B Pros & Cons

Pros

Affordable 5.1 speaker system.
Powerful 120W total output for rich and detailed sound.
Sleek and modern design that complements any home theater setup.
Easy to set up and configure.

Cons

No Bluetooth or Wi-Fi connectivity.
Limited customization options for audio settings.

Customer Reviews

Customers are raving about the Philips 5.1 Speakers SPA8000B, praising its affordability, ease of setup, and impressive sound quality. The most common complaint is the lack of Bluetooth or Wi-Fi connectivity, but this has not been a deal-breaker for most users. Many reviewers have also mentioned that the speakers exceeded their expectations in terms of audio clarity and overall performance.
