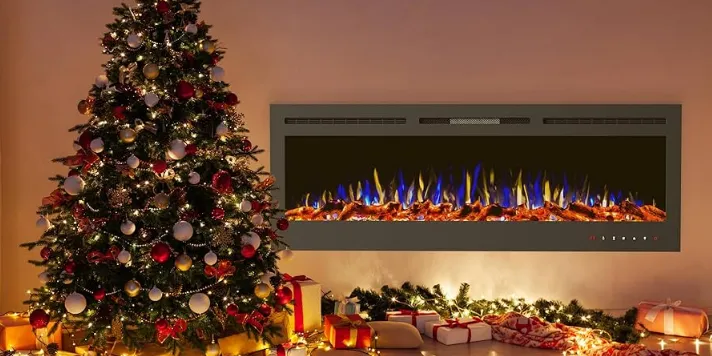

Introduction of Northwest 80-2000A-54 Electric Fireplace

The Northwest Electric Fireplace 80-2000A-54 is a premium electric fireplace that offers both functionality and style to any room in your home. With its realistic flame effect and adjustable heat settings, this electric fireplace is perfect for providing warmth and ambiance during the colder months.

Technical Specification

Description of product: ELECTRIC FIREPLACE
Model: 80 2000A 36, 80 2000A 42, 80 2000A 54
Rated Voltage: 120 V
Rated Frequency: 60 Hz
Rated Power: 1500W
Lamp: LED

Unpacking and Testing

Carefully remove the unit from the box. Prior to using the unit, test to make sure the unit operates properly. Plug the unit's power supply cord into a conveniently located 120-volt grounded outlet. Check to see the unit turns on and produces function.
- WARNING: Do not operate the unit if it is damaged or has malfunctioned. If you suspect the unit is damaged, please contact customer service.
- The appliance is equipped with a manually reset thermal cut-out for safeguard. If it operates, please inspect for any objects on or adjacent to the heater that may cause high temperatures. DO NOT OPERATE THE HEATER UNTIL TROUBLESHOOTING. Reset the switch by turning the main power switch off and waiting 5 to 10 minutes before turning it back on.
This heater is for use on 120 volts. The cord has a plug as shown at A in the below figure. An adapter as shown at C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

Parts and Hardware

Part	Quantity
Remote Control	1
Manual	1
Fixing Hanger	1 (in the back of the fire)
Fixing Bracket	1
Crystals	1 or 2 (80 2000A 54)
Screw ST4*8	1
Screw ST4*40	5
Plastic Expansion	5
Tool required	Magnetic Phillips Screw Driver

Product Dimensions

Before Assembly

Before you assemble your fireplace, you should put the crystals on the ember.
Please follow below:

Put the fireplace on a flat floor with the front glass panel on top position.
Use a screwdriver (not supplied) to loosen the 7 or 9 screws as Fig A, and remove the glass panel.
Put the crystals gently on the ember, as Fig B.
Tighten the glass panel with the 7 or 9 screws tightly.
Use a screwdriver (not supplied) to loosen the 2 screws as Fig C, and remove the hanger.

INSTALLATION

This heater is for wall mounting only. Do not attempt to use it free-standing.
Referring to Fig. 3 below, select a suitable position in which to mount the heater horizontally using a spirit level to achieve this.
Check the wall to ensure there are no wiring, pipe wires, etc. in the area to be drilled. Drill 4 holes (8 mm diameter & 40 mm depth) using a suitable size drill and put the plastic expansion into the holes.
First, fix the hanger to the wall.
Referring to Fig. 4, hang the fireplace to the hanger.
Referring to Fig. 5, to avoid the fireplace from moving, use a screw to fix the fireplace to the wall.

Warning! Always ensure the fireplace is at least 200mm above the floor! Be sure that the bolts have been fixed firmly enough to withstand the weight.

Description

The Northwest 80-2000A-54 Electric Fireplace is a built-in electric fireplace that measures 54 inches wide. It features a sleek and modern design with a black glass front and a customizable flame effect. The heat output is adjustable from 750W to 1500W, and it comes with a remote control for easy operation. Additionally, it has a safety cut-off feature that automatically turns off the heater if it gets too hot, making it a safe addition to any home.

OPERATION

Remove all packaging before use
Control Panel

(See also ‘Operating Instructions’ below)
As shown in the photo below, you will see the control panel on the right side of the heater.

Power switch
Heat control button
Flame control button
Heater LED
Power LED

Plug the heater into a suitable main outlet (see rating label on unit for power requirements).

Power Switch ON/OFF: Set this switch to position "I" to turn the product ON. Setting it to "O" turns the product OFF. Turn on the fireplace; the Power LED will be lightened.
Heat control button: Push the HEAT button to cycle through as below:
- HIGH: heater works with 1500W, HEATER LED for RED
- LOW: heater works with 750W, HEATER LED for Blue
- TEMP: HEATER LED for Purple, adjusting to auto control by room temperature. The heater turns on and works with 1500W when room temperature is below 22°C. The heater turns on and works with 750W when room temperature is below 25°C and above 22°C. The heater will turn off when the room temperature is above 25°C.
Flame control button: Push the FLAME control button to adjust the flame height and ember bed brightness. Press and release the FLAME control button to cycle through LO, MED, HI, and OFF.

Operating by Remote Control

Plug in your electric fireplace.
- Important! The Main ON/OFF power switch on the fireplace must be in the ON position.
When operating the heater with the remote control, it must be pointed at the logset inside the electric stove, and the red light must blink each time you press a function button. The blinking red light confirms the remote control is working.
- Note: Make sure your batteries are installed correctly in your remote control.
The power button at the top left of the remote control is the main ON/OFF power button.
The buttons control the red and blue lamp of the flame and ember bed.
The red buttons control the red brightness of the flame and ember bed.
To increase the brightness, press and release the button. Each time you press this button, the brightness will increase by a small amount until the maximum is reached.
To decrease the brightness, press and release the button. Each time you press this button, the brightness will decrease by a small amount until the minimum brightness is reached.
The blue buttons control the blue brightness of the flame and ember bed.
To increase the brightness, press and release the button. Each time you press this button, the brightness will increase by a small amount until the maximum is reached.
To decrease the brightness, press and release the button. Each time you press this button, the brightness will decrease by a small amount until the minimum brightness is reached.
To activate the heater, press the heater button. The heater works at high; press the Heater Button once to turn off the heater.
- HIGH: heater works with 1500W, HEATER LED for RED
- LOW: heater works with 750W, HEATER LED for Blue
- TEMP: HEATER LED for Purple, adjusting to auto control by room temperature. The heater turns on and works with 1500W when room temperature is below 22°C. The heater turns on and works with 750W when room temperature is below 25°C and above 22°C. The heater will turn off when the room temperature is above 25°C.
To turn the stove off, press the power button once.
- Notice: This remote control must remain within 6 metres of the fireplace and not too far off to either side to be effective.

Setup Guide

To install the Northwest Electric Fireplace 80-2000A-54, follow these steps:

Find a suitable location for the fireplace and ensure that there is an electrical outlet nearby.
Mount the fireplace onto the wall using the included bracket.
Plug the fireplace into the electrical outlet.
Adjust the heat and flame settings using the remote control or the buttons on the fireplace.

IMPORTANT INSTRUCTIONS

When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

Read all instructions before using this heater.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet from the front of the heater and keep them away from the sides and rear.
Always unplug the heater when not in use.
Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any way.
Do not use outdoors.
This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate the heater where it may fall into a bathtub or other water container.
Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or the like. Arrange the cord away from the traffic area and where it will not be tripped over.
To disconnect the heater, turn controls to "OFF" before removing the plug from the outlet.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage the heater.
To prevent possible fire, do not block air intakes in any manner.
Use this heater only as described in this manual. Any other use is not recommended by the manufacturer which may cause fire, electric shock, or injury to people and/or animals.
Always use properly grounded fused and polarized outlets.
Always use ground fault protection where required by electrical codes.
Always disconnect power before performing any cleaning, maintenance, or relocation of the heater.
Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
To prevent a possible fire, do not burn wood or other materials in this heater.
To prevent electric shock or fire, always use a certified electrician should new circuits or outlets be required.
When transporting or storing the heater, keep it in a dry place free from excessive vibration and damage.
The heater must not cover up an electrical socket; the socket must always be accessible in order to disconnect the heater from the electrical supply for maintenance and cleaning.
This heater must be grounded. The main supply must be safely routed from the heater to an electrical socket.

Note: When the heater is turned on for the first time, it may release a slight, harmless odor or smoke. This odor or smoke is a normal occurrence caused by the initial heating of the internal heating elements and should not occur again.

TROUBLESHOOTING GUIDE

CAUTION: Turn off the appliance and let it cool before servicing it. Only a qualified service person should service and repair the heater.

PROBLEM	CAUSE	CHECK
Stove turns off and will not turn on	Stove has overheated and safety device has caused thermal switch to disconnect or home circuit breaker has opened.	Reset switch by turning the main power switch off and waiting 5 minutes then turning it back on.
Flame is not moving	Flame motor defective	Call a qualified service technician to replace flame motor.
Flame sputters	Flame motor is defective	Call a qualified service technician to replace flame motor.
Log set and/or Flame is not glowing	Ember LED PCB are burnt out. Wiring is loose	Inspect LED PCB and replace it if necessary. Inspect wiring for loose connections and repair or replace if necessary.
Remote control does not work	Low batteries	Replace new batteries in remote control.

Northwest Electric Fireplace 80-2000A-54 Pros & Cons

Pros

Realistic flame effect
Adjustable heat settings
Sleek and modern design
Remote control operation
Safety cut-off feature

Cons

Expensive compared to other electric fireplaces
Requires professional installation
May produce noise when in operation
No color or brightness options for the flame effect

Customer Reviews

Customers who have purchased the Northwest Electric Fireplace 80-2000A-54 have praised its realistic flame effect and adjustable heat settings. However, some have noted that it can be expensive and requires professional installation. The most common complaint is that it may produce noise when in operation, although this varies from unit to unit.
