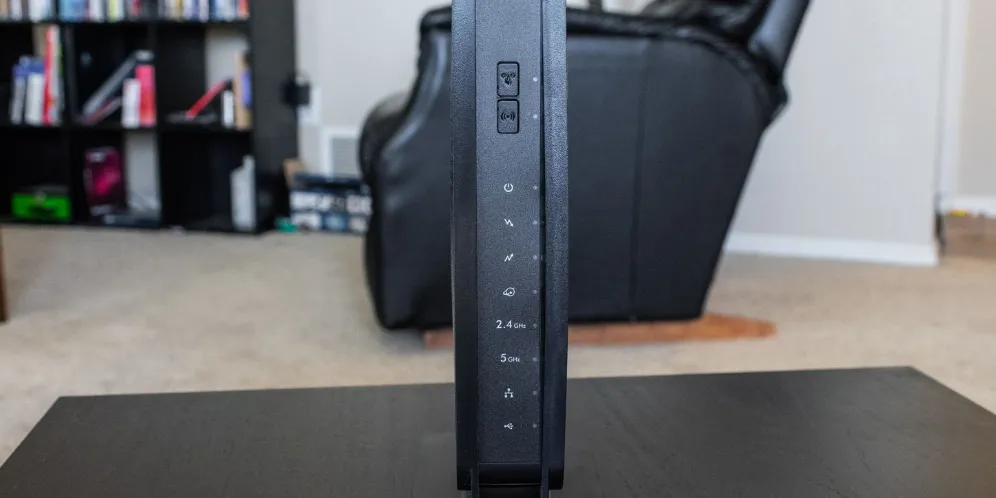

Introduction of Netgear N600 Modem Router C3700

The Netgear N600 Modem Router C3700 is a versatile and high-performance networking device that combines the functionality of a cable modem and a wireless router in one compact unit. Launched in 2014, this device is designed to provide fast and reliable internet connectivity for homes and small businesses. With a suggested retail price of $89.99, the N600 offers a cost-effective solution for users looking to upgrade their existing networking equipment.

Detailed Specifications

The Netgear N600 Modem Router C3700 supports cable internet plans up to 100 Mbps and features 8x4 channel bonding, which enables faster download and upload speeds. The device is equipped with advanced QoS (Quality of Service) technology, which prioritizes bandwidth for time-sensitive applications such as online gaming and video streaming. The N600 also features dual-band Wi-Fi (2.4 GHz and 5 GHz), which provides a combined wireless speed of up to 600 Mbps for seamless connectivity. Additional specifications include 802.11n and 802.11ac wireless standards, two Gigabit Ethernet ports, and one USB 2.0 port for sharing files and media across the network.

Package Contents

Setup Guide

Setting up the Netgear N600 Modem Router is a straightforward process that can be completed in a few easy steps. First, connect the device to your cable modem using the included Ethernet cable. Then, power on the device and wait for the LED lights to indicate that it is connected to the internet. Next, connect your devices to the N600 using Wi-Fi or Ethernet, and launch a web browser to access the device's setup page. From there, follow the on-screen instructions to configure your network settings, including the SSID and password. Once the setup process is complete, you can enjoy fast and reliable internet connectivity on all your devices.

Description of Netgear N600 Modem Router C3700

The N600 Modem Router is a compact and sleek device that blends well with any home or office decor. The device features a simple and intuitive user interface, making it easy for users to set up and manage their network. The N600 C3700 also includes advanced security features such as WPA/WPA2 encryption, parental controls, and guest network access, ensuring that users can browse the internet safely and securely. Additionally, the device is compatible with most cable internet providers, including Xfinity, Spectrum, and Cox, making it a versatile and flexible solution for users.

Collect your cable Internet provider information.
Collect your cable account number, account phone number, and login information (your email address or user name and password).
Turn off existing modems and routers.
If you are replacing a modem that is currently connected in your home, unplug the modem and plug the new modem router into the same cable wall outlet.
Connect a coaxial cable.
Use a coaxial cable that is provided by your cable company to connect the cable port on the modem router to a cable wall outlet or a line splitter. Make sure that the cable is tightly connected.
Note: If Comcast XFINITY is your cable Internet provider, Comcast XFINITY recommends connecting your modem router directly to a cable wall outlet.
Connect the power adapter.
Connect the modem router to the power adapter that was included in the package and plug the power adapter into an electrical outlet. When the startup procedure is completed, the Power LED lights green.
Wait for the modem router to come online.
The modem router comes online when the Internet LED stops blinking and lights solid green. This process might take up to 10 minutes.
Connect a computer or WiFi device to the modem router.
To connect using a WiFi connection, use the WiFi network name (SSID) and password on the product label. To connect using a wired connection, use an Ethernet cable to connect a computer to a yellow Ethernet port on the modem router. Reboot the computer.
Log in to the modem router.
Launch a web browser and enter http://routerlogin.net in the address field of the web browser. When prompted, enter admin for the user name and password for the password.
Activate your Internet service.
For information about how to activate your Internet service, see Activate Your Internet Service on the other side of this quick start guide.

Join the WiFi Network

To connect your computer or WiFi device (such as a smartphone or gaming device) to your modem router’s WiFi network, you can use either the manual method or the Wi-Fi Protected Setup (WPS) method.
Manual Method

Open the software utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your modem router. This utility scans for all wireless networks in your area.
Find and select your modem router’s WiFi network name (SSID). The SSID is on the product label.
Enter the modem router’s password (or your custom password if you changed it) and click the Connect button. The password is on the product label.
Repeat Steps 1 through Step 3 to add other computers or WiFi devices.

WPS Method
For help with the WPS button on your computer or WiFi device, check the instructions or online help that came with that computer or WiFi device. Some older equipment cannot use WPS.
Note: WPS does not support WEP security. If you are using WEP security, use the manual method.

Press the WPS button on the modem router for 3–5 seconds.
Within two minutes, on your computer or WiFi device, press its WPS button or click its onscreen WPS button. The computer or WiFi device connects to your modem router’s WiFi network.
Repeat this process to add other computers or WiFi devices to the network.

Troubleshooting

If you encounter any issues with the Netgear N600 Modem Router C3700, there are several troubleshooting steps you can take. First, ensure that the device is connected to your cable modem and powered on. If the device is still not functioning properly, try resetting it to its factory settings. If you continue to experience issues, contact Netgear support for further assistance. It is also recommended to avoid blocking the device's ventilation openings, as this can cause overheating and reduced performance.

Pros & Cons of N600 Modem Router

Pros
- Combines modem and router functionality in one device
- Dual-band Wi-Fi for faster wireless speeds
- Advanced QoS technology for prioritizing bandwidth
- Compatible with most cable internet providers
Cons
- May not support cable internet plans over 100 Mbps
- Only includes two Gigabit Ethernet ports
- USB 2.0 port may be outdated for some users

Customer Reviews

Customers have praised the Netgear N600 Modem Router for its easy setup, fast wireless speeds, and versatile functionality. However, some users have noted that the device may not be compatible with all cable internet plans, and that the USB 2.0 port may be outdated for some users. Despite these minor drawbacks, the N600 C3700 has received positive reviews from users and experts alike, and is highly recommended for users looking for a cost-effective and high-performance networking solution.
