Introduction of Aeon Full Motion TV

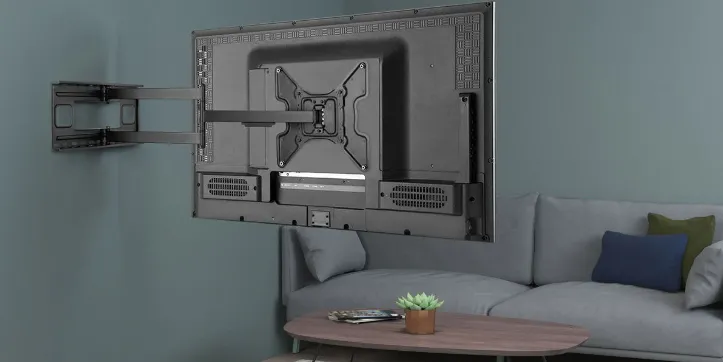

The Aeon Full Motion TV Wall Mount AEON-45250 is a versatile and heavy-duty mount designed to hold TVs ranging from 37 to 70 inches and weighing up to 132 lbs. This mount is perfect for those who want to save space and create a modern and sleek look in their home theater. The estimated price of the mount is around $80, making it an affordable option for many consumers. The AEON-45250 was launched in 2021 and has since become a popular choice for its durability, flexibility, and ease of installation.

Detailed Specifications of Aeon Full Motion TV

The Aeon Full Motion TV Wall Mount AEON-45250 has several key features that make it stand out from its competitors. These include a tilt range of -5 to 15 degrees, a swivel range of +/- 45 degrees, and a pull-out distance of up to 16 inches. The mount is made of heavy-duty steel and has a VESA compatibility range of 200x200 to 600x400. The mount also comes with a built-in level, bubble level, and a magnetic stud finder to ensure a hassle-free installation process.

Aeon Tools Needed for Assembly

Stud finder ("edge to edge" stud finder is recommended)
Phillips screwdriver
Pencil
Hammer Drill(Concrete installation only), otherwise a standard drill
1/4" drill bit for wood studs, 1/2" drill bit for concrete
1/2" socket wrench or bit driver for wood screws
Level
Tape measure

Component Checklist



Features

Designed for 42”-80” Flat panels
VESA Compliant: Up to 800x600mm
Maximum weight capacity up to 150 lbs
Lift and lock for easy installation
U-cap system for clean and simple cable management
U p 5° and Down 15° of easy tilt
Three pivot points with up to 180° swivel
Horizontal movement feature allows for lateral shift

Installation Instructions Wall Mount AEON-45250

AEON-45200 AND AEON-45250
Full Motion TV Wall Mount with Long Extending Arm



PLEASE NOTE: IMPROPER INSTALLATION WILL VOID WARRANTY.

Please do not begin installation until you have thoroughly read and understood these instructions. Improper installation may cause serious injury and/or damage. It is recommended that a qualified contractor install the AEON-45200 / AEON-45250 Full Motion Mount .
Make sure that the wall you plan to use will safely support four times the combined weight of the mounted equipment, including its accessories.
The AEON-45200 / AEON-45250 l Full Motion Mount supports LCD and Plasma Flat Panel Displays from 42” to 80” and supports a maximum load of 90.8kg (150 lbs)
This products suits displays with 800mm x 600mm (48”x24”) mounting hole patterns.
A second person will be required to assist with several steps.
The manufacturer does not accept responsibility for incorrect installation.

Mounting the mount arm assembly

Mounting to Wood Studs 16" or 24"
The AEON-45200 / AEON-45250 Full Motion mount can be mounted onto two wooden studs, with center to center distances between 16"and 24". Using an electronic stud finder (Fig.1),locate the center of the two wooden studs at the desired mounting location. Mark the stud center positions directly on the wall. Connect the stud marks with a horizontal line and find the center between them to represent where you wish the center of the screen to be located. Be sure to measure and mark the center of this horizontal line.



Place the wall plate on the wall, Pin the wall plate to the center mark on the wall. Using a level (bubble or laser ), level the guide, and then press the adhesive backing against the wall to hold the guide in place. Using a 1/4" (6 mm) drill bit, drill 4 pilot holes into the center of the studs (through themounting hole cut-out sections of the template),down to a depth of 3" (76 mm).
NOTE: Tighten lag bolts (L) so that wall plate is firmly attached to wall, but DO NOT overtighten. The lag bolts can be damaged by over tightening which will strip their threading. Final tightening of lag bolts should be done by hand using a ratchet wrench and socket.

Mounting to Concrete/Masonry

Place the wall plate on the wall, Pin the wall plate to the center mark on the wall. Using a level (bubble or laser ), level the guide, and then press the adhesive backing against the wall to hold the guide in place.
Using a 1/2" (13 mm) masonry drill bit, drill 4 mounting holes 31/8" (80 mm) deep into the concrete/masonry surface.


NOTE: Tighten lag bolts (L) so that wall plate is firmly attached to wall, but DO NOT over tighten.The lag bolts can be damaged by over tightening which will strip their threading. Final tightening of lag bolts should be done by hand using a ratchet wrench and socket.

Wall Mount AEON-45250 Assemble the Adaptor Plate

Insert Slider plate(M/Nx4) into adaptor rails, then insert the adaptor bracket into adaptor rail, fix adaptor bracket and slider plate with four philips head screw M6*15mm(C) and metal washers Φ6(G ) using Philips headcrew driver as shown Fig.3.
Fixed the adaptor bracket onto the display with the selected mounting screws, square washers, and any required spacers.
Now slide the opposite mounting rail into position, align it with the mounting holes, and secure with the mounting hardware.

Note: Recessed Mounting Holes. If the mounting holes are recessed into the back of the display, use the supplied spacers to pack the recessed hole. Ensure that the hook brackets are securely fixed to the display.
Caution: Make sure to use the correct length mounting screw for your TV. A screw that is too long might damage your TV. Hand tighten the mounting screw first to make sure it is the correct length.

Attaching the display to the mount

BY HAND, insert two socket pan head screw M8*12mm(I ) and metal washer Φ 8mm (H) into threaded holes on the adaptor panel as shown Fig.4. Leave approximately 3/8” of exposed thread.
With the help of an assistant, carefully lift the display and attach it to the mount head cautiously.
Tighten the screws as shown Fig.5.

NOTE: For those with a 200x200(mm) VESA pattern the adaptor plate will not be used, instead please affix your TV to the mount directly.

Using Cable Management

The AEON-45200 /AEON-45250 includes a cable management system where cable can be routed along the length of the arm assembly.
Route the display cable along the entrance of the cable management slot.(Fig.6)
Note: For optimal performance, route the AC power cable separately form the signal cables.
With all cables in place, pull the display in and out to be certain that the arm assembly moves freely, without stretching or damaging the cables.

Adjusting the Display

The AEON-45200 / AEON-45250 provides a wide range of adjustment possibilities to suit your environment.

Roll Control: Horizontal leveling of the flat panel display. Grasp the edge of the display and roll it up or down into a level position (Fig.7).
Tilt Adjustment: Raising or lowering the screen to improve viewing angle. Grasp the upper and lower edges of the display, and then turn it to the desired tilt angle(Fig.8).
To lock the tilt angle, tighten the tilt knob (Fig.9) securely.
NOTE: For heavier displays, never fully release the tilt knob without fully supporting the display.
The tilt lever includes a ratchet function, so that it can be lifted and repositioned for the next turn.
To operate the ratchet, pull the lever straight out, rotate it to an unobstructed position, release the lever, and then turn it in the desired direction.
Repeat as necessary until the tilt tension is set properly (Fig.10)
Swivel: Adjust the flat panel display for off center viewing positions. Grasp the side edges of the display and then swivel display into its desired position (Fig.11).
Panning: Positions the flat panel display at an angle to the wall for viewing from opposite sides of the room.
Grasp the side edges of the display and then swivel and pull the display into desired position (Fig.12).
Retracting the Flat Panel Display
Positions the display against the wall.
Grasp the side edge of the display, swivel and pull the display into the center position (Fig.13), and then gently push the display straight back towards the wall into the retracted position (Fig.14).

NOTE: Use care when moving the display to ensure that cables do not become stretched or pinched.

Mount AEON-45250 Description

The Aeon Full Motion TV Wall Mount AEON-45250 is a robust and sturdy mount that can hold even the heaviest of TVs. The mount's full-motion design allows for a wide range of movement, making it easy to adjust the viewing angle and find the perfect position. The mount is also easy to install, with clear instructions and all necessary hardware included. The heavy-duty steel construction ensures that the mount can withstand the weight of even the largest TVs, while the VESA compatibility range makes it compatible with most TV brands and models. The built-in level and bubble level ensure that the mount is installed straight, while the magnetic stud finder makes it easy to locate studs in the wall.

Pros & Cons

Pros

Full-motion design for a wide range of movement
Heavy-duty steel construction for durability
VESA compatibility range of 200x200 to 600x400
Easy to install with clear instructions and all necessary hardware included
Built-in level and bubble level for a hassle-free installation process

Cons

May be too bulky for some walls
The mount can be heavy and difficult to maneuver for some users

Customer Reviews

Customers have praised the Aeon Full Motion TV Wall Mount AEON-45250 for its durability, flexibility, and ease of installation. Many have noted that the mount is sturdy and can hold even the heaviest of TVs without any issues. However, some have complained that the mount is too bulky for their walls, and others have found it difficult to maneuver due to its weight. Overall, the mount has received positive reviews from customers, with an average rating of 4.5 out of 5 stars on major retailer websites.
