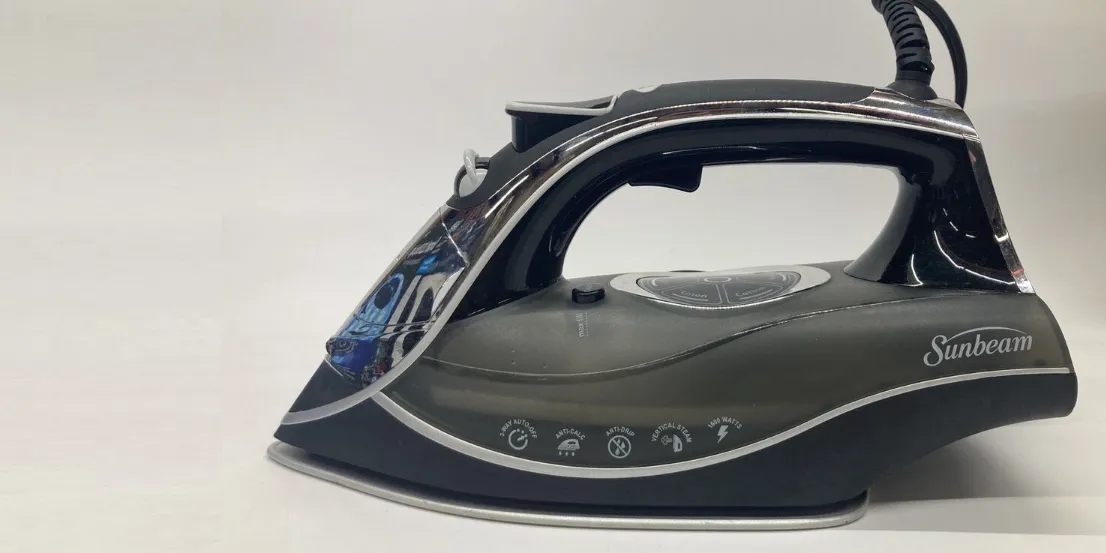

Sunbeam AeroCeramic Iron GCSBDS-204-000 Introduction

The Sunbeam AeroCeramic Iron GCSBDS-204-000 is a high-performance steam iron designed to provide efficient and effective wrinkle removal. Featuring a unique AeroCeramic soleplate, it glides smoothly over fabrics while distributing heat evenly for optimal results. The iron offers adjustable steam settings and a vertical steam function, making it versatile for various ironing tasks. Its ergonomic design ensures comfort during use, while the anti-drip feature prevents water leakage. The Sunbeam AeroCeramic Iron is priced at approximately $50.

Specifications

AeroCeramic soleplate for smooth gliding and scratch resistance
1500 watts of power for fast heating
Vertical steam function for hanging garments
Analog temperature control with multiple heat settings
Anti-calcification system to prevent mineral buildup
Ergonomic handle with cool-touch exterior
Auto-off feature for safety and energy efficiency

FEATURES

SPRAY MIST Nozzle
Covered Water Fill Hole
Fabric Select Dial
Wait / Ready Indicator
Steam Lever
SPRAY MIST Trigger
SHOT OF STEAM / Vertical Steam Button
360° Swivel Cord
See-Through Water Reservoir
Self Clean Button
Aeroceramic Soleplate
Anti-Calcium System
3-Way Motion Smart Auto-Off

Description

The Sunbeam AeroCeramic Iron GCSBDS-204-000 features an advanced AeroCeramic soleplate that ensures a smooth ironing experience on various fabrics. The 1500-watt power output allows for quick heating, while the vertical steam function is ideal for ironing hanging garments like dresses and suits. The analog temperature control offers multiple heat settings, allowing you to tailor the iron's performance to your specific needs.

The anti-calcification system prevents mineral buildup, extending the life of the iron. The ergonomic handle with a cool-touch exterior provides comfort during extended use, and the auto-off feature ensures safety and energy efficiency.

DRY IRONING

Ensure Steam Lever is turned to the (Dry) setting.
Plug the cord into a 120-Volt AC outlet. The red “Wait” indicator light will be illuminated if the iron has not reached its set temperature.
Turn Fabric Select Dial to desired setting. Allow iron to heat on its heel rest on a stable and protected surface, until the “Ready” indicator light turns green indicating that the iron is ready. The power light will oscillate green/red once temp is reached in order to maintain the set temperature.

NOTE: While Steam Lever is turned to the (Dry) setting, you may still use the SHOT OF STEAM or SPRAY MIST features, as long as the Fabric Select Dial is set to wool, cotton, or linen. Water reservoir must be at least ¼ full of water.

Filling Water Reservoir (use tap water)

Turn Steam Lever to (Dry) and Fabric Select Dial to Off. Unplug.
Lift the Water Fill Hole Cover. Use any easy-pour measuring cup to fill the water reservoir with tap water through the Water Fill Hole. Do not fill water reservoir beyond maximum fill line.
Close the Water Fill Hole Cover completely after filling.

WARNING: To prevent the risk of burns, be careful when filling a hot iron with water. Hot metal parts, hot water and steam can cause injuries.

Steam Ironing

Follow the instructions for “Filling the Water Reservoir”.
Fill Water Reservoir and plug the cord into a 120-Volt AC outlet.
Turn the Fabric Select Dial to desired setting. Allow iron to heat on its heal rest on a stable and protected surface, until the “Ready” indicator turns green indicating that the iron is ready. The power light will oscillate green/red once temp is reached in order to maintain the set temperature.
Turn Steam Lever to desired steam setting. Only use Steam setting and/or Shot of Steam® feature with Wool, Cotton or Linen Fabric Settings.

Temperature Setting Table

Temperature Setting Table	Kind of Textile	Fiber Material
DRY	synthetic	Acrylic, modacryl, polypropylene, polyurethane
		acetate, triacetate
		metalized, cupro, polyamide (nylon), polyester
	silk	silk
STEAM		wool
		cotton
		linen
		on the label means: This article cannot be ironed (e.g. chlorofiber, elastodiene)

Special Features

SPRAY MIST FEATURE is a powerful water spray mist that dampens the fabric to aid in removing wrinkles from heavy fabrics and for setting creases.
TO USE: Squeeze the SPRAY MIST Trigger firmly.
SHOT OF STEAM FEATURE provides an extra burst of steam for deep penetration of stubborn wrinkles. You can use this feature while Dry or Steam ironing as long as the Fabric Select Dial is set to wool, cotton, or linen. The water reservoir must be at least ¼ full of water.
TO USE: Place the iron on top of the wrinkle and press the Shot of Steam® button each time you would like an extra burst of steam. The Shot of Steam feature may be used continuously in approximately 3-second intervals.
VERTICAL SHOT OF STEAM FEATURE allows iron to function vertically as a garment steamer.
TIP: When using vertical steam, hang clothing on a hanger for best results. Hanging curtains and drapes may also be steamed.

HOW TO USE

Ensure that the iron is heated up and the Ready indicator light has turned green.
Hold iron vertically near, but not touching the fabric you want to steam. Pull the fabric tight.
Press Shot of Steam button in 3-second intervals as you move iron over wrinkles.

WARNING: To prevent burns, keep hands away from the area being steamed.

WARNING: DO NOT steam garments while wearing them; this may result in injuries.: To prevent burns, keep hands away from the area being steamed.

WARNING: DO NOT steam garments while wearing them; this may result in injuries.

3-WAY MOTION SMART AUTO-OFF FEATURE

This feature automatically turns the iron off if left in one position too long to avoid accidents.

IF YOU LEAVE IRON ON:

Horizontally without moving it, or accidentally tip the iron over, it will automatically stop heating after 30 seconds. The light turns red when auto-off activates and blinks.
Vertically (on its heel rest) without moving it, the iron will automatically turn off after 15 minutes. The light turns red when auto-off activates and blinks.

IMPORTANT: When the auto-off feature has been activated, the unit will beep 6 times and the indicator light will blink.

TO RESET: Move iron back and forth and reheat until the “Ready” indicator light turns green.

AEROCERAMIC SOLEPLATE WITH DIMPLING AND CHANNELING TECHNOLOGY

AeroCeramic irons incorporate principles of aerodynamics for ultimate and faster results. The advanced channeling tehcnology provides better steam coverage for easier wrinkle removal. The exclusive dimpling design provides a smoother glide for seamless ironing.

ANTI-DRIP

Produces steam without dripping, spitting, or leaking through the soleplate, even at low temperatures.

Setup Guide

To operate the Sunbeam AeroCeramic Iron GCSBDS-204-000,

Start by plugging it into a standard electrical outlet.
Allow the iron to heat up; you will hear a click when it reaches the selected temperature.
Adjust the temperature using the analog control dial based on the fabric type you are ironing.
For vertical steaming, hang your garment and hold the iron about 6 inches away.
Press the steam button to release a steady flow of steam.
When not in use, unplug the iron and let it cool down before storing it in a dry place.

CARING FOR YOUR IRON AFTER USE

TURNING OFF IRON: Turn Steam Lever to (Dry) and Fabric Select Dial to Off. Unplug. WARNING: NEVER yank power cord when unplugging iron. This can damage the cord. Empty water reservoir completely after each use.

STORING YOUR IRON

Turn off iron, unplug and allow to cool.
Empty water reservoir after each use.
Loosely loop the power cord around the heel rest and store the iron on its heel rest. IMPORTANT: Wrapping the cord around the iron too tightly can damage the cord.

MAINTENANCE AND CLEANING

Before cleaning the Iron, always make sure that it is disconnected from the electrical wall socket and is completely cool.

SOLEPLATE

Residue on the Soleplate can be wiped off with a cloth soaked in a solution of water and vinegar.
Do not use scouring pads, abrasives or chemical cleaning solvents as they may damage the finish.

HOUSING

The housing can be cleaned with a moist cloth and then wiped dry.
Other than the recommended cleaning, no further user maintenance should be necessary. If for any reason your Steam Iron should require repairs, do not try to fix it yourself. Send it to an Sunbeam Authorized Service Center.

TO USE THE SELF-CLEANING FEATURE

Turn OFF as noted above. Move the Steam Lever back and forth from Off (Dry) several times to remove debris and minerals from the Steam Valve. This keeps water flowing into the steam chamber.
Fill the water reservoir with tap water to the MAX line.
Set the Fabric Select Slide to LINEN.
Plug the iron into a power outlet and allow the iron to heat for 2 minutes.
Turn the Fabric Select Slide to MIN and unplug the iron.
Hold the iron over a sink in a horizontal position.
Warning: Be careful not to touch the iron’s hot surfaces.
Press the self-clean button and hold. Water will begin dripping from the steam vents. To make sure that all of the water is removed from the tank, slowly iron side to side and front to back for 30 seconds. When rocking the iron, dip the nose of the iron slightly below the rear of the iron to make certain the water circulates completely. Release self-clean button after one minute.
Turn the iron upside down and allow the remaining water to flow out of the fill hole.
Dry the soleplate with a towel.

ANTI-CALCIUM SYSTEM

Anti-calcium is a permanent system located inside the water reservoir to eliminate impurities.
TO PROLONG EFFICIENCY, FOLLOW THESE STEPS ONCE A MONTH OR After Every 30 Uses:

Turn off iron.
Add 1 teaspoon of salt to ¾ cup water and fill water reservoir with this solution.
Leave solution in water reservoir for 15 minutes, shake occasionally, and then empty through the fill hole or through the “clean method”.
Fill water reservoir again with salt water solution, shake and empty after 15 minutes.
Fill water reservoir with fresh water to rinse and empty.

IRONING TIPS

Before ironing, check the garment label and follow manufacturer’s instructions. If no instructions, start with a low-heat setting and test by ironing a small area, and gradually increase heat.
Sort garments by fabric type. Iron articles requiring a low-temperature setting and gradually work up the temperature range.
When changing from a high-temperature setting to a lower one, allow 5 minutes for change.
When steam ironing, use long, slow passes over the fabric to allow the steam to penetrate the fabric and the heat of the soleplate to dry the moisture.
Iron linen garments inside out to prevent shine. An ironing cloth or cotton fabric can be used to reduce shine.
If the garment is lined, use a low heat setting.
Ensure zippers are closed and flap is flat. Iron over the flap, holding the garment taut.
Spray starch makes the job easier.

IRONING SHIRTS

Begin with the collar and work toward the middle from the outer edges. Iron lengthwise, not in circles.
Lay shoulder over narrow edge of the board and iron one side of the front. Then iron the shoulder, across the back (below the collar line), the other shoulder and the remainder of the front.
Iron sleeves and cuffs, working down from the underarm seams. To remove creases, shift the double layer of sleeve fabric and iron out.
Iron body of garment, from half of the front around the back, then second half of front. If your shirt does not open, slip over end of ironing board and iron front and back in turn.

IRONING PANTS

Begin with the waistband and inseam area, then pockets and cuffs.
Pull waistband on pointy end of the board, as if you’re “dressing” the ironing board. Iron upper-front part of the pants, including the waistband.
Place pants parallel to ironing board lengthwise so both legs are facing the same direction. Iron each leg by moving the iron back and forth along the pant leg.
Take cuff of the leg and bring it over towards the waistband to iron the inner part of the leg. Repeat these 2 steps for the second leg.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS BEFORE USE

Use iron only for its intended use.
To protect against risk of electric shock, do not immerse the iron in water or other liquids.
The Fabric Select Dial and Steam Lever should always be turned to OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before storing. Loop cord loosely around iron when storing.
Always disconnect iron from electrical outlet when filling with water, cleaning, emptying or when not in use.
Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to an authorized service center for examination and/or repair. Incorrect reassembly can cause a risk of electric shock when iron is used.
Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while plugged in, turned on or on an ironing board.
Burns can occur from contact with hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.
If the iron is not operating normally, disconnect from the power supply and have the iron serviced by an authorized service center or call Customer Service at 1 (800) 458-8407.
Your SUNBEAM iron is designed to rest on the heel rest. Do not leave the iron unattended. Do not set the iron on an unprotected surface, even if it is on the heel rest.
This is a high wattage appliance. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the extension cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS
FOR PRODUCTS PURCHASED IN THE UNITED STATES AND CANADA

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Troubleshooting

PROBLEM	CAUSE/SOLUTION
“Red” indicator light is blinking	The light blinksto indicate that the iron auto-off function has been activated. To stop blinking and reset, movethe iron backand forth and allow to re-heat untilthe “Ready” indicator light turns green.
Iron is not heating	Ensure the iron is on and the “Wait” or “Ready” indicator light is illuminated. Verify unit is plugged in. Adjust fabric dialto the correctsetting for yourgarments. The power lightwill oscillate green/red once temp is reached in order to maintain the set temperature.
Iron willnot steam	Ensure water tank level is at least¼ full. Ensure steam leverisswitched on. Press Shot of Steam buttonseveral times to prime.
Iron is leaking	Only fill withwater to the MAX level. Allow to heat for at least 2 minutes beforeuse, and wait until the “Ready” indicator light has turnedgreen to indicate that it is ready. Shot of Steamhas been pressed too frequently. Onlyuse shot of steam in 3 second intervals or less. Steam setting and/or Shot of Steam used with incorrect fabric setting. Only use with Wool, Cotton or Linen settings. Empty water tank after each use and turn steamlever off.
Iron leavesspots/flakes on clothing	Empty watertank completely after each use Clean soleplate when cool with a wet,damp cloth Use self-cleaning feature once a month Refer to the Anti-Calcium System section (select models only) Ensure watercup used to fill theiron is clean
Wrinkles are not sufficiently removed	Check that the temperature dial is set to the correct fabricsetting Use Shot of Steam or Spray Mist features to help removestubborn wrinkles
Fabrics aregetting an unwanted“shine”	Use an ironing cloth or a 100% white cotton fabric and place it between the garment being ironed and the iron to prevent “shine”

3-YEAR LIMITED WARRANTY AND LIFETIME SOLEPLATE WARRANTY

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation
(Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three years from the date of initial retail purchase, this product will be free from defects in material and workmanship. JCS warrants the iron’s soleplate will be free from defects in material and workmanship for the life of the iron from the date of initial retail purchase.

Pros & Cons

Pros

Smooth gliding on various fabrics due to AeroCeramic soleplate
Fast heating with 1500 watts of power
Vertical steam function for efficient garment ironing
Ergonomic design for comfortable use
Auto-off feature for added safety
Affordable price point compared to other high-quality irons

Cons

No digital temperature control; relies on analog dial
No LED indicators for temperature or other functions
Some users may find it slightly heavier than other models

Customer Reviews

Customers generally praise the Sunbeam AeroCeramic Iron GCSBDS-204-000 for its performance and value. Many users appreciate the smooth gliding of the AeroCeramic soleplate and the effectiveness of the vertical steam function. A few users have noted that while it does not have digital controls or LED indicators, it still provides reliable service at an affordable price.

Some common complaints include minor issues with mineral buildup over time and the lack of advanced features seen in more expensive models. However, overall satisfaction with this product remains high among its users.
