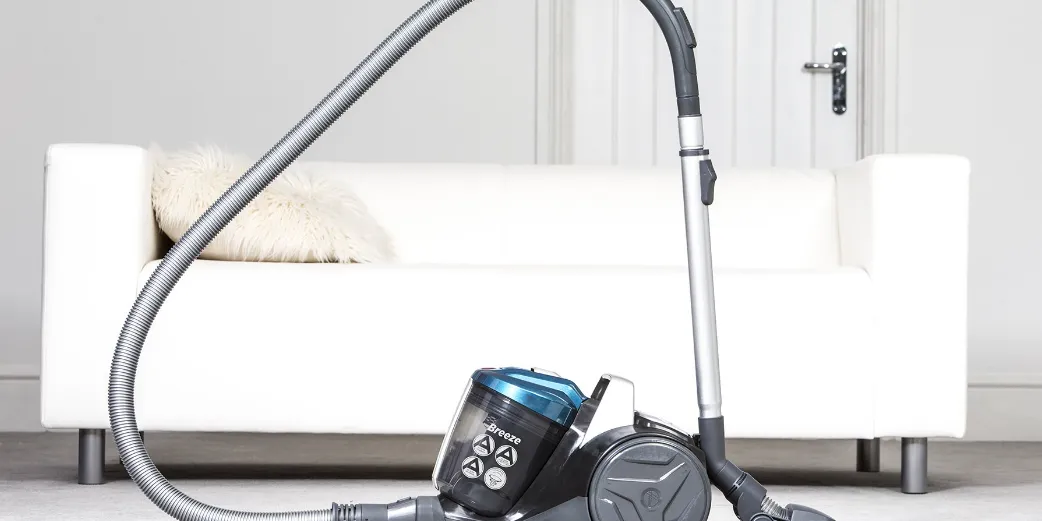

Introduction of Bagless Cylinder Vacuum Cleaner BR71BR01

The Bagless Cylinder Vacuum Cleaner BR71BR01 is a powerful and versatile cleaning solution for your home. This vacuum cleaner boasts a sleek and modern design, with a compact cylinder shape that allows for easy maneuverability and storage. It is perfect for cleaning all types of floors, including hardwood, tile, and carpet, and comes with a range of attachments to help you tackle every corner of your home. The Hoover BR71BR01 is currently priced at around £150 and was launched in 2021.

Detailed Specifications of Bagless Cylinder Vacuum Cleaner

The Hoover Bagless Cylinder Vacuum Cleaner features a 700W motor that provides strong suction power. It has a dust capacity of 2L, which means you can clean for longer without having to empty the canister. The vacuum cleaner also has a washable filter, which helps to reduce ongoing costs and is better for the environment. The Hoover Bagless Cylinder Vacuum Cleaner BR71BR01 comes with a variety of attachments, including a crevice tool, dusting brush, and upholstery tool, which can be stored onboard for easy access. The vacuum cleaner measures 34.5 x 28.5 x 44.5 cm and weighs 5.4 kg, making it easy to move around and store.

Description of Hoover Bagless Cylinder Vacuum Cleaner

The Bagless Cylinder Vacuum Cleaner is a high-quality vacuum cleaner that is built to last. It has a robust design, with a sturdy handle and large wheels that make it easy to move around. The vacuum cleaner is also quieter than many other models on the market, with a noise level of just 79 dB. The BR71BR01 has a number of features that make it easy to use, including a cord rewind feature, which allows you to quickly and easily store the 10-meter cord. The vacuum cleaner also has a HEPA filter, which traps allergens and helps to improve air quality in your home.

Getting to know our Bagless Cylinder Vacuum Cleaner BR71BR01


Suction Regulator
Hose Handle
Telescopic Tube
On/Off Pedal
Exhaust filter cover
Carpet & Floor nozzle (GP)
1. Carpet Nozzle (CA)
2. Hard Floor Nozzle (HF)
Floor-type selector pedal
Park Slot
Cord reel Pedal
Cleaner Main Body
Hose
Dust Container lid
Dust Container
Vortex Finder
Pre-motor Filter
Dust Container Release Button
Exhaust Filter
2 in 1 accessory
Pet Hair Remover Mini Turbo Nozzle
Allergen Remover Mini Turbo Nozzle
Grand Turbo nozzle
Parquet Nozzle

Assembling your Bagless BR71BR01

Remove all components from the packaging.

Connect the hose to the cleaner main body, ensuring it clips and locks into position. [1]
To release: simply press the button on the hose end and pull.
Connect the hose handle to the upper extension tube end [2], or accessories if required.
Connect the extension tube lower end to the carpet and floor nozzle [3] or accessories if required.

USING YOUR Cylinder Vacuum Cleaner

Extract power cord and plug it into the power supply. Do not pull the cord beyond the red marker. [4]
Adjust the telescopic tube to the desired height by moving the telescopic tube adjuster up and raise or lower the handle to the most comfortable cleaning position. [5]
Carpet & Floor Nozzle**. Press the floor type selector on the nozzle [6] to select the ideal cleaning mode for the floor type.
- Hard Floor: Brushes are lowered to protect the floor.
- Carpet: Brushes are raised for the deepest clean.
Switch the cleaner on by pressing the on/off Pedal on the cleaner main body. [7]
Adjust the suction regulator on the handle to the desired level.
Switch off at the end of use by pressing the on/off Pedal. Unplug and press the cord reel pedal to wind the power cord back into the cleaner.

PARKING AND STORAGE SECTION
The tube and nozzle can be parked on back of the cleaner for storage or temporary storage while in use.

ACCESSORIES of BR71BR01

To obtain the best performance and energy efficiency#1 it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.
A nozzle type HF is suitable for use only on hard floor.
A nozzle of type CA is suitable for use only on carpet.The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.
It is important to note that this vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013.
If the label shows a red prohibition circle on the left covering the carpet symbol, then this indicates that the vacuum cleaner is not suitable for use on carpets.
If the label shows a red prohibition circle on the right covering the hard floor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard floors.
NOTE: Dust pick up ability carpet, dust pick up ability hard floor, and energy efficiency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013.
All accessories can be fitted to the hose handle or the end of the tubes.

2 in 1 Tool combines several functions into one tool

Crevice Tool: For corners and hard-to-reach areas.
Dusting Brush: For bookshelves, frames, keyboards and other delicate areas.
Pet Hair Remover Mini Turbo Nozzle: Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard-to-clean areas. Particularly suitable for pet hairs removal.
Allergen Remover Mini Turbo Nozzle: Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard-to-clean areas. Particularly suitable for allergen removal.
Parquet Nozzle: For parquet floors and other delicate floors.

IMPORTANT: Do not use the Mini Turbo Nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating.

CLEANER MAINTENANCE

Emptying the Dust Container
When the dust reaches the max level indicator on the container, empty the dust container.
IMPORTANT: To maintain optimum performance, do not allow the dust to exceed the Max level.

Turn off the cleaner with the main switch and unplug the power cable.
Press the bin release button and remove the bin assembly from the cleaner. [8]
Hold the dust container with one hand, and remove the dust container lid by rotating anti-clockwise. [9]
Remove the pre-motor filter assembly from bin assembly.[10]
Remove the Vortex Finder from bin assembly. [11]
Empty the dust from the bin. [12]
Refit the vortex finder and pre-motor filter assembly to bin assembly.
Refit the dust container lid to bin assembly.
Close and refit to the cleaner main body.

Cleaning the Washable Filters
The cleaner is fitted with pre motor filter and exhaust filter. To maintain optimum cleaning performance, regularly remove the filters and tap against the side of the bin to release dust. The filters should be washed every 5 cassette empties or when the filter has excessive dust level.
IMPORTANT

All bagless cleaners require regular filter cleaning. Failure to clean your filters may result in air blockage, overheating and product failure. This may invalidate your guarantee.
Regularly check and maintain the filters.
Always ensure the filter pack is fully dry before use.

To access the filter

Remove the dust container from the cleaner [8]
Hold the dust container with one hand, and remove the dust container lid by rotating anti-clockwise. [9]
Remove the pre-motor filter assembly from bin assembly. [10]
Gently tap and wash the pre-motor filter. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [13] [17]
Reassemble the pre-motor filter assembly once fully dry and refit to the cleaner.

To access the exhaust filter

Unclip the exhaust filter cover from the rear of the cleaner main body. [14]
Remove the exhaust filter from the rear of the cleaner. [15]
Gently tap and wash the filter using warm water. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [16] [17]
Refit the exhaust filter to the rear of the cleaner once fully dry and refit the exhaust filter cover.

IMPORTANT: Do not use the product without the filter pack fitted.

Cleaning the dust container/separation unit
This cleaner uses a separation system unique to Hoover. If necessary the separation unit can be disassembled from the dust container and cleaned.

Press the dust container release button and remove the bin assembly from the cleaner. [8]
Hold the bin with one hand and with the other hand remove the dust container lid by rotating anti-clockwise. [9]
Remove the dust container lid by rotating anti-clockwise. And remove the pre-motor filter from dust container assembly.[10] Then remove the vortex finder from the dust container by pulling. [11]
If necessary, use a cloth to remove excessive dust from the vortex finder surface. Reassemble the internal components to the bin.
Reassemble the dust container lid to the dust container. Refit the dustbin to the cleaner.

Certain Models Only Certain models only, nozzles may vary according to the model

Do the filters need cleaning? If so, refer to ‘Cleaning the Washable Filters’.
Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from the tubes or hose.
Check for and clear any blockage in the Nozzle
Check if the separation unit needs to be cleaned. Refer to ‘Cleaning the separation unit.

WARNING: If the cleaner is used for a significant period of time with a blockage, a thermal cut out will switch the cleaner off to prevent overheating. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 45 minutes for the cut out to automatically reset.

USER CHECKLIST OF Cylinder Vacuum Cleaner

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
Is the dust container over-filled? Please refer to ‘Cleaner Maintenance’.
Is the filter blocked? Please refer to ‘Cleaner Maintenance’.
Is the hose or nozzle blocked? Please refer to ‘Removing a blockage from the system’.
Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset.

IMPORTANT INFORMATION ABOUT Bagless Cylinder Vacuum Cleaner

Hoover Spares and Consumables
Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.
Quality
Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.
Your Guarantee
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
Subject to change without notice.

Troubleshooting of Bagless Cylinder Vacuum Cleaner BR71BR01

If you are experiencing issues with your Hoover Bagless Cylinder Vacuum Cleaner , there are a few things you can try before contacting customer support. First, make sure that the vacuum cleaner is properly plugged in and that the power switch is turned on. If the vacuum cleaner still isn't working, check the filter to make sure it isn't clogged. You should also check the brush roll to make sure it isn't tangled with hair or debris. If the vacuum cleaner is still not working, contact Hoover customer support for further assistance.

Pros & Cons of Hoover Bagless Cylinder Vacuum Cleaner BR71BR01

Pros

Powerful suction
Large dust capacity
Washable filter
Range of attachments
Quiet operation

Cons

May be too heavy for some users
Cord could be longer

Customer Reviews about Bagless Cylinder Vacuum Cleaner BR71BR01

Customers have praised the Hoover Bagless Cylinder Vacuum Cleaner for its powerful suction and large dust capacity. Many have also noted that the vacuum cleaner is easy to maneuver and store. However, some have criticized the cord length and weight of the vacuum cleaner. Overall, the Hoover Bagless Cylinder Vacuum Cleaner BR71BR01 has received positive reviews, with many customers stating that they would recommend it to others.

Most Common Complaints about Hoover BR71BR01

The most common complaints about the Bagless Cylinder Vacuum Cleaner are related to the cord length and weight of the vacuum cleaner. Some customers have also noted that the vacuum cleaner can be difficult to empty, as the canister is located at the bottom of the unit. However, these issues are relatively minor and do not detract from the overall performance of the vacuum cleaner.
