Introduction

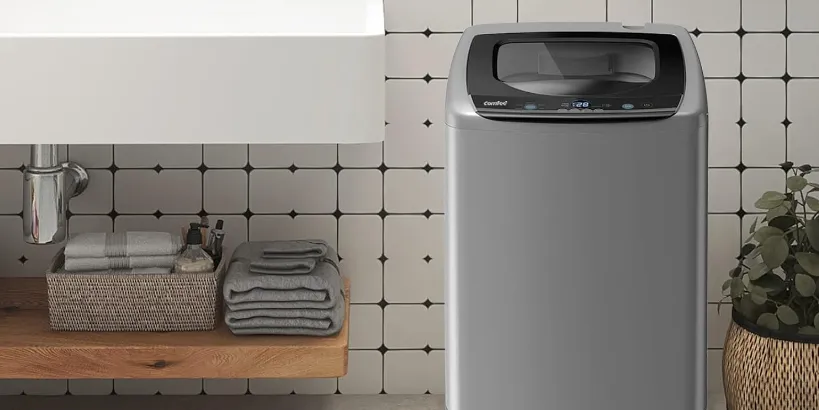

The Comfee Washing Machine CLV09N1AMG is a compact and efficient portable washing machine designed for small spaces such as apartments, dorms, or RVs. With a capacity of 0.9 cubic feet, it offers customizable washing settings and features like auto-unbalance detection for optimal performance. Its lightweight design and built-in wheels make it easy to move, while the see-through lid and LED display enhance usability. The CLV09N1AMG is priced at approximately $211.65.

Specifications

Capacity: 0.9 cu.ft
Dimensions: 20 x 20 x 37 inches
Weight: Approximately 60 lbs
Multiple Wash Cycles: Normal, Heavy Duty, Quick Wash, etc.
Energy Efficiency: Energy Star Certified
Noise Reduction: Quiet Operation Technology
Drain Pump: Built-in drain pump for easy water disposal
Control Panel: Digital display with touch controls

Safety and Precautions

This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

comfee CLV09N1AMG Washing Machine - Symbols 6

comfee CLV09N1AMG Washing Machine - Symbols 10

State of California Proposition 65 Warnings:

WARNING: This product can expose you to chemicals including benzene, formaldehyde, and carbon monoxide which are known to the State of California to cause Cancer and Reproductive harm.

Basic Precautions

Read all instructions before using the appliance.
Use this appliance only for its intended purpose as described in this owner’s Manual.
Before use, the washer must be properly installed as described in this manual.
ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
Before the appliance is removed from service or discarded, remove the lid of the washing or drying compartment.
Do not reach into the appliance if the basket is moving.
Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
Do not tamper with the controls.
Do not repair or replace any part of the appliance or attempt anyservicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for 2 weeks or more, before using a washer or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
Packaging material can be dangerous for children. There is a risk of suffocation! Keep all package away from children.
Always check the inside of the washer for foreign objects before loading laundry. Keep the lid closed when not in use.

Installation Warnings and Precautions

Plug the power cord into an AC 120V/60Hz wall socket rated at 15amps or higher. Use the socket for this washer only.
Do not use an extension cord.
Sharing a wall socket with other appliance, using a power strip, or extending the power cord may result in electric shock or fire.
Do not use an electric transformer. It may result in electric shock or fire.
Ensure that the power voltage, frequency, and current match the product’s specifications. Failing to do so may result in electric shock or fire.
Have this appliance installed by a qualified technician or service company.
Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.
Unplug the power plug and clean it with a dry cloth.
Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor.
If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug, or loosen wall socket.
This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
Unplug the power plug by holding the plug.
Failing to do so may result in electric shock or fire.
If the power plug or power cord are damaged, contact your nearest service center.

EARTHING

This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
Improper grounding may result in electric shock, fire, explosion, or problems with the product.
Never plug the power cord into a socket that is not grounded correctly.
Make sure the socket you use is grounded in accordance with local and national codes.

LOCATION

Do not install this appliance near a heater or inflammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
This may result in electric shock or fire.
If the washer is moved to a new location, have it checked and re-installed by a qualified service technician.
Failing to follow this warning may result in electric shock or fire.

Installation Warnings and Precautions

CAUTION: Do not install on carpet. Install washer on a level and solid floor that can support its weight.
Failing to do so may result in abnormal vibrations, noise, or problems with the product.
The washer is heavy. Two or more people may be needed to install and move the appliance.
Failing to do so may result in bodily or other injuries.
Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.
Failing to do so may result in serious leak damage.
Position the appliance so that the power plug is easily accessible.
Failing to do so may result in electric shock or fire due to electric leakage.
To reduce the risk of injury to persons, adhere to all industry recommended safety glasses.
Failing to follow all of the safety warnings in this manual may result in property damage, or injury to persons.

Usage and Maintenance Warnings and Precautions

WARNING: If the appliance is flooded, cut the power immediately and contact your nearest service center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center.
Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not turn any appliance or light on or off.
Do not use a ventilating fan.
A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol, dry cleaning detergent or other flammable or explosive substances.
This may result in electric shock, fire, or an explosion.
Do not force the washer lid open while the washer is operating (high- temperature washing / drying / spinning).
Water flowing out of the washer may cause burns or cause the floor to be slippery. This may result in injury.
Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.
Do not insert your hand or a metal object under the washer.
This may result in injury.
Do not attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
This may result in electric shock, fire or death.
Do not touch the power plug with wet hands.
This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in operation.
Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.
Keep all packaging material well out of the reach of children, as packaging materials can be dangerous to children.
If a child places a bag over its head, it may suffocate.
Do not let children or infirm persons use this washer unsupervised.
Failing to do so may result in electric shock, burns or injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
If you need to repair or reinstall the appliance, contact your nearest service center.
Failing to do so may result in electric shock, fire, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub, unplug the power plug and contact your nearest service center.
Failing to do so may result in electric shock or fire.
If the water supply hose comes loose from the faucet and floods the appliance, unplug the power plug.
Failing to do so may result in electric shock or fire.
Do not mix chlorine bleach with ammonia or acids such as vinegar.
Incorrect usage can produce poisonous gas, result in serious injury.
Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the basket to come to complete stop before reaching inside.
Failing to do so may result in electric shock, injury or fire.
Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances.
Failing to do so may result in serious injury to persons.
Keep laundry products out of children’s reach. Observe all warnings on product labels and follow to do.
Failing to do so may result in serious injury to persons.
Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.
Failing to do so may result in electric shock, injury or fire.
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner, or alcohol to clean the appliance.
This may result in discoloration, deformation, damage, electric shock or fire.

Usage and Maintenance Warnings and Precautions

CAUTION: Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm.
Failing to do so may result in electric shock or fire.
Keep hands and foreign objects clear of the lid and latch area when closing the lid.
Failing to do so may result in personal injury.
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer with a damp, soft cloth.
Failing to do so may result in discoloration, deformation, damage or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the washer.
If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet slowly.
Open the faucet slowly after a long period of non-use.
The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
If the washer is used when itis flooded because of a draining problem, it may result in electric shock or fire due to electric leakage.
Do not insert your hand or a metal object under the washer.
This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
Ensure that the water supply hose connectors are properly tightened.
Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product.
If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product.
Do not place an object that generates an electromagnetic field near the washer.
This may result in injury due to a malfunction.
Since the water drained during a high temperature wash or drying cycle is hot, do not touch the water.
This may result in burns or injury.
Do not wash, spin, or dry water-proof seats, mats, or clothing.
Do not wash thick, hard mats even if the washer mark is on the care label.
This may result in injury or damage to the washer, walls, floor, or clothing due to abnormal vibrations.
Do not operate the washer when detergent dispenser is removed.
This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer.
This can cause abnormal vibrations that can damage the washer, and, in the case of pets, cause severe injury or death.
D0 not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
This may result in electric shock or injury.

Installation Instructions

Unpacking and Removing Shipping Material

Remove the packing box and lift the washer up and away from the foam base cushion.
Open the lid of washer to take out all accessories including protection foam.

WARNING: Packaging materials can be dangerous to children; Keep all packaging material (plastic bags, polystyrene, etc.) well out of children’s reach. Do not operate this appliance on the foam base cushion. Failing to do so will result in serious vibration.

Key Parts and Components

comfee CLV09N1AMG Washing Machine - Removing 1

Accessories

comfee CLV09N1AMG Washing Machine - Removing 2

Tools Needed in Installation

comfee CLV09N1AMG Washing Machine - Removing 3

Key Dimensions and Specifications

comfee CLV09N1AMG Washing Machine - Removing 4

Choose the Proper Location

Flooring

For best performance, you must install your washer on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations.
Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle.

WARNING:Do not install your washer in areas where water may freeze, since your washer will always retain some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the pump, hoses, and other components. Never install on a platform or weakly supported structure.

Electric

Use 120Volt 60Hz 15 Amps fuse or circuit breaker.
Individual branch circuit serving only for your washer is recommended.

WARNING: Never use an extension cord.

Grounding

Electrical grounding is required for this washer.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: An improperly connected equipment-grounding conductor can increase the risk of electrical shock.

Check with a qualified electrician or serviceman if you are not sure whether the appliance is properly grounded.
Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.70 Latest Revision and local codes and ordinances.
It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

WARNING: Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Water

To correctly fill your washer in the proper amount of time, water pressure of 14 to 70psi (100 to 500 kPa) is required.
Water pressure less than 14psi may cause water valve failure, or may not allow the water valve to shot off completely, or may extend the fill time beyond what your washer controls allow, causing your washer to turn off and alarm error.
A time limit is built into the controls to prevent flooding in your home if a hose becomes loose.
The water faucet must be within 4 feet / 122cm of the back of your washer to match the inlet hoses provided with your washer.

To avoid the possibility of water damage:

Have water faucets easily accessible – Turn off faucets when the washer is not in use.
Periodically check that there is no leakage from the water inlet hose fittings.

Drain facility

The recommended height of the standpipe is 35in. or 90cm.
The drain hose must be routed through the drain hose clip to the standpipe.
The standpipe must be large enough to accept the outside diameter of the drain hose.

Install Your Washer

WARNING: Before installing, make sure there are rubber gaskets inside the fittings at both ends of the water supply hoses.

When you initially install the washer, be sure to use new hoses. Failing to do so may result in a water leakage or overflow and may damage your property. If a hose is too short, replace the hose with a longer, high pressure hose.

comfee CLV09N1AMG Washing Machine - Removing 5

Step 1: Move your washer to selected position
Tilt the unit back onto its rear rollers and push it forward as shown in the figure below. Move the unit to a location as described in the previous Choose the Proper Location section.
WARNING: Make sure the location has a hard, level surface without carpeting.
There should be no direct sunlight.
Do not expose the unit to freezing temperatures (under 32° F or 0° C).
Step 2: Install the Bottom Cover
Slide the bottom cover into the slots on bottom surface of the unit as in the following figure, and fix it with screw attached with the unit.
Step 3: Connect the water hose
1. The Quick Connection Adaptor is primarily for quick connection to a single faucet, such as a typical kitchen sink, in cases where the washer is stored in a different place than where it is used. Skip this step if you are connecting the washer to a sink with separate hot and cold faucets.
  The adaptor consists of two parts that quickly connect or disconnect. One part, the faucet fitting, is for connection to the faucet and the other part, the hose fitting, connects to the cold water hose of the washer.
  - Pull back on the white ring to free the faucet fitting from the adaptor for installation into the faucet.
  - Screw the end of the cold water hose onto the base of the hose fitting.
  - If the faucet has internal screw threads, unscrew the aerator if present from the tip of the faucet. Then screw the faucet fitting into the faucet. Make sure that the black rubber gasket is on the top of the adaptor before screwing it in.
  - If the faucet has external screw threads, remove the gasket from the top of the faucet fitting, and screw the fitting over the external threads.
  - Pull back on the white ring to connect the two parts of the adaptor back together.
    NOTE:
    When connected to a single faucet, be sure to only run cold water washers.
2. Connect the ends of the water supply hoses to the COLD faucets. For convenience, use the Quick Connection Adaptor for connection to the cold water faucet. See instructions for Quick Connection Adaptor use in Step 1 above.
3. Tighten the fittings by hand until they are snug, and then tighten them an additional two-thirds of a turn with a wrench.
  WARNING: When you fasten the fittings, do not fasten them too tightly or apply tape or sealant to the faucets or water supply intakes. This can damage the fittings. After you have connected the water supply hoses to the faucets, ensure that they are connected securely by pulling the water supply hoses downwards.
4. Place the unconnected ends of the hoses into a bucket and open the faucets connected to the two water supply hoses for 10 or 15 seconds to remove any foreign substances from the hoses. Close the faucets before continuing.
5. Connect the ends of the water supply hoses to the water supply in take connections at the top of the washer.
  WARNING: The water hose connected to the COLD faucet must be connected to the cold water supply intake.
6. Tighten the fittings by hand until they are snug, and then tighten them an additional two-thirds of a turn with a wrench.
  WARNING: Confirm that the water supply hoses are not twisted or bent. If the hoses are twisted or bent, the hoses can leak and cause electric shock due to the water leakage .To ensure the correct water usage, connect the COLD water faucets.
7. Turn on the COLD water supplies and check all the water supply intake connections and the faucets for water leaks.
Step 4: Connect the drain hose
Position the other end of the drain hose. It can be positioned in three ways.
1. Over the edge of a wash basin.
  Secure the guide to the s ide of the basin wall with a hook or to the tap with apiece of string to pre ve nt the drain hos e from moving.
2. In a standpipe
  The standpipe must be no shorter than 32 in. (81cm) and no longer than 39 in. (100cm).
3. In a laundry tub.
  The laundry tub must be no shorter than 32 in. (81cm) and no higher than 39 in. (100cm).
  WARNING: Make sure that the connection between the drain hose and the wash basin, standpipe or laundry tub is not airtight.
Step 5: Leveling your washer
See if the washer is level by checking the position of the tub or using a leveling gauge.
1. Slide the washer into position.
2. Open the lid of the washer, and pour the water into the tub to just below the pulsator level.
3. If the washer is level, the pulsator is positioned at the center of the washer as shown in the figure above right.
  If not, level your washer by turning the front leveling feet clockwise or counterclockwise as necessary.
  WARNING: There is ONLY ONE adjustable leg as right figure on this washer.
Step 6: Powering your washer
Plug the power cord into a 3-prong, well grounded 120Volt 60Hz approved electrical outlet protected by a 15-amp fuse or comparable circuit breaker.
Your washer is grounded through the third prong of the power cord when plugged into a 3-prong grounded electrical outlet.
Step 7: Running a test cycle
1. Load about 3.5 pounds of laundry into the tub.
2. Press the Power button to turn on your washer.
3. Select the Rinse+Spin cycle as instruction on page 19.
4. Press the Start/Pause button to start the test cycle.
5. The washer should not rock or vibrate excessively when water is supplied or when washing or spinning, and should drain well during the spin cycle.
  Run a test cycle as follows to check if your washer is properly installed.
  WARNING: If water leaks while water is being supplied or drained, check the water connections. If the washer rocks and vibrates excessively, level your washer again.
Step 8: Storing your washer
If you want to store your washer at another location, unplug it, drain any remaining water from the drain pipe and hook the pipe onto the back of the washer.
Disconnect the water inlet hoses from the faucets and move washer to new location.

Description

The Comfee Washing Machine CLV09N1AMG boasts a sleek and modern design that fits seamlessly into any home decor. Its compact size allows it to be placed in tight spaces, such as under a countertop or in a closet. The machine is equipped with a variety of wash cycles to handle different types of laundry, from delicate items to heavily soiled clothes. The digital control panel makes it easy to select the right cycle and monitor the wash process.

The energy-efficient design ensures that you save on your utility bills while also reducing your environmental footprint. The built-in drain pump simplifies the process of draining water after each cycle, eliminating the need for manual intervention.

How To Use

Control Panel

Program
Press this button to select your desired washing program.
- Heavy (light)
- Gentle (light)
- Normal (light)
- Rapid (light)
- Soak (light)
Load Size
Press this button to set your washing load size. Your setting will decide the water level throughout all steps in the cycle.
Wash
Press the button to select the washing time
Digital display
The digital display will show and count down the estimated minutes for the wash cycle selected.
Rinse
Press the button to select the times of rinse
Spin
Press the button to select the time of spin
START/PAUSE
Press the START PAUSE button once to the start the/ wash cycle.
Press the button during operation to pause the cycle.Press again to continue the cycle.
ON/OFF
Press the button once to turn ON the power of ON/OFF the washer. Press again to turn OFF the unit.

Washing a load of laundry

Step 1: Power on your washer
Press the ON/OFF button to power your wash on.
Step 2: Load your washer
WARNING: Before loading your laundry, be sure to take out coins, keys and other hard objects, and close all zippers to prevent the clothes from damage.
Sort laundry by fabric type, soil level, color and load size as needed. Refer to the Fabric Care Chart in the APPENDIX.
You can fill the tub with dry, unfolded clothes ,but DO NOT OVERLOAD the tub. Load the tub no more than 3/4 full.
To ensure good cleaning results do not overload the tub, especially when washing heavily soiled loads. Never load the tub more than 3/4 full.
WARNING: Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or wrinkling of items in the load.
Note: To add a forgotten item:
1. Press the START/PAUSE button to pause the washer.
2. Wait for the tub to stop turning, then open the door.
3. Add the item, close the door, and then press the START /PAUSE button. The cycle will resume.
Step 3: Add detergent
This washer is designed for high efficiency (HE) powder detergent only. Add the recommended amount of detergent directly into the basket before starting your washer. The normal amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water is very soft. Never use more than the maximum amount recommended by the detergent manufacturer.
Never pour any liquid bleach directly onto the load. It can cause fabric damage, such as weakening of cloth fibers or color loss.
Step 4: Select your desired cycle and options
First, select your desired washing program.
Heavy (light)
Gentle (light)
Normal (light)
Rapid (light)
Soak (light)
Second , select the water level based on a High, Medium or Lowload size. Press the Load Size button to change the water level setting.
3–large
2–medium
1–small
Third, user can freely select any combination among WASH, RINSE and SPIN modes according to the dirty degree of clothes.
Detail operation methods are following:
Continuously pressing the washing button to select washing time.
(1~20 minutes, or no wash process)
Continuously pressing the rinse button to select rinse times.
(1~3 times, or no rinse process)
Continuously pressing the spin button to select the spin time.
(3 ~9 minutes or no spin process)
Step 5: Start the cycle
Press the START/PAUSE button to start the washing cycle.
When the washing cycle begins, the Estimated Time in minutes for the cycle to complete will show and count down in the digital display.

WARNING: When the washer is running, you should pause the program and wait for the basket stopped completely before you open the door.
Cycle Guide

Program	Load Size		soak time (about)	Wash Time (about)	Rinse Times	Final Spin Time	Total Time
Program	Default	Scope	soak time (about)	Wash Time (about)	Rinse Times	Final Spin Time	Total Time
Normal	Large	Sm	–	12 min	1	5min	30min
		Med	–	12 min	1	5min	30min
		Lg	–	12 min	1	55min	81min
Heavy	Large	Sm, Med, Lg	20 min	12 min	2	9min	63min
Gentle	Medium	Sm, Med, Lg	–	7 min	2	5min	34min
Rapid	Small	Sm, Med, Lg	–	2 min	1	4min	15min
Soak	Medium	Sm, Med, Lg	30 min	15 min	2	7min	74min

Energy efficiency test program：
“Normal” program is the most suitable program to wash normally soiled cotton or linen clothes and is the most efficient program in terms of combined energy and water consumption for washing that type of laundry.

Setup Guide

To set up the Comfee Washing Machine CLV09N1AMG, follow these steps:

Unbox the machine and remove all packaging materials.
Place the washing machine on a level surface to ensure stable operation.
Connect the water supply hoses to the rear of the machine and secure them to your water supply lines.
Plug in the power cord and ensure it is securely connected to a nearby outlet.
Run a test cycle to check for any leaks or issues with the installation.

Care And Cleaning

Regular Cleaning and Maintenance

Cleaning the exterior

Turn off the water faucets after finishing the day’s washing.
This will shut off the water supply to your washer and prevent the unlikely possibility of damage from escaping water.
Leave the lid open to allow the inside of your washer to dry out.
Use a soft cloth to wipe up all detergent, bleach or other pills as they occur.

Clean the following as recommended:

Control Panel

Clean with a soft, damp cloth.
Do not use abrasive powders or cleaning pads.
Do not spray cleaners directly onto the panel.

Cleaning the interior

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes.
Failure to fol low the s e ins tr uctions may re s ul t in unpleasant conditions, including odors and/or permanent stains on your washer or laundry .
Hard water deposits may be removed, if needed. Use cleaners labeled“Washer safe”.

Tub clean

Run an Rapid cycle with some bleach every month to clean the tub.
This will also help to remove mold which may occur inside the washer.

Lint filter clean

There is a built-in lint filter in your washer. It can help to collect lint during washing cycle.
It is suggested to clean the lint filter every 10 cycles.
Take it out and clean the filter with water.
Then place it back into the washer.

comfee CLV09N1AMG Washing Machine - Cleaning

Troubleshooting

Before calling for service
Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washer does not function properly or does not function at all, check the following before you call for service:

Problem	Possible Cause	Solutions
Thumping sound	Heavy wash loads may produce a thumping sound. Washer load may be out of balance.	This is normal. If sound continues, washer is probably out of balance. Stop and redistribute wash load. Pause the cycle and redistribute the load.
Vibrating noise	Packaging materials were not removed. Wash load may be unevenly distributed in the tub. Not all leveling feet are resting firmly and evenly on the floor. Floor not rigid enough.	See the UNPACKING AND REMOVING SHIPPING MATERIAL section in the installation instructions. Pause the cycle and redistribute the load. See Leveling the Washer in the Installation Instructions. Make sure that the floor is solid and does not flex.See Flooring in the Installation Requirements.
Excessive sudsing	Too much detergent or incorrect detergent.	HE detergents are formulated specifically for High-Efficiency washers and contain suds reducing agents. Only use detergent with the High-Efficiency (HE) logo.
Water leaking	Inlet hose connection is loose at faucet or washer. House drain pipes are clogged. Drain hose has come out of drain or is not inserted far enough. A large item such as a pillow or blanket is above the top of the tub.	Check hoses for leaks. cracks and splits. Check and tighten hose connections. The washer pumps out water very rapidly. Check for water backing up out of the drain pipe during drain. If water is seen coming out of the drain. check for proper drain hose installation and check for restrictions in the drain. Contact a plumber to repair drain pipe. Tie drain hose to inlet hose or standpipe to prevent it from coming out during drain. For smaller drain pipes. insert the drain hose into the pipe as far as the drain hose flange. For larger drain pipes. insert the drain hose into the pipe 1-2 in. past the flange . Stop the washer and check the load. Make sure the load does not crest above the top edge of the tub.
Rattling and clanking noise	Foreign objects, such as keys, coins, or safety pins, may be in tub or pump.	Stop washer, check tub and drain filter for foreign objects. If noise continues after washer is restarted, call for service.
Wrinkling	Washer not unloaded promptly. Washer overloaded. Hot and cold water inlet hoses are reversed.	Always remove items from the washer as soon as the cycle is complete. The washer can be fully loaded, but the tub should not be tightly packed with items. The lid of the washer should close easily. Hot water rinse can set wrinkles in garments. Check the inlet hose connections.
Staining	Washer was not unloaded promptly. Clothes were not properly sorted.	Always remove items from the washer as soon as possible after the cycle is complete. Always wash dark colors separately from light colors and whites to prevent discoloration. Never wash heavily soiled items washed with lightly soiled items.
Wash cycle time is longer than usual	The washer automatically adjusts the wash time for the amount of laundry, water pressure and other operating conditions.	This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle. The time remaining shown in the display is only an estimate. Actual time may vary.
Musty or mildewy odor in washer	Incorrect or too much detergent has been used .Inside of tub was not cleaned properly.	Use only High-Efficiency (HE) detergent in accordance with the manufacturers instructions. Run an Express cycle with bleach once a month to clean tub and remove any mold from inside washer.
Washer will not turn ON NOTE: If the washer stopped during a cycle due to a lossof pone*, the washer will resume the cycle where It stopped when the power Is restored.	Power cord is not properly plugged in. House fuse is blown, CITC uit breaker has tripped, or power outage has occurred. House fuse is blown, circuit breaker has tripped, due to multiple appliances on one outlet.	Make sure that the plug is plugged securely into a grounded.3-prong. 120-VAC. 60-Hz outlet. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload. have it corrected by a qualified electrician. Reset circuit breaker or replace fuse. If more than one appliance is connected to the outlet. call an electrician to have an additional circuit installed.
Water leaks	Over sudsing of detergent.	Over sudsing may create leaks, and may be caused by the type and amount of detergent used. High-Efficiency detergent is the only detergent recommended. Make sure that detergent and any additives are put into the correct dispenser compartments. The normal amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water bis very soft. Never use more than the maximum amount recommended by the detergent manufacturer.
Poor stain removal	Previously set stains	Articles that have previously been washed may have stains that have been set . These stains may be difficult to remove and may require hand washing or pre-treating to aid in stain removal.
Washer will not drain water	Drain located higher than 48 in. above the floor. Kinked drain hose.	Make sure that the drain hose is no higher than 4 ft. above the bottom of the washer and is no more than 5 ft. away from the washer. Ensure that the drain hose is not kinked.
Washer will not operate	Water supply is turned off . Control panel has powered off due to inactivity. Washer is unplugged. Controls are not set properly. Lid is open. Circuit breaker/fuse is tripped/blown. Control needs to be reset. START/PAUSE was not pressed after a cycle was set. Extremely low water pressure. Washer is too cold. Washer is running under Delay start program.	This is normal. Press the POWER button to turn the washer on. Make sure cord is plugged securely into a working outlet. Turn both hot and cold faucets fully on. Make sure the cycle was set correctly , close the lid and press the START/PAUSE button . The washer will not operate if the lid is open . Close the lid and make sure that nothing is caught under the lid preventing it from closing completely . Check house circuit breakers/fuses. Replace fuses or reset breaker . The washer should be on a dedicated branch circuit . The washer will resume the cycle where it stopped once power is restored. Press the POWER button, then re-select the desired cycle and press the START/PAUSE button. Press the POWER button then re-select the desired cycle and press the START/PAUSE button. The washer will shut off if the START/PAUSE button is not pressed within ten minutes. Check another faucet in the house to make sure that household water pressure is adequate. If the was her has been expos e d to temperatures below freezing for an extended period of time, allow it to warm up before pressing the POWER button. Otherwise, the display will not come on. It’s normal if the unit doesn’t operate under Delay start function. It will start automatically after the delay time is out.
Washer notfilling properly	Filter clogged. Inlet hoses may be kinked water supply. Insufficient The washer lid is open. Hot and cold inlet hoses are reversed. Water level is too low. Water inlet valve damaged.	Disassemble the water inlet hose and clean the inlet point. Check that inlet hoses are not kinked or clogged. Make sure that both hot and cold water faucets are turned on all the way. The washer will not operate if the lid is open.Close the lid and make sure that nothing is caught under the lid preventing it from closing completely. Check inlet hose connections. Make sure the hot water supply is connected to the hot inlet valve, and the cold water supply is connected to the cold inlet valve. This is a high efficie ncywasher . The water will not normally cover the clothes. The fill level is optimized for the wash motion to achieve the best wash performance. Call to the service center for service.
Water leaks every load	Hoses not installed correctly.	Check all fi ll and drain hose connections to ensure that they are tight and secure.

Error Codes

Error Code	Possible Cause	Solutions
El	It takes over 16 minutes to fill water but cannot achieve its preset water level.	Check for Washer not filling properly and Water leakage.
E2	The top lid is open.	Close the lid.
E3	The washer runs out of balance for three times.	Redistribute the load.
E4	It takes over 10 minutes to drain water but can not drain the washer empty.	Check for Washer will not drain water.
E5	Water leveling sensor failed.	Call to service center for help.

*Press the START/PAUSE button to release E1/E2/E3/E4 error warning.

APPENDIX

Fabric Care Chart
The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Wash Cycle		Special Instructions		Warning Symbols for laundering
	Normal		Line Dryfriang to Dry		Do Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry		Do Not Wring
	Gentle/Delicates		Dry Flat		Do Not Bleach
	Hand Wash	Heat Setting			Do Not Tumble Dry
Water Temperature**			High		No Steam (added to iron)
	Hot		Medium		Do Not Iron
	Warm		Low	Dryclean
	Cold		Any Heat		Dry Clean
Bleach			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)	Iron Dry or Steam Temperatures			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High		Drip Dry
	Tumble Dry Cycle		Medium		Dry Flat
Normal			Low		For machine-washable wool. Loads should be under 8 pounds.
	Permanent Press / Wrinkle Resistant / Wrinkle Control
	Gentle/ Delicates

The number of dots represent appropriate wash water temperatures for various items. The temperature range for Hot is 105°-125°F/41°-52°C, for Warm 85°-105°F/29°-41°C and for Cold 60°-85°F/16°-29°C.

(Wash water temperature must be a minimum of 60°F/16°C for detergent activation and effective cleaning.)The clothes washer can not ensure these temperatures because the actual temperature of the water entering your washer depends on water heater settings and regional water supply temperatures.

For example, cold water entering the home in the northern states during winter may be 40°F/4°C which is too cold for effective cleaning. In this situation, you will need to adjust the water temperature by selecting a warm setting, adding some hot water to the MAX FILL line, or using your Washer’s heating option, if available.

LIMITED WARRANTY

Midea America corp Corporation warrants. Washing Machine to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company’s option, for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of the dated sales receipt or invoice is required to receive warranty service by an authorized service agent.

Pros & Cons

Pros

Compact and space-saving design
Energy-efficient and cost-effective
Multiple wash cycles for versatility
Quiet operation technology
Easily portable due to its lightweight design

Cons

Limited capacity for larger loads
No dryer integration (requires separate dryer unit)
Slightly higher noise level during the spin cycle

Customer Reviews

Customers have generally praised the Washing Machine for its reliability, ease of use, and compact size. However, some users have noted that it may not be suitable for larger families due to its limited capacity.

Common complaints include the lack of a built-in dryer and the need for more frequent washing cycles due to the smaller load capacity.

	This indicates that hazards or unsafe practices may cause serious personal injury or death. To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, these basic safety precautions SHOULD be followed.
	This indicates that hazards or unsafe practices may cause minor personal injury or property damage.
	This graphic represents CAUSE ATTENTION, and detailed cautions will be displayed in side the graphic .
	This graphic represents OPERATION PROHIBITED, and detailed prohibitive items will be displayed in side the graphic .
	This graphic represents FORBIDDEN EXECUTION, and detailed forbidden execution items will be displayed inside the graphic .

Search Manuals in: clv09n1amg

Read More
