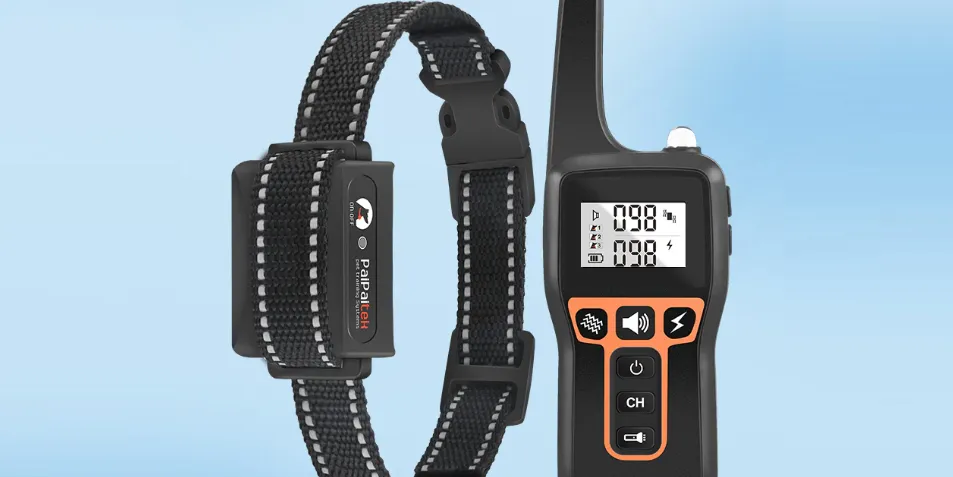

Introduction of Paipaitek Dog Training Collar PD 529

The paipaitek Dog Training Collar PD 529 is the newest addition to the paipaitek family of pet training products. Designed with the latest technology and user-friendly features, this training collar is perfect for pet owners looking to train their dogs effectively and humanely. The collar is available for an estimated price of $79.99 and will be launched on March 15, 2023.

Package Contents

PD 529-1 (For 1 dog)

1 x Remote Transmitter
1 x Receiver
1 x Collar Strap
1 x USB Charging Cable
2 x Long Conductive Silicone Caps
2 x Short Conductive Silicone Caps
1 x Lanyard
2 x Long Contact Point
2 x Short Contact Points
2 x Anti-Shock Pads
1 x Test Lamp
1 x User Manual

PD 529-2 (For 2 dogs)

1 x Remote Transmitter
2 x Receiver
2 x Collar Strap
1 x USB Charging Cable
4 x Long Conductive Silicone Caps
4 x Short Conductive Silicone Caps
1 x Lanyard
4 x Long Contact Point
4 x Short Contact Points
4 x Anti-Shock Pads
1 x Test Lamp
1 x User Manual

PD 529-3 (For 3 dogs)

1 x Remote Transmitter
3 x Receiver
3 x Collar Strap
1 x USB Charging Cable
6 x Long Conductive Silicone Caps
6 x Short Conductive Silicone Caps
1 x Lanyard
6 x Long Contact Points
6 x Short Contact Points
6 x Anti-Shock Pads
1 x Test Lamp
1 x User Manual

Paipaitek Dog Training Collar PD 529 Specifications

Model	PD 529-TIO
Function	Training Dogs
Working Modes	Tone, Vibration,Static Shock
Static Shock/Vibration Levels	1-100 Levels
Net Weight	Remote Transmitter: 50g Receiver: 45g
Channels	3 Channels
Remote Range	1000m /1100yds/3300ft
Battery Capacity	Remote Transmitter: 300mAh Receiver: 650mAh
Working Time	Remote Transmitter: 180 days Receiver: 25-40 days
Waterproof Level	Remote Transmitter: IPX3 Receiver: IPX7

INTRODUCTION FOR THE BUTTONS

PaiPaitek PD 529 Pet Training Collar - fig3

Signal Channel Button: Press this button, choose channels 1, 2, or 3 as the signal channel of dog training before connecting the signals between the remote transmitter and receiver.
Note:
PD 529-1: For 1 dog only, 1 receiver, can choose any channel as your dog training signal, otherwise you have to connect the signals again when training your dog; PD 529-2: For 2 dogs, 2 receivers, you can choose the same signal channel for the 2 receivers, or you can choose 2 signal channels, please remember the signal channel of each receiver;
PD 529-3: For 3 dogs, 3 receivers, you can choose the same signal channel for the 3 receivers, or you can choose 3 signal channels, please remember the signal channel of each receiver;
Power Button/Keylock of Remote: Press to turn the remote transmitter on and off.
Static Shock Button: Press the static shock button and the receiver will emit a static shock signal.
Vibration Button: Press the vibration button and the receiver will emit a vibration signal.
Tone Button: Press the tone button and the receiver will beep. The tone function is not adjustable.
LED Light Button
LED Light
The +/- button: Reduce and raise the vibration and static shock level.
Charging Port of Remote Transmitter
Power Button of Receiver
Indicator Light of Receiver
Contact Points: Choose a suitable length to fit different thicknesses of dog hair.

Description

The paipaitek Dog Training Collar PD 529 is the perfect tool for pet owners looking to train their dogs with precision and control. The waterproof and shockproof design ensures that the collar can withstand even the most extreme weather conditions, while the rechargeable battery provides a long-lasting charge for uninterrupted training sessions. The adjustable collar fits dogs of all sizes, from 8 to 120 pounds, making it a versatile training solution for pets of all breeds and sizes.

The collar offers 10 levels of static stimulation, vibration, and tone settings, allowing you to customize the training experience for your dog's unique needs. The half-mile range ensures effective communication with your dog, even in large open spaces, while the LED night light provides visibility in low-light conditions. The LCD display makes it easy to operate and adjust settings, ensuring a seamless training experience for both you and your dog.

Operation & Charging

PaiPaitek PD 529 Pet Training Collar - fig4

How to Choose USB Charger
Please choose the USB charger with the parameters below (we can charge the device by the charger of a smartphone or laptop/computer USB interface, before that please check if the charger is with the following parameters):

Input: 100-240v ~ 50-60HZ
Output: 5V 1000mA (or 300mA/500mA)

Charge the Remote Transmitter

Connect the charger cable to the charging port.
Plug the charger into a standard socket.
The battery icon will flash during charging and be solid when charging is completed.

Charge the Receiver

Open the rubber cover, and connect the receiver to a charger into a standard socket.
The red indicator light will flash slowly when the receiver is charging. After fully charged, the red indicator light keeps on.

To Turn the Receiver On and Off

Turn on: Press the power button once, the receiver will make a short “beep” sound, which means that the receiver is turned on.
Turn off: Press the power button once, the receiver will make a long “beep” sound and the indicator light is not flash anymore.

Check the Receiver Power
When the receiver is turned on, press the power button twice quickly to check the power:

The receiver beeps 5 times, representing 100% (80-100%)
The receiver beeps 4 times, representing 80% (60-80%)
The receiver beeps 3 times, representing 60% (40-60%)
The receiver beeps 2 times, representing 40% (20-40%)
Receiver beep 1 time, representing 20% (1-20%)

HOW TO WEAR RECEIVER COLLAR CORRECTLY

PaiPaitek PD 529 Pet Training Collar - fig5

The correct wearing position helps healthy and effective dog training.

The receiver shall be placed at bottom of the dog’s neck, and the screw caps must contact the dog’s skin directly.
If your dog has thick hair on the neck, please use longer screw caps.
The anti-shock pads could prevent skin abrasion. It’s recommended to use 2-3 times a week.
The space between receiver collar and the dog’s neck shall be maintained to a finger distance, which can’t be too loose, otherwise, static shock effectiveness shall be badly influenced.
The extra part of the strap can be trimmed, or be handled with other methods.

Pairing & Testing

How to Pair the Remote Transmitter and Receiver

Open the remote transmitter, and press the CH button to choose a signal channel you want to use.
Hold power button on the receiver for 2 seconds, when the indicator light keeps flashing, press the tone/vibration/static shock button on the remote to pair.
If you do not press the function button within 10 seconds, please pair them again.
If you have multiple receivers, you can choose the same signal channel or choose another channel for pairing.

Test the Dog Training Collar

PaiPaitek PD 529 Pet Training Collar - fig6

Static Shock Function Test
Static shock function can not be seen with the naked eye, please use our test lamp. Press the static shock function button, the test lamp will shine.
Vibration Function Test
Press the vibration function button, the receiver will shake.
Tone Function Test
Press the tone button, the receiver will make a beep sound.
You need to pair the remote transmitter and receiver before using it on the dog. Please follow the manual for the first time use.
Please keep in mind the dog channel you choose and do not change to other one, or the receiver will not receive signals.
When the remote transmitter is turned off, all the functions are locked except for the LED light.

REFERENCE SIZE FOR DIFFERENT DOGS

Reference weight for dogs

Large Dog(Body height above 24 inches, Weight above 88 lbs)
Medium Dog(Height 16-24 inch, Weight 24.2-66 lbs)
Small Dog(Height 10-16 inches, Weight 8.8-22 lbs
Mini Dog(Height under 10 inches, Weight under 8.8 lbs)

Size (Dog)	Neck (In)	Chest Measurement (In)	Back Length(In)	Type
Mini	7.8-8.6	9.8-11.8	17.5	Chihuahua, Yorkshire Terrier
Small	7.8-9.5	11.4-14.2	9	Chihuahua, Yorkshire Terrier, Poodle, Pomeranian
Medium	9.0-11.0	13.7-16.5	11	Maltese Dog, Shih Tzu
Large	9.6-12.2	16.2-18.5	12.2	Miniature Schnauzer, Pekingese
Large	11.8-13.4	18.1-20.8	13.8	Schnauzer, English Cocker Spaniel
Large	13.0-14.5	20.5-23.2	15.7	Beagle
Huge	17.0-18.9	30.0-33.0	23.6	Husky

Setup Guide

Setting up the paipaitek Dog Training Collar PD 529 is easy and straightforward:

Charge the collar using the included USB cable.
Adjust the collar to fit your dog's neck size.
Turn on the collar by pressing the power button.
Choose the desired stimulation level and mode using the LCD display.
Pair the collar with the remote control using the pairing button.
Test the collar on your dog to ensure proper function.

MAINTENANCE

Please examine regularly to ensure the tightness of the remote transmitter and eliminate any external damages.
Clean the screw caps with alcohol weekly.
Examine your dog’s neck and carry out the weekly cleanup.
The battery is rechargeable. In order to maintain battery life, please charge it every 2 months if it is not often used.

Safety Instructions

Training collars are used to train the dogs and not for punishment. Use properly with care and the collar can be a safe and effective tool to train. Building communication and strengthening your bond with your best friend. Obey all safety messages that follow this instruction to avoid possible injury. If your dog has heart disease, high blood pressure, cerebral thrombosis, skin allergies, etc., please do not use it.

REINFORCE LEARNING BEHAVIOURS

If your dog knows the command but responds inconsistently than your requirement, a training collar can sharpen his skill. For example, you have taught your dog to come when alling, but over time he responds slower. You can communicate with him via the remote transmitter so that he immediately responds to your call.

Set the collar to the initial stimulation level and test it.
Fit the collar on your dog’s neck along with his regular collar.
Let him roam around the training area. Then give the command and simultaneously press the stimulation button.
The instant your dog moves toward you, stop stimulation and praise him.
If he stops before he reaches you or turns away, repeat the command and continue the stimulation. Again, stop at the instant he runs to you and rewards him by praising him or feeding him a treat. Repeat this 3 or 4 times.

Tips

If he doesn’t get it for the first few times, don’t give up and do not increase the stimulation. Try to work on this a few times.
During the training period never give the command if you are not able to enforce it. Your dog has to make the mental connection between the static shock/vibration/beep to his behavior (may take a week or more for some dogs).
Altogether, both methods of stopping unwanted behavior and reinforcing learning behaviors can be applied to nearly every training scenario.

BEFORE USING THE DOG TRAINING COLLAR

PaiPaitek PD 529 Pet Training Collar - fig1

Do not expose to extreme heat or store at temperatures above 113 ℉ or 45 ℃.
Please always keep the dog training collar out of reach of children.
Charge the remote transmitter and receiver at least 2 hours when receiving the item. The collar can’t receive any signals while it is being charged.

WHEN USING THE DOG TRAINING COLLAR

PaiPaitek PD 529 Pet Training Collar - fig2

Avoid leaving the collar on dog for more than 18 hours per day.
If possible, please reposition the collar on the dog’s neck every 1 to 2 hours.
Check the fit to prevent excessive pressure.
The charging rubber cap must be closely covered when your dog is swimming or the receiver will get broken when getting into the water from the interface. Taking off the receiver is recommended.
The receiver will turn off automatically after 10 seconds “beep” sound when the battery is low.

Paipaitek Dog Training Collar PD 529 Troubleshooting

Common problems and solutions for the paipaitek Dog Training Collar PD 529 include:

Collar not charging: Ensure the USB cable is properly connected to the collar and a power source.
Collar not pairing with remote: Press and hold the pairing button on both the collar and remote for several seconds until they are paired.
Stimulation not working: Check the battery level and ensure the collar is properly fitted on your dog's neck.
Warnings: Do not use the collar on puppies under 6 months old or dogs with health issues. Do not leave the collar on for extended periods of time. Always supervise your dog while using the collar.

Warranty

This product is covered with a warranty for 12 months from the date of its original purchase. Any defective part will be repaired or replaced at no charge if the appliance has not been tampered with and has been used according to these printed directions. If any problems occur, please contact the local dealer immediately to launch a warranty claim. Our consumer service representative will respond within 1 business day, advise you on how to correct the problem yourself, or instruct you on how to return the defective unit back to us for repair or replacement.

Paipaitek Dog Pros & Cons

Pros

Customizable stimulation levels and modes
Durable and waterproof design
Long-lasting battery life
Half-mile range for effective communication

Cons

May be too expensive for some pet owners
Some dogs may not respond to stimulation
May require trial and error to find the right stimulation level for your dog

Customer Reviews about Paipaitek Dog Training Collar PD 529

Customers love the paipaitek Dog Training Collar PD 529 for its customizable settings, durability, and ease of use. Many report that their dogs respond well to the stimulation and that the collar has helped them effectively train their pets. However, some report that the collar is too expensive and that their dogs do not respond to the stimulation.
