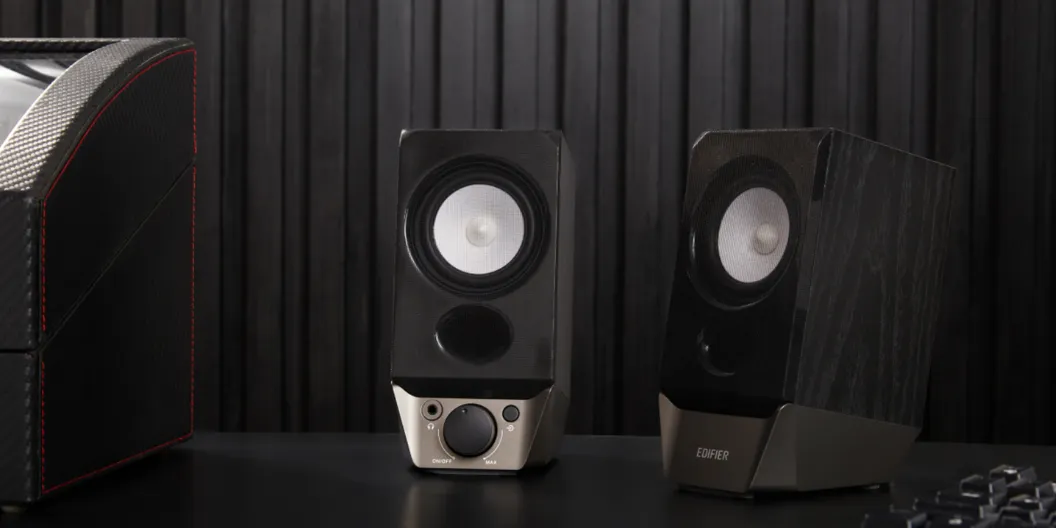

Edifier Multimedia Speaker R19BT Guide

The Edifier Multimedia Speaker R19BT is a high-quality speaker system designed for use with computers, laptops, and other multimedia devices. With its Bluetooth connectivity, you can easily connect and stream music from your smartphone, tablet, or any other Bluetooth-enabled device. The estimated price of the R19BT is around $150, making it an affordable choice for those looking for great sound quality without breaking the bank.

Important safety instruction

Please read the instructions carefully. Keep it in safe place for future reference.
Use only accessories approved by the manufacturer.
Install the instrument properly by following the instructions in the device connection section.
Using the product in a 0-35℃ environment is recommended. Shipping and storing the product in a 0-35°C environment is recommended.
To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.
The product must be used at an altitude of lower than 2000m.

For wireless product

Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices or medical equipment.
Turn off the product when it’s disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

What’s in the box

Note

Images are for illustrative purposes only and may differ from the actual product.
For the need of technical improvement and system upgrade, information and specifications contained herein may be slightly different from actual product. If any difference is found, the actual product prevails.

Specifications

Power output: R/L: 2W+2W
Frequency response: 80Hz-19KHz
Input: 5V≅1A

Functional operation

Earphone port
Power switch/volume control
- Power ON: rotate the knob to the right, it’s ON if there is a "click" prompt tone
- Power OFF: rotate the knob to the left, it’s OFF if there is a "click" prompt tone
- Volume up: rotate the knob clockwise
- Volume down: rotate the knob counterclockwise
Mode indicator
- USB audio streaming input: red LED steady lit
- Bluetooth input: blue LED steady lit
- AUX input: green LED steady lit
Mode switch button
- Press: USB-Bluetooth-AUX mode switch
- Press and hold: disconnect Bluetooth and clear pairing records (Bluetooth connected)
AUX input
USB connecting port
Active & passive speaker connecting port
Connect to active speaker

Note: The speaker does not support volume sync. If need to adjust the volume, please separately adjust the speaker volume and the computer volume.

Operation instructions

USB audio streaming connection

Connect the included USB cable to the computer, then rotate the "power switch/volume control" knob clockwise to power on.
The computer will recognize the "EDIFIER R19BT" USB device and automatically switch to the USB audio streaming output.
If not switch automatically, please open the sound settings of the computer and select the output device as "Speaker (EDIFIER R19BT)", the speaker is ready to use.

AUX connection

Connect the 3.5mm-3.5mm audio cable to your device and the speaker to switch to AUX mode. Green LED will be steady lit.
Select the audio file on your device to play, the speaker is ready to use.

Bluetooth connection

Press the "mode switch button" to switch to Bluetooth input. Blue LED will blink slowly.
Select "EDIFIER R19BT" in your device setting to connect. Blue LED will be steady lit after connected.

Description

The R19BT features a 2.0 speaker system with a total output of 42 watts. Each speaker has a 3.5-inch woofer and a 1-inch tweeter, providing clear and powerful sound. The Bluetooth connectivity allows for wireless streaming from up to 33 feet away, and the speakers also come with a wired connection option for non-Bluetooth devices. The R19BT has a sleek and modern design, making it a great addition to any desk or home entertainment setup.

Setup Guide

Setting up the Edifier Multimedia Speaker R19BT is easy. First, connect the power cord to the speakers and plug it into an outlet. Next, connect the RCA cable to the audio output on your multimedia device and the corresponding input on the back of the left speaker. If using a Bluetooth connection, press the Bluetooth button on the back of the left speaker and select "Edifier R19BT" on your device. The speakers will automatically pair, and you can start streaming your music.

Troubleshooting

No sound

Check if the speaker is ON.
Try to turn up the volume using the volume control.
Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the mode switch button in Bluetooth mode, then try again.
Effective Bluetooth transmission range is 10 meters; please ensure that operation is within the range.
Try another Bluetooth device for connection.

Noise coming from speakers

EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

To learn more about EDIFIER, please visit https://www.edifier.com/
For EDIFIER warranty queries, please visit the relevant country page on https://www.edifier.com/ and review the section titled Warranty Terms.

Pros & Cons

Pros
- Clear and powerful sound
- Bluetooth connectivity
- Sleek and modern design
- Affordable price
Cons
- No remote control
- No USB input

Customer Reviews

Customers have praised the Edifier Multimedia Speaker R19BT for its great sound quality and easy setup. However, some have noted that the lack of a remote control and USB input can be inconvenient. Overall, the R19BT is a great choice for those looking for affordable and high-quality speakers for their multimedia devices.
