Introduction

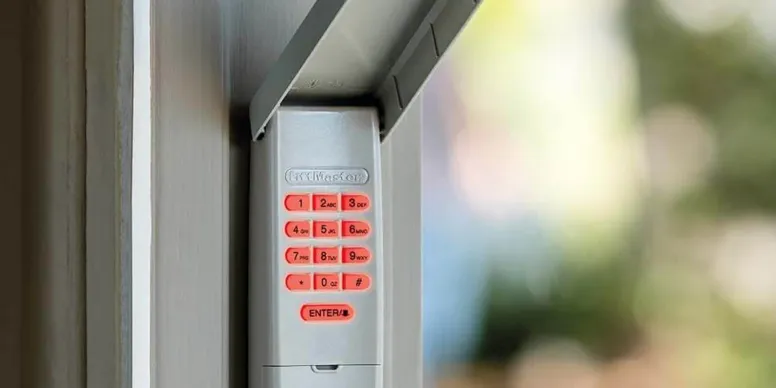

The Chamberlain Wireless Keyless Entry 940EVC offers a convenient and secure method for accessing your garage without the need for keys or a remote control. This keyless entry system enables you to conveniently open and close your garage door by entering a personal four-digit PIN, granting effortless access to the entire family. The 940EVC guarantees dependable functionality in all circumstances, whether it be during the day or at night, thanks to its lighted keypad and weather-resistant construction. This wireless keyless entry system is designed to be compatible with the majority of Chamberlain garage door openers. It provides an extra layer of protection and assurance through its superior encryption technology.

Detailed Specifications

The Chamberlain Wireless Keyless Entry 940EVC features a variety of key features, including:

Wireless, keyless entry system for garage doors
Compatible with most garage door openers made after 1993
Encrypted Security+ 2.0 technology for enhanced security
Up to 1,000 feet of range
Backlit keypad for easy use at night
Temporary guest access for up to one month
Weatherproof design for outdoor use
Powered by two 3-volt lithium batteries (included)

Description

The Chamberlain Wireless Keyless Entry 940EVC enables the user to operate the garage door by entering a code instead of using a conventional key. This keyless entry system is compatible with the majority of garage door openers manufactured after 1993, making it an excellent choice for individuals seeking to enhance their current garage door opener. The 940EVC incorporates encrypted protection+ 2.0 technology, which offers heightened protection and minimizes the likelihood of code theft. With a maximum distance of 1,000 feet, you can conveniently operate your garage door remotely, either opening or closing it. The keypad with backlighting facilitates nighttime usage, while the waterproof construction guarantees durability against various weather conditions.

PREPARE

PROGRAM INITIAL PIN

Press and hold the and # buttons until the lights on the keypad stop blinking.
Enter a 4-digit personal identification number (PIN) of your choice:
Press and release the Enter button the number of times that corresponds with the garage door opener type:
To exit programming mode, press the 0 button.
Press and release the Learn button on the garage door opener.
Enter the 4-digit personal identification number (PIN) programmed in step 2 then press and release the Enter button until the garage door opener lights flash or two clicks are heard.
To test, press the PIN, then press the ENTER button.

To program the Keyless Entry to more than one garage door opener, repeat the steps above using a new PIN for each additional garage door opener.

CHANGE AN EXISTING PIN

Press the programmed PIN that you want to change.
Press and hold the # button until......the light bulb blinks twice.
Enter the new 4-digit PIN of your choice, then press the ENTER button.
To test, press the new PIN, then the ENTER button. The garage door opener will activate.

PROGRAM A TEMPORARY PIN

NOTE: This feature is not available on garage door openers that have a green Learn button or an external receiver. A temporary 4-digit PIN can be programmed to allow access to visitors. Each programmed PIN can program one temporary PIN. The temporary PIN can be set for a number of hours or a number of door openings. The temporary PIN cannot be the same as any previously programmed PIN.

Press any programmed PIN, then press and hold the * button until...the light bulb blinks 3 times.
Enter the temporary 4-digit PIN of your choice, then press the ENTER button.

To test, press the temporary PIN, then press the ENTER button. The garage door opener will activate. If the temporary PIN was set for a number of openings, the test will use up one opening.

INSTALLATION

Select a location to mount the Keyless Entry at a minimum height of 5 feet (1.5 m) out of the reach of children.
Remove battery cover and battery.
Mark the top mounting hole and drill 1/8 inch (3.2 mm) pilot hole.
Install the top screw, allowing 1/8 inch (3.2 mm) to protrude above the surface. Position the Keyless Entry over the top screw.
Mark the bottom hole and drill 1/8 inch (3.2 mm) pilot hole. Install the bottom screw. Do not overtighten to avoid cracking the plastic housing.
Reinstall battery and replace cover.

Chamberlain Wireless Keyless Entry 940EVC OPERATION

The garage door opener activates when the PIN and ENTER button are pressed. The keypad will blink for 15 seconds, during that time the ENTER button can be used to stop, start or reverse the door.

If the wrong number is accidentally pressed, press the correct PIN then the ENTER button. The Keyless Entry will transmit only the last four digits that were pressed before the ENTER button.

ONE BUTTON CLOSE: The Keyless Entry has a feature that allows the door to be closed using the ENTER button instead of a PIN.

NOTE: This feature is not available on garage door openers manufactured prior to 2006 or an external receiver.

To deactivate the one button close feature
- Press and hold the 1 and 9 buttons for 10 seconds. The keypad will blink four times when the one button close feature is deactivated.
To activate the one button close feature
- Press and hold the 1 and 9 buttons for 10 seconds. The keypad will blink twice when the one button close feature is activated.

REPLACEMENT PARTS

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A25
Keypad Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41D621
Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41D541

BATTERY

To prevent possible SERIOUS INJURY or DEATH:

NEVER allow small children near batteries.
If battery is swallowed, immediately notify doctor.

Replace the battery when the keypad becomes dim or does not light after a button is pressed. Dispose of old battery properly.

Setup Guide

Setting up the Chamberlain Wireless Keyless Entry 940EVC is simple and easy. Here's how to do it:

Insert two 3-volt lithium batteries into the keypad.
Press and hold the "PROGRAM" button until the indicator light turns on.
Enter a four-digit code of your choice, then press the "ENT" button.
Press and release the "PROGRAM" button again, then press the button on your garage door opener that you use to program the remote controls.
Press the "ENT" button on the keypad to complete the programming process.

WARNING: To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:

Install Keyless Entry Control within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.
ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.
Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

Troubleshooting

If you are having trouble with your Chamberlain Wireless Keyless Entry 940EVC, here are some common problems and solutions to try:

Problem: The keypad is not responding.
Solution: Make sure the batteries are installed correctly and have enough power. If the batteries are low, replace them with new ones.
Problem: The garage door is not opening or closing.
Solution: Make sure the keypad is programmed correctly with your garage door opener. If it is, try resetting the keypad and programming it again.
Problem: The range is not sufficient.
Solution: Make sure you are within 1,000 feet of the garage door opener when using the keypad. If you are, try moving closer to the opener.

WARRANTY

ONE YEAR WARRANTY

The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase.

Pros & Cons about Chamberlain Wireless Keyless Entry 940EVC

Pros

Keyless entry system for convenience
Encrypted Security+ 2.0 technology for enhanced security
Long range for ease of use
Backlit keypad for easy use at night
Weatherproof design for outdoor use

Cons

May not be compatible with older garage door openers
Code may be difficult to see in direct sunlight
