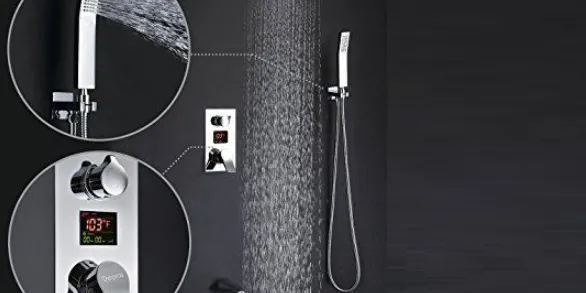

Introduction of Derpras DPS008 Digital Display Shower

Introducing the Derpras DPS008 Digital Display Shower, a premium addition to any modern bathroom. This shower faucet set boasts sleek and stylish design, made from high-quality materials for durability and longevity. The DPS008 is perfect for those who want to enhance their shower experience with a touch of luxury. With an estimated price range of $300 to $400 and a launch date set for early 2023, this shower faucet set is sure to make a splash in the market.

Package includes

Detailed Specifications

The Derpras DPS008 Digital Display Shower features the following key specifications:

Finish: Brushed Nickel
Flow Rate: 2.5 GPM
Spout Reach: 8"
Handles: 2 Lever
Valve Type: Ceramic Cartridge
Connection: 1/2" NPT

Derpras DPS008 Digital Display Shower Features

LED digital display shows water temperature and bath time.
Allows easy selection of the best water temperature.
No electricity, no battery. Powered by water flow.
LED lights automatically while water flows down.
Concealed installation mixer valve with 3-in-1 diverter.
- LED Working Water Pressure Requirements
  - More than 29Psi or 2.0Bar.
- Materials
  - Solid brass mixer valve, hand shower (ABS, 4 inch), overhead shower (ABS, 8 inch).
- Flow Rate
  - Limited to 2.5 gpm (9.5 L/min) at 80 psi or 5.52 Bar.
- Quality Warranty
  - 5 years for faucet body, 18 months for LED parts.

Notes

For shower system DPS008, the face plate of mixer valve is not fully sealed, it is not a quality problem. This design is easy to remove impurities in the valve in case the power generator impeller is jammed by the sediment.
Shower system installation is a professional job. If you don't have installation experience, please find help from professional plumbers.
Before installation, flush the water supply pipes thoroughly to remove debris. Flush for at least 3 minutes. Switch off main shut-off valve before installation.
Especially please put the Thread Sealant Tape (comes with the products) around all threads when installation.
In the premise of water pressure greater than 29Psi or 2.0Bar, if you find the LED display does not work, it is possible that there are impurities inside the valve body. After you clear the impurities, if the LED display still can't work, please contact us for help. You don't need to destroy the walls or the tiles to solve this problem. All you need to do is contact us.

Installation Dimension

Description

The Derpras DPS008 Digital Display Shower is a high-end shower faucet set designed to provide a luxurious shower experience. It features a brushed nickel finish that adds a modern and sophisticated touch to any bathroom decor. The faucet set has a flow rate of 2.5 GPM, ensuring a steady and powerful water flow. The spout reach is 8", providing ample coverage for a comfortable shower experience. The two lever handles make it easy to adjust the water temperature and flow rate to your liking. The ceramic cartridge valve ensures a long-lasting and reliable performance. The 1/2" NPT connection makes it easy to install and compatible with most plumbing systems.

Derpras DPS008 Digital Display Shower Installation

Notes

Before installation, flush the water supply pipes thoroughly to remove debris. Flush for at least 3 minutes. Switch off the main shut-off valve before installation.
Especially please put the Thread Sealant Tape (comes with the products) around all threads when installation.
After installation, keep all remaining accessories and this manual, they will be used in the daily cleaning and maintenance.

Installation Steps

Install the main body 5 in the hole pre-prepared in the wall, and connect all the outlets and inlets of the main body. There are totally five connections in the main body. One of them has a "Hot water" label, another has a "Cold water" label. Use your hot water pipe to connect the "Hot water" inlet of the main body and use cold water pipe to connect the "Cold water" inlet. For the rest three outlets of the main body, no need to strictly distinguish; for example, you can install the head shower with whichever one of the three outlets.
Steps of installation for mixer valve
- Install the handheld shower bracket holder
Steps of installation for bracket holder
- Connect the shower hose 12 to the hand shower 6 and inlet connector 8.
Install the tub spout 15
Install the overhead shower arm 3 (Don't forget to place the decorative cover 4).
Connect the overhead shower 1 with the overhead shower arm 3.

Overall layout

Setup Guide of Derpras DPS008 Digital Display Shower

To set up the Derpras DPS008 Digital Display Shower, follow these steps:

Shut off the water supply to the shower.
Remove the old shower faucet set, if applicable.
Install the new shower faucet set by following the manufacturer's instructions.
Turn on the water supply and test the faucet set for any leaks.
Adjust the water temperature and flow rate to your liking.

Cleaning Instructions

Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely affect the finish and are not recommended for cleaning. Do not use abrasive cleaners or solvents on Derpras faucets and fittings.
In the premise of water pressure greater than 29Psi or 2.0Bar, if you find the LED display does not work or the water flow becomes very small, please following the video link to clear the impurities: https://youtu.be/9nhzi2C-VM8
Please remember that Whether you encounter any problems during use, we can solve them for you, you don’t need to dismantle the device.

Troubleshooting

If you encounter any issues with the Derpras DPS008 Digital Display Shower, try the following troubleshooting steps:

If the faucet set is leaking, check the connections and tighten if necessary.
If the water pressure is low, check for any blockages in the shower head or faucet set.
If the water temperature is not adjusting properly, check the valve and cartridge for any issues.
Always refer to the manufacturer's instructions for any additional troubleshooting steps.

Pros & Cons

Pros

Stylish and modern design
High-quality materials for durability
Easy to install
Reliable and long-lasting performance
Adjustable water temperature and flow rate

Cons

Higher price point compared to standard shower faucet sets
May require professional installation
Limited finish options

Customer Reviews about Derpras DPS008 Digital Display Shower

Customers have praised the Derpras DPS008 Digital Display Shower for its sleek design and reliable performance. Many have noted the ease of installation and adjustable water temperature and flow rate. However, some have expressed frustration with the higher price point and limited finish options. Overall, the DPS008 has received positive reviews for its luxurious shower experience.
