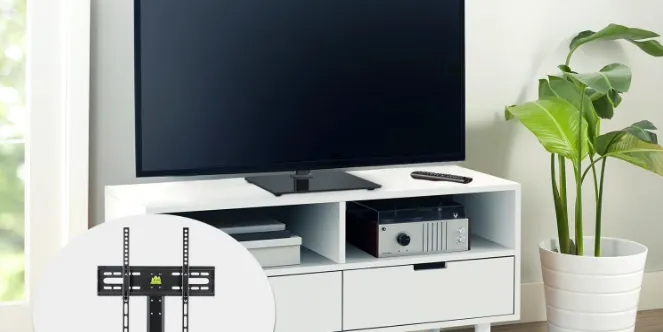

Forgingmount TV Stand HY4111

Introducing the Forgingmount TV Stand HY4111 is a sturdy and adaptable television stand that can accommodate a variety of TV sizes and types. This stand is designed for longevity and convenience of use, with a strong base that offers stability for your television setup. With adjustable height settings and the ability to rotate for ideal viewing angles, the HY4111 improves your watching experience by combining functionality and style. It's an excellent solution for anyone wishing to create a sleek, modern look in their home entertainment area while keeping their television firmly secured and easily adjusted.

Detailed Specifications

The Forgingmount TV Stand HY4111 boasts the following key features:

Supports TVs between 32 and 65 inches
Maximum weight capacity: 110 lbs (50 kg)
Sturdy steel frame with scratch-resistant tempered glass shelves
Adjustable shelving with cable management system
Easy and secure wall mounting option
Modern design with sleek black finish

UNPACKING INSTRUCTIONS

Carefully open the carton, remove contents, and layout on cardboard or another protective surface to avoid damage.
Check to assure that all components were received undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

Install and operate this product with care. Please read this instruction before beginning the installation, and carefully follow all instructions contained herein. Use proper tools during installation.

If you do not understand the instructions or have any concerns or questions, please contact customer service at forgingmount888@163.com

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to the equipment! It is the installer’s responsibility to make sure the combined weight of HY4111 and the display does not exceed 88 lbs(40kg). Use with heavier televisions may result in instability causing tip over resulting in death or serious injury!
WARNING: This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.

Forgingmount TV Stand HY4111 Supplied Parts List

FORGING MOUNT Universal TV Stand HY4111 - Supplied Parts List

Description

The Forgingmount TV Stand HY4111 is a versatile and contemporary TV stand, specifically designed to complement modern home entertainment systems. Its scratch-resistant tempered glass shelves and sturdy steel frame ensure long-lasting durability while providing a sleek and stylish look. The adjustable shelving and cable management features add to its functionality and ease of use, making it a popular choice for home theaters and living rooms.

Assembly Instructions

Connecting the Support Pillar(04) to Tempered Glass(03)
If you ﬁnd the support column (04) is not in the correct direction, please see ﬁgure below. Loosen M8x25 screws(T), adjust the support to the correct direction then tighten screws again.
Connecting the TV Plate to Support Pillar
TV Plate can be installed on wall alternatively, wall mounting hardware not included.
Mounting the Monitor Brackets(02) to your TV
Chak TV screws: Please select the proper screw length for your TV by hand tightening to check your ﬂat panel thread depth.
WARNING: When attaching brackets to the flat screen, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes
If your TV has a flat back, AND you want your TV closer to the wall, use the shorter screws (A).
Use the spacers and longer screws(B) to accommodate:
Round/irregular back TVs
TVs with inset mounting holes
Extra space needed for cables
First, make sure the diameter of the bolt(F-J) fits your TV. Then, please see the diagram above. You will need to thread the bolt into the TV using the correct washer (C,D,E) and spacer (A or B) if necessary with a screwdriver(Not included). Please make sure the monitor brackets(02) are vertically centered and level with each other.
Attaching TV to TV Plate and Managing the Wires
Height adjustable vertical bracket
If you find your TV set is too close to the base, please take off the TV from the stand. Then, change to the second choice to allow more space between the TV and the tempered glass base (03).
Attaching the Security Steel Wire to the TV
If your TV is located nearby the wall as the 5.1, then a steel wire can be attached for additional security. Using screw (F to J) through washer (C to E), the end of security wire(N), bracket hole and TV VESA hole in sequence. By tightening the screw, the security wire(N) is attached to the TV.
Attaching the other end of the security wire to the wall according to your wall type shown in Diagram 5.3, 5.4, and 5.5.
Wood Stud Wall
Drill 2.75”(70mm) deep holes using a 5/32” (or 4mm) drill bit. Secure with screws and washers.
Concrete & Brick Wall
Drill 2.75”(70mm) deep holes using a 3/8” (or 10mm) drill bit, and press anchors into holes. Secure with screws and washers.

FORGING MOUNT Universal TV Stand HY4111 -Concrete & Brick Wall

Now your TV is standing steadfastly and securely！

FORGING MOUNT Universal TV Stand HY4111 -5.5

Setup Guide

Unpack the TV stand and remove all protective materials.
Assemble the stand by attaching the legs and shelving units securely, using the provided screws and brackets.
Place the stand on a flat, even surface or mount it on the wall (optional) using the pre-drilled holes and included hardware.
Place your TV and other multimedia devices on the stand, ensuring they are properly balanced and secured.
Adjust the shelving and manage cables for a clutter-free and organized setup.

Troubleshooting

Common issues and solutions:

Wobbling or unstable stand: Ensure that the TV stand is properly assembled, and the legs are securely fastened. Make sure the stand is placed on a flat and even surface, or use the wall-mount option for added stability.
Cable clutter: Make use of the cable management system to neatly organize and hide cables, ensuring your entertainment setup remains clean and tidy.

Pros & Cons

Pros

Stylish and modern design
Sturdy and durable construction
Adjustable shelving with cable management
Easy to assemble
Affordable price point

Cons

Limited weight capacity compared to some competitor models
May not be suitable for larger TVs (65+ inches)

Customer Reviews and Complaints

The Forgingmount TV Stand HY4111 has received mostly positive feedback from customers. Users appreciate its stylish design, sturdy construction, and easy assembly. However, a few customers have expressed concern about the stand's weight capacity and suitability for larger TVs.
