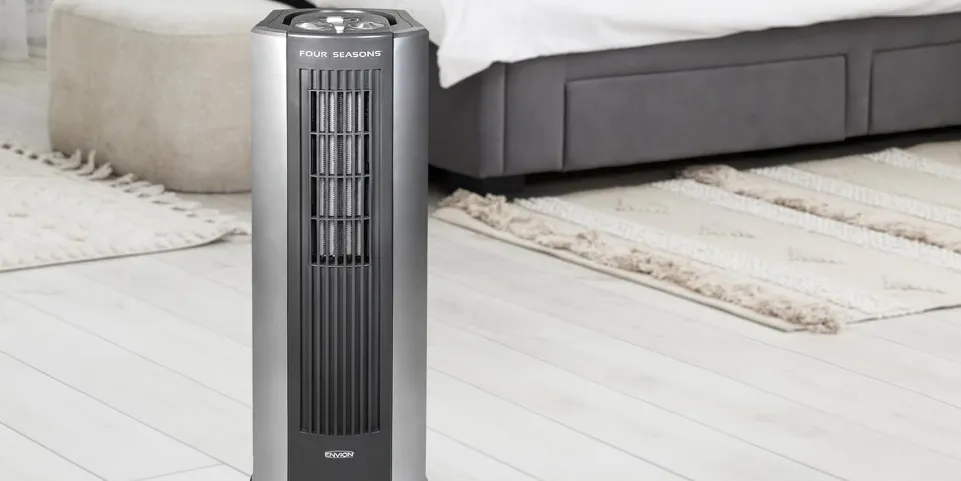

Envion Four Seasons Air Purifier FS200

Introducing the Envion Four Seasons Air Purifier FS200 is a versatile 4-in-1 appliance that combines an air purifier, heater, fan, and humidifier, designed to enhance indoor air quality and comfort throughout the year. An estimated price range of $173.50 and a launch date set for late Envion Four Seasons Air Purifier FS200 is a worthwhile investment for those seeking to breathe easy and maintain a healthy home.

PRODUCT SPECIFICATIONS

Model: FS200
Voltage: 120 VAC
Power usage: 1200 W (25C) / 1300 W (OC)
The capacity of Humidification: 2.2 gallons /day
The volume of airflow: 80 cfm at the high setting
Dry weight: 10.6 lbs.
Product measurements: 9” x 11” x 26”
Thermally protected

PRODUCT FEATURES

Durable, washable cloth wick.
LED low water level indicator light.
3 independent control settings (Heater, Humidifier+Fan, Heater+Humidifier)
3 fan speed settings and a variable heat control setting.
Self-regulating PTC heater and over-heat protection.
Evaporative humidification eliminates the issue of “white powder”.
Tip-over sensor for smart automatic shutoff control for the entire unit.
Empty water sensor for smart automatic power shutoff for the humidifier.
True HEPA filters effectively remove smoke, pollen, dust, and animal dander from the air.

PRODUCT OVERVIEW


Control panel
Humidifier water sensor
Humidifier wick frame
Wick frame release tab
Water tank
HEPA cover frame
Humidifier wick
Variable heater knob
Air outlet grille
Fan speed switch
Refill light
Heater + Humidifier
Humidifier + Fan
Heater only
14. Function knob
Power button
True HEPA Filter

Description

Envion Four Seasons Air Purifier FS200 is a strong and effective way to keep the air within your home clean and healthy. Many contaminants are captured by its HEPA filtration technology, such as dust, pollen, mold spores, and pet dander. By lowering odors, volatile organic compounds (VOCs), and other gaseous pollutants, the activated carbon filter creates a clean, welcoming environment. By removing bigger particles like lint and hair, the pre-filter increases the lifespan of carbon and HEPA filters. By automatically altering the fan speed based on the air quality in the room, the smart air quality sensor ensures optimal performance. For those who just wish to breathe cleaner, healthier air or who suffer from allergies or asthma, this air purifier is a great option.Envion Four Seasons Air Purifier FS200

FS200 ASSEMBLY AND USE

WARNING: Unplug the Four Seasons unit before filling the tank with water PREPARING FOR OPERATION

Open the packing box and take out the Four Seasons unit.
Turn the unit upright for operation.
To remove the humidifier wick frame, press the release tab and pivot the frame outwards, and then lift it out of the unit. See Figure 1

NOTE: You must remove the wick frame before you can remove the tank.
Remove the tank by sliding it out of the unit.
See Figure 2.
Fill the water tank with clean water to the maximum water level marked on the tank.
CAUTION: Do not overfill the tank. Use extreme caution to ensure that water is poured only into the water tank and that the rest of the unit stays dry. Never plug in the unit if it gets wet.
After filling, put the tank back into the main body and replace the humidifier wick frame.
WARNING: This heater is equipped with a temperature-limiting thermostat. If the unit senses an overheating condition, the element will stop heating. It can only resume operation when the user manually reset the unit.

TO RESET HEATER: Unplug the unit and wait 10 minutes for the unit to cool down, then plug the unit back and follow the “USING THE FOUR SEASONS ” instruction described in this manual.

USING THE Four Seasons

Plug the unit into an electrical outlet and press the power button to turn on your Four Seasons unit.
Turn the mode knob to select the desired function. You may choose to use either the heater, the humidifier, or the heater and humidifier together.
Note: No matter which model you select, the True HEPA air purifier feature will always be active.
Once you have chosen the mode you can control how much air passes through your Four Seasons unit by sliding the fan speed button to low, medium, or high as you prefer.
When you select either the heater mode or the heater + humidifier mode you may control the amount of heat your Four Seasons produces. Choose your desired heat output with the variable control.

REPLACING THE HEPA FILTER

Make sure the unit is turned off and unplugged. To remove the True HEPA cover frame, press the release tab and pull the frame outwards. See Figure 3A/B.
Remove the True HEPA filter by pulling the filter out from the unit.
See Figure 4.
Insert a new HEPA filter, then place the HEPA cover frame back into position.

Setup Guide

To get started with the Envion Four Seasons Air Purifier FS200, follow these simple steps:

Remove the unit from the packaging.
Install the filters according to the instructions provided.
Connect the air purifier to a power source.
Turn on the unit and let it run for a few minutes to establish a baseline for the air quality sensor.
Use the touch controls or the Envion app to customize the settings to your preference.
Place the air purifier in a suitable location, ensuring there is enough space around it for proper airflow.

CLEANING AND MAINTENANCE

WARNING: Always unplug the Four Seasons unit before cleaning or other maintenance.

CLEANING THE HUMIDIFIER WICK FRAME

Remove the humidifier wick frame as explained in the “ASSEMBLY AND USE” section of this manual.
With the humidifier wick frame lying in front of you, gently bend each side of the wick frame to release the bottom roller. See Figure 5.
Release the top roller from the frame by carefully bending back the frame bracket and removing the roller axle from the bracket hole. See Figure 6. Remove the wick from the rollers.
To clean the wick you may wash it in your washing machine on a gentle cycle or use a mild detergent to wash by hand. Rinse with clean water. Be sure it is completely dry before reinserting.
Reinsert the humidifier wick into the rollers and then insert the humidifier wick frame into the unit.

CLEANING THE WATER TANK

Remove the humidifier wick frame as shown previously.
Remove the water tank as demonstrated earlier in this manual. Clean the tank with water and mild detergent.
Rinse thoroughly with clean water before reinstalling. Hand washes only.

STORAGE
Loop the cord around 6- 8 inches and wrap it with a cord tie. Place the unit in the original box and store it in a cool, dry place.
WARNING: Any servicing other than as described in this manual should be performed by an authorized service representative. Do not wash the tank in the dishwasher.

READ AND SAVE THESE IMPORTANT INSTRUCTIONS

WARNING: RISK OF ELECTRIC SHOCK
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this Four Seasons ™ unit.

Extreme caution is necessary when the Four Seasons unit is used near children or invalids and whenever the unit is left operating and unattended. Always supervise children and keep them away from the unit.
Do not operate any Four Seasons unit with a damaged cord or plug or after the unit malfunctions, or has been dropped or damaged in any manner. Discard the Four Seasons unit or return it to an authorized service facility for examination and/or repair.
Do not use outdoors.
This Four Seasons unit is not intended for use in bathrooms, laundry areas, or similar indoor locations near water. Never place the Four Seasons unit in a location where it might get wet or fall into a bathtub or other water source.
Do not run the cord under carpeting or cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from the traffic area so that it will not be tripped over.
To disconnect the Four Seasons unit, turn all controls off, then remove the plug from the outlet. Do not unplug by pulling on the cord. Do not pull the plug from the outlet when the unit is turned on.
This product is intended for household use only and not for commercial or industrial use.
Always unplug the power cord from the outlet before opening or filling the water tank. When filling the water tank, use extreme caution to ensure that water is poured only into the water tank and that the rest of the Four Seasons unit does not get wet. Never plug in the unit if it gets wet.
If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage to the Four Seasons unit.
This product operates at 120 VAC, 60Hz only.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use it on soft surfaces, like a bed, where openings may become blocked.
Always plug the Four Seasons unit directly into a wall outlet/receptacle. Never use an extension cord or relocatable power tap (outlet/power strip).
CAUTION: This heater is hot when in use. To avoid burns, do not let bare skin touch the hot surfaces of the unit. Use the back handle when moving the Four Seasons units. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.91m) from the front of the heater and keep them away from the sides and rear.
This heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by the manufacturer will void the warranty and may cause fire, electric shock, or injury to persons.
Do not overfill the water tank as this may cause the risk of electric shock.
This appliance is not intended for use by persons (including children) with reduced physical, sensory,, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent,, or a similarly qualified person to avoid a hazard.
WARNING: To avoid overheating, do not cover the heater.
The heater must not be located immediately below a socket outlet.
Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.
WARNING: care should be taken when using the appliance due to the emission of hot water vapor.
The appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

SAVE THESE INSTRUCTIONS!

TROUBLESHOOTING

If you are having problems with your Four Seasons, please refer to the following suggestions:

Problem:	My Four Seasons unit will not operate.
Suggestions:	• Make sure the power button is pressed and in the down position. • Make sure the unit is plugged into a functioning power outlet. • Verify the wick frame and the inlet grill are properly installed.
Problem:	My Four Seasons unit is not blowing as much air as it used to.
Suggestions:	• Verify that the fan speed is set correctly. • Verify that nothing is blocking the air inlet grill or outlet grill.
Problem:	My Four Seasons™ unit’s humidifier feature isn’t working.
Suggestions:	• Verify there is water in the tank • Verify the humidifier water sensor is floating in the water after filling the tank. • Make sure that the water tank is fully inserted.

ONE YEAR WARRANTY

Your Four Seasons unit is warranted to be free from defects in materials and workmanship for one year from the original purchase date. Should the product have a defect in materials or workmanship, we will repair or replace it without charge to you (a shipping and processing fee will apply). This warranty does not cover damage caused by accident, misuse,, or any use other than as intended and described in this product manual, or damage resulting from failure to maintain and clean this product as specified in this product manual. This warranty applies only to the original purchaser of the Four Seasons unit.

Envion Four Seasons Air Purifier FS200 Pros & Cons

Pros

Effective HEPA and activated carbon filtration system
Smart air quality sensor for automatic fan speed adjustment
Quiet operation and sleep mode for a restful environment
Certified by Energy Star and AHAM
Wi-Fi connected for remote control and monitoring

Cons

Higher price point compared to some competitors
Limited color options

Customer Reviews

Customers have praised the Envion Four Seasons Air Purifier FS200 for its efficient air-cleaning capabilities, user-friendly interface, and quiet operation. The majority have reported a significant improvement in air quality and a reduction in allergy symptoms. Some common complaints include the high initial investment and limited color options.
