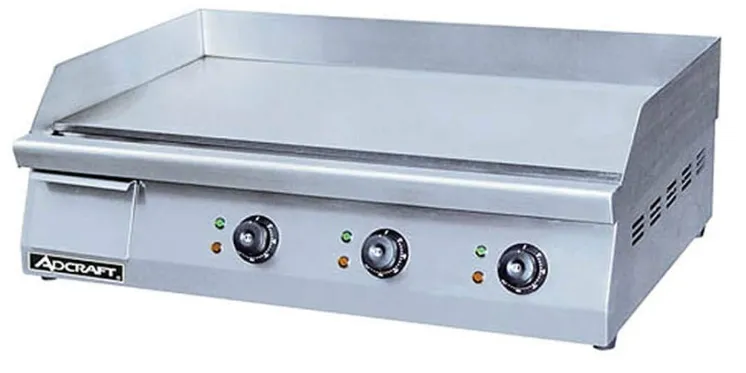

Introduction of Adcraft Countertop Griddles Electric Grid-30

The Adcraft Countertop Griddle Electric GRID-30 is a robust and versatile commercial cooking appliance designed for efficient and consistent grilling in professional kitchens. Featuring a spacious 30-inch cooking surface made of heavy-duty stainless steel, this electric griddle offers even heat distribution and precise temperature control, ranging from 120°F to 570°F. It is equipped with adjustable thermostats, a grease trough, and a removable grease tray for easy cleaning. Ideal for cooking a variety of foods, the GRID-30 is perfect for restaurants, cafes, and catering services seeking a reliable and durable griddle for their high-demand cooking needs.

Parts List

Griddles - GRID-16, 24, 30

Reference Number	GRID-16 Part Number	GRID-24 Part Number	GRID-30 Part Number	Description
1				Body
2	GRID-2	GRID-2	GRID-2	Rubber Foot and Screw
4	GRID-4	GRID-4	GRID-4	Terminal
6	GRID16-6	GRID24-6	GRID30-6	Power Cord and Strain Relief
7	GRID16-7	GRID24-7	GRID30-7	Heating Element
8				Pressure Board for Element
9				Partition Plate for Insulation
10				Heat Preservation Insulation
11				Cover Board for Insulation
12	GRID-12	GRID-12	GRID-12	Terminal
13				Bottom Plate
14				Screw for Bottom Plate
15	GRID-15	GRID-15	GRID-15	Power Indicator Light - Green
	TH-1201	TH-1201	TH-1201	Thermostat
18 19	GRID-18 GRID-19	GRID-18 GRID-19	GRID-18 GRID-19	Temperature Indicator Light - Orange Knob Base, Knob and Screw for Thermostat
20	GRID-20	GRID-20	GRID-20	Oil Collector

Detailed Specifications

The Electric Grid-30 features a 20 x 10-inch non-stick cooking surface that is perfect for cooking pancakes, eggs, bacon, and more. The griddle has an adjustable temperature range of 200°F to 450°F, allowing you to cook your food to perfection. The griddle also features a drip tray that collects excess grease and oil, making cleanup a breeze. Other key features of the Electric Grid-30 include cool-touch handles, skid-resistant feet, and a built-in warming tray to keep your food at the perfect temperature.

Circuit diagram

Griddle GRID-24

Griddle GRID-16

Griddle GRID-36

Description

For those who enjoy cooking, the Adcraft Countertop Griddles Electric Grid-30 is an excellent countertop griddle. The non-stick cooking surface ensures even heating and easy food release, while the adjustable temperature control allows you to cook your food to perfection. In addition to the cool-touch handles and skid-resistant feet offering further safety and convenience, the drip tray facilitates fast cleanup. Every meal will be hot and delicious thanks to the built-in warming tray, which is ideal for maintaining food temperature.

HOW TO USE

Un-box unit and remove the protective packaging
The cooking area is coated with an oil-based protectant to prevent rusting during shipment. This protectant will need to be cleaned off before use with a food-safe degreaser.
Plug the power cord into the appropriately rated outlet
The green power light will illuminate
Turn the tl1e temperature controller clockwise to tl1e the desired temperature
When the surface reaches the the designated temperature, the the indicator light will shut off and cycle to maintain the the temperature.
For best results allow the unit to preheat for 15 minutes before placing food on the surface.

Setup Guide

The Electric Grid-30 is simple to set up. To begin with, turn on the griddle and allow it to reach the desired temperature. Then, to stop food from sticking, lightly oil the non-stick cooking surface with a paper towel or other cloth. You can begin cooking your food as soon as the griddle is hot. To cook, just switch off the griddle and allow it to cool before cleaning. Use warm, soapy water and a gentle sponge or cloth to clean the griddle. Avoid using scrubbers or cleansers with abrasives as they can harm the non-stick surface.

CLEANING

NOTE: To maintain cleanliness and increase service life, the griddles should be cleaned daily. Do not immerse the griddle in water or any oilier liquid, if liquid enters the electrical compartment it may cause a short circuit or electrical shock

Before cleaning or attempting to move the griddle, unplug and let the unit cool completely
Wipe the entire unit with a clean soft cloth until it is completely dry
To avoid damage, do not use abrasive cleaners or coming pads
If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water immediately after cleaning. The chemical residue could damage or corrode the surfaces of the unit.

WARNINGS

Do not touch any hot surfaces
Do not immerse the unit, cord, or plug-in liquid at any time
Unplug the cord from the outlet when not in use and before cleaning
Plug only into a 3-hole grounded electrical outlet
Do not operate unattended
Do not use this unit for anything other than the intended use
Do not use outdoors
Always use on a fum, dry, and level surface at least 12" from walls or any other obstruction
Do not use if the unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
Keep children and adults away from the unit
Any incorrect installation, alterations, adjustments,, and/or improper maintenance can lead to property loss and injury. All repairs should be done by authorized professionals only
Ensure that the designated power supply is adequate for continual usage and the voltage is correct

To protect the plates of your new grill during transportation, a layer of food-safe oil was coated on the surface before shipment. This oil is harmless, but must be removed before you begin to use it it. To remove, preheat the grill until the oil liquefies. Next, carefully wipe away the melted oil ·with a clean, soft cloth. Once all of the oil is removed you can begin to use your grill

Electric Grid-30 Troubleshooting

If you experience any issues with the Electric Grid-30, here are some common problems and solutions:

The griddle isn't heating up: Make sure the griddle is plugged in and the temperature control is set to the desired level. If the griddle still isn't heating up, it may need to be reset or repaired.
Food is sticking to the griddle: Make sure to use a small amount of oil or cooking spray on the non-stick surface before cooking. Also, avoid using metal utensils, as they can scratch the surface and cause food to stick.
The griddle is smoking: Make sure the griddle is set to the correct temperature and that there is enough oil or grease in the drip tray. If the griddle continues to smoke, it may need to be cleaned or repaired.

Pros & Cons

Pros

Large non-stick cooking surface
Adjustable temperature control
Drip tray for easy cleanup
Cool-touch handles and skid-resistant feet
Built-in warming tray

Cons

May take some time to heat up
Can be difficult to clean if not maintained properly
May produce smoke if not used correctly

ACE Electrical Equipment One-Year Warranty

ACE Electrical Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage.

Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE's discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after the defective unit has been inspected and defect has been confirmed. ACE does not assume any liability for ended delays in replacing any item beyond its control.

This equipment is intended for commercial use only. Warranty is void if the equipment is used in other than a commercial application.

Customer Reviews

Customers love the Adcraft Countertop Griddles Electric Grid-30 for its large non-stick cooking surface, adjustable temperature control, and easy cleanup. The drip tray and built-in warming tray are also popular features among customers. However, some customers have reported issues with the griddle taking a long time to heat up and producing smoke if not used correctly. Overall, the Electric Grid-30 is a high-quality countertop griddle that is perfect for anyone who loves to cook.
