Introduction

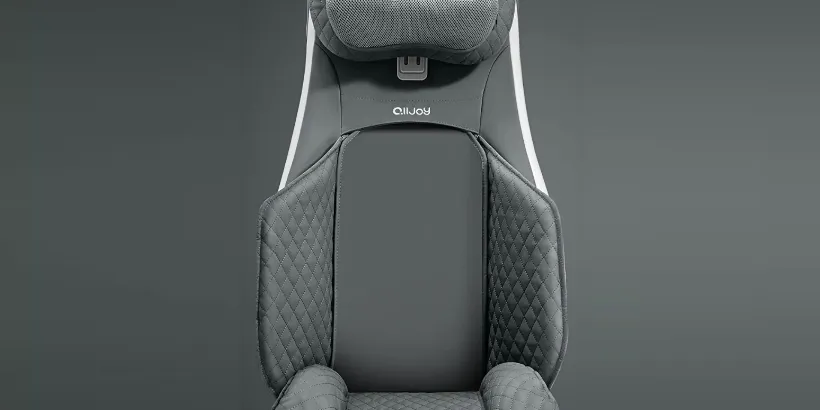

The iAlljoy Massage Cushion AJMC22 is a versatile and portable massage device designed to provide soothing relief and relaxation wherever you go. Featuring multiple massage modes and intensity settings, this cushion targets key areas such as the back, neck, and shoulders, allowing users to customize their experience for maximum comfort. Its compact design makes it easy to use at home, in the office, or while traveling. Priced at approximately $79.99, it is an affordable solution for on-the-go relaxation.

With normal care and proper treatment, it will provide years of reliable service. Please read all instructions carefully before using this product. Please retain this manual for future reference.

AJMC22 Alljoy Massage Cushion

TECHNICAL DATA

Measurements: 31.9 x 7.2 x 17.3 inches
Weight: 17.64Ibs
Voltage: AC 120V ~6QHz
Nominal Power: Max44W
Default Automatic runtime: 15 minutes

iAlljoy Massage Cushion AJMC22 FEATURES

Electrically height-adjustable Shiatsu neck massage
Bi-directional massage of neck
3D finger pressure shiatsu back massage
With optional heat function on neck massage and back massage
Back massage areas can be selected - upper, lower, full back
Seat vibration massage - 3 programs for options
PU leather and breathable mesh

Description

The ialljoy Massage Cushion AJMC22 is a comprehensive massage solution that combines various massage techniques with the soothing benefits of heat therapy. The cushion features multiple nodes that work in tandem to provide a deep and satisfying massage experience. The adjustable heat function adds an extra layer of comfort, helping to relax muscles and improve blood circulation. The ergonomic design ensures that the cushion fits comfortably on any chair, providing full support and coverage.

The user-friendly interface allows you to easily switch between different massage modes and adjust the intensity to your liking. Made from high-quality materials, this cushion is designed to withstand frequent use while maintaining its performance and durability.

Setup and Operation

Attach the massager to a chair with elastic straps or place it on other support.
Plug the product with an electric outlet.
Turn on the device using the controller.
When ﬁnished place the controller in the pouch at the side of the cushion.
Detachable intensity control ﬂap for back lets you choose a softer or more intense massage.
Detachable and washable cover for neck. Just detach it by the zipper to clean.

Note: If the Shiatsu is too strong,

Install the ﬂap onto the cushion to get a softer massage.
Place a blanket or towel between you and the massager to achieve a far
softer massage intensity if you still feel too strong shiatsu after installing the ﬂap onto the cushion.
If the shiatsu can’t reach your neck, shoulder, lower back area
If you want to massage your neck and shoulder, but the shiatsu nodes can not reach the area in need. You may adjust the height of the neck massage by long pressing the or button.

WARNING

The device will automatically switch oﬀ after 15 minutes timer run out
Unplug product from the electric outlet when not in use.
Do not setup or use the massager in a bathroom or similary wet / damp areas.

!Attention
Per time and not exceed 3 times use one day.

Controller Instructions

Vibration Button:
Press to turn on the seat vibration, you may cycle through mode 1, 2, 3 settings sum of treet then
Full Back Button:
Select full back to designate the area covered by the shiatsu massage.
Upper Back Button:
Select upper back to designate the area covered by the shiatsu massage.
Neck Heat Button:
Press to turn on or off neck heat. The heat can't be activated if neck shiatsu function is not turned on.
Auto Button:
Demonstration of all functions- vibration/neck massage/full back massage/neck heat and back heat/back air and seat air. The LED lights will blink three times to indicate the active functions, then turn to solid light. It works at once when turn on the power button.
Neck shiatsu Button:
Press to turn on shiatsu neck massage, press again to shift rotation direction. Press once again to turn off.
Long press arrow buttons to adjust the shiatsu nodes position up or down.
Lower Back Button:
Select lower back to designate the area covered by the shiatsu massage.
Back Heat Button:
Press to turn on or off back heat. The heat can't be activated if back shiatsu function is not turned on.
Power Button:
Press to turn on or off the massager.

Setup Guide

To set up your ialljoy Massage Cushion AJMC22, follow these simple steps:

Place the cushion on your preferred chair or seat, ensuring it is centered and secure.
Plug in the power cord to a nearby outlet.
Turn on the device using the power button located on the control panel.
Select your desired massage mode and intensity using the intuitive controls.
If desired, activate the heat function by pressing the heat button.

The cushion is ready for use immediately after setup, with no additional assembly required.

Care and Cleaning Instructions

Do not wash in washing machine or immerse the product or the power cord in water.
Always switch off before cleaning and unplug from the electric outlet. with clean, dry hands.
The massager should be wiped with a slightly moist cloth and dried thoroughly. Do not wipe the product with alcohol or harsh chemicals such as thinner or bleach.
The Cover for neck is detachable and washable.
Do not overstretch the elastic back straps.
Keep away from heat, fire or exposure to direct sunlight.
Do not apply excessive pressure or impact onto massager/massage heads. Application of a direct force in excess of 110 Ibs. may damage your massager and invalidate your warranty. Refrain from over usage of the device.
Store the massager in a cool, dry place out of reach of children.
Avoid contact with sharp edges or pointed objects which might cut or puncture the cover of massager.

Safety Instructions

Please read the following instructions carefully before putting your massage device into use to ensure trouble-free operation and optimum efficiency. Please retain these operating instructions for further use!

The massage device conforms to recognized technical principles and the latest safety regulations.
Do not wet,do not use pins, never remove cover.
This items is NOT A TOY. Close supervision is necessary when this appliance is used by, on, or near children or disabled persons.
This appliance should never be left unattended when plugged in.
Any possible repairs may only be carried out by authorized expert staff. Improper use and unauthorized repairs are not permitted for safety reasons and lead to loss of warranty.
Never touch the power plug with wet hands.
Please avoid contact of the device with water, high temperatures and direct sunlight.
Do not use any damaged cables, plugs or loose sockets.
Never operate under blankets where the air openingmay be blocked.
If plugs or cords are damaged, they must be replaced by the manufacturer, a service representative or by qualified personnel.
In case of malfunction, disconnect immediately from the mains.
Do not use if you have skin disorders, open wounds, or swollen or inflamed areas.
Misuse or incorrect use excludes any liability for damage.
Do not use this device while driving.
Do not use while you sleep.
In order to avoid excessively stimulating the muscles and nerves, the recommended massage time should not be exceeded 15 minutes at a time.
We equip the massager with a protection against over-heating for safe use.
Each massage - even a hand massage - must be refrained from during pregnancy or if one or more of the following complaints are present in the massage area: recent injuries, thrombotic diseases, all kinds of in flammations and swellings, and cancer. It is recommended to consult a doctor before having a massage for the treatment of ailments and illnesses.
If you are dependent on electrical aids e.g. pacemakers, please be sure to consult your doctor for medical advice before taking a massage.
The packaging material supplied should not be used as a toy.
Failure to observe the above instructions may constitute misuse of the product and can cause serious injury or burns.

Troubleshooting about iAlljoy Massage Cushion AJMC22

Fault	Solutions
Massage heads rotating at reduced speed	The load on the massage heads is excessive. Reduce load and try again.
Massage heads only rotate in the upper or lower region	The massage has been activated for the upper or lower back region. Press the 'Full Back' button for the massage to cover both regions.
Device switches off suddenly	Device may have been in use for 15 mins. Auto-shut-off function activated. Continue using by pressing the 'power' button after resting the unit for 15 minutes.
Device fails to start	Over-heat protection function activated. Device is switched off for your safety. Please rest device for 15-30 minutes before restarting.
Jerky motion of massage heads / vibrations from device	Check if device has been used for more than 15 minutes. If so, let device rest for 15 minutes before continuing. Device may require longer time to cool in warmer environments.
Infra-red lights are on but no motion from massage heads	Check if the power cord is plugged into an electric outlet firmly. Excessive pressure may have been applied onto the device. Reduce the load and try again.
	Device may be jammed. Remove pressure/load from the device and press the power button to try again.

Pros & Cons

Pros

Multiple massage modes for varied experiences
Adjustable heat and intensity settings for personalized comfort
Ergonomic design for optimal support and fit
Durable and high-quality construction
Easy-to-use interface and simple setup

Cons

Limited portability due to size and weight
Noisy operation in some massage modes
Higher price point compared to basic massage cushions

Customer Reviews

Customers have praised the ialljoy Massage Cushion AJMC22 for its effectiveness in relieving muscle tension and stress. Many users appreciate the variety of massage modes and the adjustable heat function. However, some reviewers noted that the cushion can be a bit bulky and noisy during certain operations.

Common complaints

Include the higher price point and the limited portability due to its size and weight.

Warranty

30 days unconditionally Return
Alljoy product can be returned to receive a full refund for any reason within 30days.
90 days refund/replace
Alljoy product can be returned / replaced within 90 days if the product break down in the period of proper use.
24 months Warranty
If the product break down within 24 months in the period of proper use, customers can enjoy the relevant warranty to get them replaced.

Attention!
No warranty will be given to any force majeure and man-made causes to a defective product, such as improper care, personal tear down and willful damage, etc.
