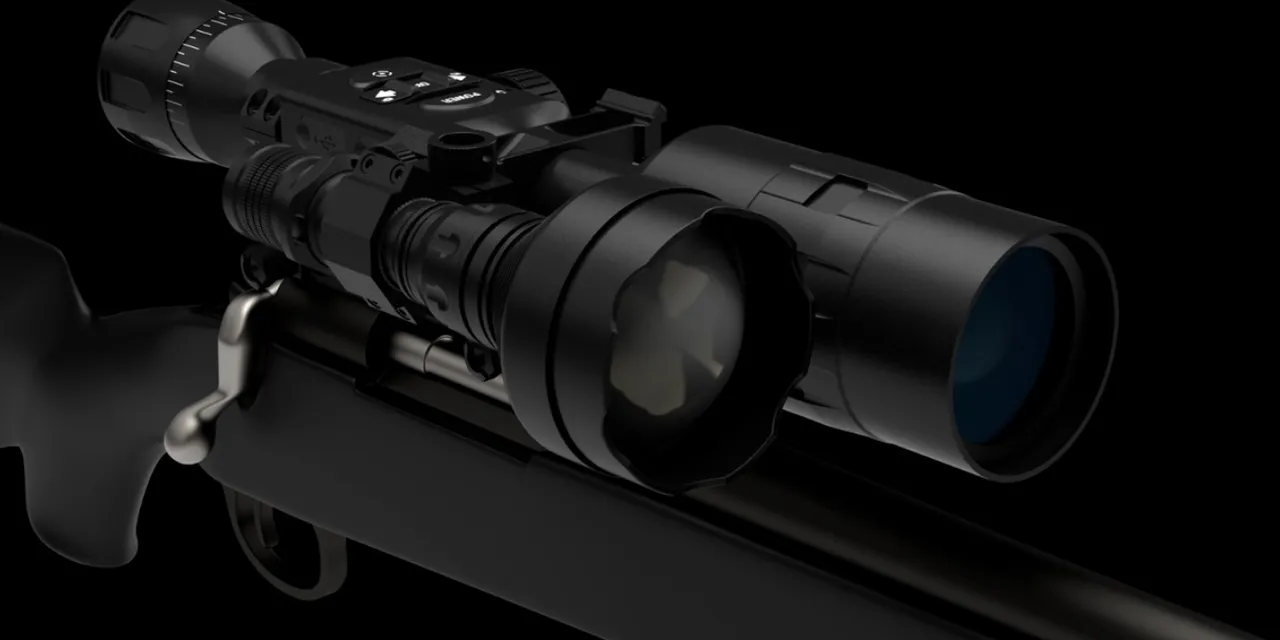

ATN IR850 Supernova INFRA-RED ILLUMINATOR: The Ultimate Night Vision Solution

INTRODUCTION

Congratulations on choosing the ATN IR850 Supernova; an extremely powerful, long-range infra-red illuminator with adjustable mount, that is perfect for hunting and search and rescue use. Before using your IR850 Supernova, please read this manual carefully. Also, refer to the troubleshooting tips for any issues/problems. Introducing the ATN Supernova INFRA-RED ILLUMINATOR, a state-of-the-art device designed to enhance your night vision capabilities. With an estimated price range of $400 to $500 and a launch date set for late 2023, this innovative tool is perfect for nighttime hunting, surveillance, and security applications. This user-friendly illuminator offers a powerful infrared beam that provides clear visibility even in complete darkness.

Features of ATN IR850 Supernova INFRA-RED ILLUMINATOR


Constructed from aircraft grade aluminium.
Surface: hard anodized finish, highly durable.
LED: Using high power emitter with a long lifetime.
Waterproof to IPX8 standard.
Four modes of operation.
Flawless white beam.
Uses single lithium 18650 battery.
Removable grip ring.
Easy rail mounting system.
Accessories: battery charger.
One-year Warranty.

Detailed Specifications

Wavelength: 850nm
Maximum range: 150m
Power output: 200mW
Battery type: Rechargeable lithium-ion
Battery life: Up to 8 hours
Mount type: Weaver/Picatinny
Waterproof: IP67 rated
Dimensions: 4.4 x 1.2 x 1.5 in (11.2 x 3 x 3.8 cm)
Weight: 7.4 oz (210 g)

* ATN reserves the right to change the above specifications at any time without notice.

Description of ATN IR850 Supernova INFRA-RED ILLUMINATOR

The ATN Supernova INFRA-RED ILLUMINATOR delivers a powerful, long-range infrared beam that outperforms traditional night vision equipment. Its compact, lightweight design and Weaver/Picatinny mount compatibility make it easy to attach to various firearms and platforms. With an IP67 waterproof rating, this illuminator is built to withstand harsh environments and maintain reliability in any situation. The Supernova offers an adjustable brightness setting and an impressive battery life of up to 8 hours, ensuring that it's always ready to perform when needed.

TIPS WHEN FIRST USING

Remove the tailcap, insert a 18650 battery, positive of the battery towards the head.
NOTE: Please hold the battery tube (not the brightness control ring or neck) when tightening/loosing the tail-cap.

BAT TERY

CAUTION: Only use an 18650 battery to operate this light, do not use 2 CR123 batteries as they may damage the device.
The IR850 Supernova is available use single 18650.

Unscrew the Tail cap from the Battery Tube, until it is free.
Place Battery within the Battery Tube, observing proper battery polarity.
Screw the Tail cap to the right.

NOTE: Do not use two or more rechargeable lithium batteries in series.

MODES

The IR850 Supernova has 4 stage output-Low at 5%-30%-70%-100%. These modes can be accessed by turning the brightness control ring.

FOCUS

Turn the light to maximum out-put and shine it on a wall 8~10 m away. To focus the beam, hold the lens head in one hand and turn the battery tube with your other hand. Turn clockwise or counter-clock-wise till the focus is to your liking.

ADJUSTABLE MOUNT

Attach the IR850 Supernova, adjust the mount as follows:

Unscrew the four screws [1] securing the top of the bracket [2] and the bottom [3] half of the ad-justable mount.
Place the top and lower parts of the adjustable mount around the IR850 Supernova.
Using an Allen wrench, se-cure the four screws [1]. Do not apply excessive torque.

ADJUSTMENT

To adjust the windage and elevation, the two round dials must be turned/adjusted. The round dial on the left is your elevation adjustment. The flat dial is your windage adjust ment. Adjust each dial until your IR light is centered with your picture.

MAINTENANCE

To prevent wear and retain water resistance it is a good idea to lubricate the threads and o-rings if they become dry.

CHANGE SWITCH COVER

Unscrew the switch cover retaining ring use a forceps (or round nose pliers). Then replace the switch cover and replace the retaining ring.

TROUBLESHOOTING

Light Doesn’t Turn On
Battery tube does not tightened against the Neck or the tail cap does not tighten.

Light Dimming

Battery may be faulty. Try another fully charged battery.
Battery may need charging. Charge your battery, and retry.

Customer Reviews and Common Complaints

Most customers are impressed with the ATN IR850 Supernova's performance, citing its bright and focused infrared beam as a major benefit. However, a few users have reported issues with the brightness settings not being granular enough for their preferences. While not a common complaint, some users also note that the illuminator's price point is slightly higher than they would have liked.
