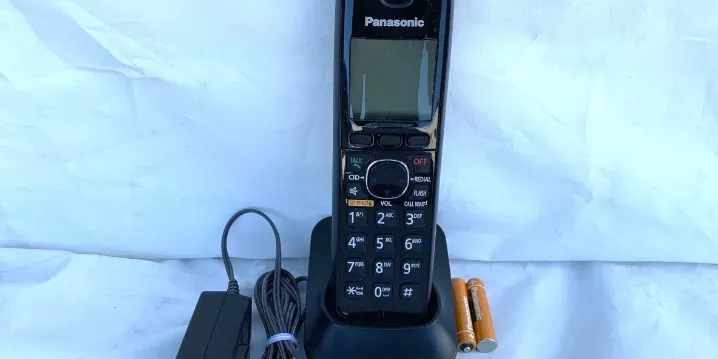

Introducing the Panasonic Digital Cordless Handset KX-TGA680

The Panasonic Digital Cordless Handset KX-TGA680 is a high-quality, reliable phone that offers a range of features to make your communication needs easier and more convenient. The phone is expected to be launched in the second quarter of 2023 and is estimated to be priced around $80. This phone is designed for home use and is perfect for those who want a clear and reliable phone that is easy to use.

Detailed Specifications

The Panasonic Digital Cordless Handset KX-TGA680 comes with a 1.8-inch color LCD screen, allowing you to easily see who is calling and access your phonebook. The phone has a range of up to 300 meters outdoors and 50 meters indoors, giving you the freedom to move around your home or garden without losing signal. The phone also has a built-in answering machine with a recording time of up to 20 minutes, so you can never miss an important call. Other features include a headset jack, a speakerphone, and a range of ringtones to choose from.

Accessory information

Panasonic Supplied accessories

Accessory item/Order number	Quantity
Charger/PNLC1040ZB	1
Rechargeable batteries/HHR-4DPA	2
Handset cover*/PNYNTGA680BR	1
Belt clip/PNKE1268Z1	1

PNLC1078ZB (Black)
The handset cover comes attached to the handset.
PNYNTGFA50BR (Black)
PNKE1098Z1 (Black)

Note: Please read the base unit’s operating instructions for additional/replacement accessories.
Optional headsets: KX-TCA93, KX-TCA430

Setting up

Connections/Wall mounting

Connect the AC adaptor to the power outlet.
Drive the screws (A) (not supplied) into the wall, if necessary.

Note

The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
Make sure that the wall and the fixing method are strong enough to support the weight of the unit.

Battery installation/Battery charging

Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 2.
Wipe the battery ends ( ,) with a dry cloth.
Avoid touching the battery ends (,) or the unit contacts.
Confirm correct polarities ( , ).
USE ONLY Ni-MH batteries AAA (R03) size.
Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours

When the batteries are fully charged, “Fully charged” is displayed.

Note: If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends ( ,) and the charge contacts with a dry cloth and charge again.

Registering a handset to a base unit

Base unit
Press and hold MLOCATORN for about 5 seconds.
- Depending on the base unit, a registration tone sounds.
- If all registered handsets start ringing, press MLOCATORN again to stop, then repeat this step.
Handset
Place the handset on the base unit or charger, then wait until a long beep sounds and is displayed.

Note: If an error tone sounds, or if is displayed, register the handset according to the base unit’s operating instructions.

Panasonic Digital Cordless Installation

Display language

MENU
: Select the desired setting. → SAVE → OFF

For your safety
To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at http://shop.panasonic.com/support

Installation

To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Installation and location
The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery
We recommend using the supplied batteries or additional/replacement batteries noted on page 2 for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

Do not mix old and new batteries.
Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

KX-TGA680 Description

The Panasonic Digital Cordless Handset KX-TGA680 is a stylish and practical phone that is easy to use and delivers clear and reliable sound quality. The phone is lightweight and compact, making it easy to carry around the house and place in different rooms as needed. The LCD screen is easy to read and navigate, and the phonebook can store up to 100 contacts. The answering machine is simple to use and can be accessed from any handset, making it easy to manage your messages. The phone is also wall mountable, giving you more options for placement.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Digital Cordless Handset Other information

Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Routine care

Wipe the outer surface of the product with a soft moist cloth. R Do not use benzine, thinner, or any abrasive powder.

Panasonic Troubleshooting

If you are experiencing problems with your Panasonic Digital Cordless Handset KX-TGA680, there are a few things you can try before contacting customer support. First, check to make sure that the phone is charged and that the battery is properly inserted. If the phone still won't turn on, try resetting the phone by removing the battery and reinserting it. If you are having trouble with the sound quality, check to make sure that the volume is turned up and that there is no debris in the earpiece. If you are having trouble with the range, make sure that you are within the specified range and that there are no obstructions blocking the signal.

Pros & Cons

Pros

Clear and reliable sound quality
Long range
Built-in answering machine
Easy to use
Lightweight and compact

Cons

No Bluetooth or Wi-Fi connectivity
Limited color options
No option for expansion with additional handsets

Customer Reviews about Handset KX-TGA680

Customers love the Panasonic Digital Cordless Handset KX-TGA680 for its clear sound quality and long range. They also appreciate the built-in answering machine and the easy-to-use interface. Some customers have noted that the phone is a bit basic compared to other cordless phones on the market, but most agree that it is a great value for the price.

Panasonic Digital Cordless Handset Most Common Complaints

The most common complaint about the Panasonic Digital Cordless Handset KX-TGA680 is that the battery life is not as long as expected. Some customers have also noted that the phone can be a bit difficult to program initially, but that it becomes easier with use.
