Introduction

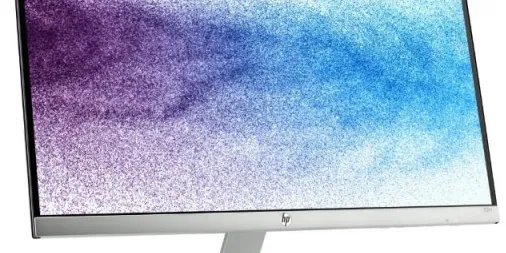

The HP 22er 21.5-inch Display Monitor is a sleek and stylish monitor designed for both personal and professional use. With a 21.5-inch full HD display, this monitor provides crisp and clear visuals for all your computing needs. The monitor is expected to be launched in the market with an estimated price range of $150 to $200, making it an affordable option for those looking for a high-quality monitor.

HP 22er 21.5-inch Display Monitor Specifications

Part Number: T3M73AA
Panel Type: 21.5-inch diagonal IPS with anti-glare
Viewable Image Area: 54.61 cm (21.5 in) widescreen; diagonally measured
Viewing Angle: Up to 178° horizontal / 178° vertical typical
Brightness: 250 nits
Contrast Ratio (Typical): 1000:1 Static; 5,000,000:1 Dynamic (DCR)
Response Rate: 14ms on/off (typical); 7ms gray-to-gray with overdrive
Color Gamut: 72%
Frequency
- Horizontal: 30 to 80 kHz;
- Vertical: 50 to 60 Hz
Aspect Ratio: 16:9
Native Resolution: 1920 x 1080 @ 60 Hz (Full HD)
Resolutions Supported: 640 x 480 @ 60Hz, 720 x 400 @ 70Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 720 @ 60Hz, 1280 x 800 @ 60Hz, 1280 x 1024 @ 60Hz, 1366 x 768 @ 60Hz, 1440 x 900 @ 60Hz, 1600 x 900 @ 60Hz, 1680 x 1050 @ 60Hz, 1920 x 1080 @ 60Hz
Input Signal: VGA, HDMI; HDCP supported on digital input
Cables Included: A/C power cable 1.9 m (6.2 ft), Power adapter 1 m (3.2 ft); VGA cable 1.8 m (5.9 ft); HDMI cable 1.8 m (5.9 ft) in selected regions
User Controls: Brightness, Contrast, Color Control, Input Control, Image Control, Power Control, Menu Control, Management, Language
Power Consumption Typical: 20 W; Maximum: 21 W; Power Saving: 0.3 W
Dimensions (W x D x H): Unpacked with stand: 49.78 x 18.35 x 38.45 cm (19.6 x 7.23 x 15.14 in) Head only: 49.78 x 3.52 x 30.16 cm (19.6 x 1.39 x 11.88 in)
Weight: Unpacked with stand: 2.44 kg (5.38 lbs) Head only: 2.07 kg (4.56 lbs) Packed: 4.07 kg (8.99 lbs)
Base Features Tilt: -5 to +25 degrees
Color: Front, Neck, and Base: Silver; Back: White
Environmental Operating: 5° to 35° C (41° to 95° F) Non-operating: -20° to 60° C (-4° to 140° F)
Certification and Compliance: ENERGY STAR, EPEAT Silver, CEL Grade 1, Microsoft WHQL Certification (Windows 10), CB, CE, HDMI, TUV-BAUART/ISO9241, CSA/CSA-NRTL, FCC, ICES, SMark, VCCI, CCC, China CEL, BSMI, KCC /KC/E-standby, ES7.0, EUP Lot 6 and Lot 5, GEMS, MEPS, UKRAINIA, HRN N N0.201, EAC, IEC60950:1999, IS 1121, SASO, SABS IEC 60950-1, NOM, PSB, ISC, C-Tick, SmartWay Transport Partnership (North America)

Description

The HP 22er 21.5-inch Display Monitor features a full HD (1920 x 1080) resolution display that provides stunning visuals with sharp and vibrant colors. The monitor has a slim and sleek design with a glossy black finish that adds a touch of elegance to any workspace. The monitor also has a built-in speaker that provides clear and rich audio, making it an ideal choice for multimedia consumption. The monitor has a VESA mount compatibility that allows you to mount it on the wall or any other compatible mount, providing flexibility in setting up your workspace.

6,3 mm at its thinnest point. Based on HP’s internal analysis as of 2/10/16.
Full HD (FHD) content required to view FHD images.

Features of HP 22er 21.5-inch Display Monitor

Our thinnest LCD display yet
Pushing the limits of thin in an eye-catching design. With our innovative use of high-strength, lightweight metal, we've created our thinnest LCD display yet.
Stunning from edge to edge
With ultra-wide viewing angles and vivid 1920 x 1080 resolution, this edge-to-edge display delivers an expansive entertainment experience for seamless multiple display setups.
True-to-life color
When the colors on your display are indistinguishable from real life, the result is a beautifully vivid picture. With Technicolor Color Certification, color accuracy is assured every time.

Setup Guide

Setting up the HP 22er 21.5-inch Display Monitor is a straightforward process. First, unpack the monitor and all its components, including the power cable, HDMI cable, and VESA mount (if applicable). Connect the monitor to a power source using the power cable and plug it into a wall outlet. Next, connect the monitor to your computer using the HDMI cable. Once connected, turn on the monitor and your computer. The monitor should automatically detect the signal from your computer and display the image. If the monitor does not display the image, adjust the display settings on your computer.

Troubleshooting

If you encounter any issues with the HP 22er 21.5-inch Display Monitor, here are some troubleshooting steps to follow:

If the monitor is not turning on, ensure that it is properly connected to a power source and that the power cable is securely plugged into the monitor and the wall outlet.
If the monitor is displaying a blank screen, adjust the display settings on your computer to ensure that it is set to the correct resolution and refresh rate.
If the monitor's display is flickering or blurry, adjust the brightness and contrast settings on the monitor to improve the display quality.
If the monitor's built-in speakers are not functioning, ensure that the volume is turned up and that the audio cables are properly connected.

Warranty

Protected by an HP standard one- or three-year limited warranty (varies by region). Certain restrictions and exclusions apply.

FHD (Full High Definition) content required to view HD images.
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency.
EPEAT registered where applicable. EPEAT registration varies by country. See https://www.epeat.net/ for registration status by country.

Pros & Cons

Pros

Full HD (1920 x 1080) resolution display for crisp and clear visuals
Slim and sleek design with a glossy black finish
Built-in speakers for clear and rich audio
VESA mount compatibility for flexibility in setting up your workspace
Affordable price range

Cons

No USB ports for connecting additional devices
Limited adjustability options for the monitor stand
May not be suitable for professional graphic design or video editing due to limited color accuracy

Customer Reviews about HP 22er 21.5-inch Display Monitor

Customers have praised the HP 22er 21.5-inch Display Monitor for its sleek design, clear visuals, and affordable price range. However, some customers have noted that the monitor's stand has limited adjustability options, making it difficult to adjust the monitor's angle. Additionally, some customers have reported issues with the monitor's built-in speakers, noting that they may not provide sufficient volume for some users.
