Introduction of Bissell Little Green Carpet Cleaner 1400 Series

Bissell's Little Green Carpet Cleaner Series is a powerful and portable spot-cleaning machine designed to tackle tough stains on carpets, upholstery, and car interiors. With an estimated price range of $120 to $140, this compact cleaner offers efficient stain removal at an affordable cost. Although the launching date is not explicitly stated, it has been a popular choice among consumers for its effectiveness and convenience.

Detailed Specifications of Little Green Carpet Cleaner

The Bissell Little Green Carpet Cleaner boasts the following key features

Powerful 3 amp motor for deep cleaning
2-in-1 tank system for easy filling and emptying
Built-in water heater for enhanced stain removal
Rotating DirtLifter PowerBrush for agitation
15-foot power cord for extended reach
Hose length: 4 feet
Weighs approximately 12 pounds for easy portability
Package includes trial-size Bissell 2X Professional Deep Cleaning Formula

Description of Little Green Carpet Cleaner 1400 Series

The Little Green Carpet Cleaner 1400 Series is a versatile and compact cleaning solution. Its powerful motor and rotating brush efficiently remove tough stains from carpets and upholstery, while the built-in water heater enhances the cleaning process. The 2-in-1 tank system makes it convenient to use and clean, and the 15-foot power cord allows for extended reach. Whether you need to clean pet stains, spills, or daily messes, this portable spot cleaner can handle the job with ease.

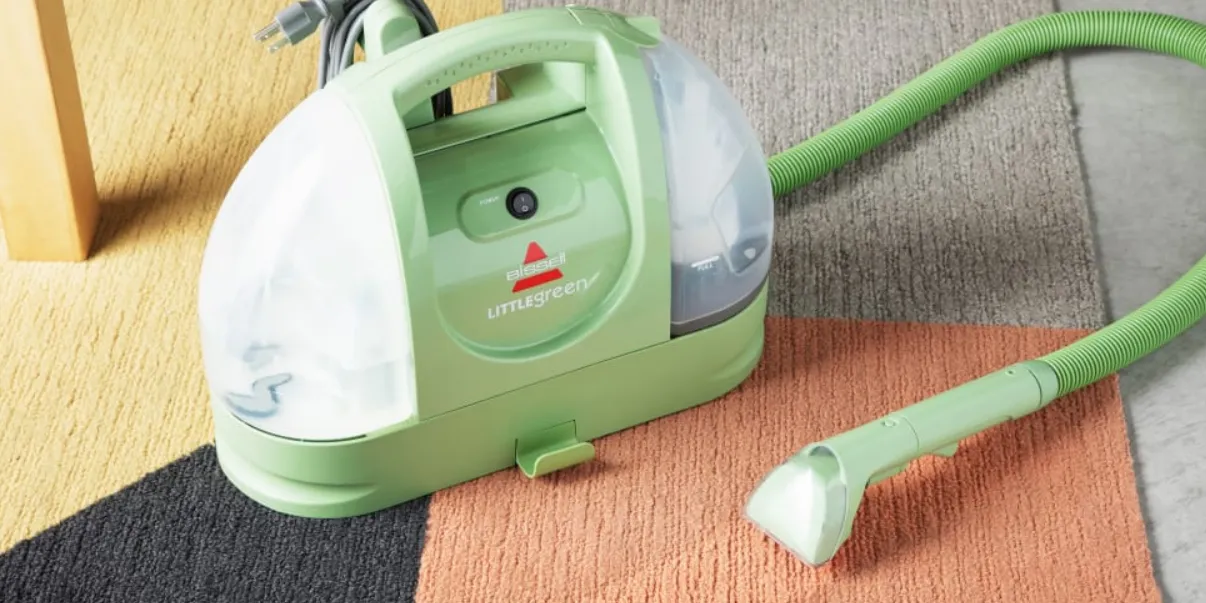

Product view of Carpet Cleaner 1400 Series



Product Features

Built-in-Heater switch (red)*Select Models only
The Little Green ProHeat™ models give you the ability to raise the water temperature for improved cleaning performance based on your cleaning needs.
Heat indicator light*Select Models only
After turning the Built-In Heater Switch on, the Heat Indicator Light will illuminate, indicating the heater has reached the correct temperature.
Flex hose clip
The clip guides the storage of the vacuum flex hose around the unit.
TurboBrush clip*Select Models only
Attaches to the unit for storage of the 2-in-1 crevice tool or TurboBrush.
Tough stain brush
The standard tool that attaches to the Flex Hose.
Quick Release cord wrap
To remove the Power Cord, gently twist/rotate the Quick Release Cord Wrap clockwise
Power Cord
The Power Cord, with a three-prong plug, stores on the back of the Little Green by wrapping around the Quick-Release Cord Wrap.

NOTE: Unwrap the Power Cord completely before operating the unit.

WARNING

Do not use an extension cord with this product. The use of an extension cord may result in a severe electrical shock, particularly if the extension cord does not have an electrical rating higher than that of the product, OR if the extension cord does not have a three-prong grounding plug and if the extension cord is not plugged into a circuit box with a ground fault circuit interrupter. Safety precautions such as keeping all connections off the ground and dry will not eliminate the danger.
Do not use this product while on any type of ladder. Do not place the product in a place where it will be stepped on or kicked while in use. Do not place the product on an elevated surface where it may be pulled off the surface while in use.
Use only BISSELL 2X Ultra Concentrated formulas for compact deep cleaners. Use of cleaning formulas which contain lemon or pine oil may damage this appliance and void the warranty. Chemical spot cleaners or solvent-based soil removers also should not be used. These products may react with the plastic materials used in your cleaner, causing cracking or pitting.

Replacement parts

Item	Part No.	Part Name
1	203-5008	Clean/Solution Tank (includes cap and insert assembly) - Dusk
2	203-7158	Clean/Solution Tank (includes cap and insert assembly) - Clear
3	203-5009	Collection/Dirty Tank (includes the airstack and float assembly) - Dusk
4	203-7144	Collection/Dirty Tank (includes the airstack and float assembly) - Clear
5	203-5011	Quick Release Cord Wrap - White
6	203-7169	Quick Release Cord Wrap - Green
7	203-5012	Tool Clip
8	203-5013	Flex Hose Clip - White
9	203-7159	Flex Hose Clip - Green
10	203-5014	Cap & Insert Assembly

Accessories

Item	Part No.	Part Name
1	203-6868	4" Upholstery/Carpet Tool
2	203-6654	6" Upholstery/Carpet Tool
3	203-6872	Spraying Crevice Tool - Dusk
4	314-9162	Tough Stain Brush Tool - Dusk
5	203-7151	Tough Stain Brush Tool - Green
6	203-6652	TurboBrush - Dusk
7	79B9C	BISSELL 2X Little Green™ Formula
8	74R7C	BISSELL 2X Pet Odor & Stain Removal Formula

Assembly of Bissell Little Green Carpet Cleaner 1400 Series

Slide the back plate of the flex hose clip into the opening on the front of the unit. You will hear a “snap” when it is locked in place.
Take the flex hose storage bracket and slide the lower plate into the opening on the back of unit. Make sure the screw holes line up.
Insert screw and tighten with a screwdriver.
Wrap the flex hose around unit and place the hose grip into bracket. Turn bracket latch clockwise to lock in place.If your model includes a TurboBrush.
Slide tool clip into slit on flex hose storage bracket place tool on clip

Assembling your Little Green PROheat is a simple process. The only thing you will need to assemble your cleaner is a Phillips head screwdriver.

Operation of Carpet Cleaner 1400 Series

Getting ready

To fill the clean/solution tank.
1. Remove the tank by lifting it straight up and then away from the unit.
2. Unscrew the black cap at the bottom of the clean/solution tank.
3. Add BISSELL 2X Little Green Formula to the FORMULA fill line on the clean/solution tank.
  Fill the clean/Solution tank with hot (NOT boiling) tap water to the WATER fill line. Replace and tighten the black cap.
4. Replace the clean/solution tank by lining up the vertical guides on the left side of the unit with the indentations on the clean/solution tank and gently sliding it down into position.
Release vacuum flex hose by twisting the bracket latch clockwise. Unwrap vacuum flex hose com-pletely from around the unit.
Attach your selected cleaning tool to the spray trigger unit by pressing tool onto spray trigger firmly until the button lock snaps into hole. Make certain the tool is securely attached.
Twist the Quick Release cord wrap clockwise to unwrap the power cord completely from onboard cord storage and plug into 120 Volt, 60 Hz grounded outlet as described in Important safety Instructions.
Press power switch to ON position. If your model has a heater switch then press the red heater switch to “ON”. Within 30 seconds, the heat indicator light will illuminate, indicating the heater has reached the proper temperature. Begin by pressing the spray trigger for 5-10 seconds to allow the non-heated water to travel through the heater.
Press and hold spray trigger the spray will start in a few seconds. Raise the tool slightly to check for spray.

Pre-treating

Cleaning effectiveness will be enhanced if you pre-treat heavily stained or highly-soiled areas. Here’s how to do it:

Hold the cleaning tool just above the surface of the carpet or upholstery to be cleaned. Press the trigger to release a spray of cleaning solution directly onto the soiled area.
Wait 3-5 minutes before cleaning.

WARNING
Be sure to unplug the cord before attaching the TurboBrush (select models only).

Hold the tool approximately 1” above the soiled surface. Press the spray trigger to apply the cleaning solution to the soiled area.
Using the brush on the tool, gently scrub the area to be cleaned.
Note: If using the TurboBrush, the switch should be in the “BRUSH” position. This activates the brush only.
For thorough cleaning, spray additional solution while the brush and suction are in contact with the surface.
Apply downward pressure on the tool and pull it toward you. The suction will remove the dirt and cleaning solution. Continue until no more dirt can be removed.
Note: If using the TurboBrush, move the switch to the “SUCTION” position. This activates the suction to remove the dirt and cleaning solution. Move the switch back to the “BRUSH” position for additional brushing action.
As a final step, use “drying strokes” (by not pressing the spray trigger) to remove as much liquid/moisture as possible. Repeat this step as often as necessary. Note: If using the TurboBrush, move the switch to the “SUCTION” position. This activates the suction to remove the dirt and cleaning solution.

IMPORTANT: Check the manufacturer’s tag before cleaning the upholstery. “W” or “WS” on the tag means you can use your Little Green. If tag is coded with an “S” (with diagonal strike-through), or says “Dry Clean Only,” do not proceed. If the manufacturer’s tag is missing or not coded, check with your furniture dealer.
Tip

Deep cleaning stairs and high-traffic areas on a regular basis can prolong carpet life.
Check upholstery stuffing before cleaning. Colored stuffing may bleed through the fabric when it becomes wet.

Maintenance and care

After cleaning

Turn Power Switch to OFF position.
Unplug Power Cord from outlet.
Note: If a significant amount of Little Green formula/water remains, it is all right to leave it in the Clean/Solution Tank for your next cleaning task.
Empty and rinse the Dirty/Collection Tank after each use, OR when dirty water reaches the indicated maximum fill line. To remove the tank, lift up the Dirty/Collection Tank release latch and remove the tank from the unit.
Disconnect the cleaning tool from the spray trigger by pushing down on button lock and pulling straight off (DO NOT twist tools to remove them)
Once removed from the spray trigger, all tools can be cleaned by rinsing under clean running water. The TurboBrush tool’s switch must be in “SUCTION” position before rinsing under clean running water.
Check spray nozzle for accumulated dirt or debris. If necessary, clean with soft bristle brush.

Tip: Before turning off the Little Green, suction up clean water to thoroughly rinse out the interior of the flex hose. Then, lift the cleaning tool and point it upwards to drain any remaining water into the dirty/collection tank.

Machine storage

Wipe all surfaces with a soft cloth.
Wrap power cord around the cord wrap on the back of the Little Green.
Wrap flex hose around the base of the unit and secure the spray trigger.
Store unit in protected, dry area, at room temperature (40ºF to 110ºF / 4ºC to 43ºC).

WARNING
Keep spray away from face. Failure to do so may result in personal injury.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following: Read all instructions before using your LITTLE GREEN™
WARNING: To reduce the risk of fire, electric shock, or injury

Do not use for any purpose other than described in this User’s Guide.
Use only BISSELL cleaning products intended for use in this appliance.
Use only manufacturer’s recommended attachments.
Do not expose to rain, store indoors.
Do not handle LITTLE GREEN™ plug or appliance with wet hands.
Do not leave LITTLE GREEN™ when it is plugged in.
Do not put any object into appliance openings or use with blocked openings. Keep free of dust, lint, hair, and anything that may reduce air flow.
Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.
Keep appliance on a level surface.
Be extra careful when cleaning stairs.
Do not carry the appliance while in use.
Never spray at people or animals.
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Do not pick up hot or burning objects.
Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapor.
Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, gasoline, etc.).
Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, run appliance over cord, or expose cord to heated surfaces.
Do not use with damaged cord or plug.
Turn off all controls before unplugging.
Unplug before attaching the TurboBrush.
Unplug from outlet when not in use and before conducting maintenance and troubleshooting.
Do not use LITTLE GREEN™ if it has been dropped, damaged, left outdoors or dropped into water. Have it repaired at an Authorized Service Center.
Unplug by grasping the plug, not the cord. Do not unplug by pulling on cord.
Always connect to a properly grounded outlet; see grounding instructions.
Do not modify the 3-prong grounded plug.

Troubleshooting

Reduced spray or no spray

Possible Causes

Spray nozzle clogged
Clean/solution tank empty
Clean/solution tank insert clogged
Pump needs priming

Deep cleaner won’t pick up the cleaning solution

Possible Causes

The tank release latch is not closed properly
Poor upholstery/carpet tool position
The dirty/collection tank is full
Upholstery/carpet tool brush worn
Excess solution in vacuum flex hose
Incorrect Cleaning Formula

TurboBrush attachment-brush will not turn

Possible Causes
Incorrect switch position on TurboBrush

TurboBrush attachment– no suction

Possible Causes
Incorrect switch position on TurboBrush
Remedies

Clean spray nozzle
Check/refill tank
Clean insert at bottom of Clean/solution tank
Gently lift clean/solution tank while depressing the spray trigger OR gently squeeze clean tank while depressing spray trigger

Remedies

Lift up the tank release latch and press down firmly to make sure it is in place
Reposition upholstery/carpet tool on surface, follow recommended cleaning procedures
Empty dirty/collection tank
Replace with new brush
Lift tool and point upwards to allow water in hose to flow into the dirty/collection tank
Use BISSELL 2X Little Green formula only

Remedies
Reposition switch to suction position

Warranty OF BISSELL Little Green

f you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below.
One Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL Canada Corporation will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part. See the information below on “If your BISSELL product should require service”. This warranty applies to products used for personal, and not commercial or rental services.

Pros & Cons of Bissell Little Green Carpet Cleaner 1400 Series

Pros

Compact and lightweight design
Effective at removing tough stains
Easy to use and clean
Built-in water heater for better performance
Affordable price range

Cons

Small water tank capacity
Limited hose length for larger cleaning tasks
May not be as effective for deep-seated stains
Requires occasional maintenance

Customer Reviews about Bissell Little Green Carpet Cleaner

Customers generally praise the Little Green Carpet Cleaner for its compact size, easy use, and effective stain removal. Common complaints include small water tank capacity, limited hose length, and inconsistent performance on deep-seated stains.
