Introduction

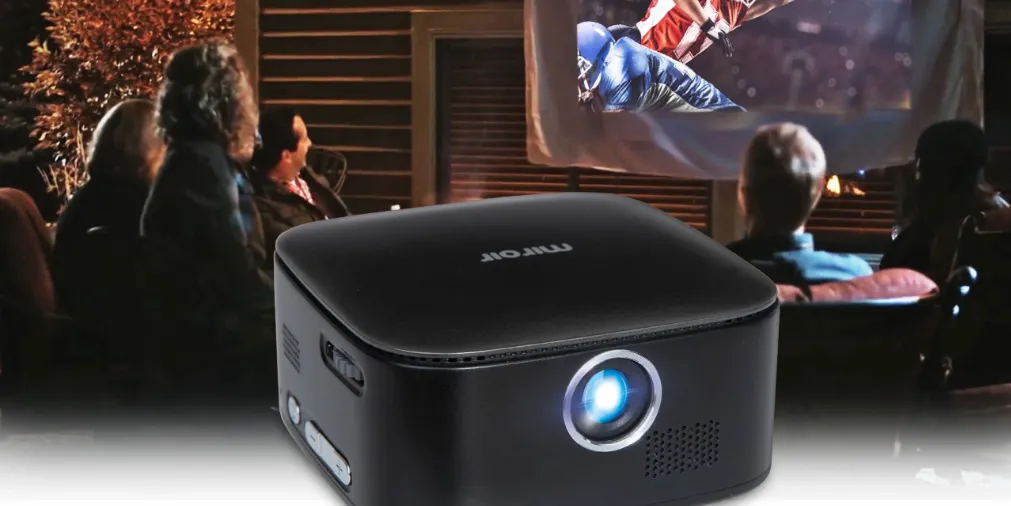

The Miroir USA Micro Projector M-29 is a compact and portable device designed for on-the-go entertainment, allowing users to project images and videos up to 100 inches in size. Weighing just a few pounds, it features multiple connectivity options, including HDMI and USB ports, making it easy to connect to various devices such as smartphones and laptops. With its built-in speaker and user-friendly interface, this projector is perfect for both casual viewing and presentations. The cost of the Miroir M-29 is approximately $299.99, providing an accessible solution for portable projection needs.

Specifications

Resolution: Up to 1080p
Luminosity: 300 lumens
Contrast Ratio: 1000:1
Projection Distance: 2-10 feet
Connectivity: HDMI, USB, MicroSD
Battery Life: Up to 2 hours on a single charge
Dimensions: 4 x 3 x 1 inches
Weight: Approximately 1 pound

Locations of Parts and Controls


Audio Out (3.5mm)- Connect an external speaker or headphones.
HDMI Video Input - Connect an HDMI cable to a device that supports HDMI video output.
USB Power Output – Connect a USB power cable to provide power to a HDMI streaming stick or to charge a smartphone battery. Cannot be used for video input.
Power Indicator Light – Indicator light will illuminate red when charging and illuminate green once fully charged.
Micro USB Charging Port – Connect the supplied Micro USB to USB charging cable to a USB wall outlet or USB port on a computer to charge the projector’s internal battery. Fully charge battery before the first use (approx. 3-4 hours).
Projector Lens
Focus Wheel – Roll the focus wheel forward and backwards to fine-tune the projected image.
Volume Controls – Increase (+) or decrease (-) the volume output of the projector.
System Indicator Light – Indicator light will illuminate blue when the projector is starting up.
Power Switch – Connect the supplied Micro USB to USB charging cable to a USB wall outlet or USB port on a computer to charge the projector’s internal battery. Fully charge battery before the first use (approx. 3-4 hours).
Reset Button – Press to reset projector.
Rubber Foot Pads - Provides stability and proper airflow to cooling vents.
Tripod Mount - Will fit a standard sized tripod screw. Tripod not included.
Cooling Vent - IMPORTANT: Do not cover or block airflow to the vent.

Learn More
To learn more about your Miroir Micro Projector and its operations, to review specs, and find answers to frequently asked questions, please visit: https://www.miroirusa.com

Description

The Miroir USA Micro Projector M-29 is built with a sleek and durable design, making it easy to carry around. It comes with a built-in speaker, though for better sound quality, you can connect external speakers via the audio output. The projector has automatic keystone correction, which helps in adjusting the image to ensure it is always perfectly aligned.

The device supports various file formats and can play content directly from a microSD card or USB drive. This feature makes it highly convenient for presentations and movie nights without the need for additional devices.

How to Connect

Connect Your Apple Products

To connect your Apple device to a Miroir projector, you will need an Apple Digital AV Adapter (sold separately) and an HDMI cable (included in the box).

To connect your Macbook you will need an Apple USB-C Digital AV Multiport Adapter (sold separately) and an HDMI cable (included in the box).


Connect Your Android Device

Android devices support a variety of connectivity standards. Here are a few examples of how you would connect:

Source Device	Cable/Adapter Required
Android Devices that support USB-C Video out	USB-C to HDMI Adapter (sold separately) and HDMI Cable (included in the box)
Android devices with SlimPort	Slimport to H(sold separately) and HDMI Cable (included in the box)
Android devices with MHL	MHL to HDMI Adapter (sold separately) and HDMI cable (included in the box)

Note: You may need to check with your device manufacturer to verify that your Android device supports video out.

To connect your Samsung S8 or later device with USB-C you will need a Samsung USB-C to HDMI adapter (sold separately) and an HDMI cable (included in the box).


Connect Your HDMI Connected Devices: Laptops, Streaming Devices, Streaming Sticks

To connect your HDMI connected laptop or streaming box, you will need an HDMI cable (included in the box).


To connect your HDMI streaming stick, simply plug it directly into your Miroir projector's HDMI port.


Note: Some streaming sticks require their own power. The USB power cable for those devices can be plugged into the USB port on the projector or a USB wall outlet.

Setup Guide

To set up the Miroir USA Micro Projector M-29,

Start by charging the battery if it is not already fully charged.
Connect your device (such as a laptop or smartphone) to the projector using an HDMI cable or wirelessly via Miracast or AirPlay.
Turn on the projector and adjust the focus and keystone settings to get a clear image.
You can use the remote control or the buttons on the projector itself to navigate through the menu and make any necessary adjustments.
For optimal performance, ensure that the room is dimly lit and the screen or projection surface is clean and free of any obstructions.

Micro Projector M-29 Troubleshooting

The image is blurry

Adjust the projected image’s focus by rolling the focus wheel forwards or backwards.
Check that the surface you are projecting on is smooth and non-reflective.
Check that the projector’s lens is clean and free of debris.

The image is not square

Check that the projector’s lens is parallel to your projection surface and that your projection surface is flat.

No sound

Check the volume control on the projector to ensure the volume is turned up.
Check the volume control on your source device to ensure the volume is turned up.
Check that the HDMI cable is fully plugged into the HDMI port.
If you are using an adapter, verify that the adapter supports audio.

Projector will not power on, or stay powered on

If on battery power, try plugging the projector in with the Micro USB charging cable to a USB wall outlet or USB port on a computer.
If the projector is plugged into power with the Micro USB charging cable, check that the cable is securely plugged into both the USB power source and the Micro USB port on the projector. Note: If you have the projector plugged into a computer’s USB port, you may need to check your computer’s power settings to ensure that the USB ports continue to provide power when the computer is in sleep mode or power saver mode.
Check that the power indicator light is illuminating to red when the projector is plugged into power. If the light is not illuminating, try a difference Micro USB charging cable and a different USB power source.

No signal message

If on battery power, try plugging the projector into power with the micro USB charging cable.
Check that you are connecting using the HDMI port on the projector. The projector requires HDMI input to project.
Note: The Micro USB port on the projector is only used to charge the projector’s internal battery and the USB port on the projector is used only to provide power out.
Check that the HDMI cable is firmly plugged into the projector and your source device.
If you are using an adapter to connect your source device, check with your source device’s documentation or manufacturer to ensure you are using the proper adapter for an HDMI video out connection.
If you are connecting to a computer, check the display settings on your computer to ensure you have a multiple display option selected (such as “duplicate these displays”).

Pros & Cons

Pros

Compact and lightweight design
Easy to set up and use
Good brightness and image quality for its size
Long battery life
Multiple connectivity options

Cons

Limited brightness in very bright environments
Built-in speaker could be louder
No 3D support
Short throw distance

Customer Reviews

Customers have generally praised the Miroir USA Micro Projector M-29 for its portability, ease of use, and good image quality. However, some users have noted that it may not perform well in very bright rooms and that the built-in speaker is somewhat underwhelming.

Common complaints include issues with connectivity stability and the need for frequent adjustments to maintain a clear image.
