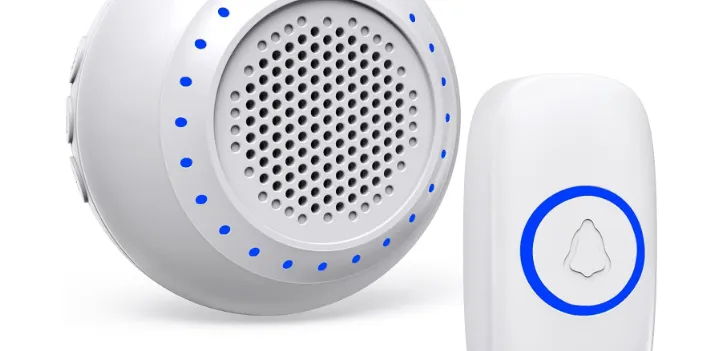

Secrui Doorbell Kit Ringer M523

Introducing the Convenient and simple to set up wireless doorbell system is the Secrui Doorbell Kit Ringer M's523. Long-range connectivity, many chime choices, and loudness settings let you never miss a guest. It works dependable and looks great in any kind of house or workplace.

Package

1X Secrui wireless doorbell receiver
1X Secrui transmitter button
1X Double-side adhesive tape
1X Secrui User manual

Overview

Product Specification

Doorbell receiver power supply: 100-240V
Doorbell receiver working current: 100mA
Battery lifetime: 3 years
Transmitter button working voltage: 12V (built-in battery)
Sound volume: 25dB - 130dB
Working frequency: 433MHZ
Wireless range: 1000ft (in open air)

Product Features

4 levels of adjustable volume.
32 ringtones options
Memory function
Fixed tone buttons settable
Each doorbell receiver works with up to 20 transmitter buttons at most

Description

Sleek appearance and cutting-edge functionality are combined in the Secrui Doorbell Kit Ringer M523 to provide an outstanding doorbell experience. A ringer and a doorbell button that fit any modern or minimalistic decor are included in the package. While the programmable ringtones and volume levels enable a personalized touch, the weather- and waterproof-resistant design guarantees dependable functioning in a variety of settings.

Users of the Secrui Doorbell Kit Ringer M523 may also remotely operate the doorbell system and get push alerts when someone rings the bell thanks to smartphone app connectivity. The lengthy battery life guarantees least maintenance and most convenience.

Operation instruction

Short press---press button for <3S
Long press---press button for >3S

Receiver power on: Plug the doorbell receiver into the AC electric outlet. The doorbell receiver will beep once and the LED light will flash in each color circularly.

Chime setting

Short press【】: Loop tones in sequence and play the current tones.
Long press【】: Change tones loop direction.

Volume adjustment

Short press【】 to increase or decrease the volume.
The volume will turn to maximum automatically when the doorbell receiver reboots.

Doorbell Transmitter button pairing

Long press【】on the doorbell receiver, the LED light flashes and beeps once, the doorbell receiver has entered the pairing state.
Short press the transmitter button.
Short press【】, the doorbell receiver LED light is off.
Short press the transmitter button, the pairing is done.

Recommend: Fixed-tone transmitter button pairing (1 doorbell receiver with 2 or more transmitter buttons)

Short Press【】, select a tone, long press【】and【】, do not release them until the doorbell receiver LED light is green and beeps.
Short press transmitter button A.
Short press【】, the doorbell receiver LED light is off, then short press transmitter button A. Done!
Short Press【】, select another tone, long press【】and【】, do not release them until the doorbell receiver LED light is green and beeps.
Short press transmitter button B.
Short press【】, the doorbell receiver LED light is off, then short press transmitter button B. Done!

NOTE: When the doorbell receiver is in the pairing state: short press any key on the doorbell receiver or leave it 20 seconds without any operation, the doorbell receiver will quit the pairing state automatically.

Delete pairing method

Unplug the doorbell receiver.
Press and hold the【】button, plug in the doorbell receiver. (Do not release the【】button until the doorbell receiver LED light flashes and beeps 10 times, then beeps continue)
Delete pairing is done!

Setup Guide

To set up the Secrui Doorbell Kit Ringer M523, follow these steps:

Install the battery in the doorbell button and ringer.
Press and hold the doorbell button until the LED indicator on the ringer starts flashing, indicating pairing mode.
Using the smartphone app, scan the QR code on the back of the ringer to connect it to your Wi-Fi network.
Follow the in-app instructions to complete the pairing process between the doorbell button and the ringer.
Test the doorbell system to ensure proper functionality.

Attention

Do not let children play with it.
Do not expose the doorbell receiver to rain, fire, excess moisture, or snow.
Do not disassemble.
Do not operate the product with a damaged cord or plug.
Do not throw or shake the product.

For any product issue, we sincerely appreciate if you could contact us. Email: support@secrui.com

Troubleshooting

If you experience any issues with your Secrui Doorbell Kit Ringer M523, try the following troubleshooting steps:

Check the battery level in both the doorbell button and ringer.
Ensure the ringer is within the specified range of the doorbell button.
Restart the doorbell system by removing and reinserting the batteries.
Reset the ringer to its factory settings and re-pair it with the doorbell button.

Secrui Doorbell Kit Ringer M523 Pros & Cons

Pros
- Wireless connectivity with long range
- Waterproof and weather-resistant design
- Customizable ringtones and adjustable volume levels
- Smartphone app integration for remote control and notifications
- Long battery life
Cons
- Limited color options
- May require occasional Wi-Fi network configuration
- Some users may find the setup process complicated

Customer Reviews

Customers rave about the Secrui Doorbell Kit Ringer M523's sleek design, reliable performance, and long battery life. The waterproof and weather-resistant construction has also been praised, as it allows for worry-free installation in various environments. Although some users have mentioned minor issues with initial setup, the majority of reviewers find the system efficient and user-friendly.
