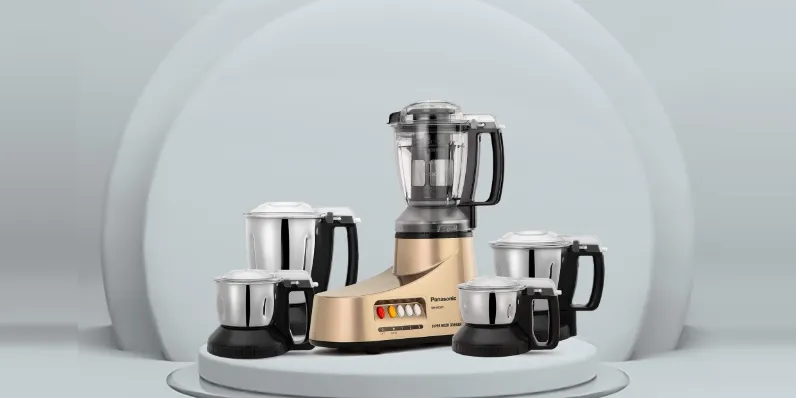

Introduction of Panasonic Mixer Grinder MX-AC555

The Panasonic Mixer Grinder MX-AC555 is a powerful and efficient kitchen appliance designed to simplify your culinary tasks. Its launch date was in June 2021 and it is estimated to be priced around $150 to $200. This mixer grinder is perfect for a variety of uses, from grinding spices and herbs to making smoothies and batters.

Accessories

Specifications

Model No.	MX-AC300	MX-AC220	MX-AC210	MX-AC400	MX-AC350	MX-AC300S	MX-AC310	MX-AC250	MX-AC555
Power Supply	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz	230V ~ 50 Hz
Power Consumption	550 W	550 W	550 W	550 W	550 W	550 W	550 W	550 W	550 W
Protection	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I	CLASS I
Insulation Winding	CLASS F	CLASS F	CLASS F	CLASS F	CLASS F	CLASS F	CLASS F	CLASS F	CLASS F
Rating	30 mins.	30 mins.	30 mins.	30 mins.	30 mins.	30 mins.	30 mins.	30 mins.	30 mins.
Material
Motor Housing	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)	Plastics (ABS)
PC Jar with Filter	Not Available	-	Not Available	Plastic (PC) / Plastic (ABS)	-	Not Available	Plastic (PC) / Plastic (ABS)
PC Jar	Plastic (PC)	-	Not Available	Plastic (PC)	Not Available
Filter Mesh	Not Available	Stainless Steel (SS304)	-	Stainless Steel (SS304)	-	-	-	-	-
Filter Gasket	Not Available	Rubber (Silicon Rubber)	-	-	-	-	-	-	-
Filter Unit	Not Available	Plastics (ABS)	-	-	-	-	-	-	-
Stainless Jar	Not Available	Stainless Steel (SS304)	-	-	-	-	-	-	-
Mill Jar	Stainless Steel (SS304)	-	-	-	-	-	-	-	-
Multi Jar	Not Available	Stainless Steel (SS304)	-	-	-	-	-	-	-
Chutney Jar	Stainless Steel (SS304)	-	-	-	-	-	-	-	-
Lids	Plastic (Polycarbonate)	-	-	-	-	-	-	-	-
Lid Gaskets	Rubber (Ethylene Propylene Rubber)	-	-	-	-	-	-	-	-
Blade	Stainless Steel Hard Type (SS304)	-	-	-	-	-	-	-	-
Speed Control	3 Speed with 1 Pulse & 1 Off Button (Piano Type Buttons)	-	-	-	-	-	-	-	-
Accessories	Spatula & Whipping plate	Spatula & Whipping plate	Spatula & Whipping plate	Spatula , Whipping plate & Fruit Pusher	Spatula , Whipping plate & Fruit Pusher	Spatula & Whipping plate	Spatula & Whipping plate	Spatula, Whipping plate & Fruit Pusher	Spatula, Whipping plate & Fruit Pusher
Mass	4.9 kg	4.1 kg	4.1 kg	5.6 kg	5.0 kg	4.9 kg	5.o kg	4.4 kg	6.4 kg
Capacity (Max.)	-	-	-	-	-	-	-	-	-

Panasonic Mixer Grinder MX-AC555 Parts Identification

Pre-wash all the parts and accessories (except Motor Housing) before the first time use. Ensure that the Jars and Lids are clean before using.
Difference Among Models

PLASTIC JAR UNIT WITH FILTER (FOR JUICER)
(Applicable for MX-AC250, MX-AC350, MX-AC400 & MX-AC555) (Nole: Use Filler unit in this Jar)

PLASTIC JAR UNIT (FOR BLENDING)
(Applicable for MX-AC210, MX-AC300)

JAR UNIT (FOR BLENDING)
(Applicable for MX-AC300S, MX-AC380, MX-AC400 & MX-AC555)

Do not use turmeric with the Jar for blending.
Do not interchange Blades with other Jar (Assembling a wrong Blade will cause overflow or leak.
The Chutney Jar Blade is fixed permanently.
Do not attempt to remove the Chutney Blade.
The Multi Jar Blade is fixed permanently.
Do not attempt to remove the Multi Jar Blade.

Safety Lock

The Safety Lock has been designed to prevent the appliance from switching on when the Jar is not properly in place. Do not push the Safety Lock with any implement, stick etc. Keep clean to avoid foreign particle deposits on the Safety Lock.

Circuit Breaker Protection

When the Circuit Breaker automatically stops the Motor due to overload, press the "OFF" Button.
Remove the Jar and reduce its contents to half.
After 2 or 3 minutes, tilt the Motor Housing and push the Reset Button at the bottom surface. The appliance in now ready for resume.

Panasonic Mixer Grinder MX-AC555 Description

The Panasonic Mixer Grinder MX-AC555 boasts a sleek and modern design that will complement any kitchen decor. It features a 550-watt motor that delivers excellent performance and quick results. The appliance comes with three stainless steel jars: a large jar for grinding and mixing, a medium jar for chopping and blending, and a small jar for grinding spices. All jars are equipped with sturdy, leak-proof lids and shatter-resistant interiors for added durability.

How to Assemble/ Disassemble

Blade/ Whipping Plate

(Jar, Mill Jar, Chutney Jar, Multi Jar)
0 Put the Blade or the Whipping Plate inside the Jar.
8 Hold the Jar coupler at the bottom.
8 Tighten the Blade knob (black) with the Spatula (anti-clockwise direction).
To disassemble, reverse the assembly instructions.
(Chutney Jar/ Multi Jar)
The Chutney Blade/ Multi Jar Blade is fixed permanently. Do not attempt to remove the Blade.

Assemble

Attach the Lid Gasket to the Lid with grooved slide down.

Lid

Set the Hook on and make sure the Lid is locked.

Disassemble

In case the Lid is forced to open without pushing the Button, the Hook may break.

How to Use Plastic Jar with Filter

Unit (Applicable for AC250, AC350, AC400 & AC555)

Filter Gasket fixing
Fix the Filter Gasket at the bottom of the Filter.
Put the Filter in the Plastic Jar
Please ensure, the rib of the Filter is placed properly on the Plastic Jar Flow Breaker lines.
Put ingredients
Cut the ingredients into small enough pieces to fit into the feeder hole with proper water capacity. Make sure the Buttons are not pressed down on the Motor Housing.
Put the Lid-J on the Plastic Jar first
Set the Hook of Lid-J onto the Plastic Jar. Make sure the Lid Cover is closed over the Lid-J.
Then set it on the Motor Housing
Never open or close the Lid-J when the Plastic Jar is placed on the Motor Housing as the Blade is still moving for a while after switching off.
Plug in and press the Switch Button. While operating, hold the Lid-J down.
When adding extra ingredients, turn off the switch. Remove the Plastic Jar from the Motor Housing and repeat step 3-5.
Use Fruit Pusher
- If any fruit ingredients get stuck inside the Filter Unit above the Blade without getting crushed, Use Fruit Pusher by following Steps : If fruit gets stuck inside the Filter Unit without grinding, first open the Lid Cover with the Mixer Grinder in running condition.
- Insert the Fruit Pusher into the Filter Unit in the direction as illustrated in the image.
- Stir down the un-crushed fruits by Fruit Pusher towards the Blade.
- Ensure all the fruit pieces are crushed well. Then remove the Fruit Pusher from the Filter Unit.
- Replace the Lid Cover over Lid-J after removing the Fruit Pusher and run the Mixer grinder until juice is completed.
To Transfer the Juice
After extracting Juice, press the "OFF" Button and remove the Plastic Jar from the Motor Housing. Open the Juice Cap and transfer the Juice to the containers.

Jar/ Plastic Jar/ Mill Jar/ Chutney Jar/ Multi Jar

Use the recommended Jar only for the recommended functions like blending and Whipping, etc. (See to "Guide to Functions" on P.14-17). Never open or close the Lid when the Jar is placed on the Motor Housing as the Blade is still moving for a while after switching off.

Put ingredients. Make sure the Switch Buttons on the Motor Housing are not pressed down.
Put the Lid on the Jar first, then set it on the Motor Housing.
Do not use turmerics with the Jar for blending.
Plug in and press the Switch Button. While operating, hold the Lid down.
For a Long Life span. Please run the appliance for short duration. Pause for 3 minutes and then resume.
Press the "OFF" Button and remove the Jar. Then take out the contents.
Unplug after every use. Blades are very sharp. Handle them carefully.

Setup Guide

To operate the Panasonic Mixer Grinder MX-AC555, follow these simple steps:

Plug the appliance into a power outlet.
Place the desired jar on the base, aligning the tabs on the jar with the slots on the base.
Secure the lid on the jar and ensure it is properly locked in place.
Choose the appropriate speed setting, depending on the task at hand.
Press the start button and allow the appliance to run for the desired duration.
Once finished, turn off the appliance and unplug it from the power outlet.

Guide to Functions

Type	Ingredients	Amount	Jar Type
Dry Grinding	- Sugar, Coffee beans, Spices	- 2 tbsp	- ½ of Chutney Jar
	- Condiments, Nuts	- Level
Masala Paste	- Onion, Ginger, Garlic	- 1½ tbsp heaped	- ½ of Chutney Jar
	- Add little water
Poppy Seed	- Poppy Seed Paste	- 1½ tbsp heaped	- ½ of Chutney Jar
	- Add little water
Wet Grinding	- Poppy Seed & Cashew nut Paste	- 1½ tbsp heaped	- ½ of Chutney Jar
	- Add little water
Chutney	- Coconut Chutney	- 1½ tbsp heaped	- ½ of Chutney Jar
	- Mint Coriander Chutney	- 1½ tbsp heaped	- ½ of Chutney Jar
Multi Jar	- Sugar, Coffee beans, Spices	- 2.4 tbsp	- ½ of Multi Jar
	- Condiments, Nuts	- Level
Masala Paste	- Onion, Ginger, Garlic	- 1¾ tbsp heaped	- ½ of Multi Jar
	- Add little water
Poppy Seed	- Poppy Seed Paste	- 1¾ tbsp heaped	- ½ of Multi Jar
	- Add little water
Wet Grinding	- Poppy Seed & Cashew nut Paste	- 1¾ tbsp heaped	- ½ of Multi Jar
	- Add little water
Chutney	- Coconut Chutney	- 1¾ tbsp heaped	- ½ of Multi Jar
	- Mint Coriander Chutney	- 1¾ tbsp heaped	- ½ of Multi Jar

Dry Grinding
- All ingredients must be dry and free from moisture.
- Running time duration: 90 seconds.
Masala Paste
- For a masala paste with both dry and moist ingredients, start by powdering the dry ones first, then add moist ingredients with a little water.
Ginger and Garlic Paste
- Crush first using the pulse function, then add water to make a paste.
Poppy Seed Paste
- Roast lightly, powder them, then add water for a paste.
Chutney
- For smooth grinding, add salt, which brings out moisture and makes grinding easier.
- Use the pulse function to crush, then grind to a paste.

How to Clean

Unplug and handle the Blades with care.
Use the liquid soap mixed with water and soft sponge.
Do not use benzines, thinners, cleansers, scouring pads, etc .. (Damaging the surface.)
Do not use hot water over 60 °C or dishwasher.

Filter Cleaning
(Applicable for AC250, AC350, AC400 & AC555)

Cleaning should be done immediately after every use.
Use a soft brush and warm water to clean the Filter.
Clear-out the seeds and skin clogging on the Filter.
Remove the Filter Gasket and wash the bottom of the Filter and the Filter Gasket.

Lid-J Cleaning
(Applicable forAC250, AC350, AC400 & AC555)

Hold the Juice Cap straight (90°).
Remove the Juice Cap straight as shown in the figure.
Clear-out the Seeds and Skin clogging on Lid-J
Wash with a soft sponge.

Panasonic Mixer Grinder MX-AC555 Troubleshooting

Problem	Possible Cause	Action
The appliance cannot be turned on.	- Is the Jar set properly?	- Hold the Lid down.
	- Is the Lid set properly?	- Turn the Jar until it stops.
	- Is the Power plug connected properly?	- Plug in properly.
The appliance stops operation.	- Aren't ingredients stuck?	- Remove all ingredients and put them back in the Jar.
The appliance does not operate when turned on.	- Is the Circuit Breaker Protection active?	- Follow instructions for “Circuit Breaker Protection”
The appliance stops operation during use.	- Too much ingredients.	- Remove excess ingredients.
	- Hard ingredients.	- Use suitable, softer ingredients.
Ingredients leak from top.	- Is the Lid Gasket set?	- Set the Lid Gasket properly

Warranty

Rubber Gaskets, Blades, Couplers, which carry a warranty of 1 years only. The Company would repair or replace free of charge any part(s) of the appliance, should the company be fully satisfied, at its sole discretion, that the defect(s) are only due to faulty material or workmanship.

Pros & Cons about Panasonic Mixer Grinder MX-AC555

Pros

Powerful 550-watt motor
Three stainless steel jars with leak-proof lids
Sleek and modern design
Variable speed settings
Shatter-resistant interiors

Cons

Relatively expensive compared to other mixer grinders
Limited color options
