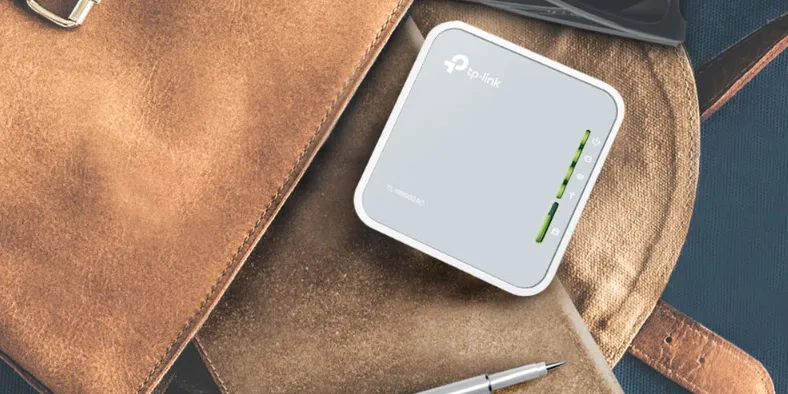

Introducing the Tp-Link Portable N-Router TL-MR3020

The TP-Link Portable 3G/4G N-Router TL-MR3020 is a compact and versatile device that allows you to create a wireless network anywhere there is a 3G or 4G signal. With its small size and light weight, it is perfect for travelers, remote workers, or anyone who needs to stay connected while on the go. The estimated price of this product is around $30 to $50, and it was launched in 2012.

Instructions

3G/4G Sharing 300Mbps
Wireless Speed
Multi-Mode

Specifications of Tp-Link Portable N-Router TL-MR3020

Hardware

Ports: 1 10/1 00Mbps WAN/LAN Port, 1 USB 2.0 Port, 1 Micro USB Port
Buttons: WPS/Reset Button, Mode Switch
Antennas: Internal Antennas
External Power Supply: 5VDC/1 A
Dimensions (W x D x H): 2.9x 2.6x0.9 in. (74x67x22mm)

Wireless

Wireless Standards: IEEE 802.11 b/g/n
Frequency: 2.4GHz
Signal Rate: 300Mbps
Transmit Power:< 20dBm
Reception Sensitivity
2.4GHz
- 270M: -70dBm@10% PER
- 130M: -73dBm@10% PER
- 108M: -74dBm@10% PER
- 54M: -75dBm@10% PER
- 11 M: -86dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -95dBm@8% PER
Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Software

Quality of Service: WMM, Bandwidth Control
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management: Access Control, Local Management, Remote Management DHCP: Server, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Access Control: Parental Controls, Local Management Control, Host List, White List, Black List
Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
Protocols: IPv4, IPv6
Guest Network: 2.4GHz guest network

Others

Certification: CE, RoHS
System Requirements
- Microsoft Windows 98SE/NT/2000/ XP / Vista/7 /8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment
- Operating Temperature: 0°C~40°C (32°F ~104°F)
- Storage Temperature: -40°C~70°C (-40"F ~158"F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 3G/4G Portable Wireless N Router TL-MR3020
- Ethernet Cable
- USS Cable
- Quick Installation Guide

Tp-Link Portable N-Router TL-MR3020 Highlights

Share internet from anywhere you have a 3G or 4G mobile connection
Compatible with iOS/Android smartphones, tablets, Windows/Mac laptops and other Wi-Fi enable devices.
Quick Mode Selection
Select an operation mode to best fit your internet need.

Features

Reliability

Wireless N Speed: 300Mbps Wi-Fi speed meets your daily internet needs
802.11 n: Backward compatible with 802.11 b/g products
Easy Bandwidth Management: Bandwidth Control allocates necessary speed of each connected device to ensure quality of multimedia streaming

Ease of Use

Intuitive Web UI: Ensures quick and simple Installation without hassle
Fast Encryption: One-touch WPA wireless security encryption with the WPS button

Security

Guest Network: Keeps your main network secure by creating a separate network for friends and visitors
Access Control: Establishes a whitelist or blacklist to allow or restrict certain devices to access the internet
Parental Controls: Restricts internet access time and contents for children devices
Encryptions for Secure Network:WPA-PSK and WPA2-PSK encryptions provide active protection against security threats

Description of Tp-Link Portable N-Router TL-MR3020

The TL-MR3020 supports 3G and 4G wireless networks, providing download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps. It features an Ethernet port, allowing you to connect a wired device to the network, and also supports 802.11n wireless technology. The device has a built-in battery that can last up to 4 hours, making it ideal for use on the go. The TL-MR3020 also has a microSD card slot, allowing you to share files and media across the network.

Setup Guide

Setting up the TL-MR3020 is simple and easy. First, insert a 3G or 4G SIM card into the device. Next, turn on the device and connect it to a power source. Once the device is turned on, use a web browser to connect to the TL-MR3020's default IP address (192.168.0.1). From here, you can configure the device's wireless settings and connect to a 3G or 4G network.

Tp-Link Portable N-Router TL-MR3020 Troubleshooting

If you have trouble connecting to a 3G or 4G network, make sure that the SIM card is properly inserted and that the device is in an area with good network coverage. If the device is not connecting to the wireless network, check that the wireless settings are correct and that the device is within range of the wireless router. If you encounter any problems or errors, refer to the TL-MR3020's user manual for troubleshooting steps.

Pros & Cons

Pros

Compact and portable design
Supports 3G and 4G networks
Ethernet port for wired connections
Built-in battery for use on the go
MicroSD card slot for file sharing

Cons

May not be compatible with all SIM cards
Only lasts 4 hours on battery power
Not suitable for use as a primary router

Customer Reviews about Tp-Link Portable N-Router TL-MR3020

Customers have praised the TL-MR3020 for its compact and portable design, as well as its support for 3G and 4G networks. However, some customers have noted that the device may not be compatible with all SIM cards, and that the battery life is relatively short. Overall, the TL-MR3020 is a great choice for travelers and remote workers who need to stay connected while on the go.
