Introduction

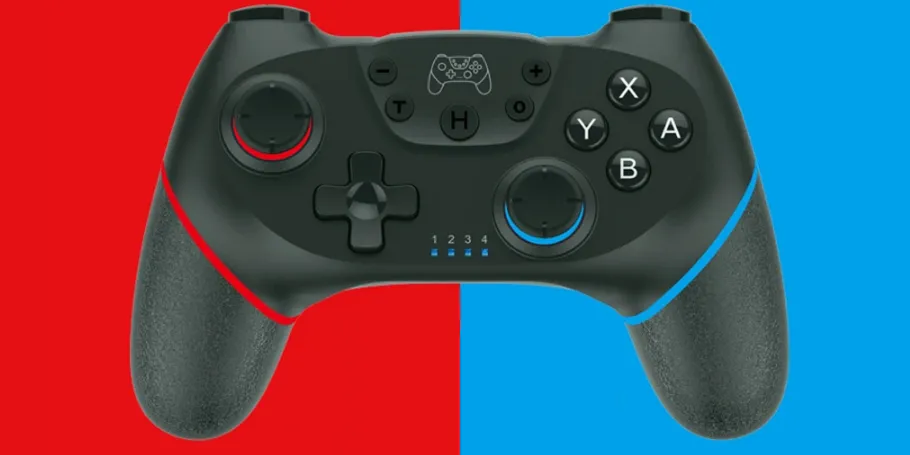

This Nintendo N-SL Wireless Gaming Controller SW001 provides smooth wireless connectivity, an ergonomic design, and responsive controls for an improved gaming experience on your Nintendo Switch. With its long battery life, customisable button layout, and simple pairing process, it is a must-have tool for every dedicated gamer. The SW001 is ideal for both leisure and competitive play, providing accurate control and comfort during extended gaming sessions.

This product is a wireless Bluetooth gamepad, which belongs to the wireless blue control gamepad (using wireless Bluetooth technology). It can be remotely controlled and easy to operate. It can be used for the N-SL console. It also supports PC x-input PC games.

Package

1 X Controller
1 X USB Charging Cable
1 X User Instruction

Product Parameter

Voltage: DC 5 V
Charging time: About 3.5 hours
Working Current: <20mA
Vibration Current: 70-120mA
Sleep Current: 9uA
Charging Current: About 180mA
Battery Capacity: 550mAh
USB length: 70 cm/2.30 ft
Use time: About 10 hours
Bluetooth Transmission Distance <10m

Description

A comfortable and simple gaming experience is the goal of the Nintendo N-SL Wireless Gaming Controller SW001. It is ideal for gaming while on the go or for use in confined locations due to its small size and lightweight build. Your favorite games will feel even more immersive thanks to the controller's motion controls and HD rumble features, which let you experience every movement and vibration in real time. You can play your favorite games for hours on end without having to recharge thanks to its up to 20 hours of battery life.

Pairing and Connecting

Bluetooth connection in console mode:

Step 1: Turn on the console, click the System settings menu button on the main page interface (Figure ), enter the next menu option, click the Airplane Mode option (Figure ), and then click the Controller Connection (Bluetooth) (Figure 3 option Turn on its Bluetooth function (Figure 4).
Step 2: Enter the Bluetooth pairing mode of the console and controller, click the Controllers menu button on the console homepage interface (Figure ⑤), enter the next menu option and click the Change Grip/Order option. The console will automatically search for paired controllers (Figure ⑥).
Step 3: Press and hold the HOME button for 3-5 seconds to enter the Bluetooth search pairing mode, LED1-LED4 marquee flashes quickly. After the controller is successfully connected to the console, it vibrates and automatically assigns the corresponding channel indicator of the controller to be steady on.

Console mode wired connection
Turn on the wired connection option of the PRO controller on the console, put the console into the console base, and then connect the controller via the data cable, the controller will automatically connect to the console, after the data cable is pulled out, the controller will automatically connect back to the console console via Bluetooth.

Wired connection in N-SL mode
Turn on the wired connection option of PRO handle on the N-SL host, put the console into the base, and then connect the handle through the data cable. pressing any button (A/B/X/Y/ZL/ZR/R/L) of the handle will automatically connect the console and pull out the data cable, then the handle will automatically connect back to the console host through bluetooth.

Windows (PC360) mode
When the controller is turned off, connect to the PC via a USB cable, and the PC will automatically install the driver. The LED2 on the controller is long on to indicate a successful connection. The display name: Xbox 360 controller for windows .(wired connection)

Setup Guide

To set up the Nintendo N-SL Wireless Gaming Controller SW001 , follow these steps:

Turn on your Nintendo Switch and ensure it is connected to the internet.
Press and hold the sync button on the controller until the LED light begins flashing.
On your Nintendo Switch, navigate to the controller settings menu and select "Pair New Controller."
Select the Nintendo Game N-SL Controller SW001 from the list of available devices.
Once connected, the LED light on the controller will turn solid.

TURBO Function Setting

The controller has the TURBO function, hold down the TURBO button and then press the corresponding button to set the TURBO.
In N-SL mode, A, B, X, Y, L1, R1, L2, R2 can be set
In XINPUT mode, you can set A, B, X, Y, L1, R1, L2, R2
Adjust Turbo speed:
- Turbo + right 3d up, the frequency increases by one gear
- Turbo + Right 3d down the frequency by one gear
The power-on default is 12Hz; there are three levels (5 times per second — 12 times per second — 20 times per second). When the Turbo combo is executed, the Turbo combo speed LED1 flashes accordingly as the Turbo indicator.

Motor Vibration Function

The controller has a motor function; it uses a pressure-sensitive motor; the console can manually turn on or off the controller motor vibration. ON/OFF
Motor intensity can be adjusted under N-SL platform
Adjust the motor intensity:
- turbo+ left 3d up, the intensity increases by one gear
- turbo+ left 3d down, the intensity is reduced by one gear
A total of 4 levels
100% strength, 70% strength, 30% strength, 0% strength, Power-on default 100%

LED Indicators

Status	Description
Power off	When the controller is turned on, press and hold the HOME button for 5 seconds to turn off the controller. When the controller is in the back-connecting state, it will automatically shut down when it cannot be connected after 30 seconds.
Power off	When the controller is in the state of code matching, it will enter back connection when the code cannot be matched after 60 seconds, and it will automatically shut down. When the controller is connected to the machine, it will automatically shut down when there is no button operation within 5 minutes.
Charge	When the controller is turned off and the controller is inserted into the adapter, LED 1-4 flashes, after fully charged, LED 1-4 goes out. The controller is online, when the controller is plugged into the USB, the corresponding channel light flashes slowly, and it lights up when it is full.
Reconnect	The console wakes up and reconnects: After the controller is connected to the console, the console is in sleep state, the controller connection indicator is off, short press the controller HOME button, the indicator light flashes slowly and the marquee flashes back to wake up the console. The console wakes up in about 3-10 seconds. (The console wake-up state can only be effective by pressing the HOME key). Reconnect when the console is powered on: When the console is powered on, press the HOME key on the controller to reconnect.
Reset	When the controller is abnormal, such as button disorder, crash, failure to connect, etc., you can try to restart the controller. Reset method: Insert a slender object into the Reset hole on the back of the controller, and press the Reset button to reset the controller state.
Low battery alarm	When the controller battery voltage is lower than 3.6V (according to the principle of battery characteristics), the light of the corresponding channel flashes slowly, indicating that the controller is low and needs to be charged. 3.45V low power shutdown.

Troubleshooting

If you experience any issues with the Nintendo N-SL Wireless Gaming Controller SW001 , try the following troubleshooting steps:

Ensure the controller is charged and within range of the Nintendo Switch.
Check that the controller is not paired with any other devices.
Restart the Nintendo Switch and try pairing the controller again.
If the issue persists, try resetting the controller by holding the sync button for 15 seconds.
Contact Nintendo support if the issue remains unresolved.

Nintendo N-SL Wireless Gaming Controller SW001 Pros & Cons

Pros

Compact and ergonomic design
Motion controls and HD rumble features
Long battery life
Fast and convenient charging
Compatible with all Nintendo Switch games that support motion controls

Cons

May be too small for some users
Lacks some of the features of the Joy-Con controllers
Not compatible with some older Nintendo Switch games
No built-in NFC reader for Amiibo figures
Some users may prefer a wired connection for lower latency

Customer Reviews

"I love this controller! It's so comfortable to hold and the motion controls add a whole new level of immersion to my favorite games." - Jane D.

"I was hesitant to buy a third-party controller, but this one is top-notch. It feels just as good as the Joy-Cons, and the battery life is amazing." - John S.

"I've had some issues with connectivity, but overall this is a great controller. It's perfect for on-the-go gaming." - Sarah K.
