Introduction

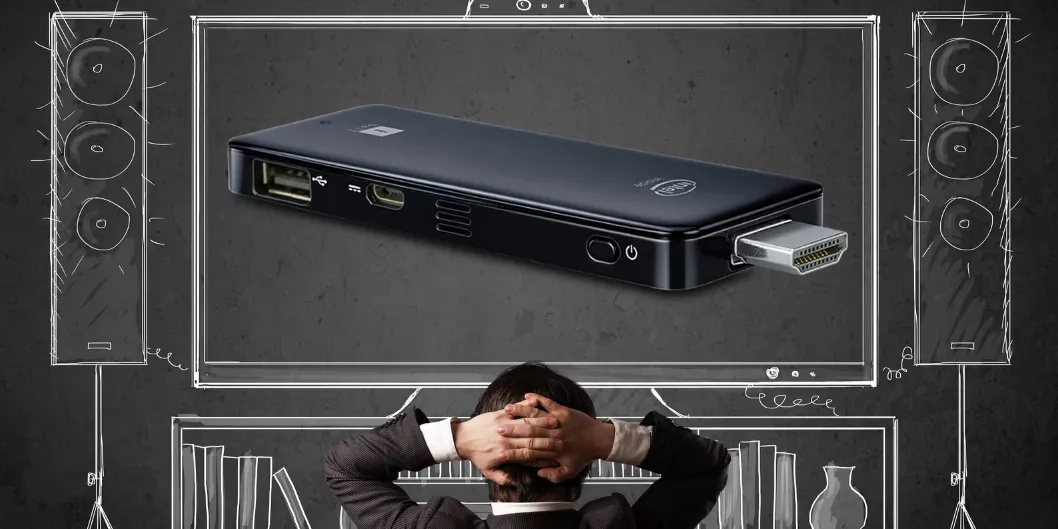

Presenting the ground-breaking all Intel Splendo PC-On-Stick Z3735F, which turns your HDTV or monitor into a fully functional Windows 8.1 PC. With 2GB of RAM and a quad-core Intel Atom processor, this pocket-sized marvel can operate smoothly and effectively. You'll have plenty of room for your files and papers with 32GB of internal storage and a microSD card slot for expansion.

PRODUCT INTERFACE


Micro SD Card Slot
Micro USB with USB OTG Function
HDMI Pin
Power Button
Power Supply Port
USB 2.0 Port
LED Light Indicator

PRODUCT SPECIFICATIONS

Processor: Intel Atom Z3735F Quad Core up to 1.83GHz
Operating System: Windows 1 O
Memory: 2GB DDR3
Storage Capacity: 32GB eMMC
Expansion Slots: Micro SD, Max 64GB
Display Interface: HDMI
Wireless Connectivity: Wi-Fi 802.11 b\g\n; Bluetooth (v4.0)
USB interface: 1 x USB2.0, 1 x Micro USB2.0
Power Input: Micro USB interface
Power Supply: 5V/2A

PACKAGE CONTENTS


iBall Splendo PC-on-Stick
iBall Dusky Duo (Wireless Deskset - Mouse and Keyboard)
Power Adapter
HDMI Extension Cable
USB OTG Cable
Charging Cable
USB Receiver (Inside the mouse)

Description

Fitting into the palm of your hand, the ball Intel Splendo PC-On-Stick Z3735F is a small and lightweight gadget. It is compatible with Windows 10 and operates on Windows 8.1 with Bing, giving you access to a large selection of apps and programs. The gadget supports HDMI output for connecting to a display and includes an integrated USB connector for attaching accessories like a keyboard and mouse. The silent, cool, and energy-efficient Splendo is perfect for use in any setting thanks to its fanless design and energy-efficient processing. Along with a one-year manufacturer's warranty, the device has a headphone connector for private audio.

i-ball Intel Splendo PC-On-Stick Z3735F Instruction Guide

Connecting iBall Splendo to TV:
There are two ways of connecting iBall Splendo to TV:

Either connecting iBall Splendo to the TV directly or:
1. Plug iBall Splendo to lV: via HDMI interface.
2. Plug the Charging Cable into the Adaptor and connect it to the socket.
  With the free end of the Charging Cable, connect it to iBall Splendo and switch on the socket. iBall Splendo works on Power.
3. On TV, we need to change the mode to "Video Input Source" corresponding to the HDMI connection.
4. Press the power button to start the system.
5. The system appears on TV and you are ready to Work, Play, and Surf with iBall Splendo, having a full-fledged Windows PC experience!
  Alternatively, iBall Splendo can be connected to the Screen, LED Monitor, Projector, etc. having HDMI input.
Through HDMI extension cable
If iBall Splendo cannot be connected directly to the TV, you could use the HDMI extension cable provided in the accessories pack.
1. Connect iBall Splendo to the HDMI port of the HDMI extension cable and plug this cable into the TV via HDMI interface.
2. Reier the steps as above from Steps 2 through 5.

Connecting iBall Dusky Duo

(Wireless Deskset)

Remove the USB Receiver hidden inside the Mouse.
Insert Battery inside the Mouse
Connect the USB Receiver to the USB 2.0 port of the iBall Splendo
Keyboard and Mouse comes to the play and you are free to work with the help of Keyboard and Mouse.

Setting up Various Peripherals

The list of peripherals that could be connected:

Input devices such as USB enabled Mouse, Keyboards, Printer, Scanner
Storage Devices such as Pen Drive, External HOD
USB Hub and various USB-enabled devices.

Pairing devices with the help of Bluetooth

You can send and receive a file or images or video via Bluetooth from Smartphones, Tablets, or Bluetooth-enabled devices to iBall Splendo and vice-versa. First, turn on the Bluetooth in both devices and pair the device to send or receive the file.

How to send and receive a file from iBall Splendo?

Select the Bluetooth Option from the Desktop screen of iBall Splendo & select the option "Send a File" & one menu will appear on the screen to select a nearby device searched by iBall Splendo.
After selecting the required device, browse the document or the file you wish to send and then select the "Next" option to send to the paired device.
To receive the file, select the option "receive a file" as per the reference image and a new window will appear on the screen to receive a file from another device.

Note: Kindly keep the window opened after clicking on the "receive a file" option while receiving a file from another device

Setting up Wi-Fi Connection

Click on the Wi-Fi option from the Main Desktop screen as per the below image.
Click the required Wi-Fi option corresponding to the router you wish to connect to and kindly insert the password of your protected wireless device to get access to Wi-Fi.
By now, iBall Splendo should be connected to the concerned router.

Setup Guide

The ball Intel Splendo PC-On-Stick Z3735F configuration procedure is simple to comprehend. Start by doing the following:

Attach the Splendo to an HDMI port on your monitor.
After connecting the power adapter to the Splendo, plug it into an electrical socket.
To connect a keyboard and mouse, either utilize the USB socket on the Splendo or pair them via Bluetooth.
To activate the display and proceed with the on-screen instructions to install Windows and any required apps or programs.

Troubleshooting

The ball Intel Splendo PC-On-Stick Z3735F may cause the common issues listed below, along with solutions for each:

If the display is experiencing problems detecting the Splendo, make sure it is securely plugged in and that the input is adjusted correctly.
If the Splendo isn't turning on, check that the power adapter and outlet are in excellent functioning order.
If you are having trouble connecting your peripherals, make sure they are compatible with the Splendor and connected appropriately.
If you are experiencing issues with performance, try terminating unnecessary apps or programs and restarting Splendo.

i-ball Intel Splendo PC-On-Stick Z3735F Pros & Cons

Pros

Compact and portable design
Quad-core processor and 2GB of RAM for smooth performance
Windows 8.1 with Bing and upgradable to Windows 10
HDMI output for connecting to a display
Wi-Fi and Bluetooth connectivity

Cons

Limited internal storage
No built-in cooling system
No Ethernet port for wired internet connection

WARRANTY

You can enjoy parts and labor warranty service provided by our company for one year from the date of purchase.

Customer Reviews

Customers love the i-ball Intel Splendo PC-On-Stick Z3735F for its compact and portable design, smooth performance, and wide range of features. Some common complaints include limited internal storage and the lack of a built-in cooling system. However, these issues are minor and do not significantly impact the overall quality and functionality of the device.
