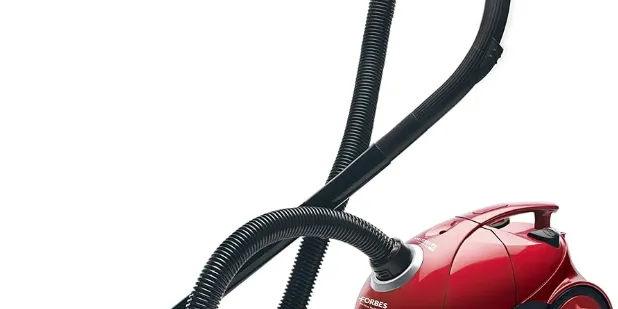

Introduction: Eureka Forbes Quick Clean DX Vacuum Cleaner

The Eureka Forbes Quick Clean DX Vacuum Cleaner is a powerful and efficient cleaning solution for your home. Launched in 2021, this vacuum cleaner is priced affordably, making it accessible to a wide range of consumers. It is designed for quick and easy cleaning of all types of surfaces, including hard floors and carpets. With its compact size and lightweight design, the Quick Clean DX is easy to maneuver and store, making it an ideal choice for busy households.

Making you familiar with Quick Clean DX

1. DUST CONTAINER RELEASE BUTTON	8. WHEEL
2. AIR INTAKE	9. FLEXIBLE HOSE WITHSUCTION POWER SLIDE
3. DUST FULL INDICATOR	10. CREVICE NOZZLE 2-IN-1
4. BUTTON TO UNRAVEL THE POWER CORD	11. UPHOLSTERY NOZZLE/BRUSH
5. HANDLE	12. EXTENSION TUBE
6. STORAGE POSITION (FLOOR BRUSH RAIL TO FIX THE FLOOR AND CARPET BRUSH AND EXTENSION TUBES)	13. FLOOR AND CARPETBRUSH
7. ON/OFF BUTTON	14. 4 DUST BAGS

Caution: Always turn off and unplug the vacuum cleaner before performing maintenance or cleaning.

Using the Quick Clean DX

To use the vacuum to clean, simply insert the desired accessory into the air intake and press the ON/OFF button to switch ON. To use the flexible hose to clean, attach the adapter to the hose end and insert it into the air intake. Insert the desired accessory into the other end of the flexible hose.

DX Vacuum Cleaner Accessories

Flexible hose: Gives you the flexibility to reach hard-to-clean areas.
Crevice brush: For cleaning corners, crevices.
Upholstery brush/ Nozzle: Helps to clean cots, curtains, sofa etc.
Floor and carpet brush: For cleaning hard floor surfaces as well as tough-to-clean carpets with same efficiency.

General Safety Instructions

Read all the instructions before using this appliance.
Before use always make sure that the voltage of the appliance corresponds to that of the mains supply. Use only household outlets. Never use extension cord’s power sources. If you are not sure of your home’s voltage supply, consult a qualified electrician. Connecting the appliance to a higher voltage than indicated may result in damage to the appliance or injury. Do not alter the plug in any way.
A damaged appliance can be dangerous. Check the packaging, the appliance and accessories for any signs of damage. Do not use a damaged appliance.
Do not use this appliance for any other use than that for which it is intended (household use). If the appliance is not working as it should, has been dropped, damaged, left outdoors, come into contact with or immersed in water, take it to a service center to have it checked by a qualified electrician.
Do not use on people, on animals, outdoors or on wet surfaces. Only use on dry surfaces.
Only use the appliances as described in this manual. Use only recommended accessories.
The manufacturer cannot be held responsible for damage caused by non-compliance with these ‘Safety Warnings & Instructions’.
Do not allow the appliance to be used as a toy. Close attention is necessary when used by or near children.
Do not pull or carry by the cord, use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners.
Do not run the appliance over the cord. Keep the cord away from heated surfaces.
Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
Do not handle the plug or appliance with wet hands.
Keep hair, loose clothing, fingers and all parts of the body well away form openings and moving parts. Use extra care when cleaning on stairs, uneven, unleveled or unstable surfaces.
This appliance should not be used to clean, pick up or retain any hazardous materials.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
Do not use the appliance to pick up liquid, this could impair the electrical safety of the appliance. Wait for freshly shampooed carpets to dry.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not pick up sharp objects.
Do not use this appliance to pick up toner dust. Toner, such as that used in printers and photocopiers can conduct electricity.
Always turn off the appliance before connecting or disconnecting the accessories.
Do not turn on or attempt to operate the appliance unless dust bag, dust cup, filter and/ or exhaust filter are correctly in place.
Monitor the dust full indicator and empty and clean it at least once a month or when the Max-mark level has been reached.
Do not use the appliance without accessories attached. The rim could be damaged and injuries could result from sharp edges.
Do not install this product on hot surfaces, or close to temperatures of more than 40°C.
If you pass this product on to another person, be sure to include the operating manual. Keep this manual in a safe place.
This appliance is not intended for use by persons (including children)with reduced physical, sensory or mental capabilities or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Technical Specifications

The Eureka Forbes Quick Clean DX Vacuum Cleaner comes with a range of features that make it an excellent cleaning tool. It has a powerful 1200W motor that provides strong suction and efficient cleaning. The vacuum cleaner also features a HEPA filter that traps dust and allergens, making it an ideal choice for people with allergies. The Quick Clean DX has a dust container capacity of 1.5 liters, which is easy to empty and clean. It also comes with a crevice tool and a dusting brush for cleaning tight spaces and delicate surfaces.

Input voltage: 230V,AC,50Hz
Power (IEC): 1200W
Suction (at Mean Sea Level): 1700mm of WC(@MSL)
Unit weight: 3.6kg
Dimensions: 330mm×230mm×210mm

Maintenance

A damaged power cord must only be replaced by an authorized service agent.
Do not leave the appliance plugged in. Unplug from the outlet when not in use and before servicing.
Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. Do not put any object(s) into openings.
Clean only with a dry or slightly damp cloth when disconnected from the power supply. Never immerse in water.
The plug connectors must not come in contact with water. These items may only be cleaned with a dry cloth, no moisture must touch them.
Do not attempt any repairs other than performed by an authorized service agent.
The manufacturer cannot be held responsible for any work performed by an unauthorized service person.

Cleaning and Care

Cleaning the filter
The dust cup should be emptied and the filter cleaned after each use, or at least on a monthly basis. To do so, the following steps should be followed.

Press the release button to remove the dust bag and filter assembly from the main body of the vacuum cleaner. Additionally, remove the small sponge motor filter.
Remove the main filter from the housing.
Tap the loose dust away from both filters.
Rinse with luke - warm water.
Stand all parts in free air to dry.
When completely dry, reassemble the filter and dust bag and replace the motor filter. Reattach the assembly to the main body.

Warning

Never operate the appliance without the dust filter and dust bag in their correct position. Always make sure that the appliance is not connected to any power supply when performing any cleaning or maintenance activities.
Always ensure that both filter and dust bag are totally dry before placing them in the appliance. Always unplug the appliance from the mains supply socket after use and before cleaning.

Eureka Forbes DX Vacuum Cleaner Description

The Eureka Forbes Quick Clean DX Vacuum Cleaner is a versatile and convenient cleaning tool that makes cleaning easy and efficient. Its lightweight design and compact size make it easy to move around, and its powerful motor provides strong suction that can handle even the toughest cleaning jobs. The vacuum cleaner's HEPA filter ensures that the air in your home remains clean and free of allergens, making it an ideal choice for people with allergies. The Quick Clean DX is easy to use, with intuitive controls and a user-friendly design. Its dust container is easy to empty and clean, and its crevice tool and dusting brush make it easy to clean tight spaces and delicate surfaces.

Troubleshooting

Problem	Possible cause	Possible solution
The appliance does not switch on.	There is no power in the mains supply socket.	Check fuse or cut-out switch. Replace the fuse or reset the switch.
The appliance has weak suction power.	dust bag is full.	Empty the dust bag.
The dust escapes from the appliance.	Filter is not installed correctly.
The brushes will not pick up any dust.	Extension tube is clogged.	Remove the tube and/ or brushes. Remove the obstruction.
Heat produced during use.	A small amount of heat is normally produced by the vacuum during use.

Pros & Cons

Pros

Powerful 1200W motor for strong suction
HEPA filter to trap allergens
Compact and lightweight design for easy maneuverability
Easy to empty and clean dust container
Crevice tool and dusting brush for versatile cleaning

Cons

May be too loud for some users
cord may be too short for larger homes
May not be as effective on high-pile carpets
Some users may find it difficult to empty the dust container without making a mess

Warranty

Forbes Quick Clean DX Vacuum Cleaners are warranted against defects arising out of faulty design, workmanship and materials, for a period of 12 months from the date of the invoice, subject to the following conditions:

The customer will notify the company promptly about any defects noticed and give the company or its authorized dealer sufficient opportunity to inspect, test and remedy them, for which the customer will deposit the goods, if necessary, with the company’s office service center along with the original invoice, in the city where they are sold.
Inspection and test report of the company’s office/service center will be treated as final and binding under the warranty for determining defects, repairs/alterations required or carried out, or certifying working of the goods thereafter.
The company or its authorized dealer will be entitled to retain any defective parts replaced under the warranty.
The company’s liability under the warranty will be limited only to defects which occur under the conditions of normal operation and under proper use. It excludes defects occurring because of abuse, faulty care or maintenance, repairs/ alterations to goods or parts by others, use on electrical supply for which the goods are not designed or to damage caused by lighting or other electrical disturbances.
Components subject to wear, such as flexible cable, carbon brushes and accessories, are not covered by this warranty.
The customer will have no claim under this warranty in respect of any personal injury, damage to property or consequential damages, or for utilization of the goods not in accordance with the user manual.

Customer Reviews

Customers who have purchased the Eureka Forbes Quick Clean DX Vacuum Cleaner have praised its powerful suction and lightweight design. Many have noted that it is easy to maneuver and store, making it an ideal choice for busy households. However, some have criticized its short cord and loud noise level. Overall, customers have given the Quick Clean DX positive reviews, with many noting that it is an excellent value for the price.

Most Common Complaints

The most common complaints about the Eureka Forbes Quick Clean DX Vacuum Cleaner are its short cord and loud noise level. Some users have also noted that it may not be as effective on high-pile carpets as other vacuum cleaners. However, these complaints are relatively minor and do not detract from the overall quality and value of the product.
