Introduction

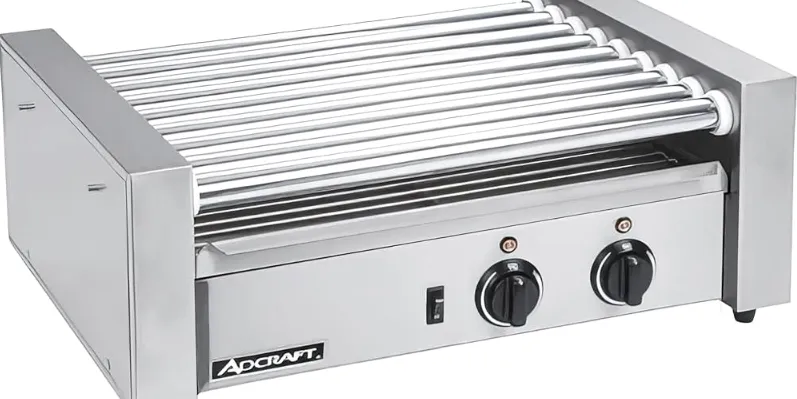

Efficiently frying and holding up to 24 hot dogs at once, the Adcraft Hot Dog Roller Grill RG-90 is a commercial-grade device. Made of sturdy 304 stainless steel, it has nine 360-degree rotating non-stick rollers to guarantee consistent cooking. The front and back rollers of the grill each have separate controls, making it possible to precisely regulate the temperature. With its high torque motor and sleek, easy-to-clean design, the RG-90 is a dependable choice for snack bars, concession stands, and other foodservice settings.

Parts List

Roller Grill - RG-05, RG-07, RG-09

Reference Number	RG-05 Part Number	RG-07 Part Number	RG-09 Part Number	Description
1	RG-1	RG-1	RG-1	Power Cord and Strain Relief
2	RG-2	RG-2	RG-2	White Grease Ring and White Bearing Ring
3	RG-3	RG-3	RG-3	Roller Tube
5	RG-5	RG-5	RG-5	Heating Element
6				Guide Rail
7				Right Side Cover
8	RGS-8	RG7-8	RG9-8	Chain
9	RG-9	RG-9	RG-9	Sprocket
10	RG-10	RG-10	RG-10	Motor
11				Bottom Cover
12	RG-12	RG-12	RG-12	Heat Indicator - Yellow
13	RG-13	RG-13	RG-13	Thermostat Regulator Knob
14	RG-14	RG-14	RG-14	Thermostat Regulator
15	RG-15	RG-15	RG-15	On/Off Switch
16				Oil Tray
17				Oil Tray Rack
18	RG-18	RG-18	RG-18	Rubber Foot
19				Body
20				Left Side Cover
21				Upper and Lower Support Rails

Detailed Specifications

Constructed from premium stainless steel, the Adcraft Hot Dog Roller Grill RG-90 has a cooking surface in the roller style that is 90 cm (35.4 inches) wide. With an adjustable thermostat for precise temperature control, it has a strong heating system that can achieve temperatures of up to 375°C (707°F). In addition, the grill features a detachable grease pan for effortless upkeep and cleaning. Additional features include a robust powder-coated finish, locking casters for mobility, and a heavy-duty handle. Measuring 152 cm (60 inches) in length, 61 cm (24 inches) in width, and 92 cm (36 inches) in height, the RG-90 weighs about 136 kg (300 lbs).

Instructions

RD-07 Circuit diagram:

Hot Dog Roller Grill RD-08 Circuit diagram:

Hot Dog Roller Grill RD-09 Circuit diagram:

Description

Heavy-duty and built to withstand the rigors of a professional kitchen is the Adcraft Hot Dog Roller Grill RG-90. Its cooking surface, which resembles rollers, is ideal for grilling a range of dishes, such as sandwiches, meats, and veggies. The grill's detachable grease tray facilitates easy cleanup, and its strong heating system and thermostat guarantee even cooking and reliable results. Stainless steel and a sturdy powder-coated finish are among the premium materials used in the construction of the RG-90, which also has locking casters for further mobility. All things considered, any food service outlet searching for a dependable and adaptable grilling machine should consider the Adcraft Roller Grill RG-90.

HOW TO USE

Place unfrozen hot dogs on the rollers, evenly.
The left knob controls the front rollers and the right knob controls the back rollers. Use both rows simultaneously for high-volume usage.
To control the rotation of the rollers, turn the switch on the control plate to "ON".
Turn the knob to the desired level of heat. Once hot dogs have been heating for 40 minutes, turn the temperature control knob lower to continuously keep warm.
Average heating duration is 40 minutes; however, this may vary depending on the quality of hot dogs.

Setup Guide

Follow these instructions to set up the Adcraft Hot Dog Roller Grill RG-90:

When positioning the grill, make sure it is level and securely fastened.
After plugging in the grill, flip the power switch on.
To get the required temperature, adjust the thermostat.
Before adding food, give the grill a few minutes to warm up.
To open the grill and arrange the food on the roller-style cooking surface, use the heavy-duty handle.
Once the grill is closed, cook the meal for the duration of the required cooking time.
To clean the grill of any extra grease or debris, use the grease pan.
When not in use, turn off the grill and unplug it.

CLEANING

NOTE: To maintain cleanliness and increase service life, the rollers should be cleaned daily. Clean every 3-4 hours for products with high fat or sugar content.

Do not immerse the grill in water or any other liquid.
Before cleaning or attempting to move grill, unplug and let the unit cool completely.
Wipe from the end of the rollers to the center. Make sure hot dogs have been removed before wiping.
To avoid damage, do not use abrasive cleaners or scouring pads.
If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

NOTE

Hot dogs must be completely unfrozen.
In order to keep the juicy taste, do not keep warm for too long. The surface of the hot dogs may become thick and hard if warming for more than four hours.

WARNINGS

Do not touch any hot surfaces.
Do not immerse unit, cord, or plug in liquid at any time.
Unplug cord from outlet when not in use and before cleaning. Allow grill to cool completely before cleaning.
Plug only into a 3-hole grounded electrical outlet.
Do not operate unattended.
Do not use this unit for anything other than intended use.
Do not use outdoors.
Keep children and animals away from unit.
Always cook on a firm, dry, and level surface at least 12" from walls or any other obstruction.
Do not use unit with a damaged cord or plug; in the event the appliance malfunctions, or has been damaged in any manner.
Any incorrect installation, alterations, adjustments, and/or improper maintenance can lead to property loss and injury. All repairs should be done by authorized professionals only.
Ensure that the designated power supply is adequate for continual usage and the voltage is correct.

Troubleshooting

Here are some common problems that may arise when using the Adcraft Hot Dog Roller Grill RG-90 and how to solve them:

If the grill is not heating up, check to ensure that it is properly plugged in and that the power switch is turned on. Also, make sure that the thermostat is set to the correct temperature.
If the food is not cooking evenly, adjust the thermostat to a higher temperature and allow the grill to heat up for a few minutes before adding more food.
If there is excess smoke coming from the grill, make sure that the grease tray is empty and that the grill is properly ventilated.
If the grill is not cleaning properly, use a wire brush to remove any excess food or debris from the cooking surface.
If the grill is making strange noises, check to ensure that all of the parts are properly secured and that there are no loose screws or bolts.

Pros & Cons

Pros

Heavy-duty construction and advanced features make it perfect for commercial kitchens and food service establishments
Roller-style cooking surface provides versatility and even cooking
Powerful heating system and adjustable thermostat ensure consistent results
Removable grease tray makes cleaning easy and convenient
Locking casters and durable finish provide mobility and protection

Cons

Expensive, making it a major investment for some food service establishments
Requires regular cleaning and maintenance to keep it in good working order
May be too large for some kitchen spaces
May produce a lot of smoke and grease, which can be messy and difficult to clean up

ACE Electrical Equipment One-Year Warranty

ACE warrants its equipment against defects in materials and workmanship, subject to the following conditions:

This warranty applies to the original owner only, and is not assignable. ACE Electrical Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage.

Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE's discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after defective unit has been inspected and defect has been confirmed. ACE does not assume any liability for extended delays in replacing any item beyond its control. This warranty does not apply to rubber and non-metallic synthetic parts where usage, wear, or lack of preventative maintenance may create abnormal replacement rates, and these parts are excluded from this limited warranty.

Customer Reviews

Customers who have purchased the Adcraft Hot Dog Roller Grill RG-90 have praised its heavy-duty construction and advanced features. They have stated that the grill is easy to use and provides consistent, even cooking every time. Customers have also appreciated the grill's removable grease tray and locking casters, which make cleaning and mobility a breeze. However, some customers have noted that the grill is expensive and requires regular cleaning and maintenance. They have also mentioned that the grill can produce a lot of smoke and grease, which can be messy and difficult to clean up.
