Introduction Evenflo Secure Kid Child Restraint

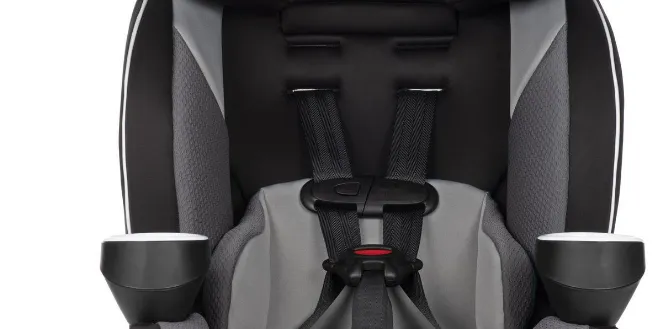

The Evenflo Secure Kid Child Restraint is a versatile and reliable car seat designed to keep your child safe during car journeys. This product is engineered to accommodate children from 22 to 110 pounds, making it a long-term solution for parents. The Secure Kid is available in various colors and patterns, ensuring it fits the aesthetic of any vehicle. Estimated to be priced around $150-$200, this car seat offers excellent value for its durability and safety features. Launched with the latest safety standards in mind, the Evenflo Secure Kid Child Restraint is a must-have for any parent looking to ensure their child's safety on the road.

Visual Glossary

Detailed Specifications

The Evenflo Secure Kid Child Restraint boasts several key features that make it a top choice among parents. These include:

Weight Capacity: 22-110 pounds
Height Capacity: Up to 57 inches
Installation Methods: LATCH and belt installation options
Materials: Steel frame with impact-absorbing foam
Adjustability: 10-position headrest and 4-position crotch strap
Certifications: Meets or exceeds all applicable federal safety standards and Evenflo's Side Impact Test Standard

Using the Internal 5-pt Harness

Child Requirements
Weight: 10 – 29.4 kg (22 – 65 lbs) Height: 71 – 127 cm (28 – 50 in.) AND the tops of the child’s ears are at, or below, the child restraint headrest. Age: At least one year old


IMPORTANT
Evenﬂo strongly recommends using the top anchorage (tether) strap when using this seat with the internal harness. Using the tether strap will improve the stability of the child restraint and may reduce the risk of injury.

General Information

Leveling the Booster Seat

Booster Seat Belt Routing

Using the SureLatch Connectors

To remove the SureLatch Connector from a LATCH anchor or a storage D-ring, press the red Release Button.

Using the Quick Connectors

To remove the Quick Connector from a LATCH anchor or a storage D-ring, pull the red Release Strap

Using the Latch Hook Connectors

To remove the Latch Hook Connector from a LATCH anchor or a storage D-ring, press the tab and twist, Tab then remove the hook.

Using the TruTether Adjuster

Not available on all models. Tether straps equipped with the TruTether adjuster attach to vehicle tether anchor brackets exactly the same as Tether Straps with standard tether adjusters. TruTether adjust-ers, however, are equipped with a Tightness Indicator that shows, at a glance, whether the Tether Strap is properly tightened. When the Tightness Indicator Display is “green,” the Tether Strap is tight enough.

TruTether Adjuster

Connect the Tether Hook to the anchor behind the vehicle seat, as shown. Pull the strap until you see green in the tightness indicator display. Once it has turned green, you have removed all slack and the Tether Strap is adequately tightened. Be sure to check it periodically to make sure the indicator is still green. If no green is showing, pull the strap until it is.

Description

The Evenflo Secure Kid Child Restraint is designed with both safety and comfort in mind. The steel frame provides structural integrity while the impact-absorbing foam helps to distribute forces in the event of a crash. The car seat features a 10-position headrest and 4-position crotch strap to ensure a snug fit as your child grows. The Secure Kid also includes cup holders for convenience and a machine-washable pad for easy maintenance.

Adjusting the Headrest

To adjust, press the lock release button, as shown, while sliding the headrest up or down to the desired position.
IMPORTANT: When the headrest is in one of the four locking positions, the locking button will pop into its original position.

Removing Seat Pad

Disconnect the harness straps from the splitter plate.
Disconnect all J-clips and all retaining strips. Remove the seat pad.

Removing Headrest Pad

Disconnect all J-clips and remove the headrest pad.

Securing Your Child Restraint in Aircraft

The Federal Aviation Administration (FAA) recommends that you secure your child for air travel in an appropri-ate child restraint based on your child’s weight and size. Turbulence can happen with little or no warning. When turbulence occurs, the safest place for your child is in a properly installed child restraint, not in an adult’s lap or on the aircraft seat with its seat belt. Keeping your child in a child restraint during the ﬂight will help ensure your family arrives safely at your destination.
The FAA recommends that a child weighing:

more than 18 kg (40 lbs) use an aircraft seat belt;
less than 9 kg (20 lbs) use a rear-facing child restraint; and
from 9 to 18 kg (20 to 40 lbs) use a forward-facing child restraint.

Please note that these FAA recommendations may vary from those applicable to the use of your child restraint in a motor vehicle.

IMPORTANT
You must use the internal harness when installing the child restraint in aircraft.

Installing Child Restraint in Aircraft

IMPORTANT: Before installing the child restraint, make sure the aircraft seat is in a fully upright position.

Place the child restraint in position.
Place the child restraint on the aircraft seat forward-facing, as shown above.
Route aircraft seat belt through belt path.
Route the aircraft seat belt through the belt path opening in the back of the child restraint and continue through the opening on the opposite side of the child restraint.
Note: Lift the restraint’s seat pad away for easier access.
Fasten the aircraft seat belt, then remove all slack from the belt.
The aircraft seat belt must be as tight as possible. Route the excess aircraft seat belt strap back through the belt path opening. Using your full weight, push the child restraint ﬁrmly onto the aircraft seat while pulling on the excess seat belt strap to tighten.

Note: Because of the ﬁxed length of aircraft seat belts, the belt buckle could be behind the child’s back after tightening the belt. For your child’s comfort, Evenﬂo recommends cushioning the child’s back by placing a small pillow or folded-up blanket, or a folded-up jacket, over the belt buckle.
Check your work: Reconnect the seat pad to the front of the child restraint. Try to move the child restraint in all directions. If you can move the restraint more than 25 mm (1 inch) from side-to-side or front to back at the belt path, the aircraft seat belt is not tight enough, and you MUST install again until the seat belt is tight.

Replacement Parts

Not available on all models.
You can order replacement parts on-line at https://www.evenﬂo.com or contact Evenﬂo. When you contact us, please have the product model number and date of manufacture (found on the back of the child restraint).

Proper Disposal of This Child Restraint

At the end of this child restraint’s useful life, Evenﬂo encourages you to dispose of it properly. Most of the components in this child restraint are recyclable.

Remove all fabric and padding.
Remove all screws and disassemble the restraint.
Recycle all plastic/foam parts and discard the rest. If your local recycling center won’t accept the padding, you may dispose of it in the landﬁll.

Note: Evenﬂo uses recycled materials in the manufacturing process whenever possible but never for components that are critical for safety.

To prevent injury due to hidden damage, lost instructions, outdated technology, etc., discontinue use of this restraint after the expiration date on the label or if it has been involved in a crash.


Setup Guide

To set up the Evenflo Secure Kid Child Restraint, follow these steps:

Read the manual thoroughly before installation.
Choose between LATCH or belt installation based on your vehicle's capabilities.
For LATCH installation, locate the LATCH connectors in your vehicle and attach them to the car seat's anchors.
For belt installation, thread the vehicle's seatbelt through the designated paths on the car seat.
Tighten the LATCH connectors or seatbelt until the car seat is securely fastened.
Adjust the headrest and crotch strap to fit your child snugly.

Care and Cleaning

DO NOT lubricate or immerse the LATCH connectors, the buckle, or any part of this child restraint.
Plastic and metal parts may be wiped clean with mild soap and water and dried with a soft cloth.
Do not use abrasive cleaners or solvents.
Take care not to damage any labels.
The harness can be wiped clean with mild soap and water. Allow harness to air dry. DO NOT immerse buckle in water.
Machine wash the seat pad separately in cold water, delicate cycle, and tumble dry 10 – 15 minutes on low heat.
NEVER use child restraint without the seat pad.

Troubleshooting

Common issues and solutions include:

Loose Installation: Ensure all connections are tightened properly. Refer to the manual for correct tightening procedures.
Incorrect Positioning: Make sure the car seat is installed in a forward-facing position for children over 22 pounds and rear-facing position for children under 22 pounds.
Warning Signs: Always check for any warning signs such as the "Certified for Use" label being damaged or missing, and ensure all parts are properly attached.

Warranty

For a period of 90 days from the original purchase of this Product, Evenﬂo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenﬂo’s sole obligation under this express limited warranty shall be, at Evenﬂo’s option, to repair or replace any Product that is determined to be defective by Evenﬂo and determined to be covered by this warranty.

Evenflo Secure Kid Child Restraint Pros & Cons

Pros

Durable Construction: Built with a steel frame for added safety.
Adjustable Fit: Accommodates growing children with adjustable headrest and crotch strap.
Easy Maintenance: Machine-washable pad and easy-to-clean design.
Convenient Features: Includes cup holders for added convenience.

Cons

Bulkiness: Some users find it larger than other car seats, making it harder to fit in smaller vehicles.
Heavy Weight: Weighs more than some other models, making it difficult to move between cars.
Installation Complexity: Some users report difficulty with the installation process.

Customer Reviews

Many parents praise the Evenflo Secure Kid Child Restraint for its durability and ease of use. However, some users have reported issues with the size and weight of the car seat, as well as the complexity of the installation process. Despite these minor drawbacks, it remains a popular choice due to its safety features and long-term usability.

Common complaints include

Size and weight make it less portable.
Installation can be challenging without proper guidance.
