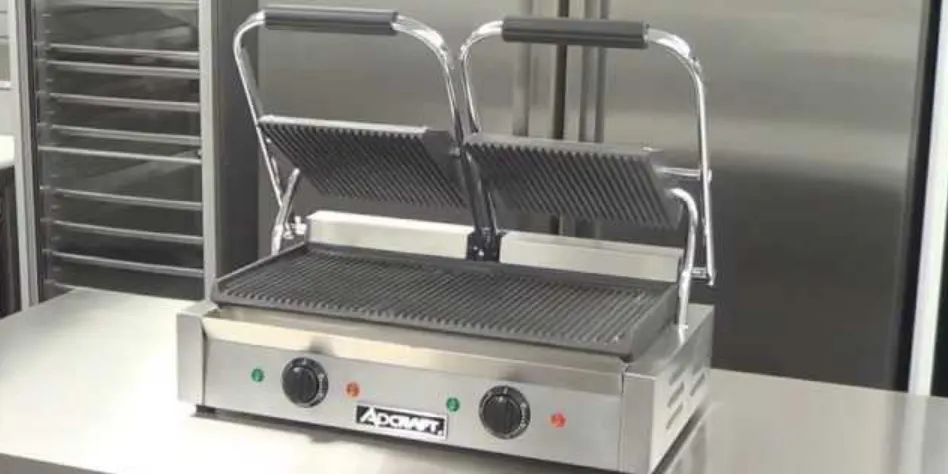

Adcraft Panini Grill Maker SG-813

A commercial-grade device for effectively cooking sandwiches, paninis, and other foods is the Adcraft Panini Grill Maker SG-813. With a temperature range of 120°F to 570°F, an adjustable thermostat, and an operating power of 1750 watts, it has sturdy grooved cast iron plates. Designed with a removable drip tray for effortless cleaning, this stainless steel appliance is perfect for use in commercial kitchens.

Parts List

Sandwich Grills - SG-811, SG-811/F, SG-811E, SG-811E/F, SG-813:

Number	SG-811	SG-811/F	SG-811E	SG-811E/F	SG-813	Description
1	DF6SG-1	DF6SG-1	DF6SG-1	DF6SG-1	DF6SG-1	Heat Indicator - Orange
2	TH-1201	TH-1201	TH-1201	TH-1201	TH-1201	Thermostat Regulator
3	DF6SG-3	DF6SG-3	DF6SG-3	DF6SG-3	DF6SG-3	Power Indicator - Green
4	Body	Body	Body	Body	Body
5	SG-5	SG-5	SG-5	SG-5	SG-5	Torsional Spring w/Screws
6	SG-6	SGlE-6	SG-6	SGlE-6	SG-6	Back Axis
7	SG-7	SG-7	SG-7	SG-7	SG-7	Adjustable Tension Base w/Screw
8	SGl-8	SGlE-8	SGl-8	SGlE-8	SG3-8	Axis Cover
9	SG-9	SG-9	SG-9	SG-9	SG-9	Axis Holding Pin
10	SG-10	SG-10	SG-10	SG-10	SG-10	Power Supply Cord
11	-	-	-	-	-	Bottom Plate - Cast Iron
12	-	-	-	-	-	Top Plate Cover w/Screws
13	-	-	-	-	-	Upper Mounting Plate
14	-	-	-	-	-	Top Plate - Cast Iron
15	SG-15	SGlE-15	SG-15	SGlE-15	SG-15	Upper Heating Element
16	SG-16	SG-16	SG-16	SG-16	SG-16	Wire Tube
17	SG-17	SGlE-17	SG-17	SGlE-17	SG-17	Upper Axis w/Clips
19	SG-19	SGlE-19	SG-19	SGlE-19	SG-19	Handle Frame with Grip
20	SGl-20	SGlE-20	SGl-20	SGlE-20	SG3-20	Oil Collector
21	-	-	-	-	-	Lower Mounting Plate
22	SG-22	SG-22	SG-22	SG-22	SG-22	Rubber Foot
23	-	-	-	-	-	Element Plate
24	SG-24	SGlE-24	SG-24	SGlE-24	SG-24	Bottom Heating Element
25	-	-	-	-	-	Bottom Cover w/Screws
26	SG-26	SG-26	SG-26	SG-26	SG-26	Thermostat Knob
27	SG-27	SG-27	SG-27	SG-27	SG-27	Screw for Back Axis/Handle

Grill SG-811EB Circuit diagram


Grill SG-811B Circuit diagram

Grill SG-8138 Circuit diagram

SG-811, SG-811E

SG-813

Detailed Specifications

The following are some of the main attributes of the Adcraft Panini Grill Maker SG-813:

Longer floating hinges to fit sandwiches and thick bread
Grill pans that are non-stick for effortless food release and speedy cleanup
Adaptable temperature management to provide consistently excellent cooking
Strong 1200 watt heating element for quick and consistent heating
Cool-touch base and handle for secure and cozy operation
a locking system to maintain the grill closed during cooking
Compact and lightweight design for effortless storage
Integrated cord wrap for orderly storage

Instructions For First Time Use of Grills

In order to protect the plates of your new grill during transportation, a layer of food-safe bee's wax was coated on the surface prior to shipment. This wax is harmless, but must be removed before initial use. To remove, preheat the grill until the wax liquefies. Next, carefully wipe away the melted wax with a clean soft cloth. Once all of the wax is removed, you can begin to use your grill.

PLEASE NOTE

For your convenience, the handle on this sandwich/panini grill is fully adjustable for your desired tension. To adjust the tension, open the rear cover (see Figure A) with a screwdriver to expose the hex-screws. Using an alien wrench to adjust the screws, (see Figure B) either loosen the handle by adjusting counter-clockwise, or tighten by adjusting clockwise, as this will ensure easy and comfortable use of your grill. If you hear any sound when you lift or lower the handle, lubricate the center hole of the copper base (see Figure C) with lubricating oil.

WARNINGS

Do not touch any hot surfaces.
Do not immerse the unit, cord, or plug in liquid at any time.
Unplug the cord from the outlet when not in use and before cleaning.
Plug only into a 3-hole grounded electrical outlet.
Do not operate unattended.
Do not use this unit for anything other than its intended use.
Do not use outdoors.
Keep children and animals away from the unit.
Always cook on a firm, dry, and level surface at least 12" from walls or any other obstruction.
Do not use the unit with a damaged cord or plug; in the event the appliance malfunctions or has been damaged in any manner.
Any incorrect installation, alterations, adjustments, and/or improper maintenance can lead to property loss and injury. All repairs should be done by authorized professionals only.
Ensure that the power supply you are using is adequate for continual grill usage and the voltage is correct.
Do not jam materials or place heavy objects on the grill, as this may cause damage.

Detailed Description

Creating restaurant-caliber sandwiches and paninis at home is possible with the help of the easy-to-use and practical Adcraft Panini Grill Maker SG-813. You can cook your food to the appropriate doneness thanks to the adjustable temperature control and extra-long floating hinges that guarantee consistent pressure on thick bread. The cool-touch handle and base assure safe and comfortable use, while the non-stick grill plates make cleanup simple. This grill maker's robust 1200-watt heating element warms up rapidly and evenly, producing reliable results each and every time. Because of its lightweight and small size, it is simple to store, and the integrated cord wrap keeps your countertop organized.

HOW TO USE

Plug the power cord into the appropriately rated outlet.
The power light will illuminate.
Once the desired temperature is set, the heating indicator will come on. Warm-up time is approximately 7-8 minutes. The heating indicator will cycle at set temperature.
For normal use, it is recommended that the temperature range be 392°F-482°F.
When the surface reaches the designated temperature, lift the top grill using the black handle and lightly grease the grill plates with vegetable oil. Place food on the grill and lightly press the handle down. Excess oil will collect in the oil collection tray. Remove food when cooked. The heaters will automatically cycle as needed.

Setup Guide

Putting the Adcraft Panini Grill Maker SG-813 together is simple and quick:

Before using, take the grill maker out of its package and use a moist cloth to clean the grill plates.
Turn the temperature control knob to the desired setting after plugging in the grill maker.
Place your sandwich or food items on the grill plates, making sure they are centered and not overlapping.
Utilizing the locking mechanism, close the grill maker and keep it closed during cooking.
According to the thickness and desired level of doneness, cook your food for the specified amount of time.
To open the grill maker and take your food out, use the cool-touch handle and base.
After wiping down the grill plates with a moist towel, store the grill maker somewhere dry and secure.

CLEANING

NOTE: To maintain cleanliness and increase service life, the grills should be cleaned daily. Do not immerse the grill in water or any other liquid.

Before cleaning or attempting to move the grill, unplug and let the unit cool completely.
Wipe the entire unit with a clean, soft cloth until it is completely dry.
To avoid damage, do not use abrasive cleaners or scouring pads.
If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.
Store in a dry, clean area when not in use.

Troubleshooting

Problem	Possible causes	Action
1. Grill plates do not heat even though power indicators are lit.	Defective controller. Defective heater(s).	1. Replace controller 2. Replace heater(s).
2. Temperature cannot be controlled.	1. Defective temperature controller.	1. Replace temperature controller
3. Heating indicator appears normal, but power indicators are not lit.	1. Defective power indicator(s)	1. Replace power indicator(s)

Electrical Equipment One Year Warranty

ACE warrants its equipment against defects in materials and workmanship, subject to the following conditions: This warranty applies to the original owner only, and is not assignable. ACE Electrical Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage. Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at ACE's discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE, after defective unit has been inspected and defect has been confirmed. ACE does not assume any liability for extended delays in replacing any item beyond its control.

Pros & Cons

Pros

User-friendly and functional design
Extra-long floating hinges for even pressure
Adjustable temperature control for perfect cooking
Non-stick grill plates for easy cleanup
Lightweight and compact for easy storage

Cons

May not be suitable for very large sandwiches or food items
Cannot be used to grill meats or vegetables with bones or skin
May produce smoke if not used properly

Customer Reviews

Customers that value the Adcraft Panini Grill Maker SG-813's adaptability, simplicity of use, and reliable results have left positive reviews. Its small design, adjustable temperature control, and non-stick grill plates are common comments. Customers have reported that the grill maker may not be appropriate for really large sandwiches or other items and that it may emit smoke if not utilized properly. Customers do, however, generally like their purchases and suggest this grill maker to others.
