Introduction

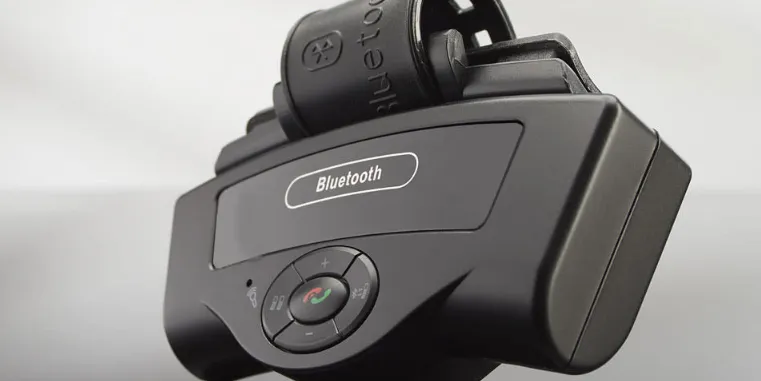

The Sharper Image Steering Wheel Bluetooth Speakerphone 206909 is a convenient and innovative device designed to enhance your driving experience. This hands-free speakerphone easily attaches to your steering wheel, allowing you to make and receive calls while keeping your hands on the wheel and your eyes on the road. With its clear audio quality and simple controls, it ensures safe communication during your travels. Priced at $49.99, it combines practicality with modern technology for every driver.

ACCESSORIES

USB cable
Car charger

Specifications

Bluetooth version: 2.1
Bluetooth working Frequency: 2.4GHZ
Receiving range of the Bluetooth device: 0~10 meters
Talking range of the hands-free mic: 0~1 meters
Charging voltage: 5V
Capacity of the built-in lithium-ion battery: 300mAH
External size [L x W x H] 98 x 45 x 22.5MM
Weight: 42g
Operating temperature: -10°F – 70°F
Storage temperature: -20°F – 80°F

APPEARANCE AND STRUCTURE

Power On/Off switch
MIC hole
Pairing/MIC mute
Answer/End/Reject/Redial/Language choice
Decrease volume
USB port for software updates and charging
Built-in speaker
Steering wheel fixed bracket
Red/Blue indicator
Increase volume
Hands-free/Cell phone switching

Bluetooth Speakerphone 206909 FEATURES

Easily mounts on any steering wheel
DSP technology, Full duplex, CVC noise and echo suppression
Support TTS function
Support MIC mute function
Answer/End/Reject a call, last call redialing and call switch
Support A2DP function (can play cell phone music)
Built-in microphone
Built-in Li-ion battery
USB port for software updates and charging
Connects automatically when power is on
Supports dual standby

Description

Comfort and security were paramount in the design of this speakerphone. You can quickly attach it to your steering wheel and take it off thanks to its small size and lightweight design. The device's contemporary style makes it easy to incorporate into any car's interior. You may be certain that your voice will be audible and clear throughout calls thanks to the built-in microphone's optimization to minimize background noise and echo.
You may use it to listen to music or podcasts on the go, or even make phone conversations with to the speaker's high-quality audio output. You can control your music and calls with the simple buttons, eliminating the need to touch your phone.

INSTALLATION

Fix the device directly on the steering wheel.

Please attach the product to the bracket ﬁrst.
Next, install the product bracket to the steering wheel.

OPERATION

When using your Steering Wheel Bluetooth Speakerphone for the ﬁrst time, your cell phone must pair with it. Please refer to the user manual of your cell phone for speciﬁc details on Bluetooth connectivity.

Power on and long press button for 3 seconds to enter pairing mode. While red and blue indicator lights ﬂash, activate your cell phone’s Bluetooth function, and search for the “CAR KIT” device on your phone.
Select “CAR KIT” device.
Enter the pass code “0000”.
Select “CAR KIT” from the list on the cell phone paired device, then select “connection.”

Upon completion, a voice reminder will conﬁrm that the ﬁrst cell phone has successfully been paired. Only a blue light should ﬂash now.

PAIRING THE SECOND PHONE

Press the button for 3 seconds to enter pairing mode. Red and blue lights ﬂash in turn. Now, pair your second phone the same way you paired the ﬁrst.

Note: When connecting the second phone, the device will disconnect from the first cell phone automatically. After you succeed in connecting the second, please turn on the Bluetooth function of the first one again. There will be the prompt “Connect CAR KIT or not?” on it. Select “Connect,” so that two cell phones are connected to the same Bluetooth hands-free device. Or, restart the device after the second cell phone is connected. Two cell phones can also be connected to the same Bluetooth hands-free device.

FEATURES AND OPERATION

Power On/Off
When connected, dial a phone number directly on your cell phone. Your voice will automatically come through via Bluetooth hands free. The device will return to Standby mode after you hang up.
Hands-free talking
- Receiving a call
  When connected and you have an incoming call, the device will report who is calling via caller ID automatically. Press the button to answer. You’ll return to standby mode after hanging up.
- Rejecting a call
  Press the button for 3 seconds to reject an incoming call.
- Microphone mute
  When using Bluetooth hands-free and you don’t want the other party to hear your voice, press the button and the microphone will mute. Press the button again and it will unmute, allowing your voice to once again be heard by the other party.
Phone call back
When connected, you can press the button for 3 seconds to re-dial the last number you called.
Volume adjustment
While the power is on, short-press the “+” and “-” buttons to adjust to your desired volume. A voice will prompt “Highest volume” and “Lowest volume.”
Switching to hands free during a call
During a call, press the button. You’ll switch to hands free. Press the button again to switch back.
Music mode
This device supports A2DP function. You can listen to music stored in your cell phone through the Bluetooth speaker.
1. When playing music:
  Press the button to Play/Pause
  Press the “+” button to increase volume
  Press the “-” button to decrease volume
2. When there is an incoming call, or when dialing, the device will automatically switch from music mode to phone call mode.
3. To exit music mode, just turn off the phone’s music player.
4. Adjust the volume accordingly when using the built-in speaker to play music.
Charging
The product has a built-in lithium-ion battery. When the battery is running low, please charge in time, otherwise it will power off automatically during use. When power is full, the indicator light changes from red to blue.
- Remove the device from the steering wheel bracket.
- Plug the 5PIN Mini USB to USB charging port and insert the car charger into car cigarette lighter socket.

Setup Guide

The Sharper Image Bluetooth Steering Wheel Headphones are easy to set up:

Use the adjustable clamp to fasten the gadget to your steering wheel.
Pressing the power button will activate the speakerphone.
Go into pairing mode on your Bluetooth-enabled device.
To finish connecting the speakerphone, find it in your device's list of Bluetooth devices and choose it.
Make a call or put some music on the speakerphone to see whether the connection works.

Sharper Image Troubleshooting

If you are unable to connect your Steering Wheel Bluetooth Speakerphone to the cell phone, please check the following:
- Ensure the Steering Wheel Bluetooth Speakerphone is switched ON
- Ensure the Steering Wheel Bluetooth Speakerphone has enough battery power
- Ensure the way your cell phone connects to the Steering Wheel Bluetooth Speakerphone is correct
- Ensure the device is within a maximum of 30 feet of the mobile phone and there is no interference with other electronic equipment
Sound distortion
Adjust the volume accordingly to improve sound effects.

Pros & Cons

Pros

Simple to set up and operate
Excellent sound clarity
Effortless operation for a safer experience
Works with the majority of Bluetooth gadgets
Rechargeable battery that lasts a long time

Cons

Constraints on available volume levels
Fits certain steering wheels but not all
Absence of an integrated FM receiver
There is some variation in battery life based on usage.

Customer Reviews

Among Sharper Image's many virtues, the steering wheel bluetooth speakerphone stands out for its user-friendliness and high-quality sound. Many people often say:

When it comes to staying connected while driving, this speakerphone is really revolutionary. It was simple to set up, and the sound is excellent.
The calls were crystal clear, even in the middle of the bustling city. But it could need a little more volume range.

Customers generally find this device to be both helpful and dependable, with the exception of a few little gripes with the volume control.

WARRANTY

This item from https://SharperImage.com includes a 1-year limited replacement warranty.
