Introductions

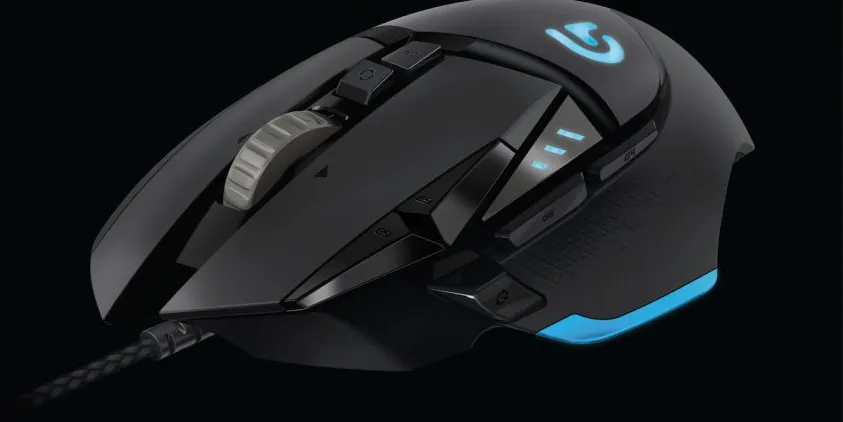

The Logitech Proteus Spectrum Gaming Mouse G502 is a high-performance gaming accessory designed for serious gamers seeking precision and customization. Featuring a state-of-the-art PMW3366 optical sensor with DPI settings ranging from 200 to 12,000, it ensures exceptional tracking accuracy. The mouse includes 11 programmable buttons, customizable RGB lighting, and adjustable weights for personalized comfort and control. With its dual-mode scroll wheel, users can switch between hyper-fast scrolling and precise navigation. The G502 is priced at approximately $79.99, making it an excellent investment for enhancing your gaming experience.

Specifications

Logitech boasts several key features that make it a standout in the gaming mouse category. Here are some of its detailed specifications:

Optical Sensor: 12,000 CPI (Counts Per Inch)
Switches: Logitech Romer-G Mechanical Switches
Buttons: 11 programmable buttons
Connectivity: Wired (USB) and Wireless (Logitech Lightspeed)
Battery Life: Up to 48 hours on a single charge (wireless mode)
Weight: Approximately 121 grams (without cable and battery)
Ergonomic Design: Contoured for right-handed use
Customizable Lighting: 16.8 million color options with Logitech G HUB software

How to Customized

Your G502 is ready to play games.
If you would like to customize your G502, refer to the next section.
You can customize the three onboard profiles of the G502—surface tuning, button programming, lighting color, lighting effects, and tracking behavior—using the Logitech Gaming Software.

Download this free software and learn how to customize the G502 at www.logitech.com/support/g502-spectrum
To adjust the weight and balance of your G502, first open the weight door by grasping the mouse firmly in your right hand and pulling the tab down with your left thumb.
You can place up to five 3.6 gram weights in a number of different orientations. Experiment with different positions for the weights to find an overall weight and balance that feels right for you.
After inserting the weights, close the weight door by inserting the tabs on the weight door into the slots on the left side of the mouse and rotating the door down until the magnet holds the weight door firmly closed.
Out of the box, the sensor for the G502 is configured to deliver amazing tracking across a wide range of surfaces. For an extra edge, it can also be further tuned for optimal performance with the specific surface that you use for gaming. To tune the sensor, use the Logitech Gaming Software.

Description

The Logitech G502 is built with a robust and durable design, featuring a contoured shape that fits comfortably in the hand. The mouse includes 11 programmable buttons, allowing gamers to customize their gameplay experience. The Romer-G switches are designed for durability and quick actuation, ensuring precise clicks even during intense gaming sessions.

The 12,000 CPI optical sensor provides exceptional accuracy and can be adjusted on the fly using the DPI buttons. The mouse also features customizable RGB lighting, which can be synchronized with other Logitech G devices using the Logitech G HUB software.

11 fully programmable buttons

Left (Button 1)
Right (Button 2)
Wheel click (Button 3)
Back (Button 4)
Forward (Button 5)
DPI Shift (Button G6)
DPI Down (Button G7)
DPI Up (Button G8)
Scroll left (wheel tilt left)
Scroll right (wheel tilt right)
Proﬁle select (Button G9)
Wheel mode shift (not programmable)

	Profile 1* (High-DPI gaming)	Profile 2* (Low-DPI gaming)	Profile 3* (Standard: unshifted)	Profile 3* (Standard: G-shifted)
DPI values	1200, 2400, 3200, 6400	400, 800, 1600, 2400	2400	2400
Default DPI value	2400	1600	2400	2400
DPI Shift value	1200	400	N/A	N/A
Reports/sec	1000	1000	500	500
1	Button 1 (left click)	Button 1 (left click)	Button 1 (left click)	Button 1 (left click)
2	Button 2 (right click)	Button 2 (right click)	Button 2 (right click)	Button 2 (right click)
3	Button 3 (middle click)	Button 3 (middle click)	Button 3 (middle click)	Ctrl-T

	Profile 1* (High-DPI gaming)	Profile 2* (Low-DPI gaming)	Profile 3* (Standard: unshifted)	Profile 3* (Standard: G-shifted)
4	Button 4 (back)	Button 4 (back)	Button 4 (back)	Ctrl-Shift-Tab
5	Button 5 (forward)	Button 5 (forward)	Button 5 (forward)	Ctrl-Tab
6	DPI Shift (sniper)	DPI Shift (sniper)	G-Shift (double functions)	N/A
7	DPI Down	DPI Down	Ctrl-C	Ctrl-X
8	DPI Up	DPI Up	Ctrl-V	Ctrl-Z
9	Scroll left	Scroll left	Scroll left	Ctrl-F4
10	Scroll right	Scroll right	Scroll right	Ctrl-Shift-T
11	Next profile	Next profile	Next profile	Ctrl-0

Onboard proﬁles
The G502 has three preconﬁgured proﬁles, one each for high sensitivity gaming, low sensitivity gaming, and standard mouse usage. Use Button 9 (see mouse drawing) to rotate through these default proﬁles. When you change proﬁles, the DPI indicator lights will change color to blue for three seconds and will indicate the new mode as shown here:


DPI indicators
DPI values are shown using the three LEDs indicated in the mouse drawing. The image below shows which DPI value is being indicated by the LED panel.


Hyperfast Scroll Wheel

The G502 features Logitech’s exclusive dual-mode hyperfast scroll wheel. Click the button right below the wheel (Button G12) to switch between the two modes.

Tips

Weight and balance tuning is very much an exercise in personal preference. Generally speaking, more weight makes it easier to control high DPI settings, while less weight makes low-DPI gaming less fatiguing. Centering weights along an imaginary line between your thumb and right-side grip ﬁnger(s) will help maintain optimal front-to-back balance.

The effects of changing weights may not be immediately apparent. After changing the position or number of weights, give yourself some time to experience the difference before changing them again. Try the default proﬁle settings in practice games before changing these settings. Advanced gamers can customize each game according to their speciﬁc button conﬁguration and sensitivity switching needs. The Logitech Gaming Software stores this information and applies it automatically when the game is detected.

Setup Guide

To set up your Logitech G502, follow these steps:

Connect the mouse to your computer via the USB cable or pair it wirelessly using the provided receiver.
Download and install the Logitech G HUB software from the official Logitech website.
Configure the mouse settings, including DPI levels, button assignments, and lighting effects, through the G HUB software.
Optional: Use the software to synchronize your mouse with other Logitech G devices for a unified lighting effect.

Troubleshooting

If the mouse doesn’t work

Unplug and re-plug the USB cable to ensure a good connection.
Try the mouse USB cable in another USB port on the computer.
Use only a powered USB port.
Try rebooting the computer.
If possible, test the mouse on another computer.
Visit https://www.logitech.com/support/g502-spectrum for more suggestions and assistance.

Logitech Proteus Spectrum Gaming Mouse G502 Pros & Cons

Pros

High-precision 12,000 CPI optical sensor
Durable Romer-G mechanical switches
Comfortable ergonomic design
Customizable RGB lighting and button assignments
Long battery life in wireless mode

Cons

Heavier than some other gaming mice
No left-handed version available
Wireless mode can have slight latency issues for very competitive gamers

Customer Reviews

The Logitech G502 has received positive reviews from gamers and tech enthusiasts alike. Many praise its accuracy, durability, and customizable features. However, some users note that the mouse can be heavy and that there is no left-handed version available.

Common complaints include minor issues with the wireless connection and the lack of a left-handed model. Despite these, the G502 remains a top choice for many serious gamers.
