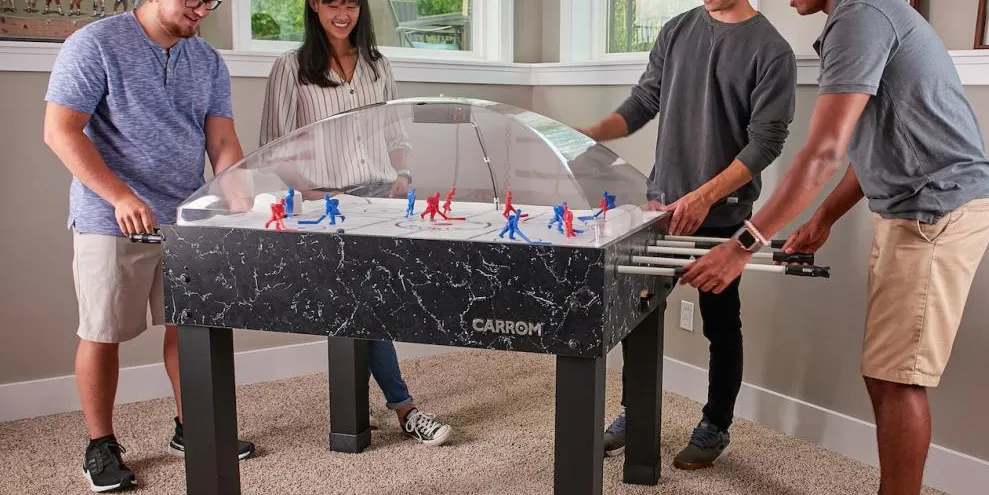

Introduction of Carrom Super Stick Hockey Game

Super Stick Hockey Game is the perfect addition to your game room, offering a fun and challenging hockey experience for all ages. This game is designed to provide hours of entertainment and excitement, and is sure to be a hit at any party or gathering. The estimated price of the Carrom Super Stick Hockey Game is around $40 - $50, and it is now available for purchase in stores and online.

Detailed Specifications

The Carrom Super Stick Hockey Game features a sturdy and durable design, with a playing surface made of high-quality materials for a smooth and fast game. The game includes two hockey sticks and two balls, allowing for two players to compete against each other. The goal boxes on either end of the game feature automatic ball return, making it easy to keep the game moving. The game measures 36 x 24 x 2 inches and weighs around 10 pounds, making it easy to move and store when not in use.

Item#	Description	Qty
3	BOLT-3/8-16x1-1/2" HEX HD (09.744.24)	16
4	WASHER, FLAT 3/8” BLACK (09.755.41)	16
5	LEG BOOT (05.770.40)	4
6	LEG 29” (01.744.50)	4
8	PUCK (05.744.52)	2
9	DOME (05.744.54)	1
10	UPPER CABLE (05.744.10)	1
11	CABLE CLAMP (05.744.10)	3
12	SCORING UNIT (425.00.80)	1
13	WASHER, FLAT #10 BLACK (09.770.28)	1
14	ACORN NUT (09.744.15)	1

Description of Super Stick Hockey Game

The Carrom Super Stick Hockey Game is a fun and exciting game that is perfect for players of all ages. The game is easy to learn, but challenging to master, providing hours of entertainment and excitement. The sturdy and durable design of the game ensures that it will last for many games to come, and the automatic ball return feature makes it easy to keep the game moving. Whether you're looking for a new addition to your game room or a fun and exciting gift, the Carrom Super Stick Hockey Game is a great choice.

Setup of Carrom Stick Hockey Game

Setting up the Carrom Super Stick Hockey Game is quick and easy. Simply remove the game from the box, unfold the legs, and you're ready to play. The game includes two hockey sticks and two balls, so you can start playing right away. The goal boxes on either end of the game feature automatic ball return, so there's no need to chase after the balls. When you're finished playing, simply fold the legs and store the game away until the next time you're ready to play.

Tools Required

Adjustable Wrench
Phillips Screwdriver

Automatic game shut off.
Restart game at any time by simply depressing start button.
Player gear mechanism is equipped with a slip clutch to avoid damaging the player or gear assembly during normal game play.
The dome rests inside the game for easy access if service is necessary.
High strength solid fiberglass player rods.
Solid ¾” thick high strength composite wood cabinet.
Solid ¾” thick rubber stop bumpers and reinforced highimpact “ABS” stop brackets.

GAME FEATURES AND PLAY

Insert (4) “AA” batteries into the battery holder. Weak batteries may cause erratic scoring. Game can be played with or without electronic scorer. First period will commence each time reset button is depressed. Game play consists of (3) two-minute periods and (1) one minute period in the event of a tie. Game play will end in overtime with a player scoring. The period lights will flash at the end of the period and at the end of game. Final score will flash the game winner. Electronic scoring will turn off automatically after end of third period.

ASSEMBLY & INSTRUCTION

Assemble the four LEGS (item #6) using (16) 3/8-16 x 1-1/2” HEX HEAD MACHINE BOLTS (item #3) and (16) 3/8 BLACK FLAT WASHERS (item #4). Slide the (4) LEG BOOTS (item #5) over the bottom of the legs. Tighten leg bolts.


ATTACH DOME

IMPORTANT:
Remove the blue or opaque protective film from dome prior to play. Only use glass cleaner and a soft cloth to clean the dome to prevent scratches. Connect the upper and lower cables. Whenever dome removal is necessary, always disconnect the (2) cables first to prevent damaging the dome or scorer.
Attach SCORING UNIT (item #12) to DOME (item #9). Slip screw projecting from top of scoring unit through hole on top of dome and secure with ACORN NUT (item #14) and WASHER (item #13). Attach (3) CABLE CLAMPS (item #11) with adhesive pads to the dome opposite the large hole in the dome side and secure the UPPER CABLE (item #10) to the clamps.


Signature Series Only
Screw in the (8) DOUBLE-HEADED SCREWS into the bottom holes of each side & end. (The drink holder corners have slots that will slide over these screws.) Attach (4) DRINK HOLDER CORNERS to each corner of cabinet by sliding them down over the top edge of the cabinet. Attach the drink holder corners by carefully engaging the (2) double-headed screws on the corners of the cabinet with the slots on the inside of the corners. Drink holder corners should fit snugly.

TROUBLESHOOTING

PUCK WILL NOT FALL THROUGH PUCK TROUGH.
1. Check puck trough channel for dirt and or blockages.
2. Inspect for any binding of the switch wire within the slot. Wire should move freely within the slot. If any binding occurs bend wire slightly to adjust.
GEAR MECHANISM HARD TO TURN
1. Stripping of gear teeth can cause binding. Although the game is equipped with a slip clutch, gear tooth damage may occur after numerous game plays. Remove gear mechanism and inspect teeth for any damage. If the gear or clutch are worn out, replace mechanism.
2. A worn gear housing will cause binding or sloppy action. If this occurs, replace mechanism.
GEAR REPLACEMENT
1. Remove the dome and carefully place it next to the game, being careful not to scratch it.
2. Remove all players from the game by firmly pulling up on the player.
3. Carefully lift the play surface from the game.
4. Remove the gear from the rod by unscrewing the gear halves, which connect the gear to the rod.
5. Assembly is the reverse of steps 1-4.
PLAYER TRAVEL
1. Player rubs on edge of slot. Check alignment of guide strip. Adjust if necessary by repositioning.
2. Check for wear of guide strip or gear mechanism. If so, replace.
3. Check for debris or blockage in guide strip.
ELECTRONIC SCORING
1. If goal is scored and not registered, check the switch wire actuator. When puck passes the wire a score should occur. If not, bend wire to adjust.
2. If unit does not power up, check batteries
3. Check connections. In-line cable connector, score switch terminals, and connector inside score housing. Although the unit was inspected in assembly, loosening of connections may occur during shipping.
GOALIE LOOSE OR TIGHT
1. If goalie does not move when control knob is rotated, tighten screw at end of goalie shaft.
2. If goalie moves less than full travel, check goalie wire position. Refer to assembly instructions. If wire is incorrect, reposition. NOTE: The drive arm should be pointing up. Over travel also may occur if the slip screw at the end of the goalie shaft is too tight, or if the drive arm binds with the goalie shaft not allowing slippage. If so, adjust or free binding. NOTE: If adjustment screw keeps loosening, remove and add a drop of super glue to the end of the screw and reassemble.
TO ENHANCE GAME PLAY
If puck tends to lay in goal area, add a dry film lubricant (silicone) to puck trough surface and both sides of puck. Clean all surfaces of any dirt prior to application of dry film lubricant. Wipe after applying.

NOTE: Liquid lubricants will attract dirt and impede performance. Wipe clean and check play prior to any lubricant application.

Pros & Cons

Pros

Fun and exciting game for all ages
Sturdy and durable design
Automatic ball return feature
Quick and easy setup

Cons

May be too simple for some players
Limited to two players

Customer Reviews of Carrom Super Stick Hockey Game

Customers love the Carrom Super Stick Hockey Game for its fun and exciting gameplay, sturdy and durable design, and automatic ball return feature. Some common complaints include that the game may be too simple for some players and that it is limited to two players. Overall, the Super Stick Hockey Game is a great choice for anyone looking for a fun and exciting game to add to their game room.
