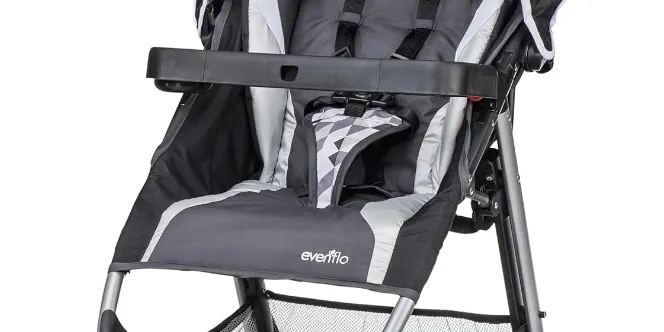

Introduction of the Evenflo System Stroller FlexLite Pro 14421561

The Evenflo System Stroller is a versatile and lightweight stroller designed for parents on the go. Featuring a one-hand fold mechanism, it easily transitions from stroller to compact storage, making it ideal for travel. The stroller is equipped with a multi-position reclining seat and an adjustable canopy for optimal comfort and protection. Its durable construction and smooth maneuverability ensure a safe and enjoyable experience for both parents and children. The Price of Evenflo System Stroller FlexLite Pro 14421561 is $99.99.

Read all instructions before assembly and use of product.
KEEP INSTRUCTIONS FOR FUTURE USE.

Stroller: Up to 50 lbs
Stroller: Up to 38 in.

IDENTIFICATION OF PARTS

Detailed Specifications

The Evenflo System Stroller FlexLite Pro 14421561 comes with several key features that make it a standout in its class:

Lightweight Design: Weighs only 16 pounds, making it easy to push and maneuver.
Compact Fold: One-hand fold mechanism allows for quick and easy storage.
Adjustable Canopy: Provides ample shade and protection from the sun.
Multiple Recline Positions: Ensures your child's comfort during rides.
Storage Basket: Large storage area for diapers, toys, and other essentials.
5-Point Harness: Secure safety harness to keep your child safe.

FEATURES

WARNING
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

Only use the Evenflo Embrace™ PRO infant car seats with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and may result in serious injury to your child if used with this stroller.
NEVER leave child unattended. ALWAYS keep child in view while in the stroller.
Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
To prevent a possible choking hazard, remove and discard packing material before using this product.
Avoid serious injury from falling or sliding out. ALWAYS use waist restraint.
DO NOT carry or roll stroller on stairs or escalators with child in it.
DO NOT hang items on handle bar or place them on the canopy as they can tip stroller over and injure child.
Be sure stroller is fully assembled and locked in unfolded position before using.
ALWAYS exercise care when going over curbs or steps, and never use stroller for anything other than transporting your child. Push stroller at a normal walking pace only; faster strolling can cause a loss of control and injury to the child.
DO NOT place hot liquids in cup holders or parent’s console. Spills can burn your child.
To avoid serious injury from child falling out of stroller, DO NOT raise or recline seat with child in stroller.
DO NOT use stroller if any parts are missing or broken.
DO NOT allow child to climb on, into, out of, or around stroller.
DO NOT allow child to stand on the footrest. Stroller may tip over and injure child.
DO NOT carry additional children, goods, or accessories in or on this stroller except as advised in these instructions. The stroller is intended for use with one child occupant and to accommodate only the additional weights in storage as listed in these instructions.
Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.
NEVER leave stroller on a hill or incline, even with brakes set. Stroller may tip, injuring the child.
To avoid accidental rolling, ALWAYS set brakes when stroller is not being pushed.
AVOID STRANGULATION:
- DO NOT suspend strings or toys from the canopy.
- DO NOT place stroller anywhere near cords from window blinds, draperies, phone, etc.\
- DO NOT place items with a string around your child’s neck such as hood strings or pacifier cords.
When making adjustments to the stroller, ALWAYS ensure that all parts of the child’s body are clear of any moving parts of the stroller.
The canopy is not intended to provide UV protection.
Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.
If not properly secured, the child may slip into leg openings and strangle.
To ensure safety for your baby, please refer to the manufacturer’s instructions for the use of your infant car seat and keep all instructions available for reference.
DO NOT lift stroller by using the infant car seat handle when installed on stroller.
If unable to securely attach the infant car seat to child’s tray on this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico).
To avoid serious injury to the child, when the infant car seat is in the stroller, make sure the car seat is securely snapped onto the child’s tray and secured with car seat stabilizer.
Care must be taken when folding or unfolding stroller. To prevent finger injury in hinge areas, make sure child is not in the seat or near the stroller.
Some infant car seats have a blanket/boot option that must be removed for proper attachment to the stroller.
To avoid stroller instability and tip-overs, DO NOT load cup holders or adult handle storage area with over 2 lbs (0.9 kg) or the main cargo basket with over 10 lbs (4.5 kg).

IMPORTANT INFORMATION

Child Requirements

Maximum weight: 50 lbs (22.6 kg)
Maximum height: 38 inches (96 cm)

IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. DO NOT USE YOUR STROLLER UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS.

Registration Information
Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at https://www.evenflo.com/registerproduct

Description

The Evenflo System Stroller FlexLite Pro 14421561 is engineered with both parents and children in mind. Its lightweight frame and compact fold make it perfect for urban living, where space is often limited. The stroller features a sturdy yet agile design, allowing for smooth navigation through crowded streets or narrow corridors. The adjustable canopy provides excellent sun protection, while the multiple recline positions ensure your child can rest comfortably during long outings.

The stroller also includes a large storage basket, which is ideal for carrying all the essentials like diapers, toys, snacks, and more. The 5-point harness ensures your child's safety at all times, giving you peace of mind as you navigate through different environments.

ASSEMBLING YOUR STROLLER

Unlock the fold latch A.
WARNING: Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.
Grab the cross bar near top of the canopy B and pull upward until the stroller opens fully with an audible click. Make sure the stroller locks in the open position.
Note: Verify the in-seat fold locks C on both sides are locked by lifting up by the cross bar near top of the canopy.
Place the metal end of the Parent’s Handle B into the tube N of the stroller frame. Press the locking tab into the handle with your thumb until it allows the handle to enter the tube. Twist the handle gently until the locking tab snaps through the hole of the stroller frame.
When inserted properly the padded end of the handle should angle inward. Repeat with the other Parent’s Handle.
Install the rear wheels D on the rear axle assembly E. Make sure each wheel locks into position with an audible click. Pull the rear wheels to make sure they are locked securely.
Turn the stroller upside down, as shown, so the rear of the stroller is facing upwards.
Hold the rear wheel/axle assembly E so the brake levers F face toward the parent’s handle B.
Slide the rear wheel/axle assembly onto the stroller frame G until each side locks into place with audible clicks.
Pull upward on the rear wheel/axle assembly to make sure it is locked securely.
Turn the stroller so the front of the stroller is facing upwards, as shown.
Slide a front wheel assembly H onto the front frame leg I until it locks into place with an audible click. Pull upward on the front wheel assembly to make sure it is locked securely. Repeat for other side.
Turn the stroller right side up onto its wheels.
Install the child’s tray J onto the tray mounts K. Make sure the tray locks into position with audible clicks. Pull on the child’s tray to make sure it is locked into place.
WARNING: The canopy is not intended to provide UV protection.
Install a canopy pivot L into each canopy mount M until it locks into place. Pull upward on the canopy to make sure it is securely installed.

USING YOUR STROLLER

Step on the rear brake levers A to lock the rear wheels on the stroller.
To release the brakes, lift up on the brake levers.
Some models feature swivel locks that improve handling over rough ground.
To keep front wheels from swiveling, pull up on the swivel lock levers B. Push down the swivel locks to restore the swivel action.
To open the child’s tray C, pull a locking tab D on either side of the tray.
Note: You can open the tray from either side.
To remove the tray C, pull both tabs and remove the tray from the stroller.
WARNING: To avoid serious injury, DO NOT raise or recline seat with child in stroller.
To recline seat, press the strap release button on the adjuster E and allow seat to recline.
To raise the seat, hold the D-ring F, then press the release button and slide the adjuster E toward the seat.
(5.A) WARNING: To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.
Note: Verify the in-seat fold locks on both sides are locked by lifting up the rear of the stroller using the parent’s handle.
Lock the rear brakes and pivot the child’s tray out of the way.
- 5-point Harness:
  With the 5-point harness, the harness shoulder straps G must start at shoulder height or lower and use the harness strap buttonholes H closest to the baby’s shoulders, as shown. To adjust the height of the harness straps to the baby’s shoulder height, do the following:
  1. On the back of the stroller, insert each harness shoulder strap buckle I through the corresponding buttonhole H in the seat back, as shown, and push it through to the front side of the seat back.
  2. On the front of the stroller, insert each harness shoulder strap buckle I from Step 1 through the corresponding buttonhole H at the desired height location in the seat back, as shown, and push it through to the back side of the seat.
- 5-point and 3-point Harnesses:
  Place the baby in the seat and bring the crotch panel J up between the child’s legs. Fasten each buckle K. For a snug, comfortable fit, pull the shoulder straps G to tighten the shoulder restraint (shoulder restraint only for 5-point harness) and pull the waist restraint straps L to tighten the waist restraint.
  Note: To loosen the waist straps L, push in the release button M on the buckle and pull.
  Once the child is properly restrained, close and lock the child’s tray. Make sure the tray locks into position with audible clicks. Pull on the child’s tray to make sure it is locked into place.
  To change from 5-point to 3-point harness:
  Remove each harness shoulder strap G from each buckle K, as shown. Remove both shoulder straps from the stroller seat back. Store shoulder straps for future use.
(5.B) WARNING
To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.
Note: Verify the in-seat fold locks on both sides are locked by lifting up the rear of the stroller using the parent’s handle. Lock the rear brakes and pivot the child’s tray out of the way.
5-point Harness:
With the 5-point harness, the harness shoulder straps G must start at shoulder height or lower, as shown, and use the harness strap loops H closest to the baby’s shoulders. To adjust the height of the harness shoulder straps to the baby’s shoulder height, do the following:
1. Remove each harness shoulder strap G from each buckle I, as shown.
2. Thread each harness shoulder strap G under the harness strap loop H that is closest to the baby’s shoulder.
3. Reattach each harness shoulder strap G to each buckle I.
5-point and 3-point Harnesses:
Place the baby in the seat and bring the crotch panel J up between the child’s legs. Fasten each buckle I. For a snug, comfortable fit, pull the shoulder straps G to tighten the shoulder restraint (shoulder restraint only for 5-point harness) and pull the waist restraint straps K to tighten the waist restraint.
Note: To loosen the waist straps K, push in the release button L on the buckle and pull.
Once the child is properly restrained, close and lock the child’s tray. Make sure the tray locks into position with audible clicks. Pull on the child’s tray to make sure it is locked into place.
To change from 5-point to 3-point harness:
Remove each harness shoulder strap G from each buckle I, as shown above.
Pull canopy hoop N forward to extend canopy. Push canopy toward parent’s handle to close.
WARNING
Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.
- To fold the stroller, lock the front swivel wheels, lock the rear brakes, close the canopy, and remove your child.
  For models with the seat fold lock O, push the lock inward while pulling upward on the in-seat fold strap P, then lock the fold latch Q. For models without this feature, pull upward on the in-seat fold strap P, then lock the fold latch Q.
- To unfold the stroller, unlock the fold latch Q, then grab the parent’s handle and pull upward until you hear the stroller open fully with an audible click.
Note: Verify the in-seat fold locks R on both sides are locked by lifting up the rear of the stroller using the parent’s handle.

USING YOUR STROLLER WITH AN INFANT CAR SEAT

WARNING

Only use the Evenflo Embrace™ PRO infant car seats with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and may result in serious injury to your child if used with this stroller.
To assure safety for your baby, please refer to the manufacturer’s instructions for the use of your infant car seat and keep all instructions available for reference.
DO NOT lift stroller by using the infant car seat handle when installed on stroller.
If unable to securely attach infant car seat to child’s tray to this stroller, remove the car seat.
To avoid serious injury to the child, when an infant car seat is in the stroller, make sure the infant car seat is securely snapped onto the child’s tray and secured with car seat stabilizer.
Some infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.

using_your_stroller_with_an_infant_car_seat_evenflo_system_stroller_flexlite_pro_14421561.png

Fully recline the seat back.
Make sure the child’s tray A is securely latched.
The infant car seat B MUST be in the rear-facing position. Lower the infant car seat down onto the child’s tray A and press downward until you hear the lock snap into place.
Secure the front of the infant car seat B with the car seat stabilizer C. Lift the car seat stabilizer C over the locking channel D, as shown.
Pull up on the car seat handle to test the lock.

To remove the infant car seat, disconnect the car seat stabilizer and disengage the seat release handle on the back of the infant car seat.

CHECKLIST FOR PROPER INSTALLATION

Make sure the infant car seat B is in the rear-facing position.
Make sure the infant car seat is securely locked onto the child’s tray A and secured with car seat stabilizer C.
Pull up on the car seat to test that it is properly locked into place.

Setup Guide

Setting up the Evenflo System Stroller FlexLite Pro 14421561 is straightforward:

Unbox and Inspect: Carefully unpack all the components and ensure there are no missing parts.
Attach Wheels: Snap the wheels into place according to the manufacturer's instructions.
Install Canopy: Attach the canopy by aligning it with the clips on the stroller frame.
Adjust Harness: Adjust the 5-point harness to fit your child securely.
Fold and Unfold: Practice folding and unfolding the stroller to get familiar with its mechanism.

CARE AND MAINTENANCE

Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.
An occasional drop of vegetable oil may reduce wear and tear on moving parts.

Troubleshooting

Here are some common issues and solutions for the Evenflo System Stroller FlexLite Pro 14421561:

Wheels Not Spinning Smoothly: Check if debris is stuck in the wheel axles; clean them out for smooth movement.
Canopy Not Fitting Properly: Ensure that all clips are securely attached; refer to the manual if necessary.
Folding Issues: Make sure all parts are aligned correctly before folding; consult the manual or manufacturer's support if problems persist.

Instructions & Warnings: Always follow safety guidelines when using the stroller. Ensure your child is securely harnessed at all times, and never leave them unattended.

Evenflo System Stroller FlexLite Pro 14421561 WARRANTY

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Pros & Cons

Pros

Lightweight & Compact: Easy to maneuver and store.
Adjustable Canopy & Recline: Provides comfort and sun protection.
Large Storage Basket: Ample space for essentials.
Affordable Price Point: Offers great value for its features.

Cons

Less Durable Materials: Some users have reported less durable materials compared to other models.
No Suspension System: May not handle rough terrains as smoothly as strollers with suspension systems.
No Built-In Cup Holder: Parents may need to purchase additional accessories for convenience.

Customer Reviews

Customers have generally praised the Evenflo System Stroller FlexLite Pro 14421561 for its ease of use, lightweight design, and affordability. However, some have noted that the materials could be more durable and that it lacks certain features like a built-in cup holder or suspension system.

Most Common Complaints:

Durability Concerns: Some users have reported issues with the stroller's durability over time.
Lack of Additional Features: A few parents have mentioned that additional features like a cup holder would be beneficial.
