Introduction of Bosch WAB16060IN Washing Machine

Congratulations, You have opted for a modern, high-quality domestic appliance manufactured by Bosch. This washing machine is distinguished by its economical water and energy consumption. Each machine that leaves our factory has been inspected thoroughly to ensure that it functions properly and is in perfect condition.

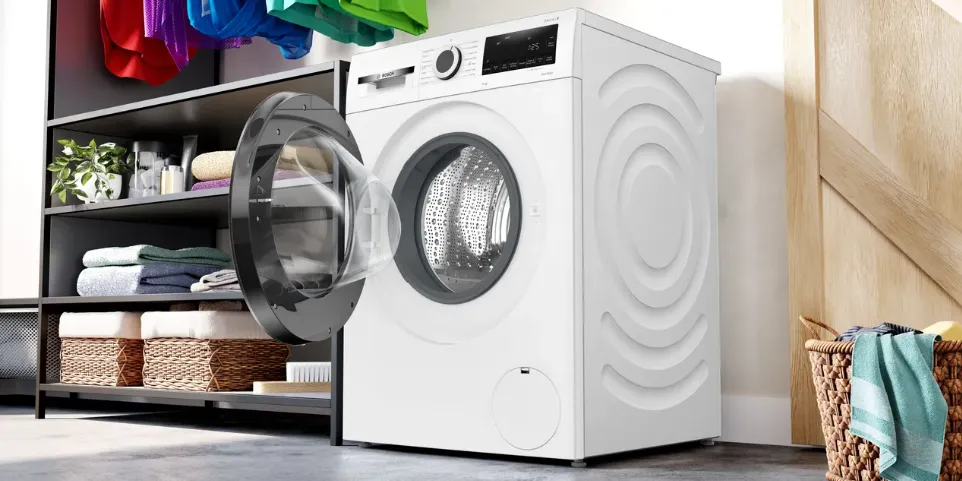

The Bosch WAB16060IN is a front-loading washing machine that offers superior cleaning performance and energy efficiency. This machine is designed to handle heavy loads and provide excellent wash results with its Vario Drum and Aqua Spiral system. The Bosch WAB16060IN is available for an estimated price of INR 38,000 and was launched in India in 2021.

Detailed Specifications

Here are the detailed specifications of the Bosch WAB16060IN washing machine:

Capacity: 6 kg
Type: Front load
Dimension: 595 x 850 x 595 mm
Spin Speed: 1200 rpm
Energy Efficiency Class: A+++
Noise level: 49 dB (washing), 74 dB (spinning)
Programmes: 15
Display: LED
Connectivity: NFC
Weight: 64 kg

Intended use

for use in the household only
for machine-washable fabrics and hand-washable wool in detergent solution,
to be operated with cold drinking water and commercially available detergents and care products which are suitable for use in washing machines.
The washing machine may be operated by children from 8 years of age, by persons who have limited physical, sensory or mental abilities and by persons who have inadequate experience or knowledge, provided they are supervised or have been instructed by a responsible person.

WARNING

Observe the safety instructions on page 8.
Do not leave children unattended near the washing machine.
The washing machine is not to be used by children or persons not familiar with the operating instructions.

Keep pets away from the washing machine. Read these instructions and the separate installation instructions before operating the washing machine.

Programmes

Detailed overview of programmes.

Cottons hard-wearing fabrics
Daily Wash different types of laundry
Super Clean hard-wearing fabrics
Kidswear/Stains hard-wearing fabrics
Hygiene hard-wearing fabrics
Rinse with subsequent spin cycle
Spin laundry washed by hand
Empty the rinsing water
Super 30 min short programme
Wool hand/machine-washable textiles
Delicate/Silk delicate washable fabrics
Easy-Care easy-care fabrics

Bosch WAB16060IN Washing Machine Preparation

CAUTION: Correct installation according to the separate Installation instructions.

Checking the machine
- Never use a damaged machine.
- Inform the after-sales service.
Connecting the mains plug
WARNING
- Make sure your hands are dry.
- Take hold of the plug only.
Turning the tap on

Sorting and loading laundry

Do not exceed the maximum load.
Observe the important information.
Insert large and small items of laundry.
Close the washing machine door. Take care not to trap items of laundry between the washing machine door and the rubber seal.

Add detergent and care products

Measure accordingly:
Amount of laundry, soiling, water hardness (ask your water supply company) and manufacturer's instructions.
Pour liquid detergent into the appropriate dispenser and place in the drum.

NOTE: Dilute thick fabric softener and fabric conditioner with water.

Setting and adjusting programs

NOTE: Programs selector for switching the machine on and off and for selecting the programs. Can be turned in either direction.

Bosch WAB16060IN Washing Machine

Removing the washing
Open the washing machine door and remove the washing.
NOTE: Remove any foreign objects - risk of rusting. Leave the washing machine door and detergent drawer open so that any residual water can evaporate.
Turning the tap off
Not required for Aqua Stop models Hinweise Installation.
Switching off
Turn the programme selector to Off.

End of programme when

The status indicator Spin & End flashes.

Interrupting the programme
Programmes at high temperatures:
Cool washing: Select Rinse.
Select Start/Stop.
Programmes at lower temperatures:
Select Spin or Empty.
Select Start/Stop.
Changing the programme, if you have selected the wrong programme by mistake:
Reselect the programme.
Select Start/Stop. The new programme starts from the beginning.

Individual settings

Additional functions and overview of programmes.

Speed Wash: Reduced wash time - only 2 rinse cycles. Suited for slightly soiled washing.
Prewash: For heavy soiled, hard-wearing washing, e.g. made of cotton or linen.
Start /Stop: For starting the programme.

Important information

Protecting the washing and the machine

When measuring the amount of all detergents/additives and cleaning agents, always check the manufacturer's instructions.
Empty pockets.
Look out for metal items (paperclips, etc.).
Wash delicates in a laundry bag (tights, curtains, underwired bras).
Fasten zips, do up any buttons.
Brush sand out of pockets and collars.
Remove curtain fittings or place in the laundry bag.

Washing with varying degrees of soiling

Wash new items of clothing separately.
Light: Do not pre-wash. I required, select the Speed Wash option.
If required, pretreat stains. Select programme Cottons Kidswear/Stains 60°C.
Heavy: Load less washing.
Select programme Cottons Kidswear/Stains 60°C.

Starching
Washing must not be treated with fabric softener. Starching is possible in all wash programmes if liquid starch is used. Pour the starch in accordance with the manufacturer's instructions into fabric softener compartment 􀁾 (rinse first if necessary).

Dyeing/bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye manufacturer's instructions! Do not use the washing machine for bleaching clothes!

Safety instructions of Bosch WAB16060IN

Read the instruction manual and installation instructions and all other information enclosed with the washing machine and act accordingly. Retain the documents for subsequent use.

Risk of electric shock
- Never pull the cable to disconnect the mains plug.
- Never insert/disconnect the mains plug with damp hands.
Danger to life
For worn-out appliances
- Disconnect the mains plug.
- Sever the mains cable and discard along with the plug.
- Destroy the lock on the washing machine door. This will prevent children from locking themselves in and risking their lives.
Danger of suffocation
- Keep packaging, film and packaging parts out of the reach of children.
Risk of poisoning
- Keep detergents and care products out of the reach of children.
Risk of explosion
- Items of laundry pretreated with cleaning agents containing solvents, e.g. stain remover/cleaning solvent may cause an explosion after being loaded into the washing machine.
- Rinse items of laundry thoroughly by hand beforehand.
Risk of injury
- The washing machine door can become very hot.
- Be careful when draining hot detergent solution.
- Do not climb onto the washing machine.
- Do not lean on the open washing machine door.
- Do not reach into the drum if it is still rotating.
- Be careful when opening the detergent drawer while the machine is in operation.

Before washing for the first time

NOTE: Do not load any laundry into the machine. Turn on the tap.

Add the following to compartment II: approx. 1 litre water detergent (dosage according to the manufacturer's instructions for light soiling and the appropriate degree of water hardness)

Set the programme selector to Cottons 60 °C and select Start/Stop . At the end of the programme, turn the programme selector to Off.

Bosch WAB16060IN Washing Machine Care

Risk of electric shock. Disconnect the mains plug.
Risk of explosion. No solvents.

Machine housing, control panel

Remove detergent residue immediately.
Wipe off with a soft, damp cloth.
Do not clean with a jet of water.

Cleaning the detergent drawer

If it contains detergent or fabric softener residues.

Pull out, press insert down, remove drawer completely.
To remove the insert: press the insert upwards from below with your finger.
Clean the detergent dispenser tray and insert with water and a brush and dry it.
Attach the insert and engage (connect the cylinder to the guide pin).
Push in the detergent drawer.

NOTE: Leave the detergent drawer open so that any residual water can evaporate.

Drum
Leave the washing machine door open so that the drum can dry out. Rust stains use chlorine-free cleaning agent, not steel wool.

Descaling Ensure there is no laundry in the machine
This should not be necessary if the correct detergent dosage has been used. If it is necessary, however, proceed according to the descaling agent manufacturer's instructions. Suitable descalers can be obtained via our website or from our after-sales service.

Information to indicator lights

Indicator lights for status displays flash

Wash and Rinse: Close the washing machine door properly; laundry may be caught.
Wash and Spin
- Open the tap completely.
- Supply hose kinked or trapped.
- Clean the filter, Water pressure too low.
Rinse and Spin
- Detergent solution pump blocked; Clean the detergent solution pump.
- Drainage hose/waste pipe blocked; Clean the drainage hose at the siphon.

Maintenance

WARNING: Risk of scalding. Allow the detergent solution to cool down. Turn off the tap.

Detergent solution pump

Turn the programme selector to Off and disconnect the mains plug.

Remove the service flap for detergent solution pump.
Carefully unscrew the pump cover (residual water).
Clean the interior, pump cover thread and pump housing (the impeller in the detergent solution pump must rotate).
Replace the pump cover and screw it tightly.
Place the service flap back.

To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the Empty programme.

Drainage hose at the siphon

Turn the programme selector to Off and disconnect the mains plug.

Loosen the hose clamp, carefully remove the drainage hose (residual water).
Clean the drainage hose and siphon connecting piece.
Reattach the drainage hose and secure the connection with the hose clamp.

Filter in the water supply

Risk of electric shock: Do not immerse the HydroSafe safety device in water (contains an electric valve).

Reduce the water pressure in the supply hose:

Turn off the tap.
Select any programme (except Spin / Empty 􀀾).
Select Start/Stop. Let the programme run for approximately 40 seconds.
Turn the programme selector to Off. Disconnect the mains plug.
Clean the filter:
- Disconnect the hose from the tap.
- Clean the filter using a small brush. and/or for Standard and Aqua-Secure models:
- Remove the hose on the rear of the appliance,
- Remove the filter with pliers and clean.
Connect the hose and check the leak tightness of the connection points.

Description of Bosch WAB16060IN

The Bosch WAB16060IN washing machine is engineered with advanced features that make washing easier and more convenient. Its Vario Drum system provides a gentle yet effective wash, even for delicate fabrics. The AquaSpiral system ensures optimum water distribution, resulting in thorough cleaning and reduced water consumption. The machine also comes with an Allergy Plus programme that removes allergens from fabrics, making it an ideal choice for people with allergies. Additionally, the machine has a Reload function that allows you to add forgotten items during the washing cycle.

Setup Guide

Setting up the Bosch WAB16060IN washing machine is straightforward. Here are the steps to follow:

Place the machine on a levelled surface and ensure that there is enough space around it for ventilation.
Connect the machine to a power source and make sure that the power cord is not tangled or damaged.
Insert the drain hose into a suitable drain and secure it tightly to prevent leaks.
Load the machine with clothes and add the required amount of detergent.
Select the desired washing programme and start the machine.

Bosch WAB16060IN Troubleshooting

Here are some common problems and solutions for the Bosch WAB16060IN washing machine:

What to do if

Water is leaking out
- Attach/replace the drainage hose correctly.
- XTighten the screw connection of the supply hose.
No water supply
- Start/Stop not selected?
Detergent not dispensed
- Tap not turned on?
- Filter blocked?
- Supply hose kinked or trapped?
Washing machine door cannot be opened
- Safety function active. Wait approx. 2 minutes.
Programme does not start
- Start/Stop selected?
- Washing machine door closed?
Detergent solution is not drained
- Clean the detergent solution pump.
- Clean the waste pipe and/or drainage hose.
Water not visible in the drum
- Not a fault water below the visible area.
Unsatisfactory spin result
- Not a fault the unbalanced-load detection system has cancelled the spin cycle because of uneven distribution of the laundry.
Laundry wet/too damp
- Distribute small and large items of laundry evenly inside the drum.
Spin cycle performed several times
- Not a fault unbalanced load detection system adjusts the imbalance.
Residual water in the compartment for care products
- Not a fault the action of the care product is not affected.
- Clean the insert if necessary
Odour formation in the washing machine
- Run programme Cottons 90 °C without laundry. Use standard detergent.
Foam escaping from the detergent drawer
- Too much detergent used?
- If foam is escaping from the detergent drawer: Mix 1 tablespoon of fabric softener with ½ litre of water and pour into compartment II (not with outdoor or down fabrics).
- Reduce the detergent dosage for the next wash cycle.
Intense noise formation, vibrations and “wandering” during the spin cycle
- Are the appliance feet fixed?
- Secure the appliance feet Installation instructions.
- Transportation safety devices removed?
- Remove the transportation safety devices Installation instructions.
Indicator lamps do not function during operation
- Power cut?
- Fuses triggered? Reset/change the fuses.
- If the fault occurs repeatedly, call the after-sales service.
Programme sequence longer than usual
- Not a fault unbalanced load detection system adjusts imbalance by repeatedly distributing the laundry.
- Not a fault foam detection system active adds an additional rinse cycle.
Detergent residues on the laundry
- Occasionally, phosphate-free detergents contain water-insoluble residues.
- Select Rinse or brush the laundry after washing.

Pros & Cons

Pros

Superior cleaning performance
High energy efficiency
Silent operation
Advanced features and programmes
User-friendly interface

Cons

Expensive compared to other washing machines in its class
Small capacity may not be suitable for large families
Connectivity feature is not useful for everyone
May take longer to complete a wash cycle

Customer Reviews about Bosch WAB16060IN

Most customers are satisfied with the Bosch WAB16060IN washing machine. They appreciate its excellent cleaning performance, energy efficiency, and quiet operation. However, some customers have complained about its small capacity and high price. Overall, the machine is highly recommended for its advanced features and superior wash results.

Search Manuals in: wab16060in

Read More
