Introduction

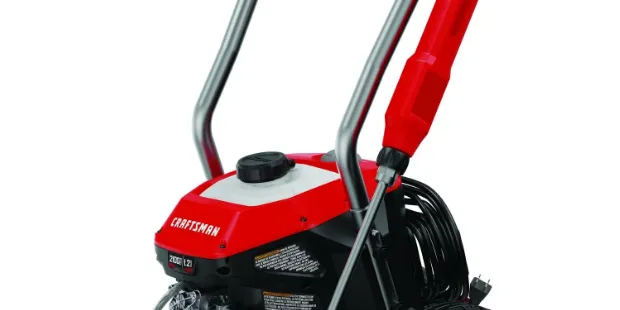

The Craftsman Water Pressure Washer CMEPW2100 is a powerful electric cleaning tool designed to tackle a variety of outdoor tasks. With a maximum pressure of 2100 PSI and a flow rate of 1.2 GPM, it effectively removes dirt and grime from surfaces like driveways, patios, and vehicles. The unit features an integrated soap tank, multiple nozzles for versatile cleaning, and onboard storage for easy organization. Priced at approximately $174.50, it offers excellent value for homeowners seeking efficiency and convenience.

Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.(Used without a word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Overview

High-pressure hose
Spray wand
Spray handle
Spray handle grip
Trigger lock-off
Trigger
Pressure washer unit
ON/OFF switch
Handle
Garden hose water intake
Soap tank
Soap tank cap
GFCI plug
Spray tip cleaning tool

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this appliance, basic safety precautions should always be followed including the following:

Read all the instructions before using the product.
To reduce the risk of injury, close supervision is necessary when a product is used near children.
Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
Stay alert – watch what you are doing.
Do not operate the product when fatigued or under the influence of alcohol or drugs.
Keep operating area clear of all persons.
Do not overreach or stand on unstable support. Keep good footing and balance at all times.
Follow the maintenance instructions specified in the manual.
This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

CAUTION: risk of injection or injury – do not direct discharge stream at persons.”

SAVE THESE INSTRUCTIONS

WARNING: Please read this entire manual before attempting to assemble, operate or install the product.

WARNING: This unit was designed for specific applications. It should not be modified and/or used for any application other than that which it was designed.

NOTICE: Always store your pressure washer in a location where the temperature will not fall below 4 °C. freeze damage is not covered by the warranty.

WARNING: This product and its exhaust can expose you to chemicals including lead and lead compounds, and carbon monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov.

Do not touch plug or outlet with wet hands.
Avoid accidental starts. Move switch on unit to OFF position before connecting or disconnecting cord to electrical outlets.
Water spray must never be directed towards any electric wiring or directly towards the pressure washer machine itself or fatal electric shock may occur.
Never carry your pressure washer by the cord. Do not pull on the cord to disconnect from the outlet.
To prevent damage, the cord should not be crushed, placed next to sharp objects or near a heat source.
Check power cords before using. Damaged cords can reduce performance of pressure washer or cause a fatal electrical shock
The narrow pin point stream is very powerful. It is not recommended for use on painted surfaces, wood surfaces or items attached with an adhesive backing.
Keep operating area clear of all persons and animals.
Always use both hands when operating pressure washer to maintain complete control of the wand.
Do not touch nozzle or water spray while operating. Never place hands in front of nozzle.
Wear safety goggles while operating. Wear protective clothing and footwear to protect against accidental spraying.
Disconnect power plug from the outlet when not in use and prior to the detaching of the high pressure hose.
Never tie knots or kink the high pressure hose as damage could result. Inspect the high-pressure hose regularly. Replace the hose immediately if it is damaged, worn or shows any signs of cracks, bubbles, pinholes, or other leakage. Never grasp a high-pressure hose that is leaking or damaged.
Do not operate or store this product in temperatures below 4 °C. Freeze damage is not covered by the warranty.
Carefully observe all chemical instructions and warnings before using. Use only approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids. Always follow manufacturer’s label recommendations for proper use of cleaners. Always protect eyes, skin and respiratory system from cleaners.
The pressure washer should not be used in areas where gas vapors may be present. An electric spark could cause an explosion or fire.
To minimize the amount of water getting into the pressure washer, the unit should be placed as far as possible from the cleaning site during operation.
To prevent accidental discharge, the spray gun should be secured by locking the trigger when not in use.
To allow free air circulation, the pressure washer should NOT be covered during operation.
Never touch, grasp or attempt to cover a pinhole or similar water leak on the high-pressure hose. The stream of water IS under high pressure and WILL penetrate skin.
Use only hoses and accessories rated for pressure higher than your pressure washer’s psi. Never use with any other manufacturer’s accessories or components.
Never defeat the safety features of this product.
Do not operate machine with missing, broken or unauthorised parts.
Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquid, or vapors.
DO NOT use an extension cord with this pressure washer.

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This pressure washer is provided with a ground-fault circuitinterrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

EXTENSION CORDS

Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only extension cords having an electrical rating not less than the rating of the product.
Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect.
Keep cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

WARNING: To reduce the risk of electrocution, keep all connections dry and OFF the ground. Do not touch plug with wet hands.

Motor
Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Intended Use
This pressure washer is intended for cleaning boats, cars, decks, driveways, grills, house siding, motorcycles, patios, and outdoor furniture.
DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Description

Pressure Washer is designed to provide a comprehensive cleaning solution. With its powerful 2100 PSI pump and 1.2 GPM water flow rate, it can handle tough cleaning jobs with ease. The included nozzle tips allow for adjustable spray patterns, ensuring the right amount of pressure for each task. The detergent tank makes it simple to apply soap directly to the area being cleaned, enhancing the cleaning process. The ergonomic design and durable construction make this pressure washer both functional and user-friendly.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Specifications

Maximum Pounds per Square Inch 2,100
Rated Gallons per Minute* 1.2
Electrical Requirements 120VAC ~60Hz, 13A
Electrical Cord 35 ft. (10.6 m)
High-pressure hose 25 ft. (7.6 m)
Minimum Amp Source 15A
The pressure of Inlet Water* 20-100 PSI
Inlet Water Cold Tap
Soap Consumption Rate 10% MAX

Assemble Wheels (Fig. B)
