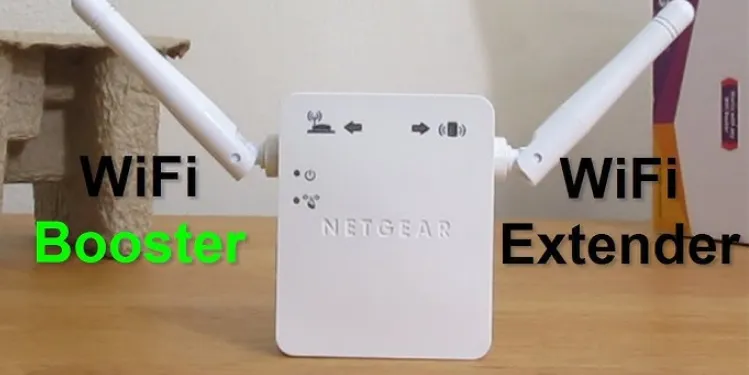

Netgear N300 WiFi Range Extender WN3000RPv3

Introducing the Netgear Extender is designed to enhance your existing WiFi coverage, eliminating dead zones in your home or office. With a maximum speed of 300 Mbps, this compact device connects easily to any standard WiFi router and features external antennas for improved performance. Its wall-plug design ensures it doesn't take up extra space, while the Fast Ethernet port allows for wired connections to devices like smart TVs and gaming consoles. Priced at approximately $49.99, it offers a practical solution for boosting wireless connectivity.

Technical Specifications

The following table includes the product specifications.

Table 3. Technical specifications

Extender Specifications
Network protocol and standards compatibility	Data and routing protocols: TCP/IP, DHCP serverand client, DNS relay
Power consumption	100–240V 0.1 A, 50–60 Hz
Physical specifications	Dimensions: 67 x 55 x 34 mm (2.64 x 2.17 x 1.34 in.) Weight: 102–10 g (3.60–3.88 oz) varied by power plugtype
Environmental	Operating temperature: 32° to 140°F(0° to 40°C) Operating humidity: 90% maximum relative humidity, noncondensing Electromagnetic emissions: Meets requirements of FCC Part 15 Class B.
Interface	Local: 10BASE-T, 100BASE-Tx, RJ-45 802.11n, 802.11g, 802.11b

Overview

Meet Your Extender

Before you install your extender, familiarize yourself with its LEDs, buttons, and port.

Front Panel
The LEDs are located on the front panel.


Figure 1. Extender front panel

Table 1. LEDs



Extender Side and Bottom Panels

Buttons are located on the side panel. The Factory Reset button and an Ethernet port are located on the bottom panel.

Figure 2. Extender side and bottom panels

When to Use Your Extender

We recommend that you connect through the extender network only when the WiFi device is in a “dead zone” where connection from the existing network is poor or nonexistent. Data traffic routed through the extender is inherently slower than traffic routed directly from the network.

How the Extender Works

The extender works like a bridge between a WiFi router (or a WiFi access point) and a WiFi device outside the range of the WiFi router. The extender performs two main jobs:

The extender connects to a working WiFi network.
When the extender connects over WiFi to an existing network, it functions as a network client, similar to how a WiFi device connects to a network.
The extender acts as an access point for WiFi devices.
The extender broadcasts its own WiFi network that WiFi devices can join. In its role as an access point, the extender performs tasks that WiFi routers do, such as broadcasting its network name (SSID).
The extender must do each of these jobs so that both ends of the bridge are in place.


Figure 3. Range extender in a home

Description

The Netgear N300 WiFi Range Extender WN3000RPv3 is a sleek and functional device that blends seamlessly into any environment. Its wall-plug design ensures it takes up minimal space and can be easily moved around to find the optimal location for signal extension. The device features a simple LED indicator that helps you identify the best placement for maximum coverage.

The extender supports multiple devices simultaneously, making it ideal for households or offices with multiple users. It also includes a push-button setup process, known as Netgear's FastLane technology, which simplifies the configuration process by allowing you to extend your network with just a few clicks.

Get Started Netgear N300 WiFi Range Extender WN3000RPv3

Use the Extender in Extender Mode

In extender mode, the extender repeats signals from an existing WiFi router or access point. Place the extender, apply power, and connect it to your WiFi network.

Place the Extender and Apply the Power

To place the extender and apply power:

Place your extender in the same room as your WiFi router.
Proximity to the WiFi router is required only during the initial setup process.
Plug the extender into an electrical outlet.
Wait for the Power LED to light green.
If the Power LED does not light, press the Power On/Off button on the side of the extender.

Connect to an Existing WiFi Network
To extend the range of your WiFi network, you must connect the extender to your existing WiFi network. You can do this in one of two ways:

Connect with WPS.
Connect with web browser setup.

Connect With WPS
Wi-Fi Protected Setup (WPS) lets you join a secure WiFi network without typing the network name and password.

To use WPS to connect the extender to your WiFi router:

Press the WPS button on the side panel of the extender.
The Power LED blinks.
Within two minutes, press the WPS button on your router or access point.
When the extender connects to your existing WiFi network, the WPS LED on the extender lights solid green and the Router Link LED lights. If the Router Link LED does not light, try again. If it still does not light.
The location that you choose must be within the range of your existing WiFi router network.
Plug the extender into an electrical outlet and wait for the Power LED to light green.
If the Power LED does not light, press the Power On/Off button on the side of the extender.
Use the Router Link LED on the front panel to help you choose a spot where the extender-to-router connection is optimal.
If the Router Link LED doesn’t light amber or green, plug the extender into an outlet close the router, and try again. Keep moving the extender to outlets closer to the router until the Router Link LED lightsamber or green.
On your computer or WiFi device, find and connect to the new extended WiFi network.
The extender’s new WiFi network name is based on your existing WiFi network name, with _EXT at the end of the name.
For example:
Existing WiFi network name. MyNetworkName
New extended network name. MyNetworkName_EXT
Use the same WiFi password that you use for your WiFi router.
Test the extended WiFi range by moving your computer or WiFi device to the area with a poor router WiFi signal:
1. Leave your computer or WiFi device in the area with a poor router WiFi signal and return to the extender.
2. Check the Client Link LED on the extender:
  If the Client Link LED is solid green or amber, your extended WiFi network reaches the area with a poor router WiFi signal and your network setup is complete.
  If the Client Link LED is red, your extended WiFi network does not reach the area with a poor router WiFi signal.
  You must move the computer or WiFi device closer to the extender until the Client Link LED turns solid green or amber.

Connect With Web Browser Setup

You can use a web browser to log in to the extender and set up its WiFi connection to your existing WiFi router

To connect with web browser setup:

Use a WiFi network manager on a computer or WiFi device to find and connect to the extender WiFi network NETGEAR_EXT.
After the connection with the computer or WiFi device is established, the Client Link LED lights.
Launch the web browser.
Enter www.mywifiext.net in the address field of the browser.
The New Extender Setup page displays.
Click the NEW EXTENDER SETUP button.
Complete the fields and click the NEXT button.
Click the WIFI RANGE EXTENDER button.
The extender searches for WiFi networks in your area and displays a list.
Select a WiFi network to extend and click the NEXT button.
In the Password (Network Key) field, type the existing WiFi network password (also called passphrase or security key) and click the NEXT button.
Set the network name (SSID) and password for your new extender WiFi network and click the NEXT button.
Wait for the page to display a list of available extended WiFi networks, which might take up to one minute.
Use a WiFi network manager on the computer or WiFi device to connect to the new extended WiFi network.
You must connect your computer or WiFI device before you click the Continue button.
Click the Continue button.
A message displays confirming that the extender is connected and ready.
Click the Next button.
The registration page displays.
Complete the registration fields and click the Finish button to complete the setup.
If you do not want to register your extender, click the Skip Registration link. Note that you must register your extender before you can use NETGEAR telephone support.
The Status page displays.
Unplug the extender and move it to a new location that is about halfway between your router and the area with a poor router WiFi signal.
The location that you choose must be within the range of your existing WiFi router network.
Plug the extender into an electrical outlet and wait for the Power LED to light green.
If the Power LED does not light, press the Power On/Off button.
Use the Router Link LED to help you choose a spot where the extender-to-router connection is optimal.
If the Router Link LED doesn’t light amber or green, plug the extender into an outlet closer to the router and try again.
Keep moving the extender to outlets closer to the router until the Router Link LED lights amber or green.
Reconnect your computer or WiFi device to the new extended WiFi network.
Test the extended WiFi range by moving your computer or WiFi device to the area with a poor router WiFi signal:
1. Leave your computer or WiFi device in the area with a poor router WiFi signal and return to the extender.
2. Check the Client Link LED on the extender:
  - If the Client Link LED is solid green or amber, your extended WiFi network reaches the area with a poor router WiFi signal and your network setup is complete.
  - If the Client Link LED is red, your extended WiFi network does not reach the area with a poor router WiFi signal.
    You must move the computer or WiFi device closer to the extender until the Client Link LED turns solid green or amber.

Connect an Ethernet-Enabled Device
After the extender is connected to your existing WiFi network, you can connect a wired device to the extender using an Ethernet cable. The device can then access your existing network through the extender’s WiFi connection.


Figure 4. You can connect a device to the extender’s Ethernet port

Use the Extender in Access Point Mode
You can use the extender as a WiFi access point, which creates a new WiFi hotspot by using a wired Ethernet connection.

use_the_extender_in_access_point_mode_netgear_n300_wifi_range_extender_wn3000rpv3.png

Figure 5. Extender in access point mode

To use the extender in access point mode:

Use an Ethernet cable to connect the Ethernet port on the extender to a router Ethernet LAN port or a remote Ethernet LAN jack with LAN access.
Plug the extender into an electrical outlet and wait for the Power LED to light green.
If the Power LED does not light, press the Power On/Off button on the extender.
Use a WiFi network manager on a computer or WiFi device to find and connect to the NETGEAR_EXT (SSID) WiFi network.
After the connection with the computer or WiFi device is established, the Client Link LED lights.
Launch a web browser and enter www.mywifiext.net in the address field.
The New Extender Setup page displays.
Click the NEW EXTENDER SETUP button.
Complete the fields and click the NEXT button.
Click the ACCESS POINT button.
The extender checks for an Internet connection.
Set the network name (SSID), security option, and password for the access point network and click the NEXT button.
Your settings are applied and the extender is ready to be used as an access point.
Use a WiFi network manager on the computer or WiFi device to connect to the new access point network.
Click the Continue button.
A page displays that says you successfully created an access point.
Click the Next button.
The registration page displays.
Follow the onscreen instructions to register your extender.

Log In to the Extender After Installation
After installation, you can log in to the extender to view or change the extender’s settings.

To log in to the extender:

Use a WiFi network manager on a computer or WiFi device to find and connect to the new extended WiFi network.
After the connection with the computer or WiFi device is established, the Client Link LED lights.
Launch a web browser.
Enter www.mywifiext.net in the address field of the browser.
A login window opens.
Enter your email address and password and click the LOG IN button.
The Status page displays.

Run Smart Setup Installation
You can use Smart Setup to change the extender settings. This is an easy way to connect the extender to a different router or to change the extender WiFi network name (SSID) or WiFi password.

To run Smart Setup:

Use a WiFi network manager on a computer or WiFi device to find and connect to the new extended WiFi network.
After the connection with the computer or WiFi device is established, the Client Link LED lights solid green.
Launch a web browser.
Enter www.mywifiext.net in the address field of the browser.
A login window opens.
Enter your email address and password and click the LOG IN button.
The Status page displays.
Click the SMART SETUP button.
The Welcome page displays.
Click the WIFI RANGE EXTENDER button.
The extender scans for WiFi signals and finds the WiFi networks in your area and displays a list.
Select your WiFi network and click the NEXT button.
When prompted, enter the password to connect to your WiFi network and click the NEXT button.
A message displays when the extender connects to your existing router’s WiFi network.
Click the NEXT button.
The extender applies your settings to its WiFi network names and WiFi passwords. During this change, the extender disconnects you from its WiFi network.
When prompted, connect your WiFi devices to the extender WiFi network and click the CONTINUE button.
The registration page displays.
Complete the registration fields and click the FINISH button to complete the setup.
If you do not want to register your extender, click the Skip Registration link. Note that you must register your extender before you can use NETGEAR telephone support.
The Status page displays.

Factory Default Settings
The following table lists the factory settings for the extender. You can use the Factory Reset button or the Erase feature to return the extender to these settings. (See Return the Extender to Its Factory Settings on page 24.)

Table 2. Factory settings

Feature	Setting
Setup Wizard	Enabled
WiFi communication	Enabled
WiFi network name(SSID)	NETGEAR_EXT
Security	Disabled
Transmission speed	Auto1
Country/region	Varies by region
Operating mode	802.11n, 802.11g, 802.11b
Data rate	Up to 300 Mbps
DHCP	Client enabled

Maximum WiFi signal rate (IEEE Standard 802.11). Actual throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Setup Guide

To set up the Netgear N300 WiFi Range Extender WN3000RPv3, follow these steps:

Plug the range extender into a power outlet near your router.
Press the WPS button on your router and then the WPS button on the range extender within 2 minutes.
The LED lights will indicate when the connection is established.
Move the range extender to its desired location and use the LED indicator to find the optimal spot for maximum coverage.
Connect your devices to the extended network using the same network name and password as your main router.

Troubleshooting

This section provides answers for difficulties you might experience with the extender.
The web browser setup keeps asking me for my network password (passphrase) or security key, and I am sure that I entered the correct password.

What can I do?
The extender is probably placed at the borderline of the range covered by the router or access point. If you are using WEP security, make sure that you are typing the network password in the correct field.

Can I set up the extender in extender mode if I connect it to the router or access point with an Ethernet cable?
No. The extender is designed to use WiFi to connect to the router or access point if it is in extender mode. If the extender is in access point mode, you can connect it to the router or access point with an Ethernet connection. For more information about access point mode.

I forgot my login email address and password. What can I do?
In the login window, click the Username & Password Help link to answer the security questions that you set up during the initial setup. If you forgot your password and the answers to your security questions, you can restore the extender to its factory settings and set it up again.

To restore factory settings:

Use a sharp object such as a pen or paper clip to press and hold the Factory Reset button on the extender for at least seven seconds until the Power LED lights amber.
Release the Factory Reset button and wait for the extender to reboot.
The extender resets and returns to the factory default settings.

Cannot Connect to the Extender

If you cannot connect to the extender, determine what prevents you from connecting:

If you forgot your user name or password, click the Username & Password Help link. For more information, see FAQs on page 43.
If your browser displays an error page, include http:// in the address field of your browser by typing http://www.mywifiext.net.
If you already set up the extender but can no longer connect to it over WiFi, check to see if the Client Link LED is off or red.
If you cannot get a WiFi connection working, you can use an Ethernet cable to connect your computer to the extender.

Cannot Join a WiFi Network and Receive an Error Message
To join a WiFi network, you must know its network name (also called the SSID) so that you can select it. If the network is secure, you must know the passphrase or key. If the extender does not connect to the network that you select, the cause might be one of the following:

It is possible that you typed the network name, passphrase, or key incorrectly. Use Smart Setup (see Run Smart Setup Installation on page 17) to select a WiFi network and retype the passphrase or key. The passphrase or key is case-sensitive. For example, PASSWORD25 is not the same as Password25 or password25.
If the extender cannot detect your WiFi network, check to see if your WiFi network is still working. Make sure that the WiFi router is turned on. If possible, move the extender closer to the WiFi router.
If the extender Client Link LED is red, the WiFi connection between the WiFi router and the extender is poor. You can establish the best connection with a clear line of sight between the extender and the WiFi router. Make sure that no physical obstacles exist between the extender and the WiFi router, and try to move the extender closer to the WiFi router.

If you use Smart Setup, and the extender does not connect to the WiFi router, does not connect to the Internet, or cannot get an IP address from the WiFi router, Smart Setup displays a message to notify you that the extender is not configured.
To run Smart Setup again, click the YES button. To manually configure the extender, click the NO, CONFIGURE MANUALLY button.

Netgear N300 WiFi Range Extender WN3000RPv3 Pros & Cons

Pros

Easy setup process using WPS or web interface
Compact wall-plug design minimizes space usage
Supports up to 300 Mbps speed, suitable for streaming and gaming
Includes an Ethernet port for wired connections
Affordable price point compared to other range extenders

Cons

Limited range compared to higher-end models (up to 800 sq. ft.)
No external antennas for further signal improvement
Only one Ethernet port available
May not support very large or heavily obstructed areas effectively

Customer Reviews

Customers generally praise the Netgear N300 WiFi Range Extender for its ease of setup and reliability. Many users appreciate the compact design and the ability to extend their WiFi coverage without significant additional cost. However, some users have noted that the range could be better, especially in larger homes or areas with many obstacles.

A common complaint is that the device may require occasional restarts to maintain optimal performance.

LED	Description
Router Link LED	Theconnection between the extender andthe router or access point. Solid green. Best connection. Solid amber. Good connection. Solid red. Poor connection. Off. No connection.
Client Link LED	The connection between the extender and a computer or WiFi device. Solid green. Best connection. Solid amber. Good connection. Solid red. Poor connection. Off. No connection.
Power LED	Solid amber. The extender is booting. Solid green. The extender is powered on. Off. The extender is powered off.
WPS LED	Solid green. WiFi security is enabled (WPAor WPA2). Blinking green. A WPS connection is in progress. Off. WiFi security is not enabled.

Search Manuals in: wn3000rpv3

Read More
