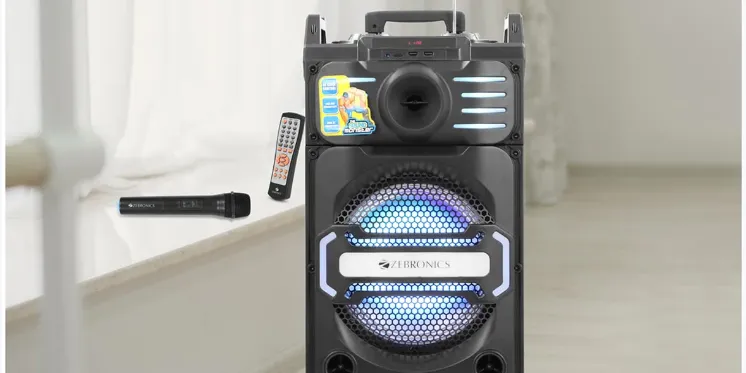

Introduction of Zebronics Trolley Speaker MONSTER X10

Introducing the Zebronics Trolley Speaker MONSTER X10, a powerful and portable speaker designed for all your audio needs. With its robust sound quality, long-lasting battery life, and stylish design, this speaker is perfect for both indoor and outdoor use. The estimated price of the MONSTER X10 is around INR 12,999, and it is now available for purchase. Experience the ultimate sound experience with the Zebronics Trolley Speaker MONSTER X10.

Specifications

Driver size
Full range: 25.4cm
Tweeter: 25.4cm
Impedance
Full range:40
Tweeter:40
Frequency response: 90Hz-20kHz
S/N Ratio: 60dB
File format support(USB/mSD): MP3, WMA, WAV
Line input:3.5mm
Max. supported USB/mSD memory size:32GB
FM frequency range: 87.5 MHz -108 MHz
Charging time: 7- 8 H
Playback time: 8 H *
BT name: ZEB-MOVING MONSTER X10
BT version: 5.0
Product dimension (W x D x H): 321 x 303 x 584 mm
Net. weight: 6.9kg

*at 50% Volume

Detailed Specifications

The Zebronics Trolley Speaker MONSTER X10 comes with the following key features:

Bluetooth version: 5.0
Wireless range: 10m
Battery type: Lithium-ion
Battery capacity: 4000mAh
Output power: 80W
Frequency response: 80Hz-20KHz
Signal-to-noise ratio: ≥80dB
Product dimensions: 310x130x310mm
Product weight: 4.5kg

Zebronics Trolley Speaker MONSTER X10 Features

Trolley DJ speaker
Dual Wireless BT Connectivity
Dual USB Connectivity
Wireless BT / USB / mSD /FM / AUX / Mic Input x 2 Karaoke function
5 Band equalizer
DJ Mixer control
LED Display
LED lights with On/Off switch
25.4cm full range speaker
Remote control
Two Wireless Mic
Built-in rechargeable battery

Description

The Zebronics Trolley Speaker MONSTER X10 is a powerful and stylish speaker that delivers crystal clear sound with deep bass. It features a trolley design with wheels, making it easy to transport from one place to another. The speaker also has an LED display that shows the battery status and mode. With its long-lasting battery life, you can enjoy up to 6 hours of continuous music playback. The MONSTER X10 also has built-in FM radio and a micro SD card slot, giving you multiple options to play your favorite music.

Display Description

btl: First BT Mode
bt2: Second BT Mode
Pause: Song/Track is paused
Line: The speaker is in AUX Mode
U/TF U/TF: Card is being played in First Mode

Control Panel & Ports Description


Previous Song/FM Channel Key for Mode 1
- Press once to go to previous song/FM Channel in Mode 1
Mode 1 change key
- Press once to switch between various connectivity options (BT, FM, AUX, USB & TF Card)
Play/Pause Key for mode 1
- Press Once to Play/Pause a song in Mode 1
Mode 2 Change Key
- Pressonce to switch between various connectivity options in Mode 2 (BT & USB)
Next song/FM Channel key for Mode 1
- Press once to go to next song/FM Channel in Mode 1
LED lights Control key
- Press once to on-off the RGB Lights
- Press & hold to change 3 modes of light effects
Previous Song Key for Mode 2
- Press once to go to previous song in Mode 2
Pre-loaded Sound 1
Play/Pause for mode 2
- Press Once to Play/Pause a song in Mode 2
Pre-loaded Sound 2
Next song Key in Mode 2
- Press once to go to next song in Mode 2
Pre-loaded Sound 3
DJ MIXER Control
- Rotate anti clockwise for Mode 1
- Rotate clockwise for Mode 2
Master Volume Control
- Rotate anti clockwise for Volume -
- Rotate clockwise for Volume +
5 Band EQ Control
FM Antenna
Power switch
AUX IN
TF (SD) card slot
Mode 1 USB
Mode 2 USB
Charging indicator
DC IN
Echo Volume
Mic Volume
MIC 1 IN
MIC 2 IN

General Instruction about Zebronics Trolley Speaker MONSTER X10

BT Connectivity

Turn on the speaker.
Make sure that the Mode 1 or Mode 2 is in BT Mode.
In your mobile, search for BT Name ZEB-MOVING MONSTER Xl0 A or ZEB-MOVING MONSTER XlO B for Mode 1 or Mode 2 Respectively.
Tap on the prefered BT to connect.

FM Connectivity

Switch the speaker to FM Mode by pressing the Mode 1 Key.
Once the speaker is in FM Mode, Press & hold the Play/Pause key to auto scan the available FM Channels.
Once the scanning is done, the speaker starts to play the 1st saved FM Channel.

AUX Function

Switch the Speaker to AUX Mode by press the Mode 1 Key.
When the speaker is in AUX Mode, Connect one end of the AUX Cable to the speaker & connects the other end to an Audio Source.
The Songs played from the audio source can be heard through the speaker.

USB Mode

Insert the USB to USB 1 or USB 2 of the speaker.
The speaker will detect the USB automatically & the songs from the USB will be played.

Note: USB 1 & USB 2 is for Mode 1 & Mode 2 Respectively.

TF Card Mode

Insert the TF Card to the speaker
The speaker will detect the TF Card automatically & the songs from the TF Card will be played.

Note: TF Card will work only for Mode 1.

Charging Instruction

Connect the pre-included charger to the speaker & connect the other end to 230V power supply.
Charging Indication: Red LED on the rear of the speaker glows.

Setup Guide

To set up the Zebronics Trolley Speaker MONSTER X10, follow these steps:

Charge the speaker fully before using it for the first time.
Turn on the speaker by pressing the power button.
Connect your device to the speaker via Bluetooth or AUX cable.
Select your favorite music and enjoy the ultimate sound experience.

Troubleshooting of Zebronics Trolley Speaker MONSTER X10

Here are some common problems and solutions for the Zebronics Trolley Speaker MONSTER X10:

If the speaker is not charging, check if the power source is working properly.
If the Bluetooth connection is not working, ensure that your device is within the wireless range of the speaker.
If the sound quality is not up to the mark, check if the speaker is connected to a stable power source.
Always turn off the speaker when not in use to extend the battery life.

Pros & Cons

Pros

Powerful sound with deep bass
Stylish trolley design with wheels
Long-lasting battery life
Multiple connectivity options
LED display for battery status and mode

Cons

May be heavy for some users
Slightly expensive compared to other speakers in the market

Customer Reviews

Customers have praised the Zebronics Trolley Speaker MONSTER X10 for its powerful sound, stylish design, and long-lasting battery life. However, some have complained about its weight and slightly high price. Overall, the MONSTER X10 is a great choice for anyone looking for a powerful and portable speaker.
