Setup: Tens 7000 To Go Back Pain Relief DT6070 User Manual

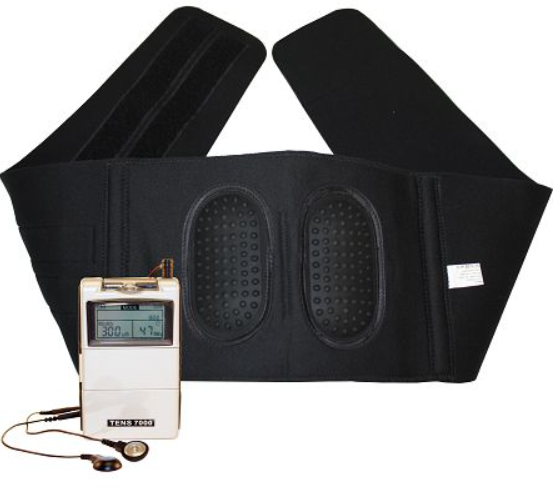

TENS 7000 To Go Back Pain Relief DT6070

Introduction

Thank you for purchasing the TENS 7000 To Go TM. The TENS 7000 To Go TM is effective in relieving pain, using TENS treatment, which stands for Transcutaneous Electrical Nerve Stimulation. TENS is recognized as a safe and highly effective method of relieving pain.
Before using, please read all the instructions in this user manual carefully and keep it safe for future reference.

EXPLANATION OF TENS
Transcutaneous Electrical Nerve Stimulation (TENS) is a noninvasive, drug-free method of controlling pain. TENS uses tiny electrical impulses sent through the skin to nerves to modify your pain perception. TENS does not cure any physiological problem; it only helps control the pain. TENS does not work for everyone; however, in most patients, it is effective in reducing or eliminating the pain, allowing for a return to normal activity.

HOW TENS WORKS
The TENS unit sends comfortable impulses through the skin that stimulate the nerve (or nerves) in the treatment area. In many cases, this stimulation will greatly reduce or eliminate the pain sensation the patient feels. Pain relief varies by individual patient, mode selected for therapy, and the type of pain. In many patients, the reduction or elimination of pain lasts longer than the actual period of stimulation (sometimes as much as three to four times longer). In others, pain is only modified while stimulation actually occurs.

HOW YOUR TENS 7000 To Go™ WORKS
The main function of pain relief comes from the continuous stimulation pulse generated from the dual-channel stimulator. We cannot ensure that the pain relief is 100% effective for everyone. However, when used according to our instructions, it can be a safe, non-addictive, noninvasive lower back pain reliever.

CONDITIONS THAT MAY AFFECT YOUR HOW YOUR TENS 7000 To Go™
Since the stimulator is a battery-operated electronic system, its output performance and safety may be affected greatly in extreme humidity. Therefore, it is very important to keep the stimulator dry to ensure the safety and performance of the stimulator.

Specifications

The TENS 7000 To Go Back Pain Relief DT6070 features several key specifications that make it an excellent choice for pain relief:

• Portable and compact design for easy carrying.
• Multiple preset programs for different types of pain relief.
• Adjustable intensity settings to customize treatment.
• Battery-powered with long battery life.
• Easy-to-use interface with clear instructions.
• Includes electrodes and lead wires for immediate use.
• Durable construction to withstand frequent use.

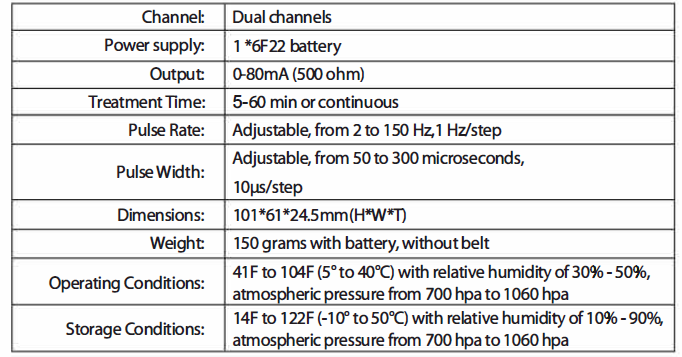

Technical information

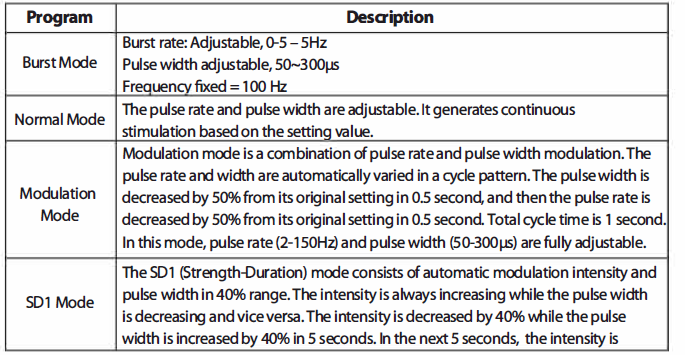

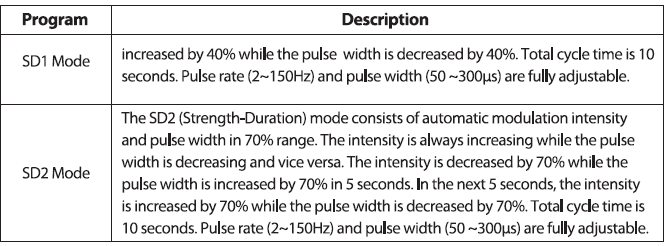

Program

Quick Operation Guide

You may use the following simple operation steps to operate this stimulator.

• Step 1. Insert the 9-Volt battery into your stimulator
• Step 2. Prepare your support belt
• Step 3. Connect the snap cables
• Step 4. Connect the lead wires to the device
• Step 5. Adjust the length of the support belt
• Step 6. Apply the conductive spray to the rubber electrodes - two sprays over each electrode
• Step 7. Put on the support belt
• Step 8. Power On/Off Switch and Intensity Controls
• Step 9. Select the therapy mode
• Step 10. Select the stimulation time
• Step 11. Set Control
• Step 12. Enjoy the benefits
• Step 14. Turn off the stimulator and remove the back brace

For the details of operation, please see the following operating instructions.

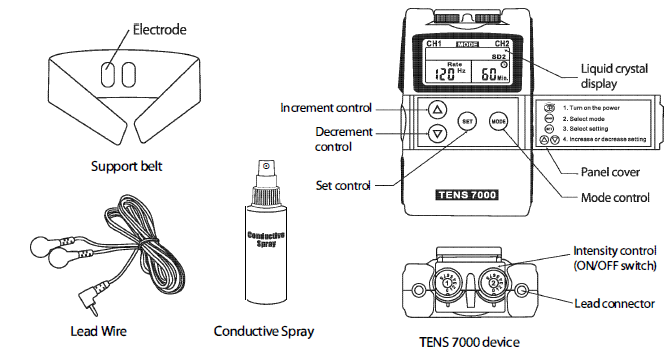

Parts

Your TENS 7000 To Go™ system includes the following parts:

Saftey Information

Indications for use
The TENS 7000 To Go TM system is intended for temporary relief of pain associated with sore and aching muscles in the lower back due to strain from exercise or normal household and work activities.

Contradictions
Do not use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device. Such use could cause electric shock, burns, electrical interference, or death.

Warnings

• If you are in the care of a physician, consult with your physician before using this device.
• If you have had medical or physical treatment for your pain, consult with your physician before using this device.
• If your pain does not improve or continues for more than five days, stop using the device and consult with your physician.
• Do not apply stimulation over your neck because this could cause severe muscle spasms resulting in closure of your airway, difficulty in breathing, or adverse effects on heart rhythm or blood pressure.
• Do not apply stimulation across your chest because the introduction of electrical current into the chest may cause rhythm disturbances to your heart, which could be lethal.
• Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inflamed areas or skin eruptions (e.g., phlebitis, thrombophlebitis, varicose veins);
• Do not apply stimulation over, or in proximity to, cancerous lesions;
• Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), which may not operate properly when the electrical stimulation device is in use;
• Do not apply stimulation when in the bath or shower.
• Do not apply stimulation while sleeping.
• Do not apply stimulation while driving, operating machinery, or during any activity in which electrical stimulation can put you at risk of injury.
• Do not use the device on children; it has not been evaluated for pediatric use.
• Consult with your physician before using this device, because the device may cause lethal rhythm disturbances to the heart in susceptible individuals.
• Apply stimulation only to normal, intact, clean, healthy skin.

Precautions

• TENS is not effective for pain of central origin, including headache.
• TENS is not a substitute for pain medications and other pain management therapies.
• TENS devices have no curative value.
• TENS is a symptomatic treatment and, as such, suppresses the sensation of pain that would otherwise serve as a protective mechanism.
• For maximum effectiveness, the patient should be under the care of a qualified Pain Management Specialist.
• The long-term effects of electrical stimulation are unknown.
• Since the effects of stimulation of the brain are unknown, stimulation should not be applied across your head, and electrodes should not be placed on opposite sides of your head.
• The safety of electrical stimulation during pregnancy has not been established.
• You may experience skin irritation or hypersensitivity due to the electrical stimulation or the electrical conductive medium.
• If you have suspected or diagnosed heart disease, you should follow the precautions recommended by your physician; and
• If you have suspected or diagnosed epilepsy, you should follow the precautions recommended by your physician.

We also advise users of the following:

• Use caution if you tend to bleed internally, such as following an injury or fracture.
• Consult with your physician before using the device after a recent surgical procedure, because stimulation may disrupt the healing process.
• Use caution if stimulation is applied over the menstruating or pregnant uterus; and
• Use caution if stimulation is applied over areas of skin that lack normal sensation.
• Keep this device out of the reach of children; and
• Use this device only with the leads, conductive back brace, and accessories recommended by the manufacturer.

Adverse Reactions

• You may experience skin irritation and burns beneath the stimulation electrodes applied to your skin;
• You should stop using the device and should consult with your physician if you experience adverse reactions from the device.

Maintenance

How to clean your care back pain relief stimulator
Remove the battery from the device every time before cleaning. Clean the device after use with a soft, slightly moistened cloth. In case of more extreme soiling, you can moisten the cloth
with mild soapy water. Do not use any chemical cleaners or abrasive agents for cleaning. Do not submerge the stimulator in liquids or expose it to any amount of water.

How to clean the lead wires
Disconnect the lead cord and snap cord from the belt and the stimulator. The lead cord and snap cord may be wiped with a damp cloth. Coating them lightly with talcum powder will reduce tangles and prolong their life.

How to clean your support belt
Before washing the belt, remove the snap wires and the stimulator from the belt. Hand-wash your Support Belt in cool water. Do not wash the belt in the washing machine.
The support belt should be air-dried, lying flat or hanging. Do not put the belt in the clothes dryer. To avoid skin irritation and ensure good contact with your skin, clean silicone rubber electrodes with soap and water frequently. The electrodes must be dried completely before using.

1. Your stimulator uses a standard a 9-volt battery. If stimulation seems to be weak, or the stimulator will not turn on, check the battery. To replace the battery, make sure the device is turned "OFF". Slide the stimulator cover open by pushing on the back with both thumbs until the cover slides open. Remove the old battery. Insert a 9 Volt battery according to the diagram in the battery compartment. To close the cover, slide from the bottom up.
2. If your support belt is damp after use, allow it to air-dry before re-applying.
3. When connecting and disconnecting a snap wire, hold it by the molded end and pull. Do not pull on the wire itself. Replace the snap wire if worn or broken.
4. The user must not attempt any repairs to the device or any of its accessories. Please contact your retailer for repair.

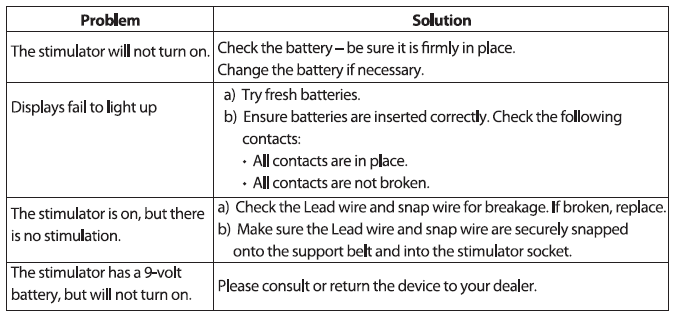

Troubleshooting

If your device does not seem to be operating correctly, refer to the chart below to determine what may be wrong. Should none of these measures correct the problem, the device should be serviced.

Warranty

Please contact your dealer or the device center in case of a damage under the warranty. If you have to send in the device, enclose a copy of your form and state what the defect is.

The following warranty terms apply:

1. The warranty for the device is one year from the date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty.
3. The warranty applies to the stimulator and necessary parts and labor relating thereto. The distributor reserves the right to replace or repair the unit at their discretion.
4. The warranty does not apply to the belt, lead wires, battery, or stimulator if damage results from failure to follow the instructions, accidents, abuse, alterations, or disassembly by unauthorized individuals.
5. Repairs under warranty do not extend the warranty for the unit or for the replacement parts.
6. Liability for direct or indirect consequential losses by the unit is even if the damage to the unit is accepted as a warranty claim.

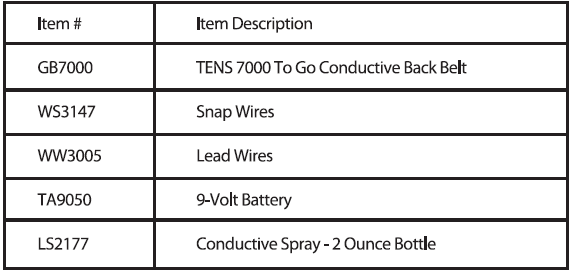

Replacement Parts

Please contact your dealer or fie device center to order parts:

Pros & Cons

Pros

• Portable and easy to use.
• Multiple preset programs for different pain types.
• Adjustable intensity settings for personalized treatment.
• Affordable compared to other pain relief methods.
• No side effects associated with the medication.

Cons

• It might not be as effective for severe pain conditions.
• Electrodes may need frequent replacement.
• Some users may experience skin irritation from the electrodes.
