Introduction of Togopower BALDR 330 Solar Panel

The Togopower BALDR 330 Solar Panel is a powerful and efficient solar panel that is perfect for off-grid power systems, RVs, boats, and other outdoor applications. With a maximum power output of 330 watts, this solar panel is designed to provide reliable and sustainable power in a variety of settings. The estimated price for the Togopower BALDR 330 Solar Panel is around $400 to $450, and it is now available for purchase.

BALDR 330 ACCESSORY LIST


 Recommend to use 100W Solar panel (not included).

GENERAL SPECIFICATIONS

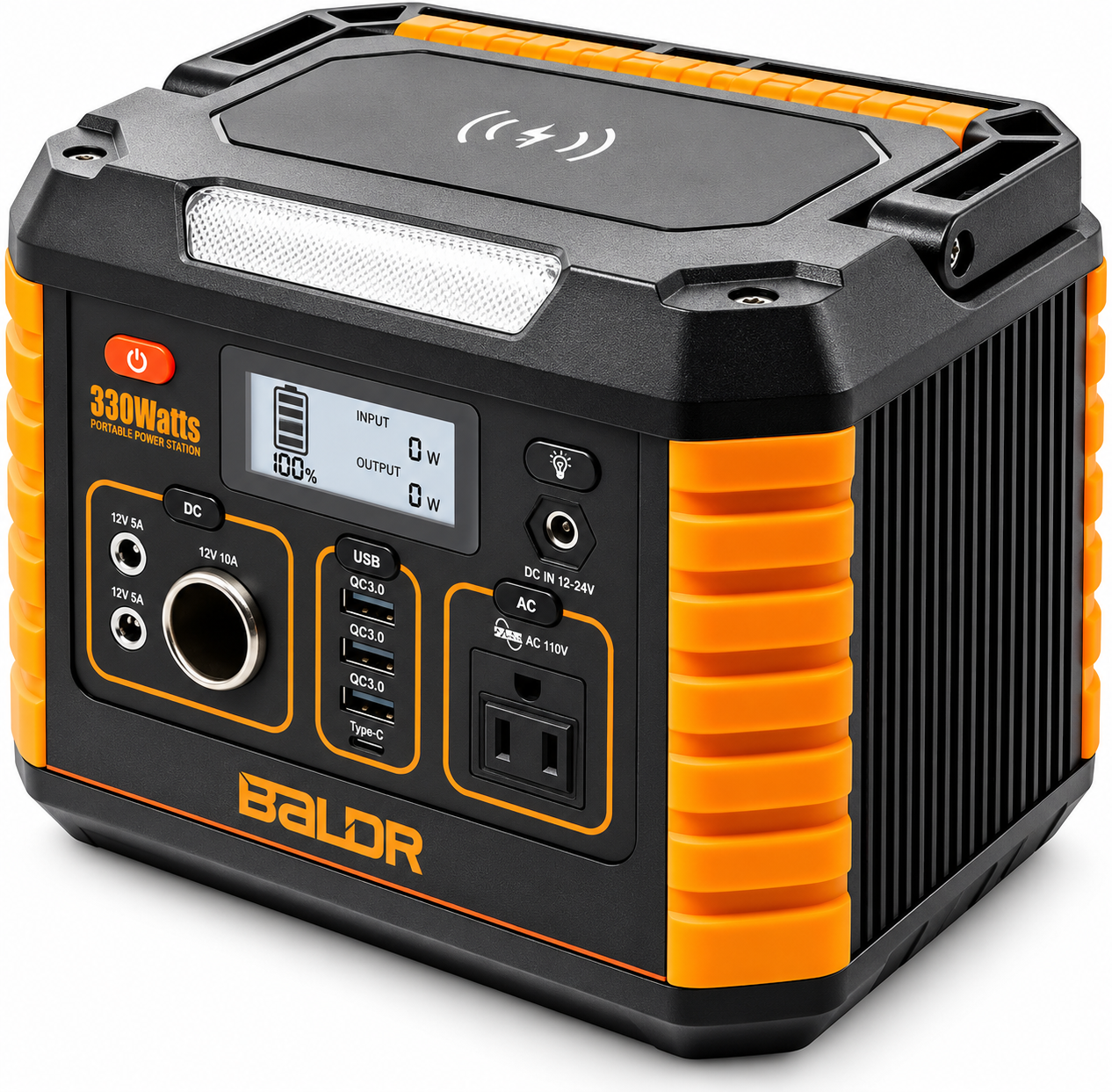

The BALDR 330 is a portable battery pack with the ability to supply 330W of pure sine wave  AC power via the onboard AC output. Additionally, The BALDR 330 is able to support USB quick charging via the onboard 1 x USB-C port and 3 x USB-A ports. Overall storage capacity is 297Wh of energy.

Capacity

297Wh (82500mAh / 3.6V)

Cell Type

18650

Cell Chemistry

Lithium-ion

Dimensions

L8"xW 6"xH6.5"(L204 x W154 x H164mm)

Weight

7.6 lbs (3.46 kg)



Life Expectancy

500 cycles to 85% capacity typical (depending on use and care)

Charging Time

Fully charged 5 to 7 hours

Shelf Life

Charge every 3 months (fully charged before storage)

Input, 8mm Charging Port

12-24V, up to 4A (Max 52W)

Output AC(Output, pure sine wave)



110V+/-10%, 60Hz (330W Rated, 700W Surge)

Output USB-A ( x 3 )

5V,9V,12V, up to 3A, (Max 54W total,with QC3.0 protocol)

Output USB-C ( x 1 )

5V,9V,12V, up to 3A, (Max 18W, without USB-PD protocol)

Output DC ( x 2 )

5521 type, 12V/5A

Output Cigarette lighter

12V/10A

Wireless Charger

5W

LED Light Power

2W

Operating / Storage Altitude

up to 6562 ft. (2000m)

Operating / Storage Maximum Humidity



up to 75% non-condensing

Operating Temp

14 to 104°F (-10 to 40°C)

Charging Temp

32 to 113°F (0 to 45°C)

Storage Temp

-4 to 113°F (-20 to 45°C)

FEATURE DETAILS

  • LCD Screen Display
  • DC Output
  • Cigarette Lighter Output
  • USB-C Output
  • USB-A Output
  • 330W Rated AC Output
  • Anti-collision Strip
  • DC Input
  • SOS MODE & LED light
  • Wireless Charger
  • Folding Handle
  • Air Intake Vent with Cooling Fan

Note: No user-serviceable parts inside. Recommended to fully charge the BALDR 330 before use.

BUTTON FEATURE

  • A: BALDR 330 Power ON/OFF Button
  • B: SOS mode & LED light Button
  • C: DC Output Power ON/OFF Button
  • D: USB Output Power ON/OFF Button
  • E: AC Output Power ON/OFF Button

LCD FEATURES

  • H: Battery Level Indicator
  • I: Input Status
  • J: DC Output Status
  • K: AC Output Status

HOW TO CHARGE


WARNING: DO NOT CONNECT DEVICE VIA AC OUTPUT PORT WHILE CHARGE THE BALDR 330. RECOMMEND TO DISCONNECT THE BALDR 330 WHEN FULLY CHARGED.

WHAT IT POWERS


FUNCTION BUTTONS

  • BALDR 330 POWER ON/OFF A
    Button A is the master switch. Press Button A to activate the button B/C/D.
    Press Button A to shut down the output(s) When not in use. 10 seconds after you turn off the Button A, BALDR 330 will have a BEEP sound indication.
  • SOS MODE & LED LIGHT B
    Function available no matter the Button A activate or not.
    First, press Button B to turn on the LED light;
    Second, DOUBLE-Press to turn on the SOS mode;
    Third, press Button B back to LED light, one more time again, will turn off the light.
    10 seconds after you turn off the Button B, BALDR 330 will have a BEEP sound indication.
  • DC OUTPUT POWER ON/OFF C
    The DC output port will NOT function until the appropriate Button A & C are both pressed to activate. Press Button C to shut down the output(s) When not in use.
  • USB OUTPUT POWER ON/OFF D
    The USB output port will NOT function until the appropriate  Button A & D are both pressed to activate.
    Press Button D to shut down the output(s) When not in use.
  • AC OUTPUT POWER ON/OFF E
    The AC output port will NOT function until the appropriate Button A & E are both pressed to activate.
    Press Button E to shut down the output(s) When not in use.
  • USB-C OUTPUT 4
    The USB-C output port will NOT function until the appropriate Buttons A & D are both pressed to activate.
    The USB-C cable of different devices need different endorsements of corresponding protocols, if the USB-C port didn't work, try to use the AC output port.
  • WIRELESS CHARGER 10
    Press ON/OFF Button A before charging. Press ON/OFF Button to shut down the output(s) When not in use.
  • COOLING FAN 12
    BALDR 330 utilizes an internal cooling fan to ensure the product is operating within the appropriate temperature range. BALDR 330, when it experiences a higher output load, will automatically turn on the fan. During discharge, and possibly charging, the fan may operate intermittently to keep internal temperature within operating range. The fan will likely start when the AC circuit is activated to ensure proper operation.

DETAILS DISPLAYED ON LCD

BATTERY LEVEL INDICATOR H: The battery level is provided by percentage of battery charge corresponding to the number of bars and percentage displayed. The segments in the battery level correspond to the current state of charge, 0-5% empty, 6-20% one segment,

  • 21-40% two segments, 41-60% three segments, 61-80% four segments, and all five are lit when charge level is above 81%.
  • Provides the user live telemetry data on time to completely charge, or deplete the battery based upon the energy entering or leaving the battery.
  • Highly recommend to fully charge BALDR 330 when first use. Higher battery level indicator show, more precise the data will indicate.

PLEASE BE AWARE that this value can adjust multiple times as the energy draw changes from the connected devices. This is evident during initial activation of ports with a connected device.
RECOMMENDED back to charge the BALDR 330 when battery indicate less than 20%.
Note that when you first plug in a power source, whether it's a solar panel or a wall charger, the BALDR 330 may take a minute to detect and adjust its charge circuitry before it starts drawing power from the source.
INPUT Status I: The BALDR 330 is capable of providing input energy in watts.
BALDR 330 charge process is normal when the input watts is 20-60 which show on the battery level indicator.

  • DC Output Status J: The display will provide output watts of the DC port 2,3.
  • AC Output Status K: The display will provide output watts of the AC port 6.

The output watts of USB port will NOT display on the LCD Screen 1. LCD Screen will enter sleep mode after 120 seconds of inactivity (no new output load detected), and will "wake up" when inputting a charging cord or when any button is pressed.

Description

The Togopower BALDR 330 Solar Panel features high-efficiency monocrystalline silicon solar cells that deliver exceptional power conversion rates, even in low-light conditions. The panel is encased in a durable aluminum frame, making it lightweight and resistant to rust and corrosion. The tempered glass surface is designed to withstand high wind loads and snow loads, ensuring long-lasting performance in harsh environments. The panel also features a waterproof junction box, making it suitable for use in wet and humid conditions. With its sleek design and easy-to-install mounting system, the Togopower BALDR 330 Solar Panel is an ideal solution for all your off-grid power needs.

OPERATING INSTRUCTIONS

CHARGING BALDR 330
Connect the provided AC Wall power adapter to Input 8 , and allow BALDR 330 to fully charge prior to use, approx. 5-7 hours. When charging, the LCD Screen 1 will be illuminated, and the LCD display will provide Battery level Indicator H , BALDR 330 is fully charged when the level is 100%. It is recommended to fully charge BALDR 330 every 3 months to maintain the health of the battery pack.

POWERING / CHARGING DEVICES WITH BALDR 330

Select the type of outlet required by pressing the Output ON/OFF Button C/D/E. The output port will NOT function until the appropriate button is pressed to activate the port. When activated, the indicator on the button will illuminate green, indicating that the output(s) are active, and the LCD display will turn on and provide details on the charging output. The   LCD Screen will automatically shut down when no outputs are activated.  BALDR 330 will enter sleep mode after 120 seconds of inactivity (no new output load detected), and will "wake up" when inputting a charging cord or when any button is pressed.  Press the ON/OFF button(s) to shut down the output(s) when not in use.
PASS-THROUGH CHARGING
The advanced battery management system of the BALDR 330 allows it to charge a connected device via DC output & USB output while charge the BALDR 330.
DO NOT CONNECTED DEVICE VIA AC OUTPUT WHILE CHARGE THE BALDR 330.
OVERLOAD CONDITION
If an overload condition occurs on the OUTPUT port, BALDR 330 will:

  • Automatically turn off AC Output    6   power.
  • The blue indicator light of LCD Screen 1      still illuminated.
  • DC OUTPUT Status J still the same status as usual.

Do following:

  • Check the input charge cable. The port will be efficient when the input charge cable meets the specification outlined in the GENERAL SPECIFICATIONS section.
  • Only charge BALDR 330 with provided AC wall power adapter.

Setup Guide

Setting up the Togopower BALDR 330 Solar Panel is a straightforward process.

  • First, you will need to install the mounting system on your RV, boat, or other outdoor structure.
  • Once the mounting system is in place, you can attach the solar panel using the pre-drilled holes in the aluminum frame.
  • Next, you will need to connect the panel to your power system using the MC4 connectors. It is important to ensure that the connections are secure and weather-tight to prevent damage to the panel or your power system.
  • Finally, you can position the panel to optimize its exposure to sunlight and start generating power.

CLEANING

Be sure that BALDR 330 is disconnected from all input power sources and output devices. Use a clean, dry, soft-lint-free cloth to wipe down it. Remove any debris, dirt, or other blockages on both side vents. When cleaning debris from the side vents, do not allow the debris, dirt, or other blockages to enter the body of BALDR 330.

  • DO NOT use abrasive cleaners or solvents.
  • DO NOT use compressed air to clean side cooling vents, as this will force foreign particles into the internal circuitry.
  • To avoid the risk of electrical shock, DO NOT use metal objects to clean ports.

STORAGE

If storing for more than 1 month, charge completely before storage and recharge approximately every 3 months to avoid full discharge and possible damage.  Store indoors, in cool temperatures, mild humidity, and away from direct sunlight (See GENERAL SPECIFICATIONS section). Leaving in a vehicle or other confined spaces in extreme hot temperatures can lead to decreased service life, overheating, and fire. Extreme cold conditions below specific storage range can also harm BALDR 330 performance and service life.
Keep away from corrosion chemicals and gases.  After taking out of storage, visually inspect to make sure BALDR 330 and all accessories look satisfactory. This increase review the intake and exhaust side vents to ensure they are clear of debris. Allow BALDR 330 to return to ambient conditions before recharging, or charging other  devices.

ATTENTION

Transportation:BALDR 330 complies with all legal requirements for transport of dangerous     goods. The capacity of the lithium battery pack exceeds 100Wh. Based on international     standards, if BALDR 330 is transported by airplane, it must be transported in accordance with     IATA standard packaging. IATA instructions and labeling requirements and the relevant     declarations must be completed.


MAINTENANCE

  • Recharge as needed. There are no pre-designated intervals at which to recharge as long as the BALDR 330 is being used regularly. Avoid discharging completed on a regular basis, as this can impact overall life.
  • Regularly inspect all ports and wall charger for any debris, dirt, damage and corrosion.
  • DO NOT attempt to fix.
  • DO NOT cover the BALDR 330 with towels, clothing or other items.
  • Regularly observe if the side vents are collecting dirt or dust, and clean following cleaning procedures noted in manual.

WARNINGS: To ensure safe operation and service of the meter, follow these instructions. Failure to observe these warnings can result in severe injury or death.

  • DO NOT use BALDR 330 in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons, even though we have built-in overload protection.
  • DO NOT use BALDR 330 or AC Wall plug power adapter, if it is damaged or has been modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
  • DO NOT subject to vibration, impacts, or drops. Secure BALDR 330 during transport. The housing may not show signs of damage, but internal components may have been compromised. It is adviseable to replace it if any such severe events occur.
  • DO NOT expose BALDR 330 to moisture, rain, or snow.
  • DO NOT charge, use or store BALDR 330 in a bathroom or in an area exposed to rain or moisture.
  • DO NOT leave children or the persons, who with reduced physical/sensory or mental capabilities/or lack of experience and knowledge, along with BALDR 330 unless they have been given supervision or instruction concerning use of it by a person responsible for their safety.
  • DO NOT attempt to repair BALDR 330 or AC Wall plug power adapter. There are no user-serviceable components inside.
  • DO NOT handle BALDR 330 with wet hands.
  • DO NOT place BALDR 330 on its side or upside down while in use or in storage.
  • If rust, odor, overheating, or other abnormal circumstance are observed, stop using and contact BALDR customer service.
  • Children should be supervised to ensure that they DO NOT play with the BALDR 330 alone.
  • The BALDR 330 is only used for emergency power station, it cannot replace the standard AC or DC power of household appliances or digital products.
  • Keep away from high voltage electrical fields.
  • Risk of fire and burns, DO NOT open, crush, heat above 113°F (45°C  ) or incinerate. Follow all instructions.
  • Use of a power supply, charger, or cable not recommended or sold by portable battery manufacturer may result in a risk of fire or injury to persons.
  • Should fluid from inside of BALDR 330 come in contact with your skin or clothing, wash the affected areas with tap water.
  • The accessories included in the box should only be used with the BALDR 330.
  • KEEP THIS PRODUCT AWAY FROM PETS.

Troubleshooting

BALDR 330 WILL NOT CHARGE OR OPERATE connected devices:

Ensure that the DC/USB/AC output ports 2/3/4/5/6 are activated by pressing the   Button(s) A & C/D/E for the port(s) in use. .

  • Confirm the connected device is suitable for the BALDR 330 by reviewing the output specifications provided in the GENERAL SPECIFICATIONS section.
  • Confirm BALDR 330 is charged by reviewing the Battery Level Indicator H.
  • Verify the watt data displayed on the Status Indicator I/J/K of LCD Screen 1      for overload condition.

BALDR 330 WILL NOT CHARGE:

  • Confirm that the wall plug power adapter's cord is inserted fully into the DC Input 8      .
  • Confirm that the AC wall plug power adapter is the charger provided with BALDR 330.
  • If the input does not comply with the requirements located in the GENERAL SPECIFICATIONS section, the Low Watt range 0 to 10 may be displayed on INPUT STATUS I of LCD screen 1      .

Togopower BALDR 330 Solar Panel Pros & Cons

Pros:

  • High-efficiency monocrystalline silicon solar cells for exceptional power conversion rates
  • Durable aluminum frame and tempered glass surface for long-lasting performance in harsh environments
  • Waterproof junction box for use in wet and humid conditions
  • Sleek design and easy-to-install mounting system

Cons:

  • May be more expensive than other solar panels on the market
  • May require additional adapters or converters to connect to some power systems

WARRANTY

The warranty period is 12 months. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

Customer Reviews

Customers who have purchased the Togopower BALDR 330 Solar Panel have praised its high power output, durable construction, and easy-to-install mounting system. Some common complaints include the high price point and the need for additional adapters or converters to connect to certain power systems. However, overall, the Togopower BALDR 330 Solar Panel has received positive reviews from customers who are looking for a reliable and efficient solar panel for their off-grid power needs.

Faqs

What kind of solar cells is it powered by?

Monocrystalline solar cells, renowned for their great longevity and efficiency, are used in the Togopower BALDR 330 Solar Panel.

How portable is the Togopower Solar Panel?

Togopower BALDR 330 Solar Panel foldable shape makes for easy storage and transportation, therefore yes, portability was a priority in its design.

What is the solar panel's efficiency rating?

With an efficiency rating of about 20% on average, the Togopower BALDR 330 Solar Panel is competitive with monocrystalline panels.

Is it possible to use the BALDR 330 on cloudy days?

Indeed, it is still capable of producing power on overcast days, but with a reduced efficiency in comparison to bright days.

Which kinds of devices can I use the Togopower BALDR 330 Solar Panel to power?

When used with the proper power station or battery, it may power or charge items that require up to 330 watts, such as laptops, smartphones, small appliances, and more.

What are the panel's measurements and weight?

Togopower BALDR 330 Solar Panel is rather light for its power category, with proportions designed for portability and a typical weight of 10 to 15 pounds.

How is the Togopower Solar Panel configured?

Togopower BALDR 330 Solar Panel unfolds with built-in stands to face the sun, making it easy to set up.

Is it possible to charge a power plant with the BALDR 330?

Without a doubt, it is perfect for recharging portable power plants that generate electricity in off-grid environments.

Which method of cleaning the solar panel is the best?

Wipe dust and debris from the surface with a gentle, moist cloth. Steer clear of abrasive objects and harsh chemicals since they may harm the Togopower BALDR 330 Solar Panel cells.

Is there a warranty for it?

In most cases, Togopower does provide a warranty for their Togopower BALDR 330 Solar Panel. Consult the manufacturer for the exact terms and duration.
