Introducing the Tornado Fans

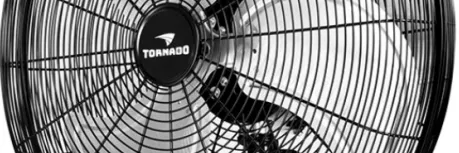

The Tornado Fans Oscillating Wall Fan HI-FAN-20WMPRO-1P is a high-velocity fan designed for both commercial and residential use, featuring a robust 20-inch diameter fan head. It offers three speed settings and oscillates to provide widespread airflow, making it ideal for cooling large spaces such as warehouses, workshops, and patios. With a powerful 1/6 HP motor, it delivers up to 4,750 CFM while being water-resistant and suitable for outdoor applications. Priced at $159, this fan combines durability with effective cooling performance.

Intended Use

This product is intended for Household use only. Use only with electrical wiring that is in good working order and that meets applicable codes and ordinances. If you have any questions whether your wiring is adequate, consult a qualified electrician.
While using your fan, you should follow the IMPORTANT INSTRUCTIONS listed below. As part of those instructions, we have used the word "WARNING" to indicate the level of hazard: WARNING indicates a hazard which, if not avoided, could result in injury or death.

IMPORTANT INSTRUCTIONS

As with all electrical appliances, basic safety precautions should always be followed to reduce the risk of electric shock, fire, or injury to persons, including the following precautions:

• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not recommended by the manufacturer may cause electrical shock, fire or injury to persons.
• Do not operate the fan with a damaged power cord or after the fan malfunctions or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or near children, disabled persons or pets and whenever the fan is left operating unattended.
• Do not place the fan on a small, unlevel,  uneven or any surface which might allow fan to tip or fall.
• Always unplug fan when not in use, when moving from place to place, when assembling or disassembling parts, and before cleaning.
• The use of attachments, not recommended or sold by the manufacturer, may cause hazards.
• Do not use outdoors.
• To reduce the risk of fire or electrical shock, do not expose to water or rain.
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device.
• Do not operate the fan with blade guards or any safety device removed.
• Automatically operated device - To reduce the risk of injury, disconnect from power supply before servicing.
• If the power supply cord is damaged, contact your local service center or a qualified electrician to install an appropriate replacement cord to prevent any injury or damage.
• To reduce the risk of injury to persons, install fan at least 2.1m (7 feet) above  the floor.
• Avoid the use of extension cords due to risk of fire. If an extension cord must be used, the cord must be minimum 14 AWG and rated not less then 1875 watts.
• Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the fan. Doing so may cause electric shock and/or fire hazard. Avoid contact with moving parts.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.

READ & SAVE THESE  INSTRUCTIONS
WARNING: Shock Hazard
Use your fan only in dry environments. This fan is not intended for use in a bathroom, laundry area, or similar locations, or near sinks, washing machines, swimming pools or other sources of water. Never locate fan where it may fall into a bathtub or other water receptacle. Do not use in damp environments such as flooded basements.
WARNING: Hot Surfaces
Do not touch fan motor when in use. This motor is hot when in use, to avoid burns, do not let bare skin touch hot surfaces.
WARNING: Fire Hazard
Fans have arcing or sparking parts inside. Do not use near combustible materials or flammable gases or sources of heat.  DO NOT USE in areas where gasoline, paint or flammable materials are used or stored. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the fan.
WARNING: Electrical Shock Hazard
Do not use with damaged cord or plug. Use with adequate electrical system that is up to code.
CAUTION: to Prevent Electric Shock, this product has a three prong grounded plug that must be inserted into a matching properly grounded outlet to reduce the risk of electrical shock. Do not attempt to defeat this safety feature.
WARNING: to Reduce the Risk of Fire or Electric Shock, do not use this product with any solid‑state speed control device.

Specifications

• Power Consumption: 20 Watts
• Speed Settings: 3 adjustable speed settings
• Oscillation: 90-degree oscillation for wide coverage
• Mounting: Wall-mountable with included bracket
• Noise Level: Low noise operation (less than 40 dB)
• Material: Durable plastic and metal construction
• Cord Length: 6-foot long cord for convenient placement

Descriptions

The Tornado Fans Oscillating Wall Fan HI-FAN-20WMPRO-1P boasts a compact and lightweight design, making it easy to install and maneuver. The fan features three adjustable speed settings, allowing users to customize the airflow according to their needs. The 90-degree oscillation ensures that the air is circulated evenly, providing a cooling breeze across the room.

The fan is constructed from durable materials, including plastic and metal, ensuring long-lasting performance. It also features a low noise operation, making it suitable for use in living rooms, bedrooms, and offices.

Fan Assembly

1. Install the bracket base on the strong wall.
2. Install the cover ring on the bracket base.
3. Install the fan motor on the bend tube of support bracket, then assembling the back guard, blade, front guard to the motor.

ASSEMBLY INSTRUCTION

• Use the following information as a guideline only. It is the user's responsibility to be sure the location and the wall surface can handle the weight of this fan .
• The wall fan must be mounted on 12 inch (300mm) thick dry and cement ‑ grouted firm wall or on 4 by 5 inch wood studs / joists.
• Use wall bracket as a template for locating the holes to be drilled.
• After determining the hole locations, use an appropriate sized drill bit and, drill holes through mounting surface.
• It is recommended that a minimum of grade 5 fasteners be used. The following are acceptable surfaces for mounting wall mount assembly.
  • STEEL SURFACE ‑ When mounting to a steel surface, such  as vertical I‑beam, drill through holes at pre‑marked locations, using a 9/32" drill bit. Attach wall mount assembly to mounting surface using 1/4"‑20 hex screw, in combination with 1/4" flat washers, 1/4" lock washers, and 1/4"‑20 hex nuts.
  • MASONRY SURFACE ‑ When mounting to a masonry surface use a 1/4" expansion type bolt or 1/4" masonry lag with  shield designed to handle the weight of this fan. Drill holes  at pre‑marked locations using appropriate sized drill bit as recommended for the fastener.

Usage of Oscillating Wall Fan

1. Fan operation: Always operate the fan in the upright position following all instructions and recommendations listed in this manual.
2. Fan location: Place the fan in the area of the room that will provide proper fan cooling.
3. Fan connection: Plug fan directly into 120 volt A.C., 60 Hz wall outlet. Be sure plug fits tightly in outlet. A loose connection may cause overheating and damage to the plug or fan.
   Note: To prevent overloading a circuit, do not plug the fan into a circuit that is servicing other electrical needs.
4. Speed control: Select air speed by setting switch to either low-medial-high-off.
   • OFF
   • LOW
   • MED

   • HIGH



Setup Guide

To set up the Tornado Fans Oscillating Wall Fan HI-FAN-20WMPRO-1P, follow these steps:

1. Unpack the fan and all included components (wall bracket, screws, etc.).
2. Identify a suitable location on the wall for mounting the fan, ensuring it is at a comfortable height and out of reach of children.
3. Use the provided screws to secure the wall bracket to the wall.
4. Hang the fan on the bracket and adjust it to the desired position.
5. Plug in the fan and turn it on using the control panel or remote (if applicable).

Care and Maintenance

• Cleaning: CAUTION-Before cleaning the fan be sure to disconnect power cord from the plug.
  • Clean the grille surface with a clean damp cloth.
  • Do not use harsh chemical or abrasive cleaners.
    • DO NOT IMMERSE THE FAN OR ANY WIRES IN WATER.
  • Replace front grille before fan use. Allow fan to dry completely before use.
  • Periodic grille cleaning with a vacuum will prevent dust build up.
  • The motor is sealed and does not require any interior maintenance, cleaning or lubrication.
• Maintenance: The Internal motor bearings are permanently lubricated at the factory and do not require any additional lubrication.
• Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR BECOME DAMAGED IN ANY WAY.

Tornado Fans Oscillating Wall Fan Storage

• Keep original carton for storage of the fan.
• Coil and tie the power cord to avoid damage during storage.
• This product employs overload protection (fuse).
• A blown fuse indicates an overload or short-circuit situation.
• If the fuse blows, unplug the product from the outlet.
• Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product.
• If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Fuse Replacement

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of attachment plug towards blades. See Fig. 2.
3. Remove fuse carefully. Use a small tool to pry the end of the fuse from holder cavity. Be careful not to break glass window.
4. Replace fuse.
   WARNING: Risk of fire. Replace fuse only with identical 2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm).
   Be sure fuse is properly seated within its cavity.

5. Close fuse cover by sliding it back to its original closed position.



Troubleshooting

If you encounter any issues with your Tornado Fans Oscillating Wall Fan HI-FAN-20WMPRO-1P, here are some common problems and solutions:

• No Power: Check if the fan is properly plugged into a working outlet.
• Ensure that the oscillation feature is turned on using the control panel.
• Clean the fan blades and motor to remove any dust or debris.

Warranty

Hexago LLC warrants this product to be free of defects in material and workmanship for the applications specified in the Owner's Manual for a period of 12 months for the whole fan from date of purchase. This warranty only applies to the original purchaser of this product.

All warranties, expressed or implied, are limited for 12 months for the whole fan from the date of  purchase. Please contact us at  https://www.tornadofans.com if you have any questions.

HI-FAN-20WMPRO-1 P Pros & Cons

Always follow the manufacturer's instructions and safety precautions when troubleshooting or maintaining your fan.

Pros

• Efficient Air Circulation: Provides powerful and even air distribution.
• Adjustable Speed Settings: Allows for customization of airflow.
• Low Noise Operation: Suitable for use in quiet environments.
• Durable Construction: Made from high-quality materials for long-lasting performance.

Cons

• Affordable: Priced competitively compared to similar products.
• Limited Coverage Area: Best suited for smaller to medium-sized rooms.

Customer Reviews

Customers have praised the Tornado Fans Oscillating Wall Fan HI-FAN-20WMPRO-1P for its effectiveness in cooling rooms efficiently. Many users appreciate its quiet operation and easy installation process. However, some users have noted that it might not be as effective in larger spaces and lacks additional features like remote control or timer functions.
