Introduction

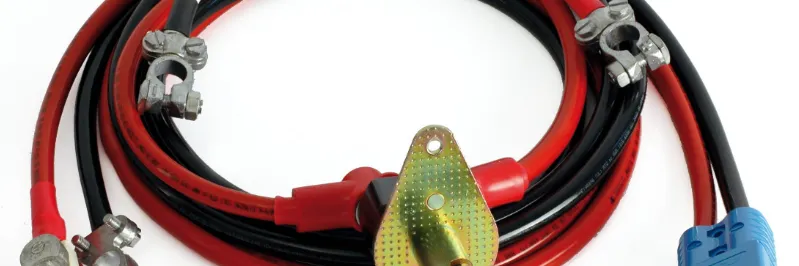

The Torqeedo Cruise 2.0 Cable Set TOR1204-00 is an essential accessory designed to connect your Cruise 2.0 electric outboard motor to various battery systems, ensuring optimal performance on the water. This cable set features high-quality components that facilitate reliable connections, enhancing the motor's efficiency and safety. Its user-friendly design allows for easy installation, making it suitable for both novice and experienced boaters. The Torqeedo Cruise 2.0 Cable Set is priced at approximately $199, providing excellent value for enhancing your boating experience.

Specifications

• Compatible with Torqeedo Cruise 2.0 electric outboard motor
• High-quality, marine-grade materials for durability and resistance to corrosion
• Designed for efficient power transmission with minimal loss
• Easy to install and connect to the motor and battery
• Compliant with relevant marine electrical standards

Description

The Torqeedo Cruise 2.0 Cable Set TOR1204-00 is a meticulously designed cable system that ensures perfect compatibility with the Torqeedo Cruise 2.0 motor. This cable set is made from high-quality, marine-grade materials, engineered to withstand harsh maritime conditions. It integrates robust connections and insulation to prevent electrical issues and provide reliable operation.
The cable set includes all necessary components for a complete installation, making it a practical and comprehensive choice for consumers. The design prioritizes user-friendliness, with clear labeling and direct connections that streamline the setup procedure.

Operating elements

Cruise 2.0 cable set

Cable set extension

Torqeedo TOR1204-00 Starting up

Using the cable set to connect the Cruise 2.0 to lead batteries (acid, gel, AGM)

The Cruise 2.0 operates with a power supply of between 20 V and 30 V (relating to the no-minal voltage). That means it can be operated with two serially configured 12 V lead-acid, lead-gel or AGM batteries.  To increase the capacity, several pairs of serially configured 12 V batteries can be configured parallel to each other ( not recommended - see Basic information on battery supply).

1. Start by connecting the cable set to the batteries. First switch the cable set master switch to the off or zero position.
2. Connect the negative terminal of the cable set (identified by the marking) to the negative pole of the first battery.
3. Then use the connection cable provided to connect the positive pole of the first battery to the negative pole of the second battery.
4. Then connect the positive connection terminal of the cable set, which includes a fuse, to the positive pole of the second battery.
5. Now connect the high current plug of the cable set to the high current plug of the motor.
6. Switch the master switch to the on position. Now your motor is ready to go.

The cable set comes complete with a CF8 125 A fuse. In case of a short circuit, the fuse cuts the circuit and prevents any further damage. The high-current plugs are always identical. Connect them by holding them against each other and turning by 180°. The plug contacts are designed to prevent polarity inversion.

DANGER

• Serial and parallel configured batteries must always have the same charge condition. That is why you must use only the same type of batteries in configurations (same capacity, same age, same manufacturer, same charge condition) and fully charge each battery separately in your charger before you connect it up.
• Differences in the charge condition can lead to extremely high compensatory currents or overloads that overload the cables and connectors or the battery itself. In extreme cases, this can cause fires and injuries.
• Make sure the battery poles are clean and corrosion-free.
• To fix them to the battery poles, tighten the screws on the terminals securely.

Using the cable set to connect the Cruise 2.0 to a Torqeedo Power 26-77 lithium-manganese battery

The Cruise 2.0 operates with a power supply of between 20 V and 30 V (relating to the nominal voltage). This means it can also be operated with a Torqeedo Power 26-77 lithium-manganese (LIMA)-based battery. To increase the capacity, you can configure several Torqeedo Power batteries parallel to each other.

DANGER

• Incorrect configuration of lithium batteries leads to much higher short-circuit currents than configurations with lead batteries. That is why you must follow the installation instructions very carefully and only use the Torqeedo cable set to connect up your motor.
• Here, the short cable of the cable set for serial configuration of lead batteries is not required.

1. Start by connecting the cable set to the battery. First switch the cable set master switch to the off or zero position.
2. Connect the negative terminal of the cable set (identified by the marking) to one of the two negative poles of the battery. (Both negative poles are of equal value.)
3. Connect the positive terminal of the cable set (identified by the marking and the integrated fuse) to one of the positive poles of the battery. (Both positive poles are of equal value.)
4. Now connect the high-current plug of the cable set to the high-current plug of the motor.
5. Switch on the battery with the on/off switch.
6. Switch the master switch of the cable set to the on position. Now your motor is ready to go.

The cable set comes complete with a CF8 125 A fuse. In case of a short circuit, the fuse cuts the circuit and prevents any further damage. The high-current plugs are always identical. Connect them by holding them against each other and turning by 180°. The plug contacts are designed to prevent polarity inversion.

You can extend the capacity using a parallel configuration of up to four Torqeedo Power Batteries from the „User Installation (UI)“ series in the same way as described under 8.3 (Connecting the Cruise 2.0 to lead batteries). Please follow the Operating instructions for the lithium-manganese batteries.

Using the cable set extension

• You can use the cable set extension to extend the distance between the motor and the battery power supply by 2 m.
• Connect one high-current plug of the cable set extension to the high-current plug of the motor.
• Connect the other high-current plug of the cable set extension to the high-current plug of the cable set.

WARNING
Using several cable set extensions in series reduces the efficiency of the overall system. For instance, if you bridge a distance of 10 m with several cable set extensions, this leads to a loss of approx. 3.5% of the overall power.

Setup Guide

To install the Torqeedo Cruise 2.0 Cable Set TOR1204-00, go to the below instructions:

1. Confirm the presence of all elements in the package.
2. Determine the connections for the motor and battery.
3. Connect the cables to the motor and battery as per the provided instructions.
4. Secure the cables using the included clips or ties to prevent damage or entanglement.
5. Assess the system to confirm its operational effectiveness and power transmission efficiency.

Storage and care instructions

WARNING

• The contacts on the high-current plugs should be treated with contact spray once a month.
• Repairs may only be carried out by authorized Torqeedo Service Centres. Should you attempt to carry out repairs or conversions yourself, this immediately cancels the warranty.
• If you wish to submit a warranty claim, please observe the warranty instructions in the operating instructions of your Cruise motor.

Important safety and operating instructions

Important safety instructions
Torqeedo products are designed to operate safely and reliably as long as they are used according to the operating manual. Please read this manual carefully before you start the motor. Ignoring these instructions can cause property damage or personal injury. Torqeedo accepts no liability for damage caused by actions that contradict this operating manual.

To ensure safe operation of the cable set and your motor, please follow these instructions:

• Usually the power for your Cruise 2.0 is supplied by several batteries (24 V nominal voltage). It is essential when linking up the batteries to ensure you only combine the same kind of batteries (same capacity, same age, same manufacturer, same charge status). Different charge conditions between batteries linked together can, when the batteries are linked up, lead to extremely high compensating currents or overloading that overload cables, plugs, the master switch or the battery itself. In extreme cases, this can cause fires and injuries. Therefore always follow the instructions in section 8.1 to 8.2 of this operating manual.

Important operating instructions
Here are the most important instructions on operating Torqeedo Cruise Motors. Apart from these instructions, please observe the complete operating instructions to prevent damage to your motor.

• After use, cut the connection between the motor and the battery using a master switch. This completely cuts the power supply to the motor and prevents the batteries from discharging during the stoppage time because of quiescent current.
• Occasionally use contact spray to care for the contacts on the high-current plugs. If you use the motor in salt or brackish water, we recommend applying contact spray once a month.
• Avoid immersing the plug in water or other liquids. Only store the cable set in a dry condition.
• Should you have any problems with your motor or the cable set, please follow the instructions for submitting warranty claims in the instruction manual of your Cruise motor.

Troubleshooting

If you encounter issues with the Torqeedo Cruise 2.0 Cable Set TOR1204-00, here are some common problems and solutions:

• No Power: Check for loose connections or damage to the cables. Ensure all connectors are securely attached.
• Overheating: Inspect the cables for signs of wear or damage. Ensure proper ventilation around the motor and battery.
• Electrical Faults: Consult the user manual or contact Torqeedo support for assistance in diagnosing electrical issues.

Always follow safety instructions when handling electrical components to avoid injury or damage.

Torqeedo Cruise 2.0 Cable Set TOR1204-00 Pros & Cons

Pros

• High-quality, durable construction
• Easy to install and set up
• Efficient power transmission with minimal loss
• Compliant with marine electrical standards
• Robust connectors and insulation for reliability

Cons

• Potentially expensive compared to other cable sets
• Specifically designed for Torqeedo Cruise 2.0, limiting compatibility with other motors
• May require professional assistance for complex installations

Customer Reviews

Customers have generally praised the Torqeedo Cruise 2.0 Cable Set TOR1204-00 for its reliability and ease of use. Here are some common feedback points:

"The cable set was easy to install and has performed flawlessly since installation."

"High-quality materials and robust construction make this cable set a worthwhile investment."

However, some users have noted that the price could be prohibitive for some budgets.

Warranty conditions

The same warranty conditions apply to the cable set and cable set extension as to the motors of the Cruise series. Please read the notes on the extent of warranty and the warranty process in the relevant operating instructions.
