Introduction

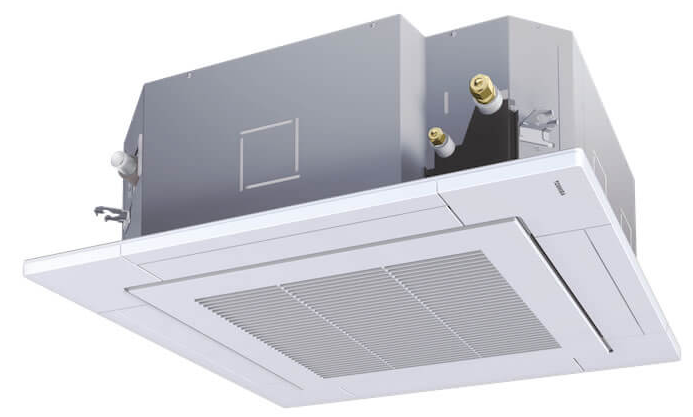

The Toshiba Air Conditioner Indoor Unit RAV-RM561MUT-E is a versatile and energy-efficient solution designed for optimal climate control in medium to large spaces. With a cooling capacity of 5.6 kW, this unit features advanced inverter technology that ensures low energy consumption while maintaining a comfortable environment. Its sleek design makes it suitable for various settings, from homes to offices. The price for the RAV-RM561MUT-E typically starts around $1,500, depending on the retailer and installation options.

Specifications

Part Names

Indoor unit

Wired Remote Controller

This remote controller can control the operation of up to 8 indoor units.

Display section
In the display illustration below all the icons are shown. When the unit is in operation, only relevant icons will be displayed.

• When the leak breaker is turned on for the first time, flashes on the display part of the remote controller.
• While this icon is flashing, the model is being automatically confirmed.

• Wait till icon has disappeared to use the remote controller.



1. Operation mode
   The selected operation mode is displayed.
2. Error display
   Displayed while the protective device works or a error occurs.
3. SETTING display
   Displayed during setup of the timer or other settings.
4. TEST run display
   Displayed during a test run.
5. Timer display
   When an error occurs, error code is displayed.
6. Timer mode display
   The selected timer mode is displayed.
7. Louver position display
   Displays louver position.
8. Swing display
   Displayed during up / down movement of the louver.
9. Filter display
   Reminder to clean the air filter.

10. Fan speed display
    The selected fan speed mode is displayed.



11. Set temperature display
    The selected set temperature is displayed.
12. Power saving mode display
    Limits compressor speed (capacity) to save energy.
13. UNIT No. display
    Displays the number of the indoor unit selected. Also displays error code of indoor and outdoor units.
14. Central control display
    Displayed when the air conditioner is used under the central control in combination with a central control remote controller.
    In case the remote controller is disabled by the central control system, flashes.
    The button operation is not accepted. Even when ON / OFF, MODE, or TEMP. the button is pushed, and the button operation is not accepted. (Settings made by the remote controller vary with the central control mode.
15. Remote controller sensor display
    Displayed while the sensor of the remote controller is used.
16. Pre-heat display
    Displayed when the heating mode is energized or the defrost cycle is initiated.
    While this icon is displayed, the indoor fan stops.
17. No function display
    Displayed when the function requested is not available on that model.
18. Service display
19. Operation ready display
    This display appears on some models.

Description

The Toshiba Air Conditioner Indoor Unit RAV-RM561MUT-E is characterized by its modern design and efficient operation. It features a high-efficiency compressor and fan motor that work together to deliver powerful cooling while reducing noise levels. The unit includes an advanced air purification system that helps remove dust, allergens, and other pollutants from the air, ensuring cleaner and healthier indoor air quality.

Additional features include automatic mode selection, sleep mode, and a timer function for convenient scheduling. The unit's front grille is designed for easy maintenance, allowing users to clean the air filter without needing specialized tools.

Operation Section

Push each button to select a desired operation.
The control saves commands in memory and after the initial setting, there is no need for any additional settings unless changes are desired. The air conditioner can be operated by pushing the button.

1. button (Temperature set button)
   Adjusts the set point.
   Select the desired set point by pushing TEMP. or TEMP. .
2. button (Timer set button)
   Use to setup the timer.
3. button (Filter reset button)
   Resets “” display after cleaning the filter.
4. button (Test button)
   Use only for service.
   (During normal operation, do not use this button.)
5. button
   When the button is pushed, the operation starts, and it stops by pushing the button again.
   When the operation has stopped, the operation lamp and all the displays disappear.
6. Operation lamp
   Green light illuminates when the unit is on.
   Although it flashes when operating the protection device or an error occurs.
7. button (Operation mode button)
   Select the desired operation mode.
8. button (Fan speed button)
   Select the desired Fan speed.
9. button (Ventilation button)
   Use when a power ventilation kit (locally procured) is connected.
   If “” is displayed on the remote controller when this button is pushed, no vent kit connected.
10. button (Power save operation)
    Use to initiate power saving mode.
11. button (Unit / Louver select button)
    Selects a unit number (left) and louver number (right).
    UNIT:
    Selects an indoor unit when adjusting wind direction multiple indoor units are controlled with one remote controller.
    LOUVER:
    Selects a louver when setting wind direction adjustment independently.
12. button (Swing / Louver direction button)
    Select automatic swing or setting the louver direction.
    OPTION:
    Remote controller sensor
    Usually, the temperature sensor of the indoor unit senses the temperature. The temperature on the surrounding of the remote controller can also be sensed. For details, contact the dealer from which you have purchased the air conditioner.

Correct Usage of Air Conditioner Indoor Unit

When the air conditioner is used for the first time or when the setting is changed, follow the steps below. Settings are saved in memory and are displayed anytime the unit is turned on by pushing the button.

Preparation

• When the circuit breaker is turned on, the partition lines are displayed on the remote controller.
  • After the circuit breaker is turned on, the remote controller does not accept any commands for approx. 1 minute, this is not a failure.

REQUIREMENT

When the air conditioner is re-powered after it has not been used for a long period, turn on the circuit breaker at least 12 hours before starting the air conditioner.

Start

1. Push button.
   The operation lamp illuminates, and the operation starts.

2. Select an operation mode with the “” button.
   One push of the button, and the display changes in the order shown below.



3. Select fan speed with the “” button.
   One push of the button, and the display changes in the order shown below.



   • When fan is in “ Auto”, fan speed is adjusted based on difference between set point and room temperature.
   • In heating operation, if the room temperature is not heated sufficiently with speed “ Low” operation, select “ Med.” or “ High” operation.
   • The temperature sensor detects the return air temperature at the indoor unit, which differs from the room temperature depending on the installation condition.
     Set point is a target of room temperature. (“Auto” is not selectable in the Fan mode.)
4. Select the set point temperature by pushing the “TEMP. ” or “TEMP. ” buttons.
   Stop
   Push button. The operation lamp goes off, and the operation stops. In the Cool, Dry, or Auto (cooling) mode, the fan runs for 10 minutes (or more) for self clean operation.

NOTE

Auto Changeover

• When in Auto Mode, the unit selects the operating mode (cooling, heating or fan only) based on the user set point temperature.
• If the Auto mode is uncomfortable, you can select the desired conditions manually.

Cooling

• If there is a demand for cooling, unit will start approximately 1 minute after mode is selected.

Heating

• If there is a demand for heating, unit will start approximately 3 to 5 minutes after the mode is selected.
• After the heating operation has stopped, fan may continue to run for approx. 30 seconds.
• When the room temperature reaches the set temperature, the outdoor unit stops and the indoor unit fan runs at extremely low speed.

During defrost operation, the fan stops so that cool air is not discharged. (“” Pre-heat is displayed.)
When restarting the operation after stop
When the unit is attempted to restart immediately after it was stopped, the unit can not start for approx. 3 minutes this is to protect the compressor.

8 °C Operation (For object pre-heating)

(SDI series 4 and DI series 4 (RAV-SP***4AT / RAV-SM***4AT) only)
The air conditioner can control the heating temperature to about 8 °C in the heating mode. The 8 °C heating operation requires settings with the wired remote controller. Ask the installer or dealer for the settings according to the installation manual of the indoor unit.

Start

1. Set the displayed temperature to 18 °C in the heating mode by pushing TEMP. button.
2. Set the displayed temperature to 8 °C by pushing TEMP. button for at least four seconds.

Stop

1. Set the displayed temperature to 18 °C by pushing TEMP. button.
   • The air conditioner returns to the normal Heat mode. Select a desired temperature and operation mode.

NOTE

• The discharged air temperature is lower than that in the normal heating operation.
• The room temperature may not be heated evenly depending on the remote controller installation location.
• The room temperature may not reach 8 °C depending on the room size or the installation conditions.
• Setting for fan speed is available during the 8 °C heating operation.
  The 8 °C heating operation is cancelled in the following cases.
• When operation is stopped with button
• When another operation mode is selected with button
• When temperature setting or operation mode is changed or operation is started / stopped by the wireless remote controller or the central control remote controller.
• When this operation mode is used, observe proper operating hours and periodic maintenance by service staff is recommended.

Timer Operation

Three timer modes are available: (Setting of up to 168 hours is enabled.)

• Off timer: The unit stops when the set time is reached.
• Repeat Off timer: The unit stops daily when the set time is reached.
• On timer: The unit starts when the set time is reached.

Set

1. Push button.
   The timer mode changes with every push of the button.



2. Push to select “set time”.
   • With every push of button, the set time increases by 0.5 hr (30 minutes).
     • When setting a time more than 24 hours for timer operation, timer can be set in increments of 1 hr.
     • The maximum set time is 168 hr (7 days).
     • The remote control displays the set time with time (between 0.5 and 23.5 hours) (*1) or number of days and time (24 hours or more) (*2) as shown below.

   • With every push of button, the set time decreases by 0.5 hr (30 minutes) (0.5 - 23.5 hours) or 1 hr (24 - 168 hours).
     Example of remote control display



3. Push button.
   icon disappears and time display goes on, and or icon flashes.
   (When On timer is activated, time and On timer are icons and other icons disappear.)
4. Cancel timer operation
   Push button.
   Timer icon disappears.

NOTE

• When the operation stops after the timer reached the preset time, the Repeat Off timer resumes the operation by pushing button and stops the operation after the time of the timer has reached the set time.
• When is pushed while the Off timer function of the air conditioner is active, the indication of the timer function disappears and then appears again after about 5 seconds.
  This is due to normal processing of the remote controller

Adjustment of wind direction

For best cooling and heating performance, adjust the louvers (adjustment plates of up / down wind direction) appropriately. Cold air descends and warm air rises, so to heat a room tilt the louvers downward, and to cool a room tilt them horizontally.

CAUTION

Direct the louvers horizontally for cooling.
If the louvers stay pointed downward during cooling, condensation may form on the discharge port and / then drops from the louvers.

NOTE
If the louvers stay pointed straight out horizontally when heating, the room temperature may be unevenly distributed.

• When the air conditioner is not working, the louvers are directed horizontally automatically.
• The louvers are directed horizontally when heating begins, during defrost operation, or during the minimum operation after reaching the set temperature.
  When a swing or louver direction setting is made at this time, the remote controller display varies with the setting, but the louvers stay pointed straight out horizontally.
  When the air conditioner starts heating, the louvers are directed to the set direction.

How to set up the wind direction

1. Push during operation.
   The wind direction changes for every push of the button.

In Heat operation
Direct the louver (adjustment plate of up / down wind direction) downward. If directing at horizontally, hot air may not come to the foot.

In Cool / Dry operation
Direct the louver (adjustment plate of up / down wind direction) horizontally. If directing it downward, the dew may form on the surface of the air discharge port and may drop down.

In Fan operation
Select a desired louver direction.

How to start swinging

1. Push , set the louver (adjustment plate of up / down wind direction) direction to the lowest position, and then push again. SWING is displayed and the up / down wind direction is automatically selected.

Display during swinging

How to stop swinging

1. Push at a desired position while the louver is swinging.
   When is pushed after that, wind direction can be set again from the highest position.
   However, even if is pushed while the louver is swinging, the louver position is displayed as follows and highest position of the louver may not be selected.

Display when swinging is stopped

In this case, push again two seconds later.

• In Cool / Dry operation, the louver does not stop as it directs downward. If stopping the louver as it directs downward during swing operation, it stops after moving to the third position from the highest position.

Display when stopping the swing

Unit select button

• When multiple indoor units are controlled with one remote controller, wind direction can be set for each indoor unit by selecting individually.
• To set wind direction individually, push button (left side of the button) to display an indoor unit number in the control group. Then set the wind direction of the displayed indoor unit.
• When no indoor unit number is displayed, all indoor units in the control group can be controlled simultaneously.

• Each time button (left side of the button) is pushed, the display changes as follows:



How to set louver wind direction individually

1. Select an indoor unit to be set by pushing (left side of the button) during operation.
   The indoor unit number changes each time you push the button.



   When no unit number is displayed, all indoor units are selected.

2. Select a louver you want to adjust change by pushing (right side of the button).
   Each time you push the button, the display on the left of the remote controller changes as follows:



   When no louver number is displayed, all four louvers are selected.

   Determine wind direction of the selected louver by pushing.
   Each time you push the button, the display changes as follows:



   During COOL (DRY) mode, (4) and (5) are not displayed.

• When the horizontal louver is pointing horizontally in HEAT mode, the air may not warm up the room evenly.

Power saving mode

The power saving mode saves energy by limiting the maximum current which will effect heating or cooling capacity that the unit can generate.

• Push button during operation.
  The air conditioner enters power saving mode.
  appears on the display.
• Power saving mode will stay in effect until it is cancelled.
  To cancel the power saving mode, push button again.
  disappears.

To configure the power saving mode settings
When is used, the displayed setting changes, but the actual power level is always “75%”.

1. Push button for at least four seconds when the air conditioner is not working.
   symbol, and numbers fl ash.

2. Push (left side of the button) to select an indoor unit to be set.
   Each time you push the button, UNIT No. change as follows:



   The fan of the selected unit runs.

3. Push buttons, to adjust the power saving mode setting.
   Each push of the button changes the power level by 1% within the range from 100% to 50%.
   The factory default is 75%.



4. Push button.
5. Push button to complete the setting.

NOTE

• During a Power save operation, the maximum current of the outdoor unit is limited. The operating power consumption might not be lowered, however, under certain conditions.
• Capability of the air conditioner is saved during the Power save operation. The room may not become cool or warm enough.
• A Power save operation cannot be programmed with the central control remote controller and depending on the installation conditions of the outdoor unit.
• If multiple units are connected as a group, all of them are put in Power save mode.
• The Power save feature might be restricted, depending on the outdoor unit used. For details, contact the original retailer.

Setup Guide

Setting up the Toshiba Air Conditioner Indoor Unit RAV-RM561MUT-E involves several steps:

• Installation: Ensure the indoor unit is installed by a certified professional to avoid any potential risks or voiding of the warranty.
• Assembly: Connect the indoor unit to the outdoor unit according to the manufacturer's instructions. Ensure all connections are secure and properly sealed.
• Configuration: Use the remote control to configure settings such as temperature, fan speed, and mode selection.
• Pairing: If using additional features like Wi-Fi connectivity, follow the provided instructions to pair the unit with your smartphone or other devices.

Maintenance

WARNING

Cleaning the air filter and other parts of the air filter involves dangerous work in high places, so be sure to have a qualified installer or qualified service person to do it.
Do not attempt it by yourself.
After the cooling or dry auto (cooling) operation has finished, the dry operation is performed and the fan starts running. When cleaning the unit, stop the drying operation forcibly and turn off the circuit breaker to avoid electric shock.

Cleaning air filters
Clogged air filters will reduce the cooling and heating performance.

1. If “” is displayed on the remote controller, clean the air filters.
2. When the cleaning of air filters has been completed, push button. “” disappears.

When the unit will not be used for a long time

1. Perform the fan operation for a couple of hours to dry inside.
2. Press on the remote controller to stop running, and turn off the circuit breaker.
3. Clean the air filters and reinstall them.

Before the cooling season

Clean the drain pan
Contact the dealer where you purchased the product.
(Drain does not work if the drain pan or vent is clogged. In some cases the drain may overflow and wet the wall or floor. Be sure to clean the drain pan before the cooling season.)

Check periodically

• If the unit is used for a long time, parts may deteriorate and cause malfunction or bad drainage of dehumidified water depending on the heat, humidity, or dust.
• In addition to the usual maintenance, it is recommended that you have the unit checked and maintained by the dealer where you purchased it.

NOTE

• For environmental conservation, it is strongly recommended that the indoor and outdoor units of the air conditioner in use be cleaned and maintained regularly to ensure efficient operation of the air conditioner.
• When the air conditioner is operated for a long time, periodic maintenance (once a year) is recommended.
• Furthermore, regularly check the outdoor unit for rust and scratches, and remove them or apply rustproof treatment, if necessary.
• As a general rule, when an indoor unit is operated for 8 hours or more daily, clean the indoor unit and outdoor unit at least once every 3 months. Ask a professional for this cleaning / maintenance work.
• Such maintenance can extend the life of the product though it involves the owner’s expense.
• Failure to clean the indoor and outdoor units regularly will result in poor performance, freezing, water leakage, and even compressor failure.

Maintenance List

Warning indications on the air conditioner unit

Precautions for Safety

The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual.

WARNING

General

• Carefully read Owner’s Manual before starting the air There are many important things to keep in mind for daily operation.
• Ask for installation to be performed by the dealer or a Only a qualified installer (*1) is able to install an air conditioner. If a non-qualified person installs an air conditioner, it may result in problems such as fire, electric shock, injury, water leakage, noise and vibration.
• Do not use any refrigerant different from the one specified for complement or Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
• Places where the operation sound of the outdoor unit may cause a (Especially at the boundary line with a neighbour, install the air conditioner while considering the noise.)

Transportation and storage

• To transport the air conditioner, wear shoes with protective toe caps, protective gloves, and other protective clothing.
• To transport the air conditioner, do not take hold of the bands around the packing You may injure yourself if the bands should break.
• Before stacking the packing cartons for storage or transportation, heed the precautions written on the packing cartons. Failure to heed the precautions may cause the stac.
• The air conditioner must be transported in stable If any part of the product broken, contact your dealer.
• When the air conditioner must be transported by hand, carry it by two or more

Installation

• Only a qualified installer(*1) or qualified service person(*1) is allowed to carry out the electrical work of the air conditioner. Under no circumstances must this work be done by an unqualified individual since failure to carry out the work properly may result in electric shocks and / or electrical.
• After the installation work has been completed, have the installer explain about the circuit breaker In the event that trouble has occurred in the air conditioner, set the circuit breaker to the OFF position, and contact a service person.
• If the unit is installed in a small room, take appropriate measures to prevent the refrigerant from exceeding the limit concentration even if it Consult the dealer from whom you purchased the air conditioner when you implement the measures. Accumulation of highly concentrated refrigerant may cause an oxygen deficiency accident.
• Do not install the air conditioner in a location that may be subject to a risk of expire to a combustible If a combustible gas leaks and becomes concentrated around the unit, a fire may occur.
• Use the company-specified products for the separately purchased Use of non-specified products may result in fire, electric shock, water leakage or other trouble. Have the installation performed by a professional.
• Confirm that earthing is performed correctly

Operation

• Before opening the intake grille of the indoor unit or service panel of the outdoor unit, set the circuit breaker to the OFF Failure to set the circuit breaker to the OFF position may result in electric shocks through contact with the interior parts. Only a qualified installer(*1) or qualified service person(*1) is allowed to remove the intake grille of the indoor unit or service panel of the outdoor unit and do the work required.
• Inside the air conditioner are high-voltage areas and rotating parts. Due to the danger of electric shocks or of your fingers or physical objects becoming trapped in the rotating parts, do not remove service panel of the outdoor When work involving the removal of these parts is required, contact a qualified installer or a qualified service person.
• Do not move or repair any unit by Since there is high voltage inside the unit, you may get electric shock when removing the cover and main unit.
• Use of a stand more than 50 cm high to clean the filter of the indoor unit or to carry out other such jobs constitutes working at Due to the danger of falling off the stand and injuring yourself while working at heights, this kind of work should not be done by unqualified individuals. When this kind of work must be carried out, do not do it yourself but ask a qualified installer or a qualified service person to do it for you.
• Do not touch the aluminum fin of the outdoor You may injure yourself if you do so. If the fin must be touched, do not touch it yourself but contact a qualified installer or a qualified service person.
• Do not climb onto or place objects on top of the outdoor You may fall or the objects may fall off of the outdoor unit and result in injury.
• Do not place any combustion appliance in a place where it is directly exposed to the wind of air conditioner, otherwise it may cause imperfect
• When the air conditioner is operated with a combustion appliance in the same place, ventilate the room Poor ventilation causes oxygen shortage.
• When the air conditioner is used in a closed room, sufficiently ventilate the Poor ventilation causes oxygen shortage.
• Do not expose your body to cool air directly for a long time and do not cool yourself Doing so may result in deteriorated physical condition and ill health.
• Do not insert your finger or a stick into the air intake.
• Doing so may result injury as the fan is rotating at high speed inside the unit.
• Consult the shop where you purchased the air conditioner if air conditioning (cooling and heating) is not performed properly as a refrigerant leakage may be the cause. Confirm the repair details with a qualified service person(*1) when the repair includes additional charging of the
• Stop running the air conditioner and turn off the breaker before cleaning. Otherwise, injury may result as the fan is rotating at high speed inside the

Repairs

• If there is any kind of trouble (such as when an error display has appeared, there is a smell of burning, abnormal sounds are heard, the air conditioner fails to cool or heat or water is leaking) has occurred in the air conditioner, do not touch the air conditioner yourself but set the circuit breaker to the OFF position, and contact a qualified service person. Take steps to ensure that the power will not be turned on (by marking “out of service” near the circuit breaker, for instance) until qualified service person arrives. Continuing to use the air conditioner in the trouble status may cause mechanical problems to escalate or result in electric shocks or other
• If the fan grille is damaged, do not approach the outdoor unit but set the circuit breaker to the OFF position, and contact a qualified service person to have the repairs Do not set the circuit breaker to the ON position until the repairs are completed.
• If there is a danger of the indoor unit’s falling, do not approach the indoor unit but set the circuit breaker to the OFF position, and contact a qualified installer or a qualified service person to refit the Do not set the circuit breaker to the ON position until the unit has been refitted.
• If there is a danger of the outdoor unit’s toppling over, do not approach the outdoor unit but set the circuit breaker to the OFF position, and contact a qualified installer or a qualified service person to have the improvements or refitting done. Do not set the circuit breaker to the ON position until the improvements or refitting is completed.
• Do not customize the Doing so may result in fire, electric shock or other trouble.

Relocation

• When the air conditioner is to be relocated, do not relocate it yourself but contact a qualified installer or a qualified service Failure to relocate the air conditioner properly may result in electric shocks and / or a fire.

CAUTION

To disconnect the appliance from the mains supply.

• This appliance must be connected to the mains by means of a switch with a contact separation of at least 3 mm.

The installation fuse (all types can be used) must be used for the power supply line of this air conditioner. Installation

• Certainly lay the drain hose for perfect Improper drainage may cause flooding in the house and getting furniture wet.
• Connect the air conditioner to an exclusive power supply of the rated voltage, otherwise the unit may break down or cause a
• Confirm that the outdoor unit are fixed on the Otherwise, falling down of the units or other accidents may occur.

Operation

• Do not use this air conditioner for special purpose such as preserving food, precision instruments, art objects, breeding animals, car,
• Do not touch any switches with wet finger, otherwise you may get an electric
• If the air conditioner will not be used for a considerably long time, turn off the main switch or the circuit breaker, for safety.
• To make the air conditioner operate in its original performance, operate it within the range of the operating temperature specified in the Otherwise it may cause a malfunction, or water leak from the unit.
• Prevent any liquid from falling into the remote Do not spill juice, water or any kind of liquid.
• Do not wash the air conditioner. Doing so may result in electric
• Check whether the installation base and other equipment have become deteriorated after being used for a long Leaving them such condition may result in the unit’s falling down and causing injury.
• Do not leave flammable sprays or other flammable materials near the air conditioner, and do not spray flammable aerosol directly to the air conditioner. They may catch
• Stop running the air conditioner and turn off the breaker before cleaning. Otherwise, injury may result as the fan is rotating at high speed inside the
• Ask for cleaning of the air conditioner to be performed by the dealer
• Cleaning the air conditioner in an improper manner may cause damage to plastic parts, insulation failure of electric parts or other parts, and result in a malfunction. In the worst case, it may result in water leakage, electric shock, smoke emission or fire.
• Do not put a water container such as a vase on the unit
• Water intrusion into the unit may occur and it may cause deterioration of electric insulation and result in electric shock.

Troubleshooting

Check the points described below before requesting repair.

If there is something unusual even after checking the above, stop running the unit, turn off the circuit breaker, and inform the dealer where you purchased the product of the product number and symptom. Do not attempt to repair the unit by yourself as doing so is dangerous. If the check indicator ( etc.) is displayed on the remote controller LCD, inform the dealer of its content as well.

If any of the following occur, stop running the unit immediately, turn off the circuit breaker, and contact the dealer where you purchased the product.

• The switch does not work properly.
• The circuit breaker often blows out.
• You unintentionally put a foreign object or water inside.
• The unit cannot be run even after the cause of the protective device activation is removed.
• Other unusual conditions are found.

Confirmation and check

When an error occurred in the air conditioner, an error code and indoor UNIT No. appear on the display part of the remote controller.
The error code is only displayed during the operation.
If the display disappears, operate the air conditioner according to the following “Confirmation of error log” for confirmation.

Confirmation of error log

When an error occurred on the air conditioner, the error log can be confirmed with the following procedure. (The error log is stored in memory up to 4 errors.)
The log can be confirmed from both operating status and stop status.

1. When and buttons are pushed at the same time for 4 seconds or more, the following display appears.
   If is displayed, the mode enters in the error log mode.
   • [01: Order of error log] is displayed in CODE No..
   • [Error code] is displayed in CHECK.

   • [Indoor unit address in which an error occurred] is displayed in Unit No.



2. Every pushing of button used to set temperature, the error log stored in memory is displayed in order.
   The numbers in CODE No. indicate CODE No. [01] (latest) → [04] (oldest).
   REQUIREMENT
   Do not push button because all the error log of the indoor unit will be deleted.
3. After confirmation, push button to return to the usual display.

Operations and Performance IN Toshiba Air Conditioner Indoor Unit

Check before running

• Check whether the earth wire is cut or disconnected.
• Check whether the air filter is installed.
• Turn on the circuit breaker 12 hours or more before starting operation.

3 minutes protection function

• 3-minutes protection function prevents the air conditioner from starting for initial 3 minutes after the main power switch / circuit breaker is turned on for re-starting the air conditioner.

Power failure
Power failure during operation will stop the unit completely.

• To restart the operation, push the ON / OFF button on the remote controller.
• Lightning or a wireless car telephone operating nearby may cause the unit to malfunction. Turn off the main power switch or circuit breaker and then turn them on again. Push the ON / OFF button on the remote controller to restart.

Defrosting operation
If the outdoor unit is frosted during the heating operation, defrosting starts automatically (for approximately 2 to 10 minutes) to maintain the heating capacity.

• The fans in both indoor and outdoor units will stop during the defrosting operation.
• During the defrosting operation, the defrosted water will be drained from the bottom plate of the outdoor unit.

Heating capacity

• In the heating operation, the heat is absorbed from the outside and brought into the room. This way of heating is called heat pump system. When the outside temperature is too low, it is recommended to use another heating apparatus in combination with the air conditioner.

Protective device

• Stops operation when the air-conditioner is overloaded.
• If the protective device is activated, the unit stops running, and the operation indicator and check indicator on the remote controller blink.

If the protective device is activated

• Turn off the circuit breaker and perform a checkup. Continued running may cause a malfunction.
• Check whether the air filter is installed. If not, the heat exchanger may be clogged with dust and water leakage may occur.

During cooling

• The air intake or discharge of the outdoor unit is clogged.
• Strong wind continuously blows against the discharge of the outdoor unit.

During heating

• The air filter is clogged with a large amount of dust.
• The air intake or discharge of the indoor unit is clogged.

Do not turn off the circuit breaker

• During the air-conditioning season, leave the circuit breaker turned on, and use the ON / OFF key on the remote controller.

Attention to snowfall and freeze on the outdoor unit

• In snowy areas, the air intake and air discharge of the outdoor unit are often covered with snow or frozen up. If snow or freeze on the outdoor unit is left as it is, it may cause machine failure or poor warming.
• In cold areas, pay attention to the drain hose so that it perfectly drains water without water remaining inside for freeze prevention. If water freezes in the drain hose or inside the outdoor unit, it may cause machine failure or poor warming.

Air conditioner operating conditions
For proper performance, operate the air conditioner under the following temperature conditions:

If air conditioner is used outside of the above conditions, safety protection may work.

Installation

• Do not install the air conditioner in the following places
• Do not install the air conditioner in any place within 1 m from a TV, stereo, or radio set. If the unit is installed in such place, noise transmitted from the air conditioner affects the operation of these appliances.
• Do not install the air conditioner near a high frequency appliance (sewing machine or massager for business use, etc.), otherwise the air conditioner may malfunction.
• Do not install the air conditioner in a humid or oily place, or in a place where steam, soot, or corrosive gas is generated.
• Do not install the air conditioner in a salty place such as seaside area.
• Do not install the air conditioner in a place where a great deal of machine oil is used.
• Do not install the air conditioner in a place where it is usually exposed to strong wind such as in seaside area.
• Do not install the air conditioner in a place where sulfurous gas generated such as in a spa.
• Do not install the air conditioner in a vessel or mobile crane.
• Do not install the air conditioner in an acidic or alkaline atmosphere (in a hot-spring area or near a chemicals factory, or in a place subject to combustion emissions). Corrosion may be generated on the aluminum fin and copper pipe of the heat exchanger.
• Do not install the air conditioner near an obstacle (air vent, lighting equipment, etc.) that disturbs discharge air. (Turbulent airflow may reduce the performance or disable devices.)
• Do not use the air conditioner for special purposes such as preserving food, precision instruments, or art objects, or where breeding animals or growing plants are kept.
• (This may degrade the quality of preserved materials.)
• Do not install the air conditioner over an object that must not get wet. (Condensation may drop from the indoor unit at a humidity of 80 % or more or when the drain port is clogged.)
• Do not install the air conditioner in a place where an organic solvent is used.
• Do not install the air conditioner near a door or window subject to humid outside air.
  Condensation may form on the air conditioner.
• Do not install the air conditioner in a place where special spray is used frequently.

Be careful with noise or vibrations

• Do not install the air conditioner in a place where noise by outdoor unit or hot air from its air discharge annoys your neighbors.
• Install the air conditioner on a solid and stable foundation so that it prevents transmission of resonating, operation noise and vibration.
• If one indoor unit is operating, some sound may be audible from other indoor units that are not operating.

Indoor Unit RAV-RM561MUT-E Pros & Cons

Pros

• Energy Efficiency: The inverter technology ensures optimal energy consumption, making it an eco-friendly choice.
• Advanced Air Purification: The built-in air filter helps maintain clean and healthy indoor air quality.
• Quiet Operation: The unit operates at low noise levels, making it suitable for all rooms.
• Modern Design: Sleek and compact design that fits well in any interior.
• User-Friendly Interface: Easy-to-use remote control with multiple functions.

Cons

• Higher Initial Cost: Although energy-efficient, the initial purchase price may be higher than other models.
• Complex Installation: Requires professional installation, which may add additional costs.
• Filter Maintenance: Regular cleaning of the air filter is necessary to maintain performance.

Customer Reviews

Customers have generally praised the Toshiba Air Conditioner Indoor Unit RAV-RM561MUT-E for its efficient cooling and quiet operation. Many reviewers appreciate the advanced air purification features and the user-friendly interface. However, some users have noted that the initial cost is higher compared to other models on the market.

A common complaint is the complexity of the installation process, which requires professional assistance. Despite this, most customers are satisfied with the overall performance and durability of the unit.
