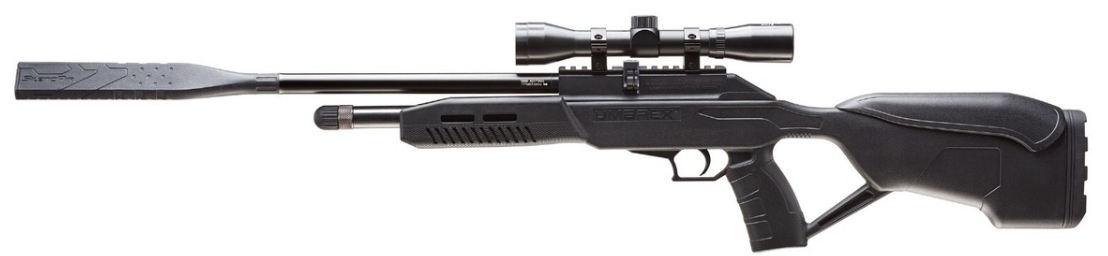

Umarex Fusion 2 Pellet Bolt Action Air Rifle 700FPS

Introduction to the Umarex Fusion 2 CO2 Air Rifle

The Umarex Fusion 2 Pellet Bolt Action Air Rifle 700FPS represents a significant advancement in affordable, high-performance CO2-powered airguns designed for both recreational shooters and pest control enthusiasts. This innovative rifle combines exceptional accuracy with whisper-quiet operation, making it an ideal choice for backyard plinking, target shooting, and light pest elimination without disturbing neighbors or family members. The Umarex Fusion 2 features cutting-edge SilencAir noise suppression technology paired with impressive velocity capabilities, delivering performance comparable to much more expensive PCP (Pre-Charged Pneumatic) systems at a fraction of the cost.

Built for shooters who value both precision and practicality, the Umarex Fusion 2 Pellet Bolt Action Air Rifle 700FPS weighs just 6.5 pounds, making it approximately 2 pounds lighter than comparable break-barrel air rifles, which enhances portability and reduces shooter fatigue during extended shooting sessions  . The rifle comes complete with a 4x32 scope and two 9-round magazines, providing everything needed to start shooting immediately out of the box. With an estimated price range between $250-$350, the Umarex Fusion 2 represents exceptional value for serious airgun enthusiasts and casual shooters alike.

This CO2-powered pellet rifle is particularly suited for backyard enthusiasts, target shooters, and those seeking a quiet alternative to traditional firearms or louder air rifle platforms. Whether you're interested in precision target shooting at distances up to 25 yards or managing garden pests, the Umarex Fusion 2 delivers consistent, reliable performance with minimal noise output, making it perfect for residential areas where noise restrictions apply.

Technical Specifications of the Umarex Fusion 2

Core Performance Specifications:

• Caliber: .177 (4.5mm)
• Maximum Velocity: 700 FPS with alloy pellets; 650 FPS with lead pellets
• Power Plant: CO2 (dual 12-gram cartridges or single 88-gram cartridge)
• Action Type: Bolt-action repeater
• Magazine Capacity: 9-round rotary magazines (two included)
• Barrel Length: 18.50 inches
• Overall Length: 40.55 inches
• Weight: 5.95-6.5 pounds
• Trigger: Single-stage, adjustable
• Safety: Manual safety
• Loudness Rating: 2 (Low-Medium)

Accuracy and Shot Count:

• Shots Per Fill: 70+ shots with dual 12-gram cartridges; 250+ shots with single 88-gram cartridge
• Shot Consistency: Standard Deviation of 5.5 FPS (PCP-level consistency)
• Accuracy Range: Sub-MOA accuracy at 25 yards with proper ammunition selection
• Effective Range: Optimal accuracy maintained to 30+ yards

Featured Components and Accessories:

• SilencAir 5-chamber noise-dampening moderator system
• Picatinny/Weaver rail for scope mounting
• M-Lok accessory slots on stock sides
• Ambidextrous thumbhole polymer stock
• Rifled barrel for enhanced accuracy
• Included a 4x32 scope with rings
• Two 9-round pellet magazines

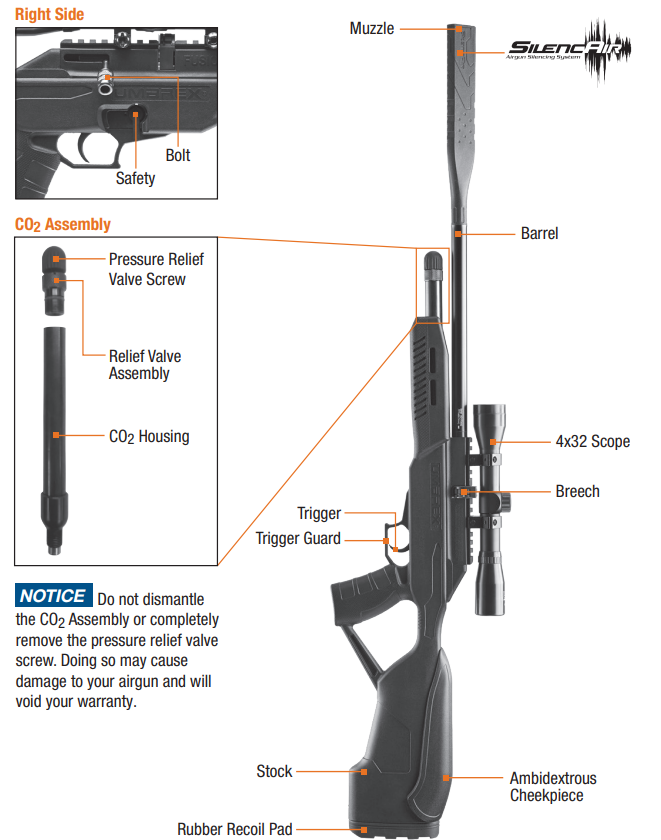

LEARNING THE PARTS OF YOUR AIR GUN

INSTALLING AND REMOVING CO2 CAPSULES

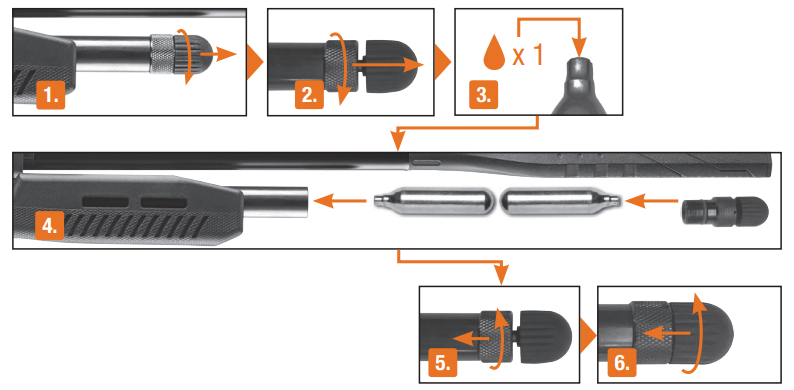

Installing 12g CO2 Capsules

1. Make sure the airgun is “ON SAFE”, unloaded, and pointed in a SAFE DIRECTION. Turn the pressure relief valve counter-clockwise to loosen.
2. Remove the relief valve assembly.
3. Before installing a CO2 capsule, place one drop of RWS Chamber lube on the top of the small end of each CO2 capsule.
4. Insert two (2) 12g CO2 capsules as shown.
5. Replace the relief valve assembly.
6. Tighten the pressure relief valve to pierce the CO2 capsules.

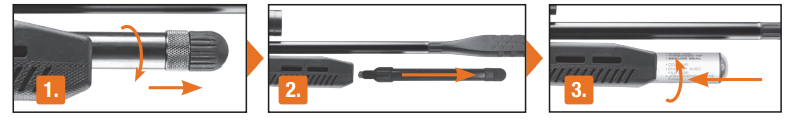

Installing an 88g CO2 Capsule

1. Make sure the airgun is “ON SAFE”, unloaded, and pointed in a SAFE DIRECTION. Loosen the CO2 assembly by rotating it counterclockwise. NOTE: Degas the CO2 assembly before removing.
2. Remove the entire CO2 assembly.
3. Insert and screw in the 88g CO2 capsule.

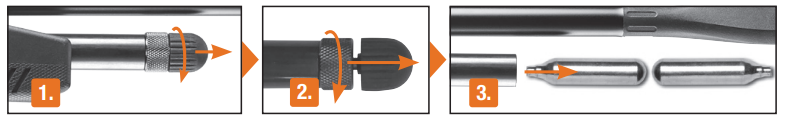

Removing 12g CO2 Capsules

1. Make sure the airgun is “ON SAFE”, unloaded, and pointed in a SAFE DIRECTION. Turn the pressure release valve counter-clockwise to loosen.
2. Once all air has been discharged, remove the relief valve assembly.
3. Remove the CO2 capsules and discard.

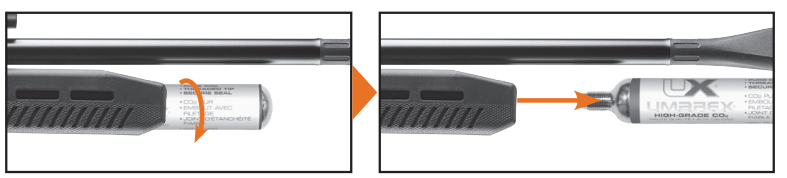

Removing an 88g CO2 Capsule

1. Make sure the airgun is unloaded and pointed in a SAFE DIRECTION.
2. Shoot off any remaining CO2 and put the airgun "ON SAFE".
3. Allow any remaining gas to vent by slowly unscrewing the capsule counterclockwise. Be careful to avoid all contact with escaping gas.
4. Remove the CO2 capsule.
   NOTE: A slight seepage of CO2 may occur until the pithe ercing screw is tight.

 USE AND HANDLING OF CO2 CAPSULES
Certain conditions may affect a CO2 capsule, which can impact its proper performance. These conditions include the usage, maintenance, and storage at temperatures that are higher or lower than normal outdoor temperatures
(60º-80º F/16º-27º C). Another condition may be when the airgun is fired rapidly.

1. High temperatures can increase pressure in the CO2 capsule and also within the airgun, leading to higher than standard operating pressure. This excess pressure could cause the gun to malfunction or be permanently damaged. The maximum storage or operation temperature should never exceed 122° F
   (50° C). This temperature can be reached if you leave the airgun under direct sunlight on a bright day. Thus, to ensure proper gun operation, do not expose it to
   high temperatures or direct sunlight for long periods of time. Otherwise, the CO2 capsule could overheat and explode, which could damage the airgun and cause injuries or death to people around it.
2. Fast consecutive shooting may produce a decrease in temperature in the airgun, as well as the CO2 capsule. This could result in lower projectile velocities and may even lower gas pressure enough so that the air rifle will not fire. This condition can be especially apparent when shooting in cold weather and can be avoided by allowing more time between shots. This permits the gas to increase in temperature and pressure and produce normal velocities.
3. During rapid fire, the muzzle velocity of each shot will diminish. This can affect shooting accuracy, and you will get fewer shots per CO2 capsule.
4. Care should be exercised to ensure that the airgun is not shot with a CO2 capsule that is low in pressure. Here are some indicators of insufficient pressure:
   1. The sound of the shot is not as loud as when the capsule is full.
   2. The projectile hits the target, but in a lower position than it would with a full CO2 capsule (that is, the shooting speed has dropped).

LOADING YOUR AIR RIFLE

1. Make sure the airgun is “ON SAFE” and pointed in a SAFE DIRECTION. Cock the air rifle by pulling the bolt back all the way. The rifle should click,,k indicating it is cocked.
2. Load a pellet and rotate one space. Continue loading and rotating until nine (9) .177 caliber pellets are carefully loaded into the rotary magazine.
3. Insert the magazine.
4. Push the bolt forward and down to seat the pellet.

AIMING AND FIRING SAFELY

• Always aim your air rifle in a SAFE DIRECTION. Always choose your target carefully. It is best to shoot at a paper bullseye target which is attached to a safe backstop. A heavy blanket should be hung behind the target backstop to prevent ricochet should you miss the backstop. Think about what you will hit if you miss the target.
• When you are absolutely sure your air rifle is aimed at a safe target and you are ready to fire, put your air rifle “OFF SAFE” (see SECTION 3. OPERATING THE SAFETY). Squeeze the trigger.
• NOTE: Many factors affect airgun performance and velocity, including brand of projectile, lubrication, barrel condition, and temperature.

TROUBLESHOOTING

Unloading a Pellet
Fire the pellet at a SAFE TARGET to unload the airgun. If this is not practical, put the air rifle “ON SAFE”, cock the bolt back to open the breech, and push the pellet from the chamber by running a cleaning rod through the muzzle end. Insert 2 RWS Cleaning Pellets and discharge into a safe target.

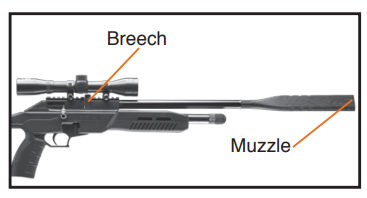

Removing a Jammed Pellet

• NEVER LOOK DOWN THE MUZZLE.

If a pellet is jammed in the barrel, DO NOT reload the air rifle.

1. Cock the air rifle (by pulling back on the bolt), push the bolt forward, and lock. Point the air rifle in a safe direction.EDIRECTION: ON, put the air rifle in the “OFF SAFE” position and squeeze the trigger to fire.
2. If the air rifle is still jammed, remove the CO2 from the air rifle (see Section 4).
3. With the bolt locked back, insert the correct caliber ramrod into the muzzle and push the jammed pellet out. Do not try to reuse that pellet. If you are not able to unjam your air rifle, contact Umarex USA’s Service Department.

CARE AND MAINTENANCE

NEVER STORE A LOADED OR COCKED AIRGUN. Unload a pellet from the airgun. Keep the air rifle away from children and untrained shooters. Store pellets separately from the air rifle to keep them from untrained shooters. Protect your air rifle from moisture and dirt; clean the airgun and wrap it in a smooth, dry cloth. If you are going to store your airgun for an extended period of time, be sure the barrel is protected. This can be accomplished by coating the bore with RWS Spring Cylinder Oil. Always use a soft cloth and insert the cleaning rod from the breech end on break-barreled rifles. Remove the oil completely before the next use. REMEMBER: Always check to see that the airgun is unloaded when getting from storage or from another person.

With care and routine inspections, your airgun will provide many sessions of shooting enjoyment. Abuse, neglect,, and continued exposure to the elements will impair the performance of any airgun.
Your Umarex® Air Rifle is designed to fire pellets only. We recommend the use of RWS Pellets because of their superb accuracy and dimensional uniformity. The correct caliber is clearly indicated on the rifle.

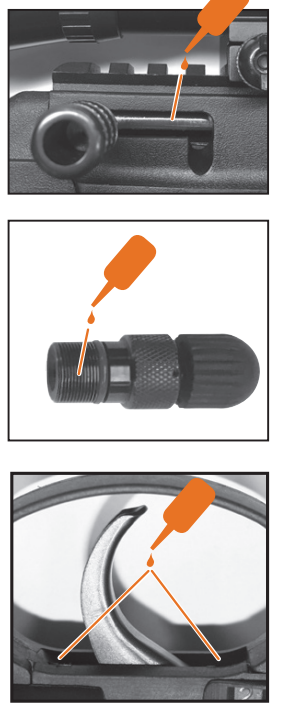

WORKING PARTS: The working parts (bolt and safety) require very little lubrication. Two (2) drops of RWS Air Chamber Lube every 1000 shots will suffice. Place a drop of oil on the o-ring of the relief valve assembly. The wearing surface, es such as the
CO2 reservoir threads, and the trigger mechanism should be lubricated with RWS Spring Cylinder Oil. Remember, a little is good—a lot is not better.
BARREL: In day-to-day use, very little dirt or residue will accumulate in the bore. This can be removed by using RWS Cleaning Pellets. NOTE: High-quality RWS Lead Pellets not only increase accuracy, but they also help to reduce lead deposit. During periods of regular use, the bore of the barrel should be cleaned periodically by means of a felt wad or a cleaning rod with a wool mop. Wire brushes should not be used. Insert the rod from the muzzle end.
SURFACE: The exposed metal parts (receiver, CO2 reservoir, screw heads, barrel, etc.) are a gun blue finish and MUST be wiped clean using a slightly oiled cloth after handling to prevent rust. Use light acid acid-free, and resin-free oil. RWS Spring Cylinder Oil is excellent for this.

YEAR LIMITED WARRANTY

• This product is warranted to the retail consumer for three years from the date of purchase against defects in material and workmanship and is not transferable.
• WHAT IS COVERED: Replacement parts and labor.
• WHAT IS NOT COVERED: Shipping charges to Umarex USA for defective products and damages caused by abuse or failure to perform normal maintenance,e as well as any other expense. Consequential damages, or incidental expenses, including property damage. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
• WARRANTY CLAIMS: Warranty Claims and Repair for U.S. and Canadian customers only. Call Umarex USA (479) 646-4210 and ask for the Service Department. If it is determined that a return is necessary, you will be issued a Return Authorization Number. Write this number boldly on the box and return the product prepaid to Umarex USA (Canadian customers will be provided with the address of an authorized Canadian Repair Facility). Your name, address, phone number, and a note explaining the defect found must be included in the package. A copy of the original dated cash register receipt must accompany the return. U.S. customers, include a check made out to Umarex USA in the amount provided by Umarex USA’s service department to cover shipping and handling.
• IMPLIED WARRANTIES: Any implied warranties, including the implied warranties of merchantability and fitness for a particular purpose, are limited in duration to three years from the date of retail purchase. SOME STATES DO NOT ALLOW
• LIMITATIONS ON HOW LONG IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. TO THE EXTENT ANY PROVISION OF THIS WARRANTY IS PROHIBITED BY FEDERAL, STATE, OR MUNICIPAL LAW, WHICH CANNOT BE PREEMPTED, IT SHALL NOT BE APPLICABLE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE AND COUNTRY TO COUNTRY.

Advantages and Disadvantages of the Umarex Fusion 2

Key Advantages:

• Exceptional Accuracy: Delivers sub-MOA accuracy comparable to rifles costing two to three times more, with consistent shot-to-shot performance at 25+ yards
• Quiet Operation: SilencAir technology produces minimal noise, enabling shooting in residential areas without disturbing neighbors
• Lightweight Design: At 6.5 pounds, the Umarex Fusion 2 is significantly lighter than comparable air rifles, reducing shooter fatigue
• Extended Shot Count: 70+ shots per dual 12-gram fill or 250+ shots with an 88-gram cartridge provides extended shooting sessions
• PCP-Level Consistency: CO2 consistency rivals premium PCP systems at a fraction of the cost and complexity
• Complete Package: Includes scope, two magazines, and all necessary accessories in one package
• Easy Magazine Loading: The 9-round rotary magazines are among the easiest to load on the market
• Excellent Value: Offers premium performance at a mid-range price point ($250-$350)

Notable Disadvantages:

• Long Trigger Pull: Some users report the trigger has an extended travel distance, though it remains single-stage and adjustable
• Basic Included Scope: While functional, the 4x32 scope is entry-level and may warrant upgrading for serious shooters
• Limited Power for Hunting: At 700 FPS maximum velocity, the Umarex Fusion 2 is not suitable for large game hunting and is best used for plinking and pest control
• Temperature Sensitivity: CO2 performance varies with ambient temperature, requiring temperature adjustments for consistent velocity
• CO2 Cost Considerations: Ongoing CO2 cartridge purchases add to operational costs compared to spring-powered alternatives

Authentic Customer Reviews and User Feedback

The Umarex Fusion 2 Pellet Bolt Action Air Rifle 700FPS has earned consistently positive reviews from users across multiple platforms, with particular praise for accuracy and quiet operation. One verified purchaser reported achieving "hole-on-hole" accuracy at 10 yards with the included scope, highlighting the rifle's inherent precision. Another experienced shooter compared the Umarex Fusion 2's performance favorably to high-end competition models, achieving approximately 36 shots per dual CO2 fill with an average velocity of 634 FPS and exceptional consistency with an extreme spread under 30 FPS.

Users consistently mention the rifle's lightweight handling and excellent ergonomics, with the ambidextrous stock receiving particular praise. The SilencAir noise-dampening system is frequently cited as a major advantage, with shooters noting they can use the rifle in residential settings without concern. However, some users recommend upgrading from the basic included scope for precision shooting at extended ranges.

Common recommendations from verified buyers include: using premium RWS or similar quality pellets in the 7-10 grain weight range for optimal accuracy, storing CO2 cartridges in cool locations to maintain performance consistency, and considering the 88-gram cartridge option for extended shooting sessions. The rifle consistently receives 4-5 star ratings, with users describing it as exceptional value for the price and a legitimate alternative to much more expensive air rifle platforms.

Best For: Backyard target shooting, recreational plinking, pest control in noise-sensitive areas, shooters seeking quiet operation without sacrificing accuracy, and those transitioning from firearms to air rifles.

```
