Introduction

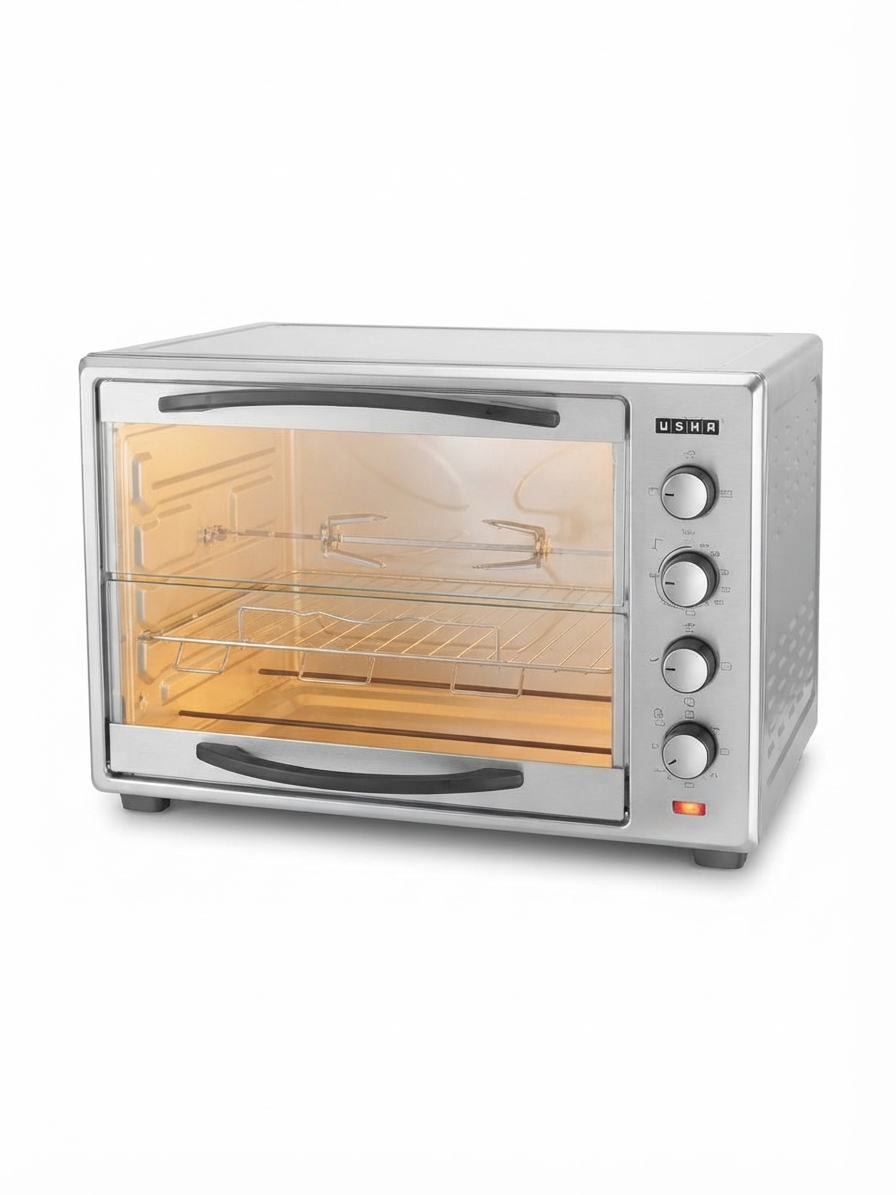

The Usha OTGW 3760 RCSS is a versatile oven toaster griller designed for household use. It comes with a range of accessories to cater to various cooking needs, including a crumb tray, baking tray, grill rack, rotisserie, skewer rods, and tongs. The oven features a user-friendly control panel with a rotisserie and convection function control, temperature control, mode control, and time control. The OTGW 3760 RCSS is available for purchase at a cost of $99.99

PRODUCT SPECIFICATIONS & TECHNICAL DETAILS

Note: In view of USHA policy of continual development, specifications may change without notice.


CARING FOR YOU

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read all instructions before using your OTGW and follow the same to prevent the risk of fire, electric

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious body harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause body injury or property damage

WARNING

1. Do not tamper with, or make any modifications / repairs to the product. Repairs should only be undertaken by a qualified service technician.
2. Do not use the appliance for anything other than intended use.
3. Accessible parts and accessories become hot during use. Always use handles, tongs or knobs. Young children should be allowed to operate the product under supervision only.
4. Do not operate the product if it is damaged.
5. Do not immerse the cord, plug or any other parts of the OTGW in water or any other liquids.
6. Do not store any item on top of the appliance when in operation. A fire may occur if the oven is covered or on coming in contact with any flammable material, including curtains, draperies, wallpapers, etc. when in operation.
7. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
8. Do not place or remove items from the OTGW without protective, insulated oven gloves.

CAUTION

1. Do not operate the oven with the door open.
2. Do not overcook the food, as it may result in the food catching fire and subsequent damage to the OTGW. Ensure cooking times are correctly set, small amounts of food require short cooking or heating times.
3. Do not block the exhaust outlets on the sides and back side of the OTGW.
4. Do not cook food wrapped in paper towels, unless your cookbook contains instructions for the food you are cooking.
5. Do not rinse the trays and other accessories by placing them in water immediately after cooking. This may cause damage or breakage.
6. Be certain to place the OTGW such that the front of the door is 8cm or more behind the edge of the surface on which it is placed, to avoid accidental tipping.
7. If smoke is observed, switch off and disconnect the OTGW from the power supply and keep the oven door closed to stifle any flames.
8. To disconnect, turn the timer knob to OFF, then remove the plug. Always hold the plug, and never pull the cord.
9. Unplug from the power outlet when the product is not in use and before cleaning.
10. Extreme caution must be exercised when moving a drip pan containing hot oil or other hot liquids.
11. Use extreme caution when removing the tray, racks, or disposing of hot grease or other hot liquids.
12. The oven should be cleaned regularly and any food deposits should be removed.
13. Do not clean the inside of the oven with metal scouring pads, which can touch electrical parts, creating a risk of electric shock.
14. Do not use containers made of anything other than metal or oven-proof glass.
15. Be sure that nothing touches the top or bottom elements of the oven during operation.
16. This appliance has a safety glass door. The glass is stronger than ordinary glass and more resistant to breakage. Glass can still break around edges. Avoid scratching the door surface or nicking edges.
17. This appliance is for HOUSEHOLD USE ONLY.

SAFETY PRECAUTIONS

1. Use an exclusive 230V socket with earthing.
2. Do not bend the power cord forcefully or break it.
3. Do not plug in or pull out the power cord with wet hands.
4. Do not use the oven for purposes other than cooking or sterilization such as cloth drying, etc.
5. Do not insert metal pins or wires through the vents or other openings in the oven body.
6. Do not plug in the power cord when the socket hole is loose or the plug is damaged.
7. Do not place the water container on the set.
8. Do not place heavy things on the set and do not cover the set with a cloth while using.
9. Do not install the set in a damp space or wet area.
10. Do not let children hang onto the oven door.
11. Do not hold food or accessories as soon as cooking is over.
12. Plug out the oven if it is not used for a long duration.

SAVE THESE INSTRUCTIONS
This appliance is intended for household use only.
(The appliance will not be covered under the manufacturer’s warranty if the product is used for commercial purposes or in an unintended way.) All details with regard to the installation, operation, and care are compiled to the best of our knowledge. No claims can be derived from the information provided, the illustrations, or descriptions in this manual.

• Save the instruction manual for future reference.
• If the appliance is given as a gift, please include the manual with the product.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts

Modifications of the product are not recommended and will void the warranty.

KNOW YOUR OTGW

IDENTIFICATION OF PARTS

Your OTGW comes with the following accessories:

1. Crumb Tray
2. Baking Tray
3. Grill Rack
4. Rotisserie
5. Skewer Rods – 4 each
6. Rotisserie Tong
7. Grill & Bake Tray Tong
8. Rotisserie Skewers

UNPACKING AND INSTALLING

By following these basic steps, you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidelines on where to install the oven. When unpacking your oven, make sure you remove all accessories and packing materials. Check to make sure that your oven has not been damaged during shipping.

1. Unpack your oven and place it on a flat, heat-resistant, and non-flammable surface.
2. Place the oven on the level location of your choice with more than 85 cm height but make sure there is at least 10 cm of space on the back and sides of the oven for proper ventilation. The front of the oven should be at least 8 cm from the edge of the surface to prevent tipping. Blocking the exhaust outlets on the rear and two sides can damage the oven.
3. To remove any dust that may have accumulated on the removable parts during packaging, clean the surface with a damp cloth. Do not immerse the oven in water or any other liquid.
4. Remove any stickers (except for any warning/caution stickers).
5. Plug the oven into a standard household socket. Make sure your oven is the only appliance connected to the socket.
6. Open your oven door by pulling the door handle. Place the crumb tray below the heating elements at the bottom side.
7. Before first use, heat the empty oven and leave the door open for at least ten minutes. This will burn off any excess lubricants found in the oven’s heating elements and is not harmful. A little smoke may be normal and will disappear within a few minutes.

Description

The Usha Oven Toaster Griller OTGW 3760 RCSS is designed with both functionality and aesthetics in mind. Its sleek metallic body not only adds a touch of modernity to your kitchen but also ensures durability. The appliance features a large capacity of 36 liters, making it perfect for baking, toasting, and grilling for the entire family. The cool touch handles provide added safety, while the adjustable heat control allows for precise temperature settings. The included accessories such as baking trays and grill trays enhance its utility, making it a comprehensive cooking solution.

INSIDE OF YOUR OTGW

OPERATING INSTRUCTIONS

KNOW THE CONTROL PANEL

1. ROTISSERIE AND CONVECTION FUNCTION CONTROL
   Use this knob to choose between convection, rotisserie, or rotisserie with convection function as per your requirement.
2. TEMPERATURE CONTROL
   Choose the desired temperature from 100°C to 250°C for baking or rotisserie function.

3. MODE CONTROL
   This oven is equipped with four heating modes for a variety of cooking needs. Choose the desired heating mode as per your requirement.



4. TIME CONTROL
   The timer knob is used to set the time as per the requirement of the recipe. To operate the timer, turn the knob to the right (clockwise) and set it to the required time. If cooking requires more than 60 minutes, the timer can be bypassed by using the STAY ON function. To bypass the timer, set the TIMER knob to the ON position. A bell rings when the programmed time is over.

TIMER INDICATOR
The Red Indicator will remain illuminated until the set time is over.

ILLUMINATION FUNCTION
A light is provided inside the oven and will be on when the timer is set. This facilitates easy viewing of the cooking process inside the cooking chamber.

PLACEMENT OF ACCESSORIES

1. Placing the Crumb Tray
   • Below the bottom heating element
2. Placing the Baking Tray
   1. Place in Slots 1 to 4
   2. Use Tongs to place and remove
3. Placing the Grill Tray
   1. Place in Slots 1 to 4
   2. Use Tongs to place and remove
4. Rotisserie Assembly and Placement
   1. Attach the holding pincers on the rotisserie
      • Slide the pincer onto the rotisserie rod
      • Tighten the screw to hold the pincer in place.
5. Rotisserie Assembly and Placement
   1. (b) Placing the rotisserie in the motor slot:
      • Use the Rotisserie tong to hold the rotisserie, with the pointed end on the right side.
      • Use the tong to place the rotisserie. First, insert the pointed end in the right-hand side motor groove, then place the left side in the resting groove.
6. Placement of Skewers
   • Skewer the food and place the skewer rods on the skewer rack.
   • Slide the rack in place inside the oven.

ROTISSERIE SKEWERS
The Rotisserie Skewers are used to make paneer tikka, chicken tikka, etc. There are 6 skewer rods provided with the accessory. The food is positioned on each of the skewers and the entire accessory is fixed in the rotisserie socket for delectable tikka.

HOW TO ASSEMBLE
Place food on the skewer rods. One by one, insert the pointed tip of each skewer inside the holes of the indicated plate (Step 1a). Lock each of the skewer heads as indicated on the second plate (Step 1b). Place the skewer assembly inside the OTG in the same way as you would place the rotisserie (Step 2).

Setup Guide

To get started with your Usha Oven Toaster Griller OTGW 3760 RCSS, follow these steps:

1. Unpack the appliance and accessories carefully.
2. Place the oven on a flat surface away from children and flammable materials.
3. Plug in the appliance and ensure it is properly connected to a power source.
4. Preheat the oven by setting the desired temperature and timer using the control knobs.
5. Use the baking tray or grill tray as required for different cooking tasks.

TIPS ON HOW TO USE

ROTISSERIE / ROTISSERIE SKEWERS

For best results, we recommend preheating the oven.

OPERATION

• Set the temperature control to desired temperature setting.
• Turn Function control to ROTISSERIE / ROAST position (as per requirement).
• Slide food through the rotisserie rod and fit the prongs on either side with the help of the screws provided in the prongs.
• Place one end of the rotisserie/rotisserie skewers in the groove provided on the sides of the chamber.
• Ensure that the food is centered on the rotisserie/rotisserie skewers.
• Place the other end of the rotisserie/rotisserie skewers on the opposite groove.
• For using the Rotisserie skewers, refer instructions mentioned on the previous page.
• Rotate the Timer to set required time.
• When cooking is complete, turn the timer to “OFF” position.
• A bell will ring at the end of the cooking cycle.
• Remove the rotisserie/rotisserie skewers by placing the hooks of the rotisserie tong under the grooves on either side of the rotisserie rod. Lift the left side of the rotisserie first by lifting it up and out. Then pull the rotisserie out of the drive socket and carefully remove it from the oven.

GRILL/BROIL

For best results, we recommend preheating the oven for 15 minutes at 250°C.

OPERATION

• Set the temperature control to desired temperature setting.
• Turn Function control to GRILL/BROIL position
• Slide the crumb tray into the lowest position.
• Place food on the wire rack and slide it into the top rack.
• Food should be placed as close as possible to the top heating element without it touching the element.
• Brush food with sauces or oil, as desired.
• Rotate the Timer to set required time.
• It is advisable to leave the door a little open.
• When cooking is complete, turn the timer to “OFF” position.
• A bell will ring at the end of the cooking cycle.

TOAST

Oven size allows you to toast larger quantities of food. If a small amount is being toasted, place food on the wire rack in the center of the oven.

OPERATION

• Set the temperature control to desired temperature setting.
• Turn Function control to TOAST position.
• Slide the crumb tray into the lowest position.
• Place food to be toasted on the wire rack and slide it into the middle rack with the indentations pointing down.
• Rotate the Timer to set required time.
• Turn the food according to your need (light or dark).
• When cooking is complete, turn the timer to “OFF” position.
•  A bell will ring at the end of the cooking cycle.

BAKE

Bake your favourite cookies, cakes, pies, brownies, etc. We do not recommend usage of oven roasting bags or glass containers in the oven. Never use plastic, cardboard, paper, or anything similar in the oven.

OPERATION

• Place the wire rack in the lowest rack.
• Preheat the oven for almost 15 minutes.
• Place food to be baked on the wire rack.
• Turn the function control to BAKE position.
• Turn the TIMER knob to ON position.
• A bell will ring at the end of the cooking cycle.
• When cooking is complete, turn the timer to “OFF” position.

MAINTENANCE & CLEANING

COMPLETELY CLEAN AND DRY ALL PARTS AFTER EVERY USE

• Unplug the oven and allow it to cool completely before any cleaning or maintenance activity
• Never allow water to spill on the tempered glass door when it is still warm.
• Ensure all acidic materials (lemon juice, oils, etc.) are cleaned promptly.
• To clean interior walls, use a damp cloth and a mild liquid soap solution or a soapy solution on a sponge. Keep the oven door open to let it dry.
• Never use harsh abrasives or corrosive products to clean the interiors. It can damage the oven.
• Do not use abrasive cleaners for the exteriors, as they could leave scratches on the body. Simply wipe the exterior with a clean cloth and dry thoroughly.
• Wire rack and baking tray are dishwasher safe. If heavily soiled, soak in warm soapy water or use a nylon scouring pad or nylon brush.
• Never wrap the power cord around the oven.

Troubleshooting

Here are some common issues and their solutions for the Usha Oven Toaster Griller OTGW 3760 RCSS:

• Issue: Oven not heating up. Solution: Check if the power cord is properly plugged in. Ensure that there are no blockages in the heating elements.
• Issue: Temperature not consistent. Solution: Adjust the thermostat settings. If the issue persists, contact customer support.
• Warning: Always use oven mitts or gloves when handling hot dishes or trays to avoid burns.

WARRANTY Usha OTGW 3760 RCSS

This appliance is warranted for 2 years on product against all manufacturing defects from the date of sale.

What Is Not Covered

• Service trips to your home to teach you how to use the product.
• If the product is connected to any voltage other than that shown on the rating plate.
• If the fault is caused by accident, neglect, misuse, or Act of God.
• If the fault is caused by factors other than normal domestic use or use in accordance with the owner’s manual.
• If the fault is caused by pests, for example, rats or cockroaches, etc.
• Noise or vibration that is considered normal, for example, spin sound, or warning beeps.
• Normal maintenance, which is recommended by the owner’s manual.
• Removal of foreign objects/substances from the machine: example, grit, moulds, food particles, etc.
• Replace fuses in or correct house wiring.
• Correction of unauthorized repairs.
• Incidental or consequential damage to personal property caused by possible defects with this appliance.
• If this product is used for commercial purposes, it is not warranted.
• If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.

Pros & Cons

Pros:

• Multifunctional: Can be used for baking, toasting, and grilling.
• Large Capacity: 36 liters capacity suitable for large families.
• Durable Construction: Metallic body ensures long life.
• Ease of Use: User-friendly interface with adjustable heat control.

Cons:

• Space Consumption: Requires significant counter space due to its size.
• Cleaning Challenges: Interior cleaning can be cumbersome due to its design.
• No Digital Display: Uses analog controls which might be less precise compared to digital displays.

Customer Reviews

Customers have generally praised the Usha Oven Toaster Griller OTGW 3760 RCSS for its versatility and ease of use. However, some users have noted that cleaning the interior can be a bit challenging. Here are some common complaints:

• Some users found the analog controls less intuitive compared to digital displays.
• A few customers reported issues with temperature consistency, requiring adjustments during use.
