Introduction

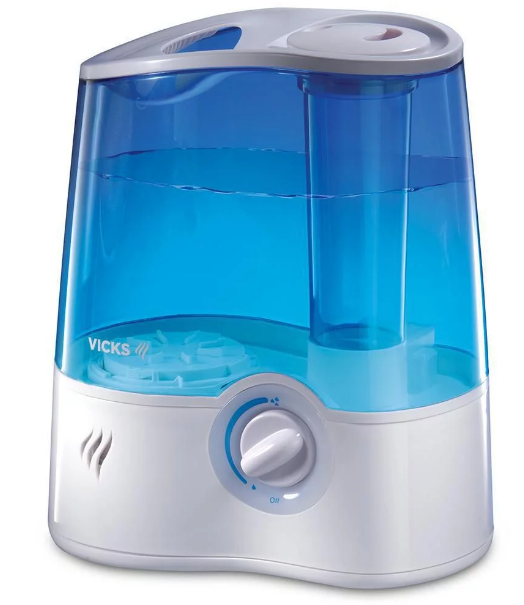

The Vicks Ultra Quiet Cool Mist Humidifier V5100NS is a powerful and efficient humidifier designed to provide soothing cool mist for up to 36 hours. This humidifier is perfect for large rooms up to 1000 square feet and is ideal for use in bedrooms, living rooms, and offices. The V5100NS features an elegant and compact design, making it a stylish addition to any room. With a whisper-quiet operation, this humidifier ensures a comfortable and peaceful environment. The estimated price for this product is $107.69, and it was launched in late 2020.

• Quiet output won’t disturb sleep
• Adjustable mist control
• Includes free demineralization cartridge to help trap impurities in the water

Detailed Specifications

The Vicks Ultra Quiet Cool Mist Humidifier V5100NS has the following key features:

• Dual tank design with a combined 1.9-gallon capacity
• Ultrasonic cool mist technology
• Up to 36 hours of operation on low setting
• Covers up to 1000 square feet
• Whisper-quiet operation
• Automatic shut-off
• Easy-to-fill tank with handle
• Transparent tank for easy water level monitoring
• Reset indicator light
• Compatible with Vicks VapoPads

Using Your Vicks UltraQuiet Cool Mist Humidifier

First Time Use

Read all instructions before using this appliance. Unpack and remove all packing material from the Water Tank, Mist Nozzle, and Base. Completely unravel the power cord and place the unit on a flat, stable surface. Remove the protective wrapper from the Demineralization Cartridge and place it into the unit as shown. Follow the directions below to fill and operate the humidifier.

Filling the Water Tank

Always UNPLUG the humidifier before filling.

1. Remove the Water Tank from the Base and turn it upside down. Turn the Tank Cap counterclockwise to open. Rinse and wipe clean.
2. Fill the Water Tank with clean, cool, tap water and replace the Tank Cap by firmly turning clockwise. Turn the Tank upright and check the Tank Cap for leaks. If any water drips from the Tank Cap, remove it and re-tighten. Use of very cold water may temporarily reduce the mist output. Never fill the humidifier with hot or warm water as this could cause damage and void your warranty. To avoid white dust, we recommend using a Protec Demineralization Cartridge (Model PDC-51) and replacing it after 30-40 fillings. If you live in an extremely hard water area you may also wish to use distilled water to further reduce white dust. Refer to About White Dust section.
3. Inspect the Base and Nebulizer for cleanliness. Refer to the Care and Cleaning section.
4. Replace the Water Tank on the Base.

Description

A high-performance humidifier that helps relieve dry air and congestion, the Vicks Ultra Quiet Cool Mist Humidifier V5100NS produces a calming cool mist. This humidifier's twin tank design makes it simple to fill and allows it to run on low for up to 36 hours. A great option for offices and bedrooms, the ultrasonic cool mist technology guarantees a silent operation. Vicks VapoPads, which can offer extra relief from cold and flu symptoms, are also compatible with the V5100NS. The automatic shut-off feature of this humidifier guarantees your safety and comfort. The clear tank makes it simple to check the water level, and the reset indicator light serves as a helpful reminder to top off the tank as needed.

Operating Instructions

1. Do not operate the humidifier without water in the Water Tank.
2. After filling the humidifier, be sure the Power Knob is in the OFF position, then plug the power cord into a 120-volt AC wall outlet.
3. Turn the Power Knob to the On position and then set mist intensity.
4. Mist will not appear immediately; allow a few minutes for the water to fill the Reservoir. If you are using a new Demineralization Cartridge, it may take up to fifteen minutes for the filtering material to become saturated and for mist to appear.
5. Direct the Mist Nozzle away from walls and furniture. If condensation forms on walls or windows, or if indoor relative humidity exceeds 50%, reduce mist intensity setting, open the door to the room where the humidifier is operating, or turn the unit off.
6. If mist is not produced, unplug the cord and check the Water Sensor in the Reservoir to ensure it is in contact with the water. The water level in the Base must be high enough to partially immerse the Water Sensor in order for the humidifier to work.
7. Turn the humidifier off before removing and refilling the Water Tank. When the tank is empty, the mist will stop although the fan will continue to operate.

White Dust

Hardness of water can vary greatly depending on the area. Hard water contains higher-than-normal levels of various minerals which can be emitted into the air (often referred to as “white dust”) possibly causing adverse reactions to people with breathing difficulties. The white dust is not caused by a defect in the humidifier, but it is due to the minerals suspended in the water. To help reduce this effect, this humidifier is supplied with a Protec Demineralization Cartridge (Model PDC-51).

Protec Demineralization Cartridge

(Model PDC-51)

This humidifier may be supplied with a Demineralization Cartridge that removes minerals from the water. This prevents the precipitation of minerals (“white dust”) that can occur in hard water areas. The Demineralization Cartridge is designed to last for about a month to two months of normal use; the effective time will vary depending on the mineral content of the water used. If you live in a hard water area, we recommend the use of distilled water for better results from the humidifier. If you are using distilled water in the humidifier, you may find the Demineralization Cartridge unnecessary. And, if you choose, you may operate the humidifier without it. Replacement Cartridge Model PDC-51 should be available where you purchased the humidifier.

Scent Pad Heater Directions for Use

Your Vicks UltraQuiet Cool Mist Humidifier includes a Scent Pad Heater so that you can enjoy Vicks Soothing Menthol Vapors to increase your comfort. Each scent pad is designed to last for 6-8 hours of use.

1. Remove the Water Tank and locate the Scent Pad Slot on the Base under the Water Tank. (See page 4.)
2. Place one scent pad in the slot, being careful not to touch the scent pad with your hands. If your hands do come in contact with the pad, please wash them thoroughly as the menthol can be an irritant.
3. Replace the tank and turn the unit on. Vicks Scent Pads work with heat to gradually release soothing aromatic vapors. One complimentary menthol vapor scent pad is included with your unit.

WARNING: As long as your humidifier is on, the scent pad heater will also be activated. This area can be warm to the touch.

Recommended Usage for the Vicks Menthol Scent Pad (VSP-19/VSP-19-CAN):

• Not recommended for infants under 10 pounds.
• For children between 10-22 pounds, do not use more than 2 pads in a 24-hour period.

Ingredients: Eucalyptus Oil, Menthol, Glycol, Cedar Leaf Oil & Others

Daily Maintenance

1. Turn off and unplug your humidifier.
2. Remove the Water Tank and set it aside.
3. Gently pull the old scent pad out of the slot and discard.
4. Open refill pad and insert as described above.

Note: Additional Vicks VapoPad (VSP-19 and VSP19-CAN) or Vicks Sleepy Time VapoPad (VBR-5) can be purchased at most retailers, through Kaz Consumer Relations, or at http://www.kaz.com

Setup Guide

Setting up the Vicks Ultra Quiet Cool Mist Humidifier V5100NS is easy and straightforward:

1. After taking the humidifier out of the box, use warm, soapy water to clean the base and tank.
2. Up to the fill line, pour clean water into the tank.
3. Make sure the tank is firmly in place by placing it back onto the base.
4. After plugging the humidifier in, choose the mist setting you want.
5. For added relief from cold and flu symptoms, place a Vicks VapoPad in the scent pad holder (optional).

Care and Cleaning

CAUTION: ALWAYS TURN THE POWER KNOB TO THE OFF POSITION AND DISCONNECT THE POWER CORD FROM THE ELECTRICAL OUTLET BEFORE CLEANING.

1. Lift the Water Tank from the Base and empty all water from the Reservoir. Remove the Tank Cap and drain any water from the Water Tank. Wipe it clean with a soft, damp cloth. The Mist Nozzle should be removed during cleaning to prevent damage.
2. Do not immerse the Base in water. Gently wipe the Reservoir with a soft, clean, wet cloth. Do not attempt to remove or in any other way modify the Water Sensor. Use care when wiping around the Water Sensor; it is delicate and can be easily damaged. Rinse the Water Tank with lukewarm water after each use. For storage, wipe dry with a soft, clean cloth. Keep water away from the Air Outlet.
3. Do not use detergent to clean any water-containing parts of the humidifier. Detergents and the film they leave behind can affect the output of the humidifier. Do not use abrasive cleansers or brushes.
4. Do not leave water in the Water Tank or Reservoir when the unit is not in use as it may result in the build-up of mineral deposits and bacteria that can inhibit the output efficiency of the humidifier. Please note that if water remains in the Water Tank for more than a day or two, bacterial growth is possible.

Weekly Maintenance

1. Thoroughly clean the humidifier every week using a solution of bleach and water (one teaspoon of bleach in one gallon of water). Fill the Water Tank partially with this solution, let stand for twenty (20) minutes, shaking vigorously every few minutes, drain, and rinse with clean water until the bleach smell is gone.
2. Wipe the Reservoir with a soft cloth dampened in the solution. Rinse the area thoroughly before proceeding.
3. If mineral deposits are evident around the Nebulizer and Water Sensor, clean their surfaces with a soft, clean cloth and a small amount of undiluted white vinegar. If necessary for the removal of mineral deposits, mix a solution of 50% white vinegar and 50% water and fill the Base with enough solution to cover the Nebulizer. Allow it to soak for an hour. Then use a cotton swab to gently loosen buildup on the Nebulizer. Rinse out the Reservoir and wipe clean. Do not touch the Nebulizer with bare fingers as any fingerprints or other residue can affect mist output. Be careful not to damage the Water Sensor.
4. Remove VapoPad when finished. Do not pour water or detergent into the Scent Pad slot. The Scent Pad slot can be cleaned with a cotton swab only.
5. All surfaces should be thoroughly cleaned with water before reuse.

End-of-Season Maintenance

1. Follow the above weekly cleaning procedure at the end of the humidification season, or when the humidifier will not be used for several days, being sure to dry all parts, including the inside of the Water Tank. Do not store with water inside.
2. Leave the Tank Cap partially loosened during storage to prevent the Tank Cap and gasket from sticking together. This will prolong the life of the gasket.
3. Clean the Water Tank and Base after long periods of storage.

Important Safety Instructions

READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS APPLIANCE

WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:

1. The appliance should always be placed on a firm, flat, waterproof surface at least four feet away from the bedside, five inches from the wall and out of reach of patients, children, and pets. Be sure the appliance is in a stable position and the power cord is away from heated surfaces and out of the way to prevent the humidifier from being tipped over.
2. The appliance should not be left unattended in a closed room since air could become saturated and leave condensation on walls and furniture. Leave room door partly open. Do not aim mist nozzle directly at children, walls, or furniture.
3. Before using the appliance, extend the cord and inspect for any signs of damage. Do not use the unit if the cord has been damaged.
4. The appliance has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
5. To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
6. The appliance should always be unplugged and emptied when not in operation or while being cleaned. Shut off and unplug the humidifier before moving. Do not move or tilt the humidifier while it is in operation. Plug and unplug the unit with dry hands. Never pull by the cord.
7. Do not operate the appliance without water. Turn off and unplug the unit when the tank is empty.
8. Caution: To avoid the risk of fire, shock, or personal injury, do not use an extension cord.
9. The appliance requires regular cleaning. Refer to and follow cleaning instructions.
10. Do not operate outdoors; this appliance is intended for indoor use.
11. Do not cover or insert objects into any openings on the unit.
12. Do not attempt to repair or adjust any electrical or mechanical functions on this appliance. Doing so will void your warranty.
13. For residential use only.
14. Do not place in direct sunlight, high-temperature areas, or near computers or sensitive electronic equipment.
15. Do not touch the nebulizer while the unit is plugged in as burns could result.
16. Do not touch skin with exposed Vicks VapoPads® or place on furniture, fabrics, bedding, or plastics.
17. Do not add any medications (e.g. Kaz Inhalant or Vicks VapoSteam) into Nozzle, Base, reservoir, or Water Tank.

Troubleshooting of Vicks Ultra Quiet Cool Mist Humidifier V5100NS

Warranty

This Ultra Quiet Cool Mist Humidifier is warranted against defective material or workmanship for a period of one year from the date of purchase. Any defective part will be repaired or replaced at no charge if it has not been tampered with and appliance has been used according to these printed directions. Warranty does not cover the demineralization cartridge; performance of the demineralization cartridge depends on the mineral content of the water used in the humidifier.

Pros & Cons

Pros

• Dual tank design with a large water capacity
• Ultrasonic cool mist technology for a quiet operation
• Covers up to 1000 square feet
• Easy-to-fill tank with handle
• Transparent tank for easy water level monitoring

Cons

• Some users have reported issues with mineral buildup
• The scent pad holder may not fit some VapoPads

Vicks Customer Reviews

Customers have praised the Vicks Ultra Quiet Cool Mist Humidifier V5100NS for its quiet operation and large water capacity. Many users have also reported that the humidifier has helped them relieve cold and flu symptoms. However, some users have reported issues with mineral buildup and the compatibility of VapoPads with the scent pad holder.
