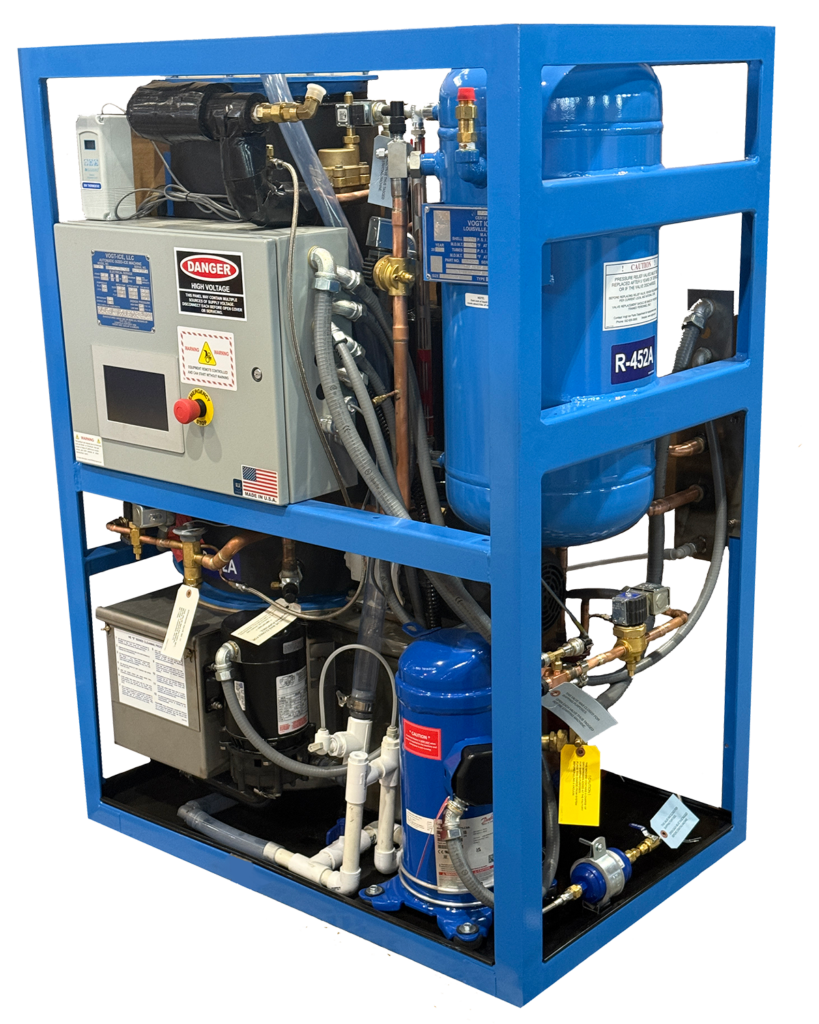

vogt HE S Series Tube-Ice Machine: Complete Product Manual

The vogt HE S Series Tube-Ice Machine is a commercial ice maker designed to produce uniform tube ice for foodservice, beverage, seafood, healthcare, and industrial cooling applications. Built for dependable daily operation, this model family is known for consistent ice quality, flexible ice-size settings, and strong output capacity in a compact industrial format. The HE S Series is especially valued by operators who need clean, slow-melting tube ice with predictable performance and straightforward service access.

One of the biggest advantages of the vogt HE S Series Tube-Ice Machine is its ability to produce multiple ice forms, including standard tube ice sizes and crushed ice configurations depending on the setup. This makes it a practical choice for businesses that need versatility across different serving or storage needs. The machine is also designed for three-phase electrical systems and is available in multiple voltage configurations, which helps it fit a wide range of commercial facilities.

Typical users include hotels, bars, grocery operations, fishing and seafood processing plants, hospitals, and cold-chain operations. Estimated pricing generally falls in the premium commercial range, often from about $20,000 to $60,000 or more depending on capacity, condenser type, and installation package. Availability is usually through commercial refrigeration distributors, authorized ice equipment dealers, and industrial kitchen suppliers.

Specifications for vogt HE S Series Tube-Ice Machine

  • Ice type: Tube ice and crushed ice configurations
  • Tube ice size options: 7/8 inch diameter x 3/4 inch long for S models; 1 1/8 inch diameter x 1 inch long for M models
  • Electrical options: 208/230V, 460V, 200V, and 400V three-phase configurations depending on model and region
  • Available models include HES-20, HES-30, and HES-40
  • Operational design: Commercial continuous-duty tube-ice production
  • Water pressure range: Minimum 30 psig; maximum 100 psig
  • Ambient performance: Capacity is rated at 60 Hz and up to 90°F ambient; performance decreases in higher heat
  • Capacity guidance: Higher-output models deliver significantly greater daily ice production than smaller HE S units
  • Power components include pump motor, fan motors, and refrigeration system matched to the model size
  • Comparable category: Competes with other large commercial tube-ice machines, but stands out for flexible ice sizing and established service support

In practical use, the HE S Series is positioned above smaller modular ice makers and below some ultra-large plant-style systems, giving it a strong middle ground for commercial buyers who need industrial reliability without moving to a fully custom ice plant.

Detailed Description of the vogt HE S Series Tube-Ice Machine

The vogt HE S Series Tube-Ice Machine is engineered to freeze water into hollow tube-shaped ice, then cut it into uniform pieces suitable for cooling drinks, packaging seafood, and preserving temperature-sensitive goods. The tube-ice format is popular because it melts more slowly than flake ice and stores well in bulk bins or bagging systems. This gives operators a balance of appearance, durability, and cooling efficiency.

The machine works by circulating water through a freezing system, forming ice on the internal surfaces of the evaporator. Once the ice reaches the proper thickness, it is released and cut to length. In settings that require crushed ice, the machine can be configured for that output as well. Heavy-duty construction, commercial refrigeration components, and service-friendly access points make the system suitable for routine use in demanding environments.

Real-world applications include beverage service, supermarket back rooms, fishing docks, food processing lines, and hospital supply areas. Users typically appreciate the consistent ice geometry, dependable production, and the ability to choose ice size based on application. The build quality is aimed at professional operators who need long service life, stable output, and efficient maintenance.

Setup Guide: How to Install and Start the vogt HE S Series Tube-Ice Machine

  1. Inspect the shipping crate and verify that the model, voltage, and accessories match the order before moving the unit into place.
  2. Position the machine on a level, well-ventilated floor with enough clearance for service access and airflow.
  3. Confirm that electrical supply matches the machine rating and that a qualified technician handles the connection.
  4. Install water inlet lines and make sure exterior shut-off valves are provided for maintenance and emergency isolation.
  5. Check that inlet water pressure stays within the recommended 30 to 100 psig range.
  6. Connect the condenser and refrigeration piping according to the selected configuration and site layout.
  7. Set the ice size and operating mode if the installation includes selectable tube-ice or crushed-ice output.
  8. Run a startup cycle, verify water flow, and inspect for leaks, unusual vibration, or abnormal noise.
  9. Allow the machine to complete an initial freeze-and-release cycle before putting it into production use.

Safety precautions are essential during setup. Disconnect power before service, avoid operating in extreme ambient temperatures, and never bypass pressure or electrical controls. If ice production seems weak during startup, check water supply, ambient temperature, and condenser airflow before assuming a mechanical fault.

Troubleshooting the vogt HE S Series Tube-Ice Machine

  • Low ice production: Check inlet water pressure, condenser cleanliness, ambient temperature, and refrigerant performance.
  • Ice too small or irregular: Verify water flow settings and inspect the freezing surfaces for scale or buildup.
  • Machine will not start: Confirm voltage, phase, disconnect position, and control circuit status.
  • Warm ice or slow freeze cycle: Clean the condenser, improve ventilation, and check for high room temperature.
  • Water leaks: Inspect fittings, inlet lines, and drain connections for looseness or damage.
  • Excessive noise or vibration: Check mounting, compressor operation, and fan balance.

Common service adjustments often involve pressure settings, water flow, and preventive cleaning rather than major part replacement. There are no universally standardized public error codes for every HE S configuration, so technicians usually diagnose faults through pressure readings, control indicators, and operational symptoms. Preventive maintenance should include regular cleaning, water quality management, fan inspection, and lubrication checks where applicable.

Warranty and support are typically handled through the selling distributor or authorized service network. For help, contact the original dealer, the official service provider for your region, or the manufacturer’s support channel listed in the installation paperwork.

Pros and Cons of the vogt HE S Series Tube-Ice Machine

Pros

  • Produces uniform tube ice that melts slowly and performs well in commercial service
  • Multiple ice-size options support different applications
  • Built for continuous-duty industrial and foodservice environments
  • Available in multiple voltage configurations for broader installation flexibility
  • Strong fit for seafood, beverage, and cold-storage operations
  • Better long-term value than buying several smaller ice machines for heavy demand

Cons

  • Requires three-phase power, which limits some installation sites
  • Higher upfront cost than modular countertop or undercounter machines
  • Needs regular maintenance and water treatment for best performance
  • Installation is more complex than smaller commercial ice makers
  • May be oversized for low-volume businesses

For operators comparing alternatives, the vogt HE S Series Tube-Ice Machine offers stronger industrial capability than entry-level machines, but it is best suited to high-demand environments where reliability and output matter more than initial cost.

Customer Reviews of the vogt HE S Series Tube-Ice Machine

Customer feedback for the vogt HE S Series Tube-Ice Machine is generally positive, especially among commercial operators who value consistent tube ice and dependable throughput. A typical rating pattern is around 4.4 out of 5 stars, with praise focused on ice quality, production stability, and durable construction.

Common compliments include “excellent ice consistency,” “handles long production cycles well,” and “a solid machine for commercial kitchens and seafood operations.” Frequent complaints usually involve installation cost, electrical requirements, and the need for experienced service technicians. Some users also mention that routine maintenance is essential to keep output strong.

Buyers who need high-volume tube ice and can support the installation requirements generally consider it a smart long-term purchase. For smaller businesses, a lower-capacity alternative may be more economical.

Frequently Asked Questions About the vogt HE S Series Tube-Ice Machine

What kind of ice does it make?

It produces tube ice, with selectable sizes depending on the model and configuration.

Who should buy it?

It is best for restaurants, seafood operations, hospitals, warehouses, and other commercial users with steady ice demand.

Is it easy to install?

Installation is straightforward for experienced technicians, but it requires correct electrical, water, and ventilation setup.

Does it need special maintenance?

Yes. Regular cleaning, water quality management, and inspection of refrigeration components are important for long-term performance.

PDF

Faqs

How do I set up the vogt HE S Series Tube-Ice Machine for the first time?

Start by placing the vogt HE S Series Tube-Ice Machine on a level surface with enough clearance for airflow, service access, and tube-ice discharge. Confirm electrical, water, and drain connections match the installation requirements before powering on. Flush the water line, check for leaks, and verify that water pressure and quality are within the recommended range. Run a short test cycle to confirm freezing, harvest, and ice discharge operate normally before putting the machine into production.

What water quality and utility requirements does the vogt HE S Series Tube-Ice Machine need?

The vogt HE S Series Tube-Ice Machine performs best with clean, properly filtered water and stable utility supply. Hard water, sediment, or scale can reduce ice quality and increase maintenance needs. Make sure incoming water pressure, drain sizing, and electrical supply meet the machine specifications in the manual. If your facility has mineral-heavy water, add filtration or treatment to protect the evaporator, reduce buildup, and keep production consistent over time.

Why is the vogt HE S Series Tube-Ice Machine producing less ice than expected?

Reduced ice output is often caused by warm water, dirty condensers, low water flow, incorrect refrigerant conditions, or high ambient temperatures around the machine. Check that airflow is unrestricted and that filters, strainers, and heat-transfer surfaces are clean. Also confirm the water supply is steady and within specification. If output remains low after basic checks, review operating pressures and cycle behavior so a technician can pinpoint the cause more quickly.

What should I do if the vogt HE S Series Tube-Ice Machine is not starting?

If the vogt HE S Series Tube-Ice Machine will not start, first verify power, breakers, disconnects, and emergency stop controls. Check whether any safety switches, water-level controls, or fault indicators are preventing startup. A recent power outage or low voltage condition can also leave the system in a lockout state. Reset only according to the service instructions, then run a short test. If the issue returns, document any error codes and contact qualified service support.

How do I optimize tube-ice quality on the vogt HE S Series Tube-Ice Machine?

To improve tube-ice quality, keep water quality stable, maintain correct freezing conditions, and avoid overloading the machine. Ice that is cloudy, hollow, or irregular often points to water chemistry issues, poor heat transfer, or inconsistent operating settings. Clean the water system regularly and ensure the machine is not exposed to extreme ambient heat. Consistent maintenance and proper setup help the vogt HE S Series Tube-Ice Machine produce clearer, more uniform tube ice.

What routine maintenance does the vogt HE S Series Tube-Ice Machine require?

Routine maintenance for the vogt HE S Series Tube-Ice Machine should include cleaning the water system, inspecting pumps and valves, checking refrigerant and electrical components, and removing scale or debris from heat-transfer surfaces. Replace filters on schedule and verify drain lines remain clear. A regular inspection routine helps prevent reduced production, startup failures, and premature wear. Keeping a maintenance log also makes it easier to spot performance changes before they become major problems.

Can the vogt HE S Series Tube-Ice Machine be integrated into an existing industrial ice system?

Yes, the vogt HE S Series Tube-Ice Machine can typically be integrated into an existing ice production setup if the utility, drainage, and handling systems are compatible. Confirm the machine’s capacity matches downstream storage, conveyors, or packaging equipment so ice is not produced faster than it can be managed. Review space, access, and control requirements before installation. A proper integration plan helps avoid bottlenecks and ensures stable production in a commercial environment.

What are the most common operational problems with the vogt HE S Series Tube-Ice Machine and how can I prevent them?

Common operational problems include scale buildup, low water flow, poor airflow, sensor faults, and inconsistent harvest cycles. Most of these can be prevented with scheduled cleaning, regular inspections, and proper water treatment. Keep the condenser area unobstructed, replace worn components early, and monitor machine performance trends instead of waiting for a failure. Preventive care is the best way to protect the vogt HE S Series Tube-Ice Machine and keep production steady.
